MODEL DESCRIPTION
F7VW+C.MO
Super LED F7
VW + Color - Tunable White +RGBA, Manual Operated
F7VW+C.PO
Super LED F7
VW + Color - Tunable White +RGBA, Pole Operated
WHAT’S INSIDE
FIXTURE HEAD
175 mm. (7”) diameter Fresnel lens
POWERCON IN & OUT PANEL CONNECTORS.
XLR 5 Pin DMX IN & OUT PANEL CONNECTORS.
170W LED engine with White LEDs (CCT) from
2.800°K till 6.600 °K and Red, Green, Blu and
Amber phoshors based - extended CCT in ULTRA
CRI mode from 1.800°K to 12.000°K
Built In Universal Power Supply 90-250V
50/60Hz DMX controlled.
YOKES
Manual Operated Versions
Mod. LT310.110.40 M.O. stirrup with 28,57 mm
(B.S. 1 1/8”) with top end for “C” clamp
Pole Operated Versions
Mod. 311.110.40 P.O. yoke with 28,57 mm.
spigot (B.S. 1 1/8”), with top end for “C” clamp
ACCESSORIES
Mod. 316.100 four leaf rotating barndoor
Mod. 317.100 color frame
CABLES
Mod. 5403.135 3 mt. (9.8 ft) detachable Blue
POWERCON power cable with bare ends.
DMX cable is not included, to be ordered
separately

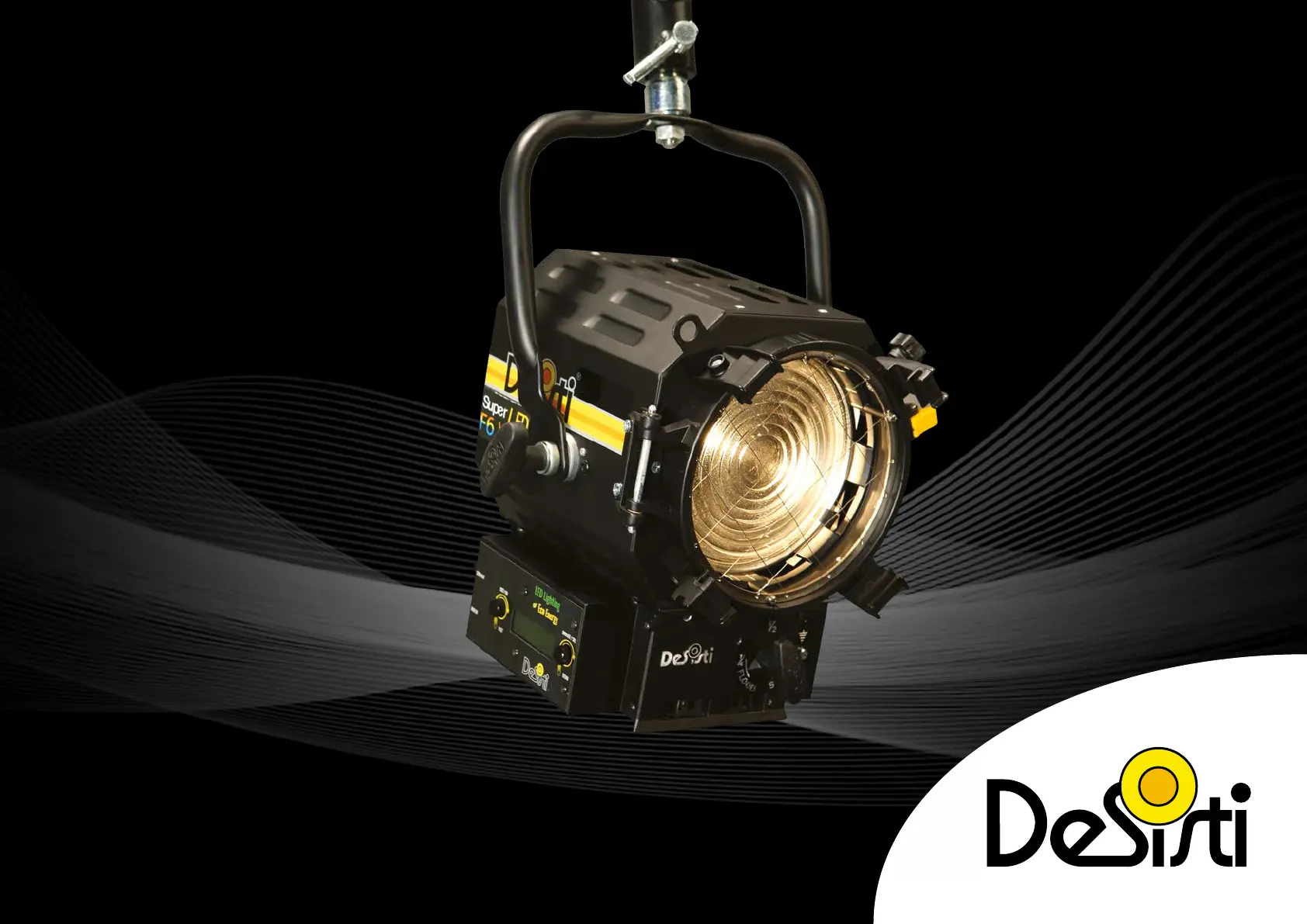

LED Fresnel Spotlight 170W Vari-White + Color - CRI>95
White light
with addition of RGBA Phosphor color LEDs
, Tunable Correlated Color Temperature from 1.800 to 12.000°K
SUPER
LED
F
7 VW+C
OVERVIEW
The Super LED F7 Vari-White + Color maintains the high eciency DE SISTI Internationally Patented
optical system for LED FRESNEL while oering the possibility to color the scene and use eects without compromising the quality of
the white light emission.
The same Bi-Color White Leds of the appreciated Vari-white range are being utilized but now with a new addition of red, green,
blue and amber leds production unmatched White Color output with supreme color saturation. The color chips are also revolu-
tionary as they are phosphors based which allows color stability through all the situations and through lifetime of the LED
De Sisti F7 VW+Color is controlled through 9 modes
1) RGBAWW mode: 6 channels color mixing
2) GEL mode: Preset Gels + Referral source
3) Variwhite + color mode: Tunable White + RGBA
4) Variwhite + saturation mode: Tunable White + color correction (+/- green + Cyan and +Amber)
5) Ultra CRI mode: CCT from 1.800°K to 12.000°K with +/- Green
6) HSI mode: Hue Saturation intensity (User can select the Gamut between Standard and REC709)
7) XY mode: X, Y coordinates (extremely precise as based on 4 colors instead only on RGB)
8) FX mode: Eects
9) Sources mode: Preset Sources
The fixture combines the classical SPOT/FLOOD beam control on an equivalent FOCUS RANGE to a
conventional lamp fresnel, with an excellent barn door cutting.
It utilizes Standard accessories from the DE SISTI range of equivalent Fresnel Lens size, such as
Barndoor, Color Frame, Cones, Scrims.
