Programmable Room

Thermostat

Installation Guide

Digistat

3r Generationd

(Fi 3)g

3 .a Complete the wiring ac cording to the conn ction e

suggestions

shown in (Fig 3).

Model:

2290M

Technical Helpline Tel: 0333 6000 622

Website: www.draytoncontrols.co.uk

Email: customer.care@draytoncontrols.co.uk

User nd InstallationGuide06490309001Iss a E

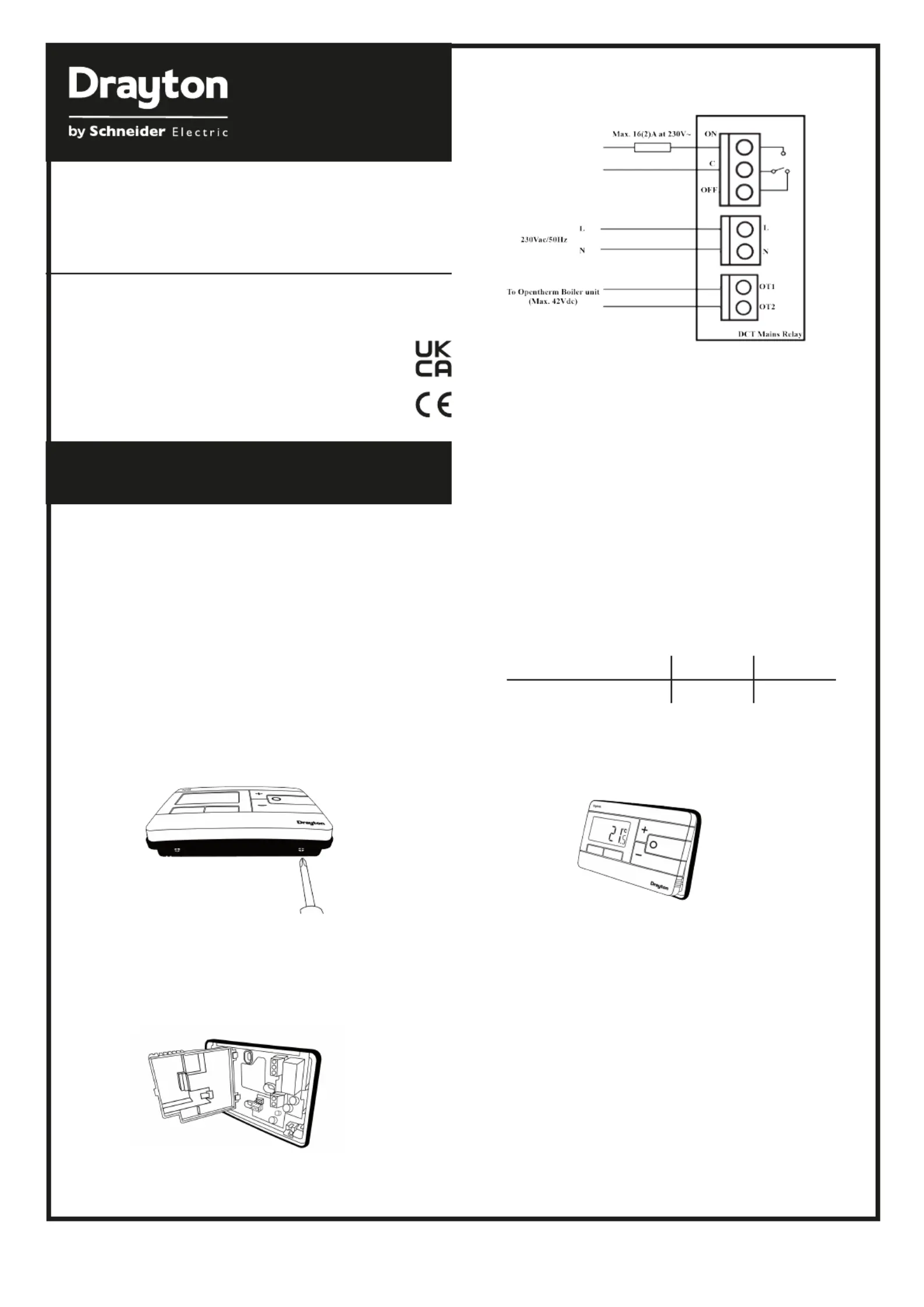

BeforeInstallation

If you do not have the knowledge to install the thermostat

safely then you must arrange for a competent electrician or

heating egineer to install it for you. Wiring must conform to the

current IEE regulations.

Prior to commencing the installation you must ensure the

mains supply is switched off.

1. Remove the front cover by releasing the 2 screws at the

bottom. Mounting holes and electrical connections are

found underneath the hinged black cover (Fig 1).

(

Fig 1)

(Fig 2)

2. Fix back plate directly onto the wall using suitable wall plugs

and screws or mount over existing wall box (Fig 2).

(Fig 4)

3b. If your boiler supports OpenTherm please follow these

instructions:

RemovetheOpenThermcables from

the existing controller or

thermostat. Connect the cables to the OpenTherm terminals

OT1 and OT2 on th . Polarity is not important.e Digistat

Wire L and N from a separate supply with a 3A fuse.

Note that when connected to an OpenTherm boiler, Installer

Options 06 Valve Protection and 08 Application Type are not

available. The following options will appear in the Installer

Options list:

. Close the black hi

nged terminal cover and replace the front

cover by locating the two latches at the top then fasten the 2

screws at the bottom (Fig 4).

5. The is now installed and will automatically start to Digistat

control the room temperature.

10 Upper CH water set point 30-80°C Default 70°C

11 Lower CH water set point 10-25°C Default 10°C

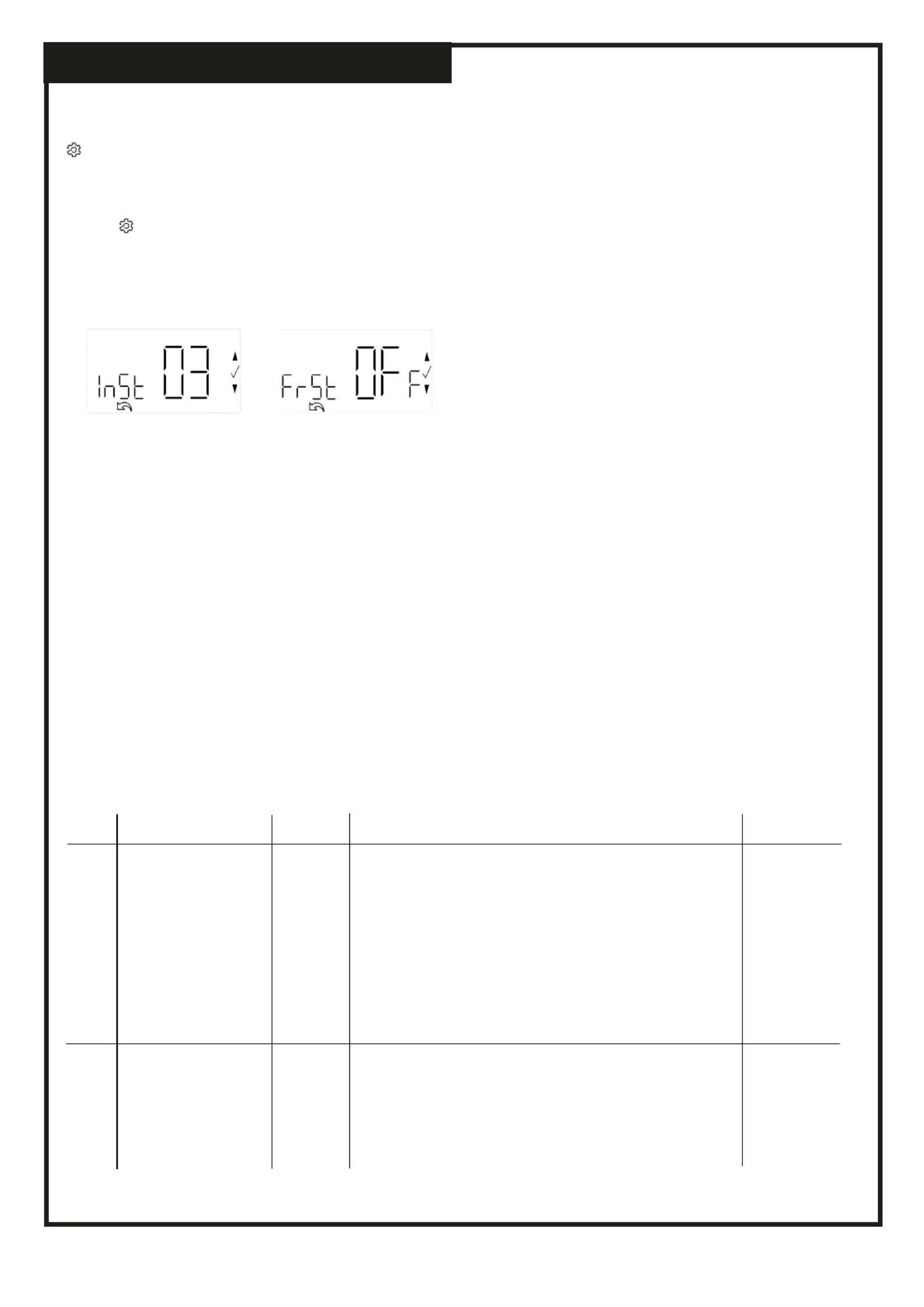

INSTA ER OPTIONSLL

To make s change to e th default Installer Option show below, s n

ente th Installe Option nu b pressing th setting tton r e r s me y e s bu

for 3 se onc ds. Thi allow acces t th User Men 01s s s o e u , the

Advance User Setting Men 02 th Installer Setting 03 and d s u , e s ,

Servic Interva Setting 04. Us th + an - e l s e e d button t scrol to s o l

Installe Options and press O to select You can exit the menu by r .

pressing til un you have d returne to the e hom screen. In the

Installer Options menu (Fig 5, scroll thro gh the options using u

th + an - e d button an pres ts d s O o select. Scrol thr ghl ou th

different settings using the + and - buttons and O press to

select and save. (Fig shows 6 Option 02 OFF).

(Option 01) Partial Assistant (beep)Sight

When enabled, audible tones indicate when the setpoint is

more than, less than or equal to the current room

temperature when a user manually adjusts the setpoint using

the + button: Setpoint > room temperature - single high tone

per 0.5°C increase Setpoint = room temperature - double tone

Setpoint < room temperature - single low tone per 0.5°C

decrease

(Option 02) Frost Protection

The Digistat will switch on the heating if the temperature falls

to 5°C and maintains a temperature of 7°C even when

in OFF mode.

(Option 03) Minimum Set Point Limit

Change minimum setpoint temperature. After any changes to

setpoint limits, all setpoints in AUTO, MANUAL, BOOST and

HOLIDAY modes will be modified to conform accordingly.

(Fig 5) (Fig 6)

(Option 04) Maximum Setpoint Limit

Change maximum setpoint temperature. After any changes to

setpoint limits, all setpoints in AUTO, MANUAL, BOOST and

HOLIDAY modes will be modified to conform accordingly.

(Option 05) Optimum Start

When enabled, this uses current ambient temperature, the

next scheduled setpoint and heat gain data captured by the

device to adjust the thermostat setpoint early, so the ambient

temperature is at the required level when the next event starts.

Delayed Start

When enabled, this uses current ambient temperature, current

event setpoint and heating characteristics of the environment

to delay implementation of the setpoint if the ambient

temperature is already close to it, therefore saving energy.

(Option 06) Valve Protection Time

In some hydronic heating systems it may be required to

protect the valve by operating it for a given time. When

enabled, this maintenance feature ensures that each relay

output is operated for at least one (1) minute each week.

(Option 07) Sensor Fault Function

In the event of a sensor fault, central heating output is

reduced to 30% by turning heating ON for 3 minutes, then

OFF for 7 minutes.

(Option 08) Application Type

Select the central heating system energy type.

(Option 09) System Capability

Select the flow capability of the heating system.

(Option 13) Installer Settings Lock

When enabled, you can lock the installer settings until a 3 digit

code is entered. If the code is forgotten while device is locked,

please call the Technical Helpline.

(Option 20) Reset (Service Interval settings are NOT reset)

Reset the Digistat to its original factory settings.

Service Interval Options continued on reverse.

What is it

What is itWhat is it

Select

Select Select between

between

betweenbetween

Default

DefaultDefault

Installer

Installer Installer Options

Options

OptionsOptions

F O

5 High Limit

Low Limit 30

OFF Del Startayed Optim Startum

OFF

OFF 5 4 3 2 1

OFF

OFF ON

OFF

Gas Electric Oil Heat Pump

Gas

Fast Flow FlowNormal/Slow

Fast Flow

OFF ON

OFF

Partial Sight Assistant

rost Protection

Low Set Point C

High Set Point C

ptimum Start

Valve Protection Time (Mins)

Sensor Fault Function

Application Type

System Capability

Installer Settings

Lock Reset

NO YES

Service Internal Options

Service Internal OptionsService Internal Options

01 Si Status

OFF ON

OFF

02 Si Type

Reduced Comfort Heating OFF No Effect

Reduced Comfort

03 Si Due Date

/MM/DD

04 Si Warning

0 9

05 Si Due Alarm

OFF ON

OFF

06 Si Boost

OFF ON

07 Si Password Reset

Select 4-digit PIN

OFF

0000

Screen

ScreenScreen

Abbreviations

AbbreviationsAbbreviations

bEEP

FrSt

LoSP

HiSP

OPSt

vPrt

SEnS

APPL

SySt

LOC

rSEt

StAt

tYPE

dUE

WArn

ALAr

bSt

COdE

Xit
