INSTALLATION INSTRUCTIONS
SAVE FOR FUTURE USE
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
7302018-100 Rev. B (5/18)

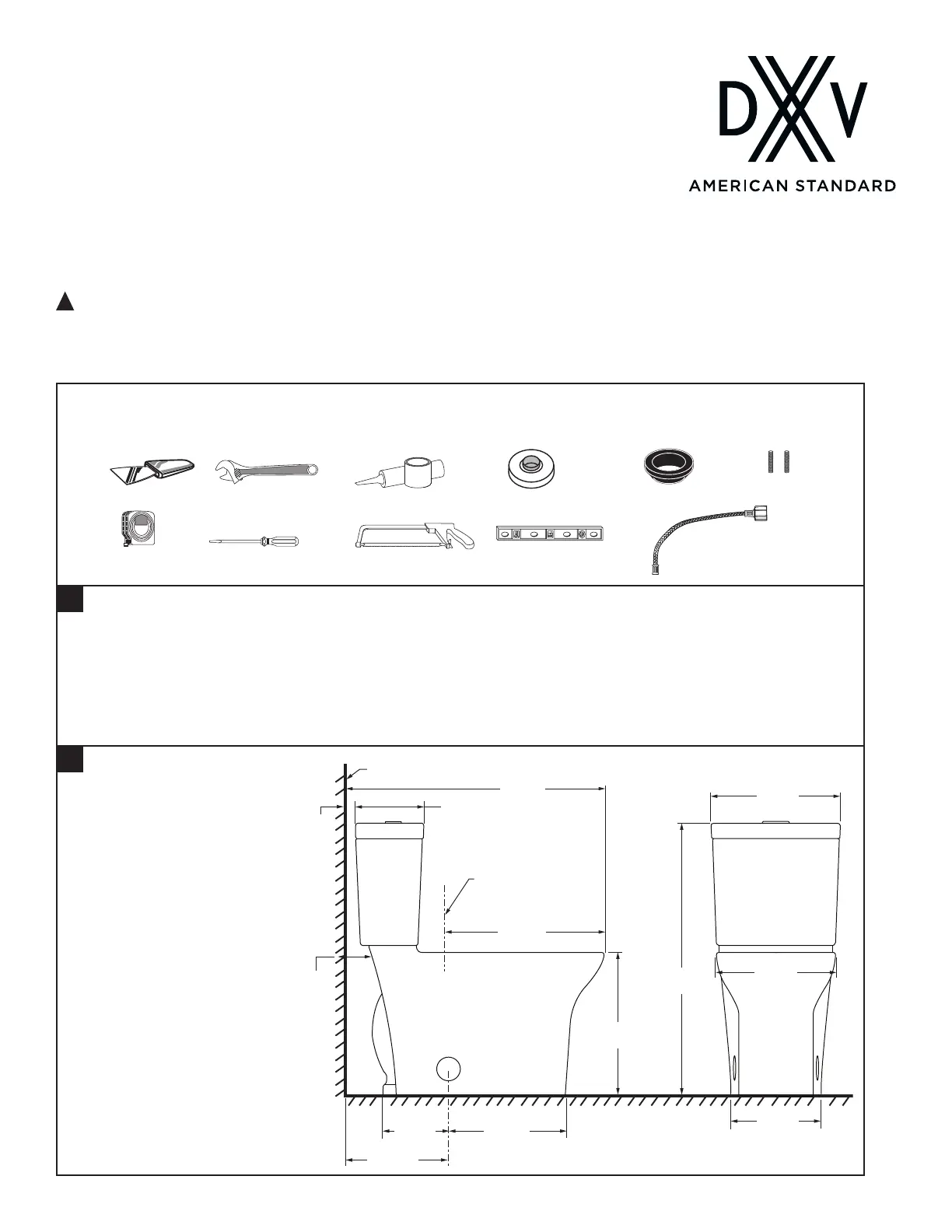

RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is tessential that the tools and materials be on hand before work is begun.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.
!
Equility
™
(Formerly LYNDON
®
)
Dual Flush
Concealed Trapway
Right Height
®
, Elongated Model D2210AA200
GasketWax Ring
Regular Screwdriver
10'
Level Flexible Supply Tube
Closet Bolts
Putty Knife
Tape Measure
Hacksaw
SealantAdjustable Wrench
a. Close toilet supply valve and ush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug oor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from ange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
NOTE: Distance from wall to
closet flange centerline must
be as listed below:
IMPORTANT: Water supply on
the wall is required at 2-1/4" or 8"
from centerline of the toilet (see
rough-in). First suggested
position is hidden behind the
toilet. The geometry of the toilet
gives space for this installation.
The second suggested position is
next to the toilet. Between these
two positions, the space for the
supply between wall and toilet is
limited to 4-1/2". In this case,
check your supply and hose
dimensions.
1
2
REMOVE OLD TOILET
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES
ROUGHING-IN DIMENSIONS:
30-3/16"
(767 mm)
7-15/16"
(20 1mm)
1-1/8"
(29 mm)
18-1/2"
(470 mm)
4-1/4"
(108 mm)
7-11/16"
(195 mm)
13-11/16"
(347 mm)
16-1/2"
(419 mm)
15-1/8"
(384 mm)
10-5/8"
(270 mm)
31-9/16"
(802 mm)
12"
FINISHED
WALL
C/L OF SEAT POST
HOLES 5-1/2"
(140 mm) CENTERS
14"
(356 mm)
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
