Hardware Package (included):
Turn off the power at fuse or circuit box
Installation Steps
1. Remove the EVA plugged between glass shade and bend bars.
2. Attach the mounting strap unit (A) to the outlet box by using two
mounting screws (B).
3. Unscrew four bolt nuts and four rubber pads to remove the
metal frame from the fixture.
4. Install a bulb (not included). See relamping label at socket
area or packaging for maximum wattage allowed.
5. Attach the metal frame back to fixture, and then secure it
with four rubber pads and four bolt nuts.
6. Adjust the length of the chain (G) you needed, then weave the
fixture wire and the fixture ground wire through the chain (G),
collar (E) and canopy (D).
7. Connect one end of the chain (G) with the loop by using a quick
link (F).
8. Connect the other end of the chain (G) with the top loop by using
another quick link (F).
9. Thread the fixture wire and fixture ground wire through the
threaded pipe on the mounting strap unit (A).
Mounting Strap Unit (A) Wire Connector (C)
Collar (E)
Mounting Screw (B)
Canopy (D)
Quick Link (F)
Chain (G)
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0219
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
231229
Page 1 / 2

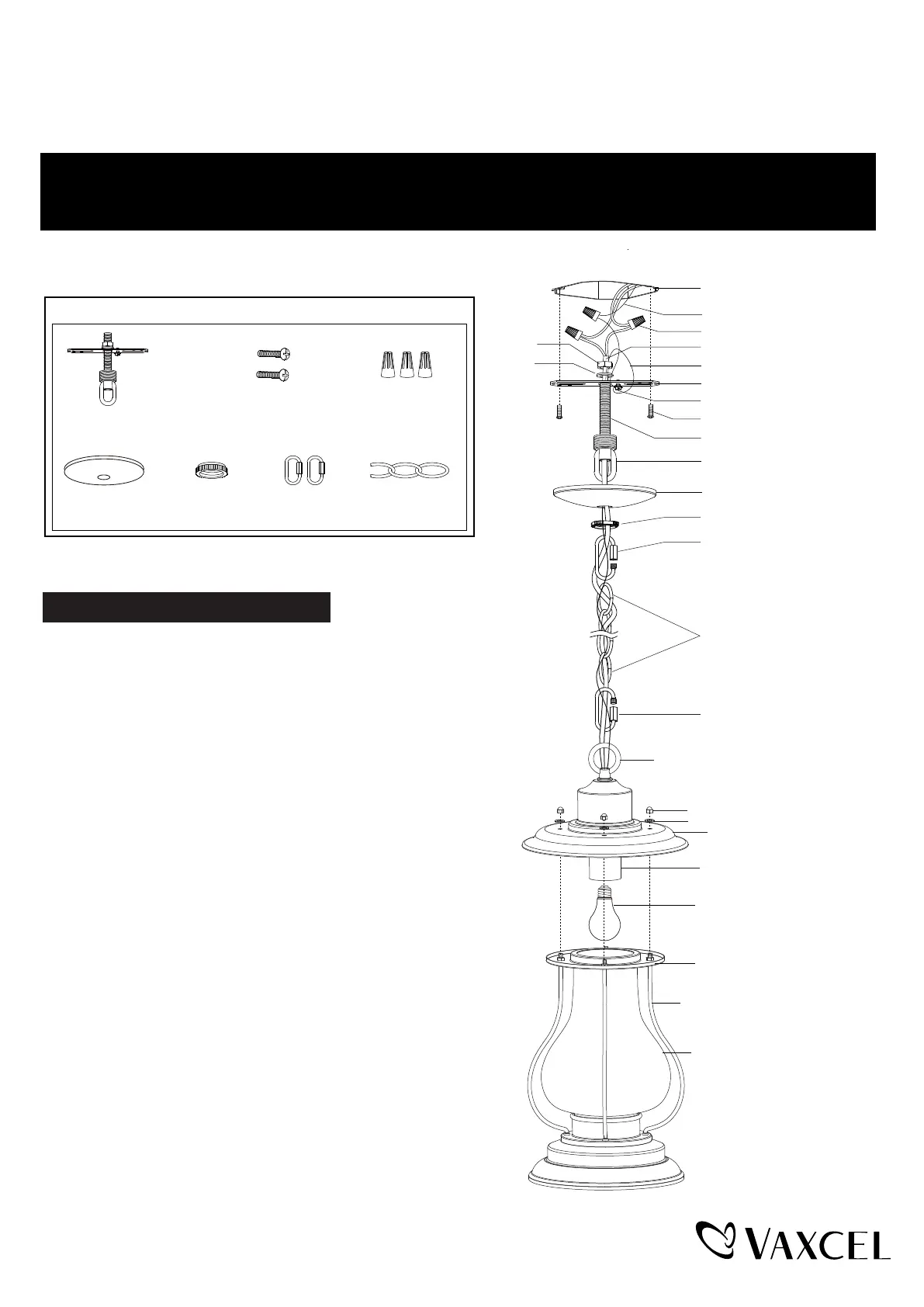

Canopy (D)
Collar (E)
Quick Link (F)
Quick Link (F)
Chain (G)
Loop
Bolt Nut
Rubber Pad
Fixture
Metal Frame
Glass Shade
Bulb Type A Max.100W
(not included)
Bend Bar
Outlet Box
Housing Ground Wire
Wire Connector (C)
Fixture Wire
Fixture Ground Wire
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Threaded Pipe
Hex Nut
Washer
Top Loop
Socket
