OPERATION MANUAL
2 3
<<< English >>>

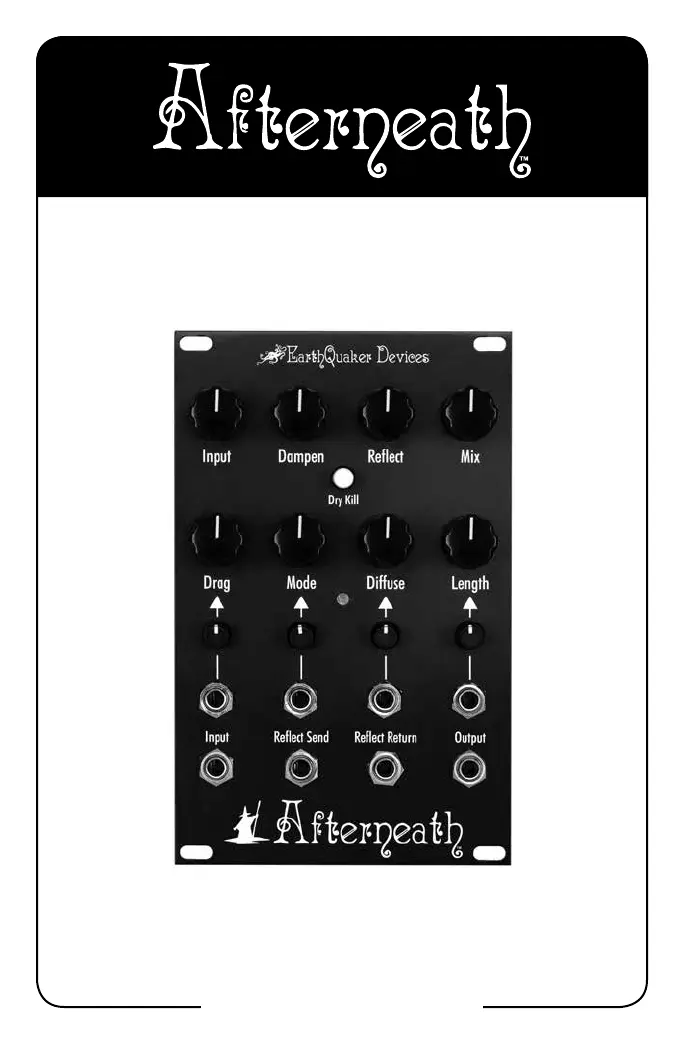

Welcome to your Afterneath
™
otherworldly reverberation machine from EarthQuaker Devices
®
!
The Afterneath sounds a lot like it looks – a wizard in a cave in a Eurorack module. You are
the wizard or sorceress, control voltage is your wand and the cave is your instrument’s vast,
expansive, and magical signal. Do you go inside?
The Afterneath module brings the otherworldly sounds from the effects pedal world right into
your modular synthesizer with an expanded feature set. The Afterneath module features one
main audio input, one main audio output, an audio send and return for the Reect feedback path,
and nine controls. Four of the parameters are controllable via CV, and each has been equipped
with a dedicated inverting attenuator to process the incoming CV. The Afterneath module has a
completely analog dry signal path and a totally digital wet signal path. Each and every Afterneath
module is built by a mix of robots and human beans in the torch-lit cave community of Akron, Ohio.
<<< Warnings >>>
ELECTRICAL HAZARD! IMPROPER INSTALLATION OR HANDLING MAY RESULT IN ELECTROCUTION OR DAMAGE TO
YOUR MODULE, EURORACK CASE OR OTHER MODULES. ALWAYS BE CERTAIN TO POWER OFF AND UNPLUG YOUR
EURORACK CASE OR POWER SUPPLY BEFORE INSTALLING A MODULE. ALSO, PLEASE BE CERTAIN TO COVER ANY
EMPTY RACK SPACES WITH BLANK PANELS.
HIGH SIGNAL LEVELS! THIS DEVICE IS CAPABLE OF PRODUCING MODULAR SIGNAL LEVELS. PLEASE USE CARE WHEN
OPERATING THIS EQUIPMENT, AS HIGH SIGNAL LEVELS CAN DAMAGE YOUR AUDIO EQUIPMENT OR YOUR HEARING!
*EARTHQUAKER DEVICES DOES NOT IMPLY NOR ASSUME ANY RESPONSIBILITY FOR HARM TO ANY PERSON OR
DAMAGE TO ANY DEVICE OR OBJECT AS A RESULT OF THE USE OF THIS MODULE.*
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CHANGES/
MODIFICATIONS NOT APPROVED BY EARTHQUAKER DEVICES LLC COULD VOID THE USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE,
PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION
AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED
AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS.
WWW.EARTHQUAKERDEVICES.COM
EARTHQUAKER DEVICES LLC, 350 W. BOWERY ST., AKRON OH 44307
<<< Installation >>>
1. Power off and unplug your Eurorack case or power supply, and locate 16hp of empty space
within your system.
2. Connect the 10-pin end of the included ribbon cable to the power pin header on the back of
your Afterneath module so the red stripe on the cable is oriented towards the words “Red
Stripe” that are printed on the circuit board. Connect the 16-pin end of the ribbon cable to the
bus board of your Eurorack case according to the specications of your case or bus board
manufacturer. Be certain that you have oriented your cable properly or you may cause damage
to your module or system.
3. Afx the module to your case with mounting screws that are compatible with your case, and
cover any remaining open space with blank panels.
<<< Tech Specs >>>
• Width: 16HP / Max Depth: 31.75 mm
• Current Draw: 95 mA from the +12v rail, 0 mA from both the -12v and +5v rails
• Standard 10-pin Eurorack power connector with a marking to notate the negative pins
• Skiff friendly – protrudes less than 1.25 inches (31.75 mm) behind the panel with the power
header installed
• Audio input capable of handling input signals ranging from instrument-level to modular-level,
depending on the setting of the Input knob
We recommend the use of a high quality, low noise power supply.
<<< Warranty >>>
We will x any of our devices for as long as we are in business. There is never a charge
unless the circuit board needs to be replaced due to user damage such as a failed non-factory
repair, incorrect power supply, reverse-voltage, modication, water damage, etc. Please email
info@earthquakerdevices.com for any questions or to initiate a warranty claim.
