Side 1/2

PL37

Cardioid Condenser

Overhead Microphone

General Description:

Technical Specifications:

Key Features:

• Voiced for overhead cymbals, high-hat and percussion

• Crisp frequency response

• Fast transient response

• Tight cardioid polar pattern for isolation

• Superb rejection of off-axis information

• High-output self-biased condenser element

Thank you for purchasing the Electro-Voice® PL37. This product is

a professional-grade tight cardioid condenser microphone designed

to deliver all of the crisp detail of cymbals, high-hats and percussion

instruments in any size sound reinforcement system or recording

studio. With its frequency response designed for overhead drum set

and percussion miking, the PL37 delivers all of the “dialed-in” tone

and percussive transient response detail professional drummers and

sound system engineers require. The PL37’s tight cardioid polar pat-

tern is designed to minimize off-axis information from nearby stage

instruments entering the capsule, and allows for a clean drum set

sound and higher gain before feedback. Although designed to be an

overhead drum set and percussion microphone, the PL37 can also

be used as an acoustic instrument microphone in applications where

a condenser element capsule would be desired.

Application Notes:

1) This product requires external power to function (see technical

specifications panel for voltage spec), which is commonly supplied

via the Phantom Power function on your sound system mixer or

input module.

2) As with most directional microphones, the low frequency re-

sponse of the PL37 microphone varies with the distance from the

sound source. Known as “proximity effect”, the bass response of the

microphone increases as the working distance to the microphone is

reduced. This “bass boost” is only audible when working at distances

closer than 6 inches. Therefore, working close to the microphone will

produce a more robust sound. Using this microphone at distances

greater than 6 inches provides minimal coloration from proximity

effect.

Close-up positioning of the microphone will also reduce the poten-

tial for feedback from the sound reinforcement system. Then, the

bass boost provides an increase in overall microphone output level.

The mixer gain may be proportionately reduced, resulting in a reduc-

tion of the system’s sensitivity to feedback caused by sound entering

the microphone from the loudspeakers.

Element Type: Self-Biased Condenser

Frequency Response: 50 Hz - 16,000 Hz

Polar Pattern: Cardioid

Sensitivity, Open Circuit

Voltage, 1 kHz:

7.0 mV/Pa (-43 dBV)

Polarity: Positive pressure on diaphragm

produces positive voltage on pin 2

relative to pin 3

Rated Impedance: 200 ohms

Max SPL (1% THD @1 kHz): 132 dB SPL

Self Noise: 25 dB SPL, A-weighted

Dynamic Range: 107 dB

Signal-to-Noise Ratio: 69 dB (@94 dB SPL)

Power Requirements: Phantom Supply Requirement:

11 to 52 VDC, 4 mA

Microphone Connector: 3-pin, XLR-type

Finish: Textured black satin body with

MemraflexTM grille

Dimensions: Length = 6.40” (162.5 mm)

Width = 1.14” (29.0 mm)

Shank = 0.83” (21.1 mm)

Accessories Included: Stand adapter with Euro-thread

insert, Soft zippered gig bag

Net Weight: 6.3 oz (176 g)

Shipping Weight: 17.1 oz (485 g)

Warranty:

This Electro-Voice® PL37 product is guaranteed against malfunction

due to defects in materials or workmanship for a period of three (3)

years from the date of original purchase. Please refer to the Limited

Warranty card included with your product for further warranty infor-

mation.

12000 Portland Avenue South, Burnsville, MN 55337

Phone: 952/884-4051, Fax: 952/884-0043

www.electrovoice.com

Part Number LIT000248 Rev C

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other Internatonal locations. For customer orders, Contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 887-9212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

Electro-Voice®

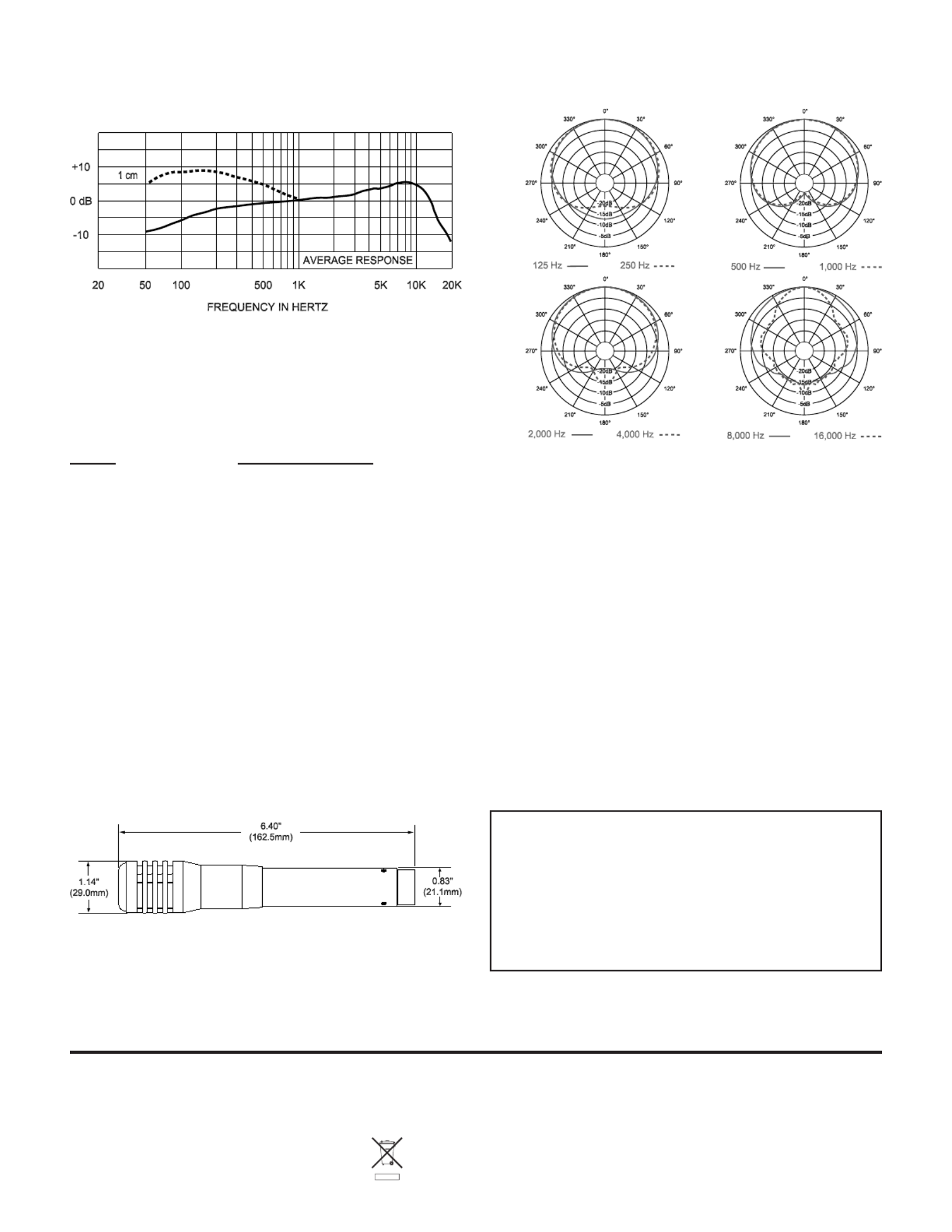

Dimension Drawing:

Frequency Response: Polar Response:

Microphone Use and Placement

Please note that micing techniques are a matter of personal

preference. These are merely guidelines to assist in the

placement of the microphone to gain optimal performance.

Usage Optimal Placement

Overheads Use two microphones in a 3:1 spacing position facing slightly away from each other.

High-Hat Place microphone 3 to 6 inches from and at a 45° angle to cymbal edges.

Acoustic Guitar Place microphone 6 to 24 inches from and pointed towards body end of finger board.

Strings For small string instruments, place microphone 1 to 3 feet from and perpendicular to the soundboard,

pointing at the strings and f holes. Use similar microphone positioning for larger string instruments, but

6 to 8 feet away.

Standard Placement & Use Guidelines

1. Always point the microphone at the desired source of sound, and away from any unwanted sources.

2. The microphone should be located close to the sound source to minimize interference from other potential sound sources.

3. Use the 3-to-1 rule when using multiple microphones. Place each microphone three times farther from other microphones as from

the desired sound source.

4. Minimize over-handling of the microphone to reduce unwanted mechanical noise.

PL37 Part Numbers

PRD000165000 PL37, Cardioid Condenser Overhead •

Microphone

ACC000047000 SAPL-3, Replacement Microphone Stand •

Adapter

ACC000051001 WSPL-4, Optional Foam Windscreen •

Adapter, Black
