R - ev.041014 JA www.elitescreens.com 1

ezFrame &

Sable Frame Series

Fixed&Frame&Projection&Screen&

User’s&Guide&

Hardware and Parts List

1. Frame Parts x 6 pcs (4 top horizontal vertical /bottom frame pcs + 2 side frame pcs)

2. Tension Rods x 6 pcs (4 top/bottom rods + 2 side rods)

3 . Screen Material x 1 pc

4 . Center joints x 2 pcs

5. Elbow Joints x 4 pcs

6. Wall brackets x – 3 2 pcs (depending on model/size)

7 . M5x50 wood screws x 6 pcs

8. Hollow wall anchor x 6 pcs

9 . M5x15 screws x 16 pcs

10. Center Support Bar x 1 2 pcs (dep– ending on model/size)

11 – . Support joiner x 2 4 pcs (depending on model/size)

12 – . Fix Plates x 60 180 pcs (depending on model/size)

Note: Please make sure all parts are included in your package before proceeding to assemble your Elite

Screens fixed frame projection screen.

FRAME ASSEMBLY

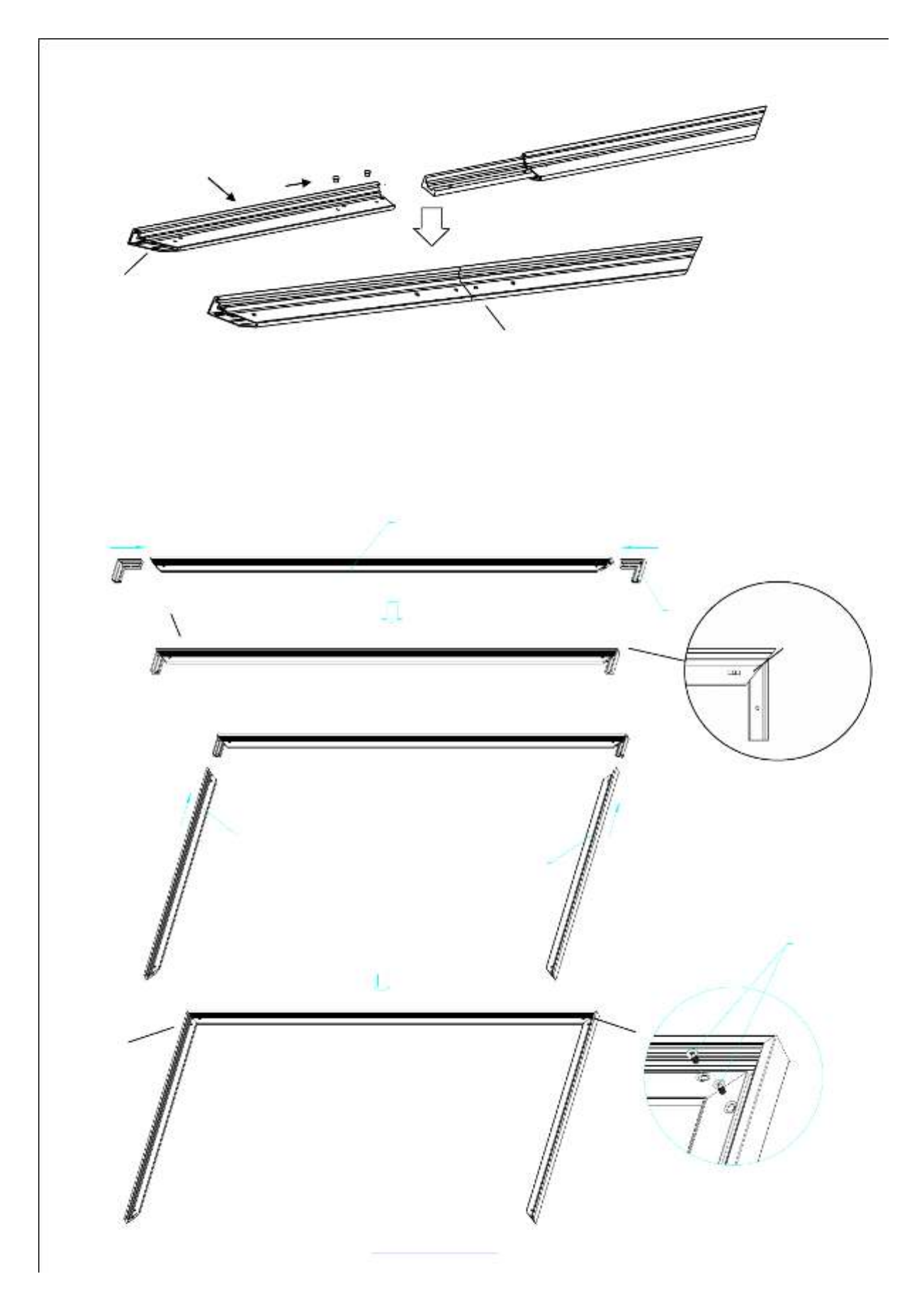

1. Insert the center joint connector into to one of the 1/2 horizontal frames and fasten it with two M5x15 screws.

bevel connection

½ Horizontal Frame

M5×15 screws

R - ev.041014 JA www.elitescreens.com 2

Push

Short frame

2. Insert the other 1/2 horizontal frame piece to the center joint connector and fasten it with two M5x15 screws.

Repeat steps 1 and 2 for assembling the second horizontal frame.

Note : a. 2 long frames should be assembled for a screen.

b. not until all frame pieces have been Do tighten the screws completely assembled correctly.

3. Insert both elbow joint connectors into the long horizontal frame and then fasten it with two M5x15 screws (see

F . Tig.1) hen insert the vertical short frames fig.1.2and fasten them with screws ( )

bevel connection

½ Long Frame

Push

Horizontal Long Frame

M5×15 screws

Screw

(F ig.1.1)

Push Push

Joint

Long frame

( fig.1)

(F ) ig.1.2

Produkt Specifikationer

Mærke:	Elite Screens
Kategori:	Projektionsskærm
Model:	ezFrame R100WV1
Bredde:	2149 mm
Dybde:	40 mm
Højde:	1641 mm
Vægt:	12700 g
Produktfarve:	Hvid
Naturligt aspektforhold:	4:3
Monteringstype:	Væg
Harmoniseret systemkode (HS):	90106000
Rammetype:	Fast ramme
Betragtningsvinkel:	160 °
Drevtype:	Vejledning
Synlig skærmbredde (W):	2032 mm
Synlig skærmhøjde (H):	1524 mm
Diagonal:	100 "
Skærmforstærkning:	1.1
Kanter:	61 mm
Farve på etui:	Sort
