Installation, Service Instructions & Parts
Quality Designed for Proven Performance
Printed in USA
8471 11
AVOID ERROR IN PARTS SELECTION. When ordering use
complete EMBERGLO Part Number and Description. Furnish
Model Number, Bill of Material Number and Serial Number (if
available) from the specifi cation plate found on the product.
IMPORTANT: Availability of parts as well as specifi cations are
item availability.
SAFETY INFORMATION TERMS: The following terms are used to identify hazards, safety precaution of
special notations and have standard meanings throughout this manual. They are printed in all capital letters
using a bold type face as shown below, and preceded by the exclamation mark symbol. When you see the
safety alert symbol and one of the safety information terms as shown below, be aware of the hazard potential.
DANGER: Identifi es the most serious hazards which will result in severe personal injury or
death.
WARNING: Signifi es a hazard that could result in personal injury or death.
CAUTION: Identifi es unsafe practices which would result in minor personal injury or product and
property damage.
CAUTION: This steamer to be used with
distilled water only (demineralized). Without treated
water, deposits can build up in steam generators causing
reduced steam volume and eventual stoppage of steam
production. Clogged or limed steam generators caused
by use of non-distilled water will not be covered under the
terms of the warranty.
AR Series -Self Contained Water Reservoir and Pump - Stain-
less steel construction, Top injecting, portable, removable water
drawer, manual pump or timer, 6′ - 3 wire cord.
Special Note: The AR Series requires distilled or demineral-
ized water. Clogged or limed generators caused by use of
non-treated water will not be covered under the terms of the
warranty.
Specifi cations:
• 120 volts 60HZ AC 1500 watts, max 13 amp
• 240 volts 60HZ AC 1500 watts, max 6.3 amp
(240V model is Export Only and not UL listed)
• Manual water pump operation
• Closed generator
• Drawer style steamer
EmberGlo
A Div of Midco® International Inc.
4140 West Victoria Street
Chicago, Illinois 60646
toll free 866.705.0514
tel 773.604.8700
fax 773.604.4070
web www.emberglo.com
e-mail sales@emberglo.com
Warranty Form must be fi lled in and returned to EmberGlo to
validate warranty. See warranty page for return instructions.
This manual contains suffi cient information for installation of the
EmberGlo Steamer in normal locations.
In the United States, installation must conform with local codes.
PURCHASER: Retain these instructions for future use.
Post in a prominent location near the steamer.
CAUTION
: Cooking equipment should be used in
an environment protected by an automatic fi re suppression
system. Consult the National Fire Protection Association NFPA
Code 96 or the latest edition of Standards for Installation of
Equipment for Removal of Smoke and Grease-Laden Vapors
From Commercial Cooking Equipment.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operating
and maintenance instructions thoroughly before install-
ing or servicing this equipment.
Warranty
See the back of this manual for warranty.
This warranty does not apply to damages resulting from
accident, misuse, abuse or alteration.
No equipment may be returned without written authorization
from EmberGlo (or Midco) . Returned goods must be shipped
prepaid to the factory.
U
L
®
718
AR60
Front Open
Self Contained Water Supply
Counter Top Steamer
Two irds Size Pan
120V and 240V Models
(240V Model for Export ONLY)
AR60 Manual Operation with Water Pan 120V 5400400
AR60 Manual Operation with Water Pan 240V 5400406
Models Description Volts BOMs
2
EmberGlo A Division of Midco International Inc
8471 11
Maintenance
Daily as Required
Operation
Installation
1. Position steamer on level surface and plug power cord into 3-hole 120 volt AC grounded
receptacle. If an adapter is used, it must be grounded properly.
2. Pull out water pan and fi ll with distilled (NOT HOT OR BOILING) water to 1/4″ from the top of
the water pan baffl es; then close drawer. Unit is now ready for operation.
3. According to the Uniform Mechanical Codes per theNo Hood Installation Required:
International Conference of Building Offi cials Code EmberGlo Steamers do not require a
separate hood for vapor produced during operation. Also, there are no requirements in NSF
Standard 4 (2006e) for steamers to have ventilation.
__________________________________________
1. Move toggle switch to ON position. The pilot indicating light remains on at all times.
Allow 15-20 minutes to reach operating temperature.
2. Open food drawer, place food in pan; close drawer and operate lever as required per cooking
guide.
3. At end of time cycle, open drawer and remove food.
4. Keep drawer closed when not in use.
5. To shut off unit move toggle switch to OFF position.
Caution: Operate lever to the left and return to vertical position. Rapid repeated op-
eration will over steam the unit. The amount of steaming necessary is determined by the type
and amount of food to be heated. For more than one shot, wait 15 seconds between shots. A
“shot” is one operation of the lever.
__________________________________________
The food pan is removed by lifting up. Clean the inside thoroughly and wipe the outside to remove
any material which might have accumulated.
- To remove the food drawer, pull the drawer out until it stops, release stop located at rear
underside of drawer to unlock, and pull out the frame. Wipe the drawer and frame clean and
return by inserting the drawer slide into the slide of the frame, then push the food pan to the
rear until the lock engages automatically.
__________________________________________
DANGER: READ AND UNDERSTAND THIS BULLETIN THOROUGHLY BEFORE
STARTING ANY TROUBLE SHOOTING. AN INADVERTENT SERVICE ERROR COULD RESULT
IN SEVERE PERSONAL INJURY OR DEATH. ONLY A TRAINED EXPERIENCED SERVICE
TECHNICIAN SHOULD ATTEMPT ANY REPAIR PROCEDURE.
Qualifi ed serviced agencies are available at most locations - Refer to EmberGlo listing of
AUTHORIZED SERVICE AGENCIES included in Standard Equipment Catalog.

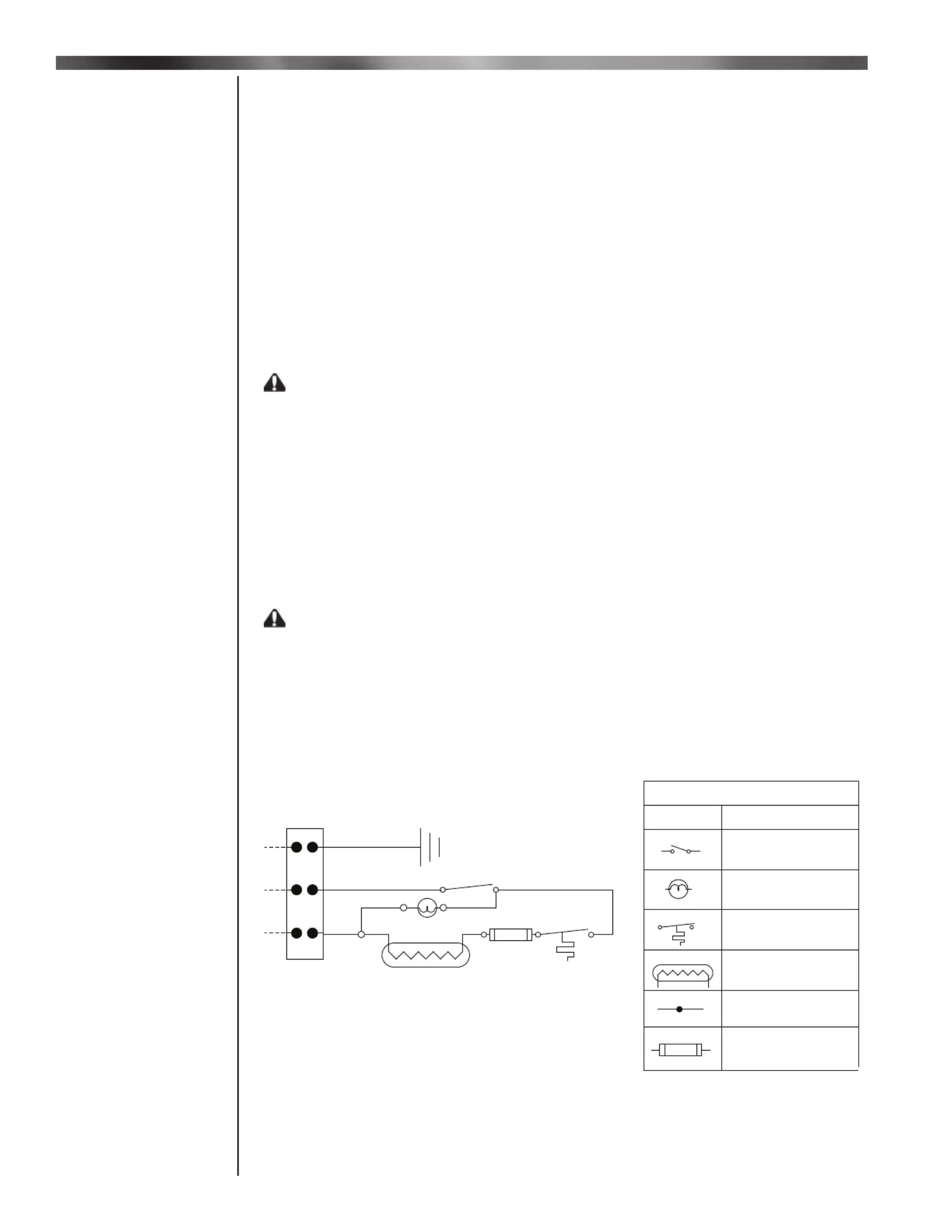

AR60 - Installation and Service
Service
Figure 1. Wiring for AR60 Steamer
Service to be performed by qualified personnel only
L2
L1 Blk
G
Gnd
Blk
Wht
LEGEND
Symbol Description
Toggle Switch
Pilot Light
Thermostat
Generator
Over Heat
Protection Fuse
5646 10
Terminal Strip
E
Plug for 240 VAC to be Supplied by Installer
Material: (Outdoor/ Indoor Polyperm)
AR60 Wiring for
120/240 VAC Steamer

Produkt Specifikationer

Mærke: EmberGlo
Kategori: Ikke kategoriseret
Model: AR60
