Installation and Service Instructions
Quality Designed for Proven Performance
Printed in USA
8449 96
AVOID ERROR IN PARTS SELECTION. When ordering use
complete EMBERGLO Part Number and Description. Furnish
Model Number, Bill of Material Number and Serial Number (if
available) from the specifi cation plate found on the product.
IMPORTANT: Availability of parts as well as specifi cations are
subject to change without notice. Please consult factory for
item availability.
ES5 Series - Designed to operate without distilled water,
Self Contained or Direct Water Hookup, Stainless steel
construction
Specifi cations:
• 120 volts 60HZ AC 1500 watts, max 12.5 amp
• ES5 1800 series - 1800 watts, max 15 amps
• Manual pump (push button) or timer operation
• Closed generator
• Half Pan size
• Removable water drawer (self contained models)
• Spring loaded adjustable hinge with 60° or 90° opening
• Food Grid
• ES5 1800 series - 1800 watts, max 15 amps
• ES5 1800 series - 20% faster temperature recovery time
• Quick connect fi ttings (direct hookup models)
This manual contains suffi cient information for installation of the
EmberGlo Steamer in normal locations.
In the United States, installation must conform with local codes.
PURCHASER: Retain these instructions for future use.
Post in a prominent location near the steamer.
ES5 Series
Top Open / Half Pan
Counter Top Steamer
!
EmberGlo
A Div of Midco® International Inc.
4140 West Victoria Street
Chicago, Illinois 60646
toll free 866.705.0514
tel 773.604.8700
fax 866.580.8700
web www.emberglo.com
e-mail sales@emberglo.com
CAUTION: Cooking equipment should be used in
an environment protected by an automatic fi re suppression
system. Consult the National Fire Protection Association NFPA
Code 96 or the latest edition of Standards for Installation of
Equipment for Removal of Smoke and Grease-Laden Vapors
From Commercial Cooking Equipment.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operating
and maintenance instructions thoroughly before
installing or servicing this equipment.
WARNING: Do Not lift the steamer with the drawer
handle. Personal injury and or property / product may occur.
Warranty
See the back of this manual for warranty.
This warranty does not apply to damages resulting from
accident, misuse, abuse or alteration.
No equipment may be returned without written authorization
from EmberGlo (or Midco). Returned goods must be shipped
prepaid to the factory.
Warranty card must be fi lled in and returned to EmberGlo (or
Midco) to validate warranty.
!
!
U
L
Model ES5M
ES5 Series - 1500W
ES5CTS: Timer Operation with Water Pan
ES5M: Manual Operation with Water Pan
ES5MT Manual Operation with Water Pan
and Specially Perforated Tortilla Food Pan
ES5PBS: Push Button Operation with Water Pan
ES5PBST: Push Button Operation with Water Pan
and Specially Perforated Tortilla Food Pan
ES5PB: Push Button Operation with Direct Water Connect
ES5PBT: Push Button Operation with Direct Water Connect
and Specially Perforated Tortilla Food Pan
ES5CT: Timer Operation with Direct Water Connect
ES5 1800 Series - 1800W
ES5M18: Manual Operation with Water Pan
ES5CTS18: Timer Operation with Water Pan
ES5PBS18: Push Button Operation with Water Pan
ES5CT18: Timer Operation with Direct Water Connect
ES5PB18: Push Button Operation with Direct Water Connect
As of June 2013 the following steamers are no longer being
manufactured - they are replaced with CT series steamers
ES5TS - now ES5CTS
ES5T - now ES5CT
ES5PTS - now Obsolete
As an ISO 9001:2008 certifi ed company, we proudly design, manufacture and assemble our products in Chicago, Illinois, USA.
SAFETY INFORMATION TERMS: The following terms are used to identify hazards, safety precaution of special notations
and have standard meanings throughout this manual. They are printed in all capital letters using a bold type face as shown
below, and preceded by the exclamation mark symbol. When you see the safety alert symbol and one of the safety information
terms as shown below, be aware of the hazard potential.
DANGER: Identifi es the most serious hazards which will result in severe personal injury or death.
WARNING: Signifi es a hazard that could result in personal injury or death.
CAUTION: Identifi es unsafe practices which would result in minor personal injury or
product and property damage.
!
722
2
EmberGlo A Division of Midco International Inc
8449 96
Installation
In the United States, wiring must conform to local codes, or in the absence of local codes, to the
National Electrical code ANSI/NFPA No. 70-latest edition. In Canada, wiring must conform to
local codes, or in the absence of local codes, to Canadian Electrical Code Part 1, CSA Standard
C22.1.
1. All ES5 Models: Locate on level surface and plug power cord into 120 volt, single phase 60Hz.
grounded outlet.
2. ES5M, ES5M18, ES5MT, ES5CTS, ES5CTS18, ES5PBS & ES5PBST : Fill water pan by
pulling water pan out to stop position and fi ll with cold water to top of baffl es, then close drawer.
3. ES5PB, ES5PB18, ES5PBT, ES5CT &ES5CT18: Connect water hose assembly to water
supply system. The supply end has 1/8″ female pipe fi tting and should be attached down
stream to a shut-off valve. Steamer end of hose has a quick connect fi tting which snaps onto
mating fi tting on steamer. This fi tting has an automatic shut-off valve that allows steamer to be
disconnected without shutting off water supply. After connecting, turn on water and check for
leaks.
4. EmberGlo Steamers do not require a separate hood for vapor produced during operation
according to the Uniform Mechanical Codes per the International Conference of Building
Offi cials Code. And there are no requirements in NSF Standard 4 (2006e) for steamers to
have ventilation.
5. Lid Angle Adjustment: To adjust the angle of the lid to 60° or 90°
1. With the lid closed, loosen and remove slotted screw. Set aside.
2. Remove lid stop by sliding it up and away from the steamer.
3. Adjust lid stop for desired position (60° or 90° open) and place on steamer.
4. Insert and tighten slotted screw.
See Figure 1a, 1b and Figure 1c for orientation of lid stop.
Factory default setting is 60°.
__________________________________________
General Instructions for Operation. For operation tips and recommendations see below.
Before Using: (See Figure 2 for locations of buttons and switches)
1. Remove the protective plastic covering before using.
2. Steamers with self contained water drawers: If there is a water drawer open and fi ll reservoir
with water.
3. Steamers with direct hookup water supply: If the steamer is a direct hookup connect to a
water supply
4. Plug into 120V AC outlet.
5. Push power switch to the ON position (light on) and allow approximately 15-20 minutes to reach
operating temperature.
6. Test to make sure unit will generate steam.
7. For ES5CT, ES5CT18, ES5CTS & ES5CTS18 steamers: Switch the Cycle/Manual switch to
the manual mode.
Operation
ES5 Series - Installation
MADE in the USA

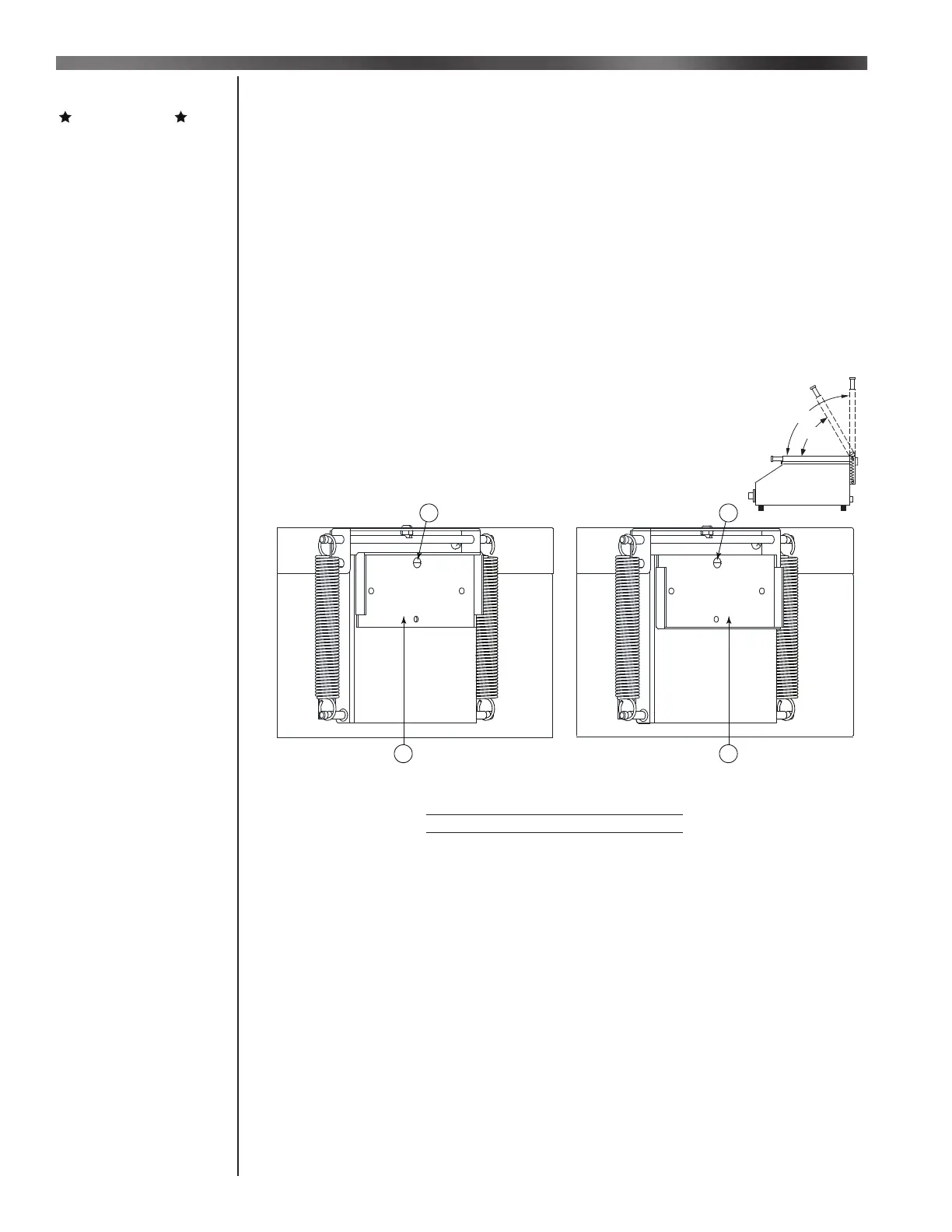

Figure 1a
Back of ES Series Steamer
60° Opening Position
Figure 1b
Back of ES Series Steamer
Lid Stop Reversed
90° Opening Position
1
2
1
2
Item # Part # Description
1 HW1-099 #8-32 X 5/16″ Slotted
Pan Head Screw 18ss
2 1421-21 Lid Stop
90°
60°
Figure 1c
