Model Programming Choices
1F95-1277 7 Day 5+1+1 Day Non-Programmable
white-rodgers.com
emersonclimate.com
PART NO. 37- 6753E
Replaces 37-6753D
1517
Single Stage, Multi-Stage, Heat Pump
Installation and Operating Instructions
APPLICATIONS
SPECIFICATIONS
1F95-1277 Touchscreen Thermostat
Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS
CAREFULLY BEFORE INSTALLING OR OPERATING THIS
CONTROL COULD CAUSE PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
THERMOSTAT APPLICATION GUIDE
Thermostat
Configuration Options
Thermostat
Applications
Maximum
Stages
Heat/Cool
Single Stage 1
No Heat Pump (SS1)
Gas, Oil, Electric, Heat Only,
Cool Only or Heat/Cool
Systems, 2 or 3 wire Hydronic
Zone (Hot Water or Steam)
Systems, 24 Volt or Millivolt
1+1
Multi Stage 2
No Heat Pump (MS2) 2+2
Heat Pump 1
Single Stage Compressor
Heat Pump (HP1)
Single Stage Compressor
Heat Pump Systems - up to 2
Stages Aux./Emergency Heat
3+1
Heat Pump 2
Two Stage or Two
Compressor Heat Pump
(HP2)
Two Stage or Two Compressor
Heat Pump systems - up to 2
Stages Aux./Emergency Heat
4+2
ATTENTION: MERCURY NOTICE
This product does not contain mercury. However, this
product may replace a product that contains mercury.
Mercury and products containing mercury must not be
discarded in household trash. Do not touch any spilled
mercury. Wearing non-absorbent gloves, clean up any
spilled mercury and place in a sealed container. For proper
disposal of a product containing mercury or a sealed
container of spilled mercury, place it in a suitable shipping
container. Refer to www.thermostat-recycle.org for
location to send the product containing mercury.
Index Page
Installation 2
Wiring Diagrams 3
Thermostat Quick Reference 4
Installer Configuration Menu 5
Operating Your Thermostat 9
Programming 10
Troubleshooting 13
Electrical Rating:
Battery Power mV to 30 VAC, NEC Class II, 50/60 Hz or DC. . . . . . . . . . . . . . . . . . . . . . . . . .
Input-Hardwire . . . . . . . . . . . . . . . . . . . . . . . . . 20 to 30 VAC
Terminal Load 1.5A per terminal, 2.5A maximum all terminals combined . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setpoint Range 45 to 99°F (7 to 37°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rated Differentials: Fast. Slow
Heat (Single Stage/Multi-Stage) 0.6°F 1.5°F. . . . . . . . . . . .
Cool (Single Stage/Multi-Stage) 1.2°F 1.7°F. . . . . . . . . . . .
Heat Pump 1.2°F 1.7°F . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emer Heat 0.6°F 1.7°F . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Ambient 32°F to +105°F (0 to +41°C). . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Humidity 90% non-condensing max. . . . . . . . . . . . . . . . . . . . . . . . . .
Shipping Temperature Range . . . . . . . . . . . . . . . . . -40 to +150°F (-40 to +65°C)
Dimensions Thermostat . . . . . . . . . . . . . . . . . . . . . . 4-9/16"H x 5-13/16"W x 1-3/16"D
To prevent electrical shock and/or equipment damage,
disconnect electric power to system at main fuse or
circuit breaker box until installation is complete.
CAUTION
!
2
Remove Old Thermostat
Before removing wires from old thermostat, mark wires for
terminal identification so the proper connections will be made
to the new thermostat.
Installing New Thermostat
1. Pull the thermostat body off the thermostat base. Forcing
or prying on the thermostat will cause damage to the unit.
2. Place base over hole in wall and mark mounting hole
locations on wall using base as a template.
3. Move base out of the way. Drill mounting holes. If you
are using existing mounting holes and the holes drilled
are too large and do not allow you to tighten base snugly,
use plastic screw anchors to secure the base.
4. Fasten base snugly to wall using mounting holes shown
in Figure 1 and two mounting screws. Leveling is for
appearance only and will not affect thermostat operation.
5. Connect wires to terminal block on base using appropriate
wiring schematic.
6. Push excess wire into wall and plug hole with a fire resis-
tant material (such as fiberglass insulation) to prevent
drafts from affecting thermostat operation.
7. Carefully line the thermostat up with the base and snap
into place.
Battery Location
2 "AA" alkaline batteries are included in the thermostat at the
factory with a battery tag to prevent power drainage. Remove
the battery tag to engage the batteries.
To replace batteries, set system to , remove thermostat OFF
from wall and install the batteries in the rear along the top
of the thermostat (see Figure 1). For best results, use a
premium brand "AA" alkaline battery such as Duracell ® or
Energizer®. If the home is going to be unoccupied for an
extended period (over 3 months) and is displayed, the
batteries should be replaced before leaving.
Power Stealing Switches
The Power Stealing Switches (Fig. 1) should be left in the
"On" position for most systems. The information in the
following table details the thermostat power method and
switch options.
WARNING
!
Thermostat installation and all components of the
control system shall conform to Class II circuits per
the NEC code.
INSTALLATION

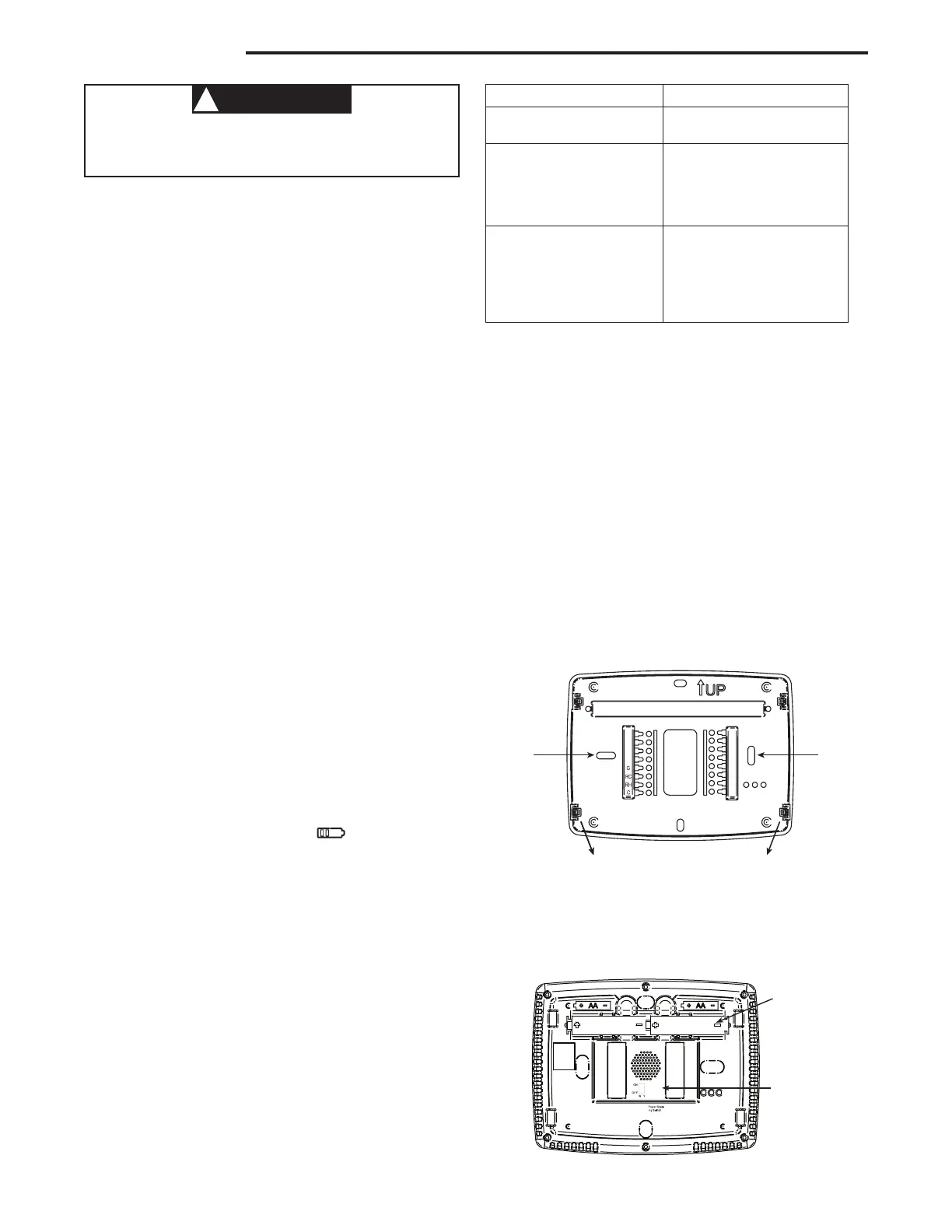

Figure 1 – Thermostat Base Multi-Stage 1F95-1277
2 "AA" Batteries
Power
Stealing
Switches
Sta ck
Powe r
Ste al ing
Swi tch
Mounting
Hole
Mounting
Hole
Place Level
across Mounting Tabs
(for appearance only)
Place Level
across Mounting Tabs
(for appearance only)
+
S
-
W/E
6
Y2
O/B
L
Y
W2
Rear view of thermostat
Thermostat Power Method Switch Position/Description
Battery Powered, no 24
Volt system power available.
Switches , thermostat "On"
runs on batteries.
Hardwired with Battery
Back-up, for 24 Volt systems
with common connection from
transformer to "C" terminal
on thermostat.
Switches , thermostat "On"
runs on power directly from
transformer with battery back-
up.
*Battery Powered with
Power Stealing Assist,
for 24 Volt systems with no
common connection from
transformer to "C" terminal on
thermostat.
Switches , thermostat "On"
runs on batteries and
supplemental power drawn
through the heat or cool circuit.
*Power Stealing Assist is very reliable to increase battery life,
but on a small number of heating or cooling systems with high
impedance electronic modules you may observe one of the
following conditions:
1. The furnace draft inducer motor may run with no call for
heat.
2. The furnace fan may turn on with no call for heat or may
not turn off.
3. The furnace may not turn off when the call for heat ends.
4. The air conditioner may not turn off when the call for cool
ends.
If the Power Stealing Assist method is not compatible with
your system, place the Power Stealing Switches to "Off". This
cancels Power Stealing Assist, operates the thermostat on
batteries and corrects the condition.
