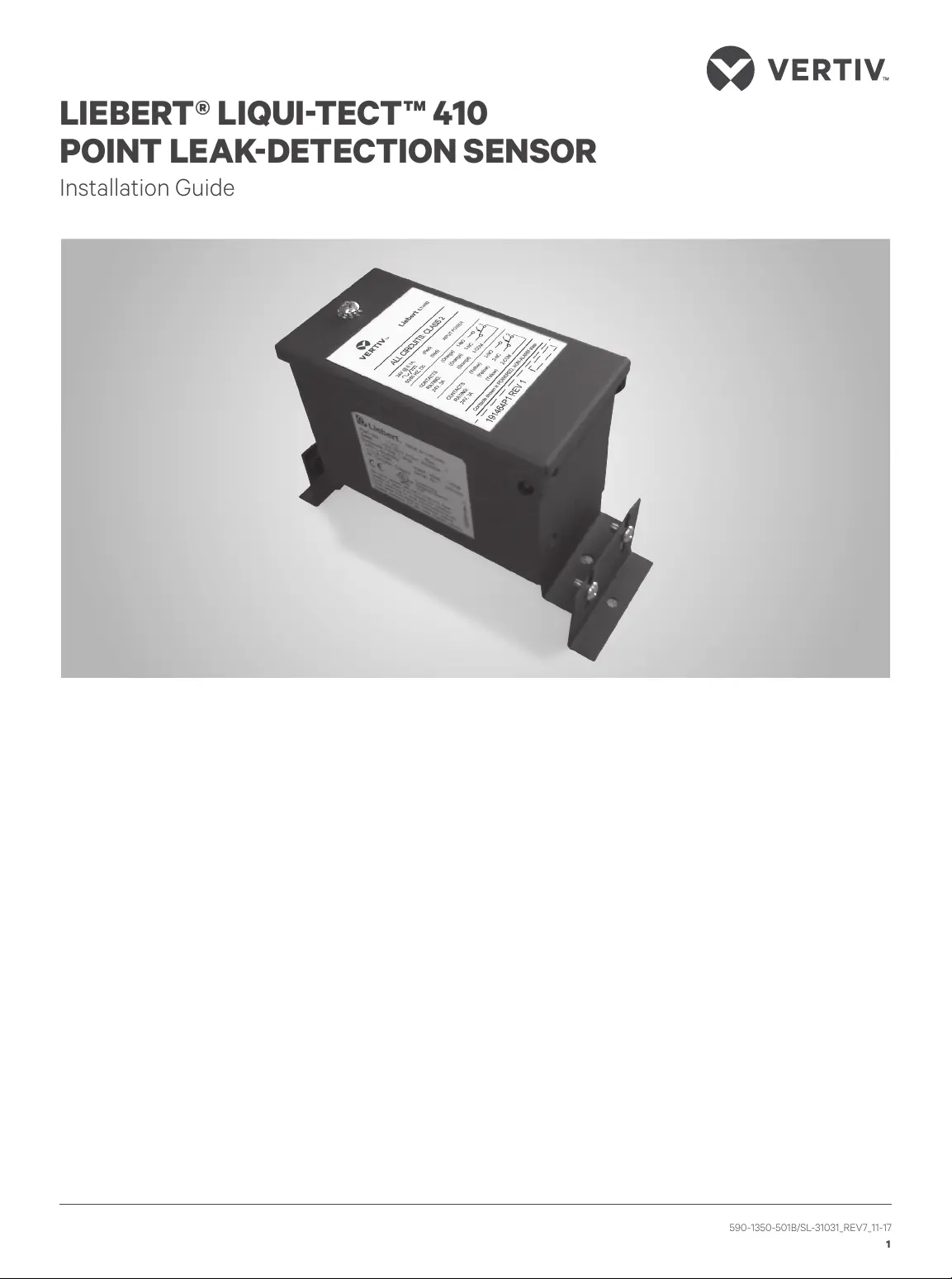

LIEBERT® LIQUI-TECT™ 410

POINT LEAK-DETECTION SENSOR

Installation Guide

Liebert Liqui-tect™ Leak Detection

Sensors install quickly and work simply

for reliable detection of leaks.

The Liqui-tect 410 Sensor should be

placed at critical points on the floor.

Two corrosion-resistant, gold-plated

probes sense the presence of aqueous

liquids.

When a leak is detected, dual Form-C

relay outputs can simultaneously

signal a local alarm panel and a remote

monitoring system. The Liqui-tect 410

Sensor features supervised operation:

circuit failure or loss of power are

detected and indicated as alarm

conditions, providing a completely self-

monitored leak detection system.

The following pages provide the sensor

dimensions, mounting, location, and

wiring detail to install your Liqui-tect

sensor

590-1350-501B/SL-31031_REV7_11-17

LIEBERT® LT410 POINT LEAK-DETECTION SENSOR

Installation Guide

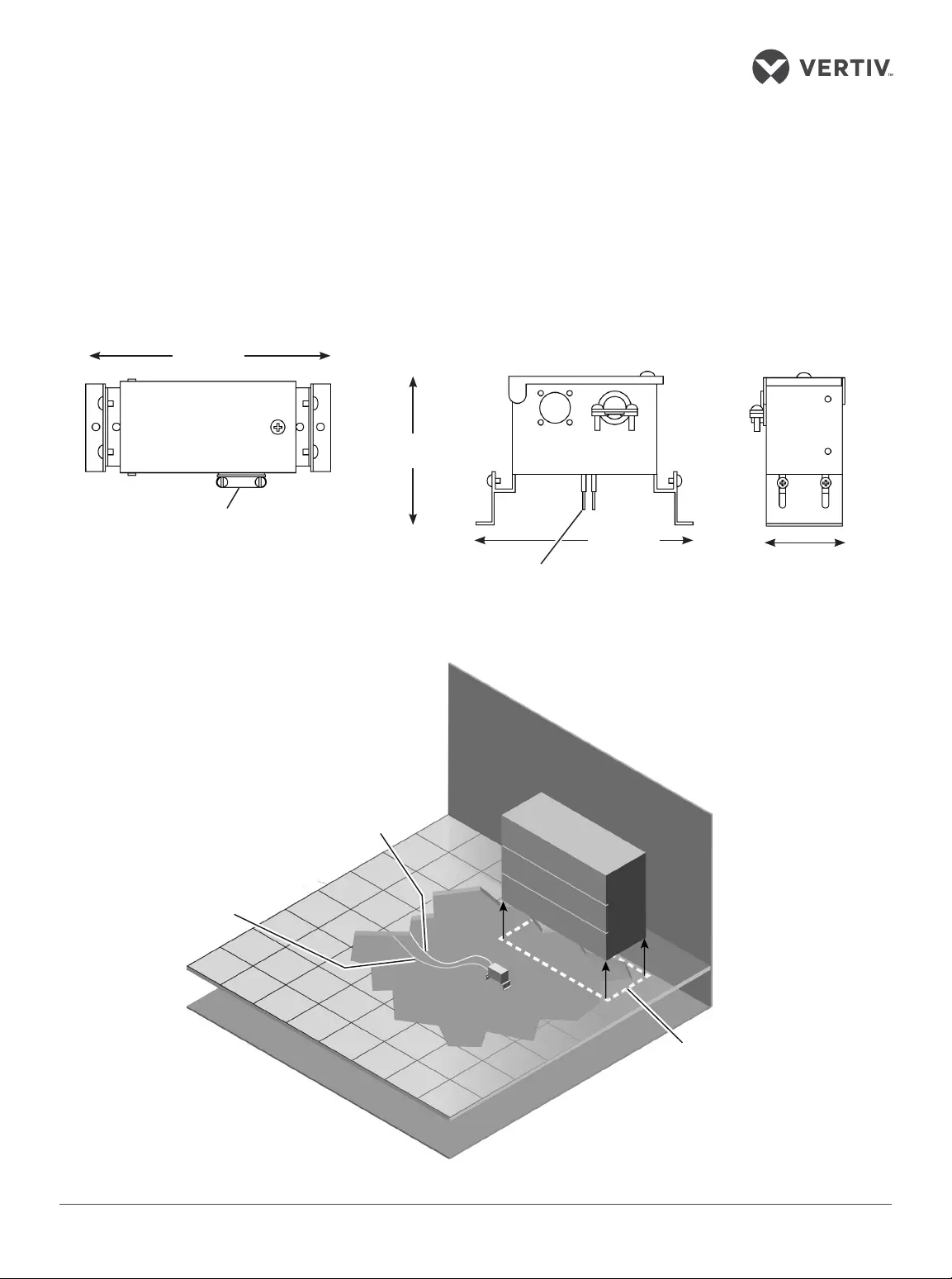

PLACEMENT ON SUBFLOOR

UNDER COOLING SUPPORT

EQUIPMENT

To a Liebert environmental

unit and an optional

monitoring panel

To external power

supply or directly

from unit (see Power

Wiring on page 4)

Leak detection zone

(directly beneath

unit)

TOP VIEW

FRONT VIEW SIDE VIEW

5.85”

(148.5mm)

4.46”

(113.2mm)

6.35”

(161.2mm)

2.25”

(57.2mm)

Form-C relay outputs

and power wiring

Adjustable probe

height

0.0 - 0.5”

(0.0 - 12.7mm)

DIMENSIONS -

TOP, FRONT AND SIDE

Produkt Specifikationer

Mærke:	Emerson
Kategori:	Detektor
Model:	Liqui-tect 410
Vekselstrømsindgangsspænding:	24 V
Vekselstrømsindgangsfrekvens:	50/60 Hz
Strømkilde:	Vekselstrøm
Kapacitet:	- L
