EMKO ELEKTRONIK SAN. Ve TIC. A.S. DEMIRTAS ORG. SAN. BOLG. KARANFIL SOK. TR 16369 BURSA / TURKEY
PHONE : + 90 224 2611900-pbx FAX : + 90 224 2611912 hhtp:\\www.emkoelektronik.com.tr e-mail:emko@emkoelektronik.com.tr
Pages 1 / 10

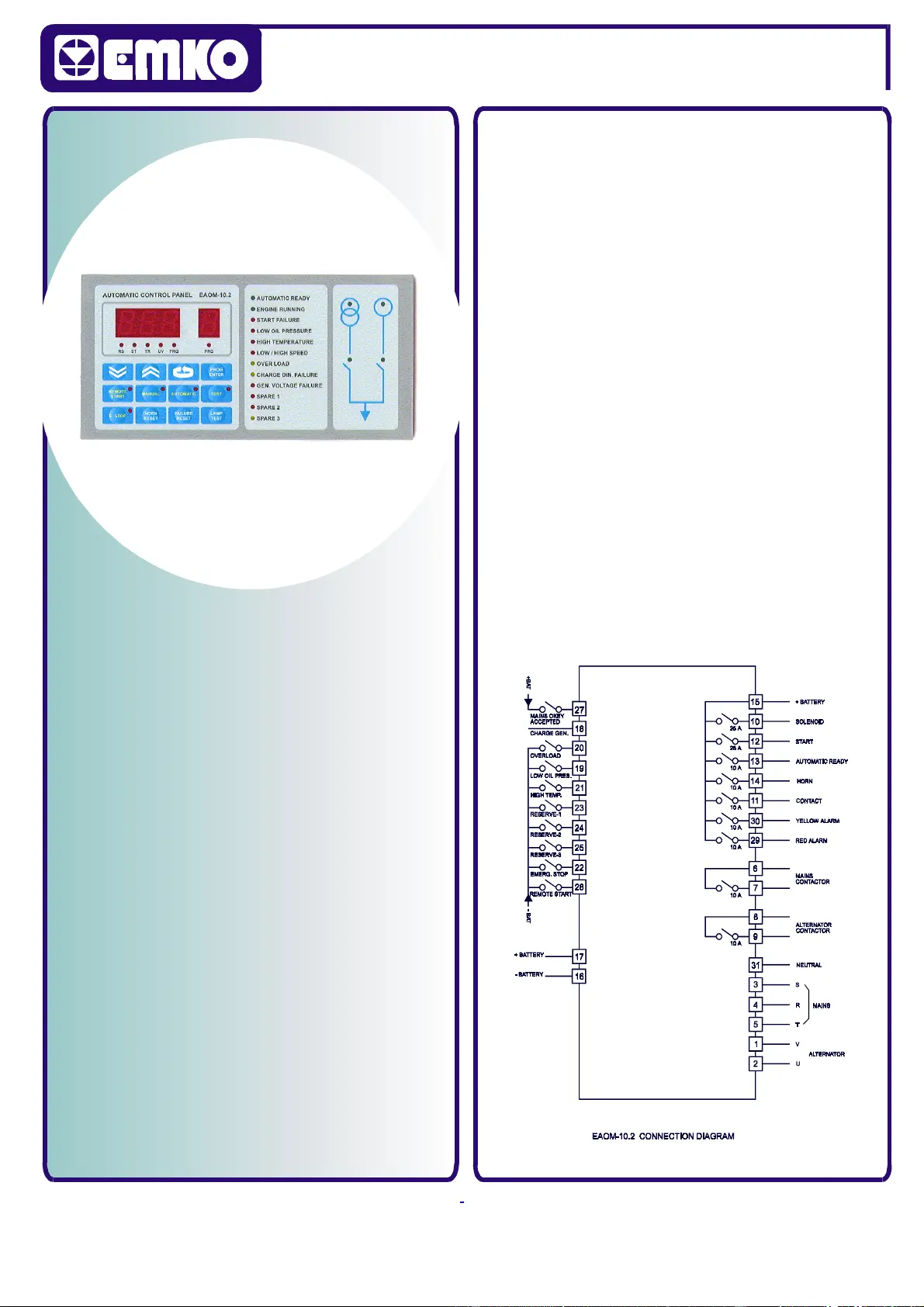

EAOM-10.2
•
Designed for diesel
generators.
•
Long life membrane front key
pad.
•
EEPROM internal memory.
AUTOMATIC TRANSFER
SWITCH & START UNIT
FOR DIESEL
GENERATORS
1. GENERAL INFORMATION
EAOM-10.2 Automatic Transfer Unit is designed to be
automatically engaged in case of energy failures in generators of
various capacities. The Automatic Transfer Unit is capable of
disengaging and thus protecting either the generator or the
energy receiving system (load) depending upon the type of
failure. Any failures are indicated on the Failure Led Indicators
upon the Transfer Unit and could be stored in memory until
failure deletion. In case of any failure, the unit is also capable of
giving a vocal warning (horn) and either a Yellow or Red Alarm
warning output depending upon the type of failure and in order to
warn the operator in charge. The front board of the Automatic
Transfer Unit features push-buttons to select the run mode, to
silence the horn, to delete failures and to test the bulb, as well as
led indicators to show failures and run modes. EAOM-10.2
Automatic Transfer Unit which features serial communication
outlet (RS-232) is capable of connecting to personal computers
(PC). This connection enables the operator to observe the
mains, generator voltages, speed information, failures and relay
outlet status on the computer display. Added to this, the
programme parameter values stored in the Automatic Transfer
Unit could be changed and current values could be observed.
Also, the programme parameters of the Automatical Transfer
Board could be changed by means of a special programmer. Led
indicators for failures and run modes could be tested by means
of a bulb test.
.
EMKO ELEKTRONIK SAN. Ve TIC. A.S. DEMIRTAS ORG. SAN. BOLG. KARANFIL SOK. TR 16369 BURSA / TURKEY
PHONE : + 90 224 2611900-pbx FAX : + 90 224 2611912 hhtp:\\www.emkoelektronik.com.tr e-mail:emko@emkoelektronik.com.tr
Pages 2 / 10
2. RUN MODES
2.1. MANUAL RUN MODE
In the manual run mode, Automatic Transfer Unit is disengaged and incapable of intervening with the system. For this
reason, it is not possible for the generator to be automatically engaged by the Automatic Transfer Unit in case of any energy
failures in the manual mode. However, the mains, generator voltages, speed information could still be observed and indicated
on the mimic diagram in this mode. Programme parameters of the system could only be changed and observed in the manual
mode.
2.2. AUTOMATICAL RUN MODE
In this mode, the generator is automatically engaged in case of any energy failures and the system failures are
observed. This mode disengages either the generator or the energy receiving system (load) (depending on the type of failure) in
failures arising after the generator is engaged and sounds the horn.
2.3. TEST RUN MODE
This mode is used to engage the generator in the presence of the mains and run the generator unloaded. As in the
automatic mode all kinds of failures are observed in this mode and the generator is disengaged according to the type of failure
and the horn is sounded. In case an energy failure occurs while the unit is running in this mode, then the Transfer Unit converts
to the Automatic Mode and transfers the load onto the generator.
2.4. REMOTE START RUN MODE
The Remote Start Run Mode is similar to the Automatic Mode. In this mode, the generator is not automatically engaged
in case of any failures. The generator could only be engaged if the remote start energy inlet is permitted. When the remote start
inlet is passivated , the engine sops immediately.
2.5. INTER-MODAL TRANSITION
It is possible to make transitions to and from the Manual, Automatic, Remote Start and Test Modes at any moment.
Only, when the Automatic Transfer Unit is converted into the Test Mode while there is no mains, the Unit automatically returns
to the Automatic Mode and starts the system.
3. FAILURES OBSERVED BY THE AUTOMATICAL TRANSFER UNIT AND TYPES OF BEHAVIOR DURING SAID
FAILURES
3.1. FAILURES INDICATED BY A LED INDICATOR ON THE AUTOMATICAL TRANSFER UNIT
1- Start Failure
2- Low Oil Pressure
3- Excessive Temperature
4- High/Low Speed
5- Overload
6- Charge Generator Failure
7- Generator Voltage Failure
8- Reserve - 1 Failure
9- Reserve - 2 Failure
10- Reserve - 3 Failure
EAOM-10.2
