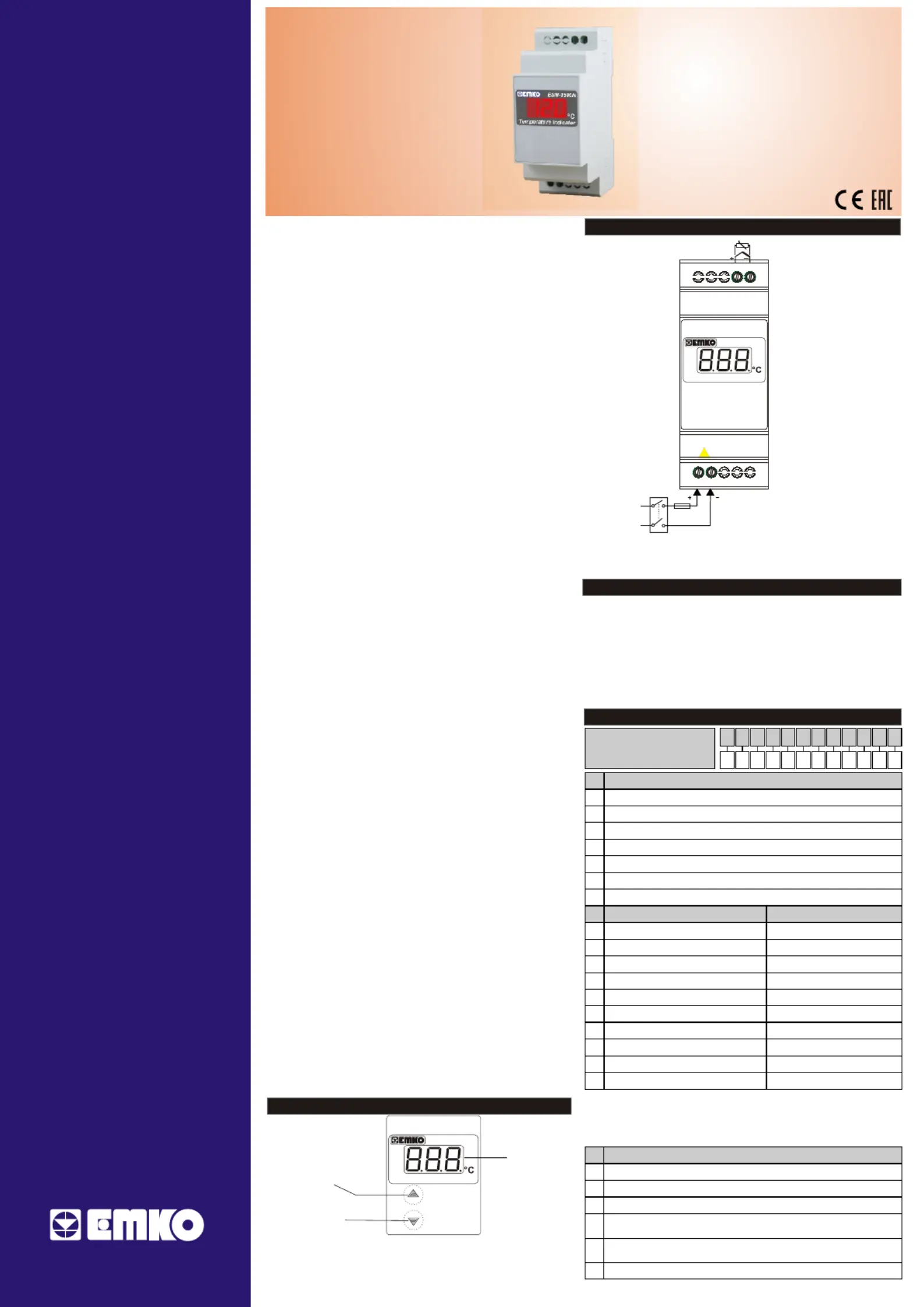

ESM-1500N

Digital Temperature Indicator

- Temperature Measurement

- Economical

- Easy to Use

- DIN RAIL Mounting

SPECIFICATIONS

INPUT

PTC : PTC (1000 @25°C)W

NTC : NTC (10k @25°C)W

Thermocouple (TC) : J, K (IEC 584.1) (ITS90)

Thermoresistance (RTD) : 2-wire PT 100, PT 1000 (IEC

751)(ITS90)

Measurement Range : It is in ordering information

Accuracy : ±1% of scale

Cold Junction Compensation : Automatically ±0.1°C/1°C

Sensor Break Protection:Upscale

Sampling Cycle :3 samples per second

DISPLAY

Process Display :

ESM-1500N : 9 mm Red 3 digits LED display

POWER SUPPLY

Supply Voltage :

100-240 V ( -15%, +10% ) 50/60 Hz - 2.2VA

230 V ( ±15% ) 50/60 Hz - 2.2VA V

115 V ( ±15% ) 50/60 Hz - 2.2VAV

24 V ( ±15% ) 50/60 Hz - 2.2VA V

24 V ( -15%, +10% ) 50/60 Hz - 2.2VA W

Z- 2.2W

10...30 V

ENVIRONMENTAL RATINGS and PHYSICAL

SPECIFICATIONS

Operating Temperature: -30...80°C

Humidity : 0-90%RH (none condensing)

Protection Class: IP20

Weigth:

ESM-1500N : 150 gr.

Dimension:

ESM-1500N : 90x 35mm, Depth: 61.2mm

Mounting:

ESM-1500N : DIN RAIL Mounting Type

Protection Against Mechanical Impacts : 1Joule (IK06)

Instruction Manual. ENG ESM-1500N 01 V02 04/22

Front Panel

- 3 Digits display

- PTC input or

NTC input or

J Type Thermocouple Input or

K Type Thermocouple Input or

2-wire PT-100 or PT-1000 Input

- Adjustable temperature offset value

Electrical Wiring

If the measured temperature value is lower (bigger) than the real

t value, measured value can be adjusted by emperature temperature

adding offset value.

Offset value is changed by pressing Increment(decrement) button. For

incrementing(decrementing) the offset value increment(decrement)

button must be pressed continuously. After pressing the

Increment(decrement) button for 10 seconds firstly, the temperature

value is incremented (decremented) 0.1 (for BC=09,13,15,19) or

1 (for BC=05, 10, 11, 12, 14, 18) per second during increment

(decrement) button is pressing.

°C

Note: There are 2 hidden buttons under the front panel.

Technician must press to the points on the front panel which

are shown above for using decrement and increment buttons.

Temperature

Indicator

Temperature Calibration

A BC D E FG HI /

V W Z/

0 00 1 0 0

ESM-1500

Temp.Sensor which is given with ESM 1500

Supply VoltageA

None

PTC-M6L40.K1.5 (PTC Air probe with 1.5 m silicon cable)

PTCS-M6L30.K1.5.1/8”(PTC Liquid probe with 1.5 m silicon cable)

NTC-M5L20.K1.5 (NTC Probe, thermoplastic moulded with

1.5 m cable for cooling application)

Ordering Information

Hidden Increment

button

Hidden Decrement

button

Temperature

Display

NTC-M6L50.K1.5 (NTC Probe, stainless steel housing with

1.5 m cable for cooling application)

Customer

Input Type

Scale(°C)

J ,Fe CuNi IEC584.1(ITS90)

PTC (Note-1)

-50°C 150°C

0°C 800°C

-19.9°C 99.9°C

PT 100 , IEC751(ITS90)

K ,NiCr Ni IEC584.1(ITS90)

-50°C 400°C

0°C 999°C

PT 100 , IEC751(ITS90)

-50°C 400°C

PT 1000 , IEC751(ITS90)

-19.9°C 99.9°C

PT 1000 , IEC751(ITS90)

PTC (Note-1)

-19.9°C 99.9°C

-50°C 100°C

NTC (Note-1)

-19.9°C 99.9°C

NTC (Note-1)

Note-1 : If input type is selected PTC or NTC (BC = 12, 15, 18, 19 ),

Temperature sensor is given with the device. For this reason,

If input type is selected as PTC, sensor type (V = 0,1 or 2) or

If input type is selected as NTC, sensor type (V = 0,3 or 4) must be

declared in ordering information.

ESM-1500N

Temperature Indicator

ESM-1500N

24V ( ± 15% ) 50/60Hz - 2.2VA V

115V ( ± 15% ) 50/60Hz - 2.2VA V

230V ( ± 15% ) 50/60Hz - 2.2VA V

24V ( -15%, +10% ) 50/60Hz - 2.2VA W

10...30 V - 2.2WZ

100-240V ( -15%, +10% ) 50/60Hz - 2.2VA V

Temperature Sensor Input

Fuse

Power

Supply

Switch

PTC, N PT-100, PT- 1000TC,

1A T

Temperature Indicator

ESM-1500N

230V V

115V V

24V V

24V W

10...30 V Z

100-240V V

Manufacturer Information:

Emko Elektronik Sanayi ve Ticaret A.Ş.

Repair and maintenance service information:

Emko Elektronik Sanayi ve Ticaret A.Ş.

Bursa Organize Sanayi Bölgesi, (Fethiye OSB Mah.)

Ali Osman Sönmez Bulvarı, 2. Sokak, No:3 16215

BURSA/TÜRKİYE

Tel : +90 224 261 19 00 Fax : +90 224 261 19 12

Bursa Organize Sanayi Bölgesi, (Fethiye OSB Mah.)

Ali Osman Sönmez Bulvarı, 2. Sokak, No:3 16215

BURSA/TÜRKİYE

Tel : +90 224 261 19 00 Fax : +90 224 261 19 12

Note-1 : External fuse is recommended.

Note-2 : Stranded cable cross section: 1,5mm², Solid cable cross-section: 2,5mm²

The stripping length is 7 to 9 mm.

Note-3 : Supply cables must comply with the requirements of IEC 60277 or IEC 60245.
