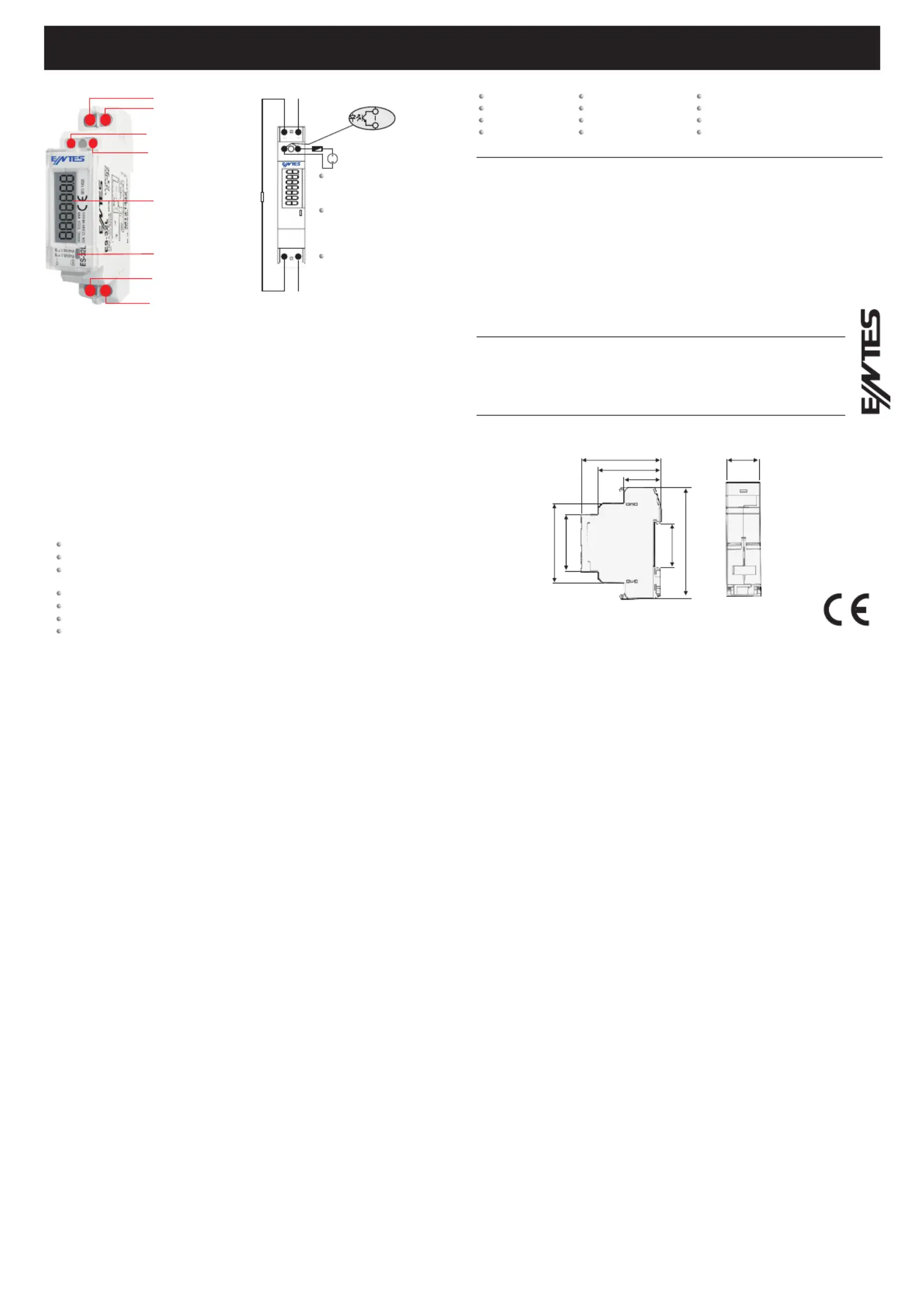

WATT-HOUR METER with LCD (SINGLE PHASE)
ES-32L
Watt-Hour Meter with LCD
CAUTIONS
Technical Specifications
Dimensions:
Some applications of ES-32L are:
In today's world, Efficient Power Management is very important for low-cost. Measuring process
ES-32L measures the active watt hour consumption directly and error free in single phase systems
and it shows the total watt hour consumption.
The most important features of the device are its reliability, small size, light weight, modern design,
and easy installation.
1. Connect the ES-32L's terminals as shown in connection diagram.
2. ES-32L does not require any periodical maintenance.
3. Installing, repairing and operation should be performed by authorized person.
4. Do not open the device. It does not include any parts that can be handled by users.
5. Do not use the device out of its purpose.
6. Before operating your device, make sure that all connections are made properly.
7. Please contact your dealer for any type of service required.
8. Entes A.Þ. will not be responsible,
if your device fails because of improper installation.
if your device fails because of natural disasters (fire, lighting, etc.).
if your device fails because of liquid penetration into the device or contact to any liquid for any
reason.
if the device or its software is interfered for any purposes.
if the serial number on the device is damaged.
if the device is out of order because of improper and careless use.
if the device is out of order defected during transportation out of Entes's responsibility.
Factories
Shopping Malls
Airports
Railway Stations
Stores
Building Complexes
Hotels
Hospitals
Schools
Holiday Villages
Marinas
Industrial Exhibition Halls.
Front Panel Connection Diagram
Neutral Out
Neutral In
SO-
SO+
Pulse Out
1000 imp. / kWh
Counter
Pulse LED
Phase Out
Phase In
6+1 digit (000000,0 kWh)
63
49
29
62
45
35
19
87
Operating Voltage (Un)
Operating Frequency
Rated Current (In)
Current Range ( I)
Accuracy
Power Consumption
Display
Data retention duration
Pulse LED
Pulse Out
Out Feature
Pulse out width
Operating Temperature
Box Protection
Cable Section
EMC / Pollution Stability
Surge Voltage Test
Burst Test
Installation
Weight
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
Please look at labels on the device.
50/60 Hz.
5 A (maximum 32 A)
0.02-32A
Class 1
< 2 VA
6+1 digit = 999999,9 kWh
> 40 year
When the current is more than 0.02A it blinks proportional to the consumed energy.
1000 Pulse / kWh
Optical isolated NPN transistor
20 mS.
- °C.... + °C Class:B25 55
IP51
4 mm²
4 kV 1.2 / 50 µs. (IEC 1000-4-5)
4 kV (IEC 1000-4-4)
Standart DIN mount (DIN EN60715)
60 gr. (excluding the packet)
?
It is compatible with EN62053-21 standart and EN50470-1/3 standarts.
It has to be used indoor
The device has pulse outputs
for remote reading and central
data storage.
By flashing, the LED on the
front panel makes it possible to
observe whether the measuring
is active or not.
The LCD display on the front
panel makes easy and accurate
power reading possible.
Note: User can not reset index. If the
value of index exceed 999999.9,
it is resetted automatically and
continue to count.
Load
N
L
Phase
Out
Phase In
SO+
SO-
3
Nominal 24V DC
Max. 60V DC
Max. 30mA
Neutral
Out
Neutral
In
SO+
SO-
6 4
1
ENGLISH
A5948/Rev.2
MID
