User’s Guide

Notations Used in This Guide
•Safety indications
The documentation and the projector use graphical symbols to show how to use the projector safely.
Please understand and respect these caution symbols in order to avoid injury to persons or property.
Warning
This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.
Caution
This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.
•General information indications
Attention
Indicates procedures which may result in damage or injury if sufficient care is not taken.
a
Indicates additional information and points which may be useful to know regarding a topic.
sIndicates a page where detailed information regarding a topic can be found.
g
Indicates that an explanation of the underlined word or words in front of this symbol appears in the glossary of terms. See the "Glossary"
section of the "Appendix".
s "Glossary" p.118
[Name] Indicates the name of the buttons on the remote control or the control panel.
Example: [Esc] button
Menu Name Indicates Configuration menu items.
Example:
Select Brightness from Image.
Image - Brightness

Notations Used in This Guide ........................ 2
Introduction
Projector Features .......................................... 7
Project Realistic 3D Images........................................ 7
Quick and Easy Set up, Projection, and Storage..........................7
Connecting with a USB cable and projecting (USB Display)................7
Detecting projector movements and automatically correcting image distortion . . 7
Horizontal keystone adjuster (EH-TW550/EH-TW510 only) . ................7
Focus help (EB-W16 only) ....................................... 8

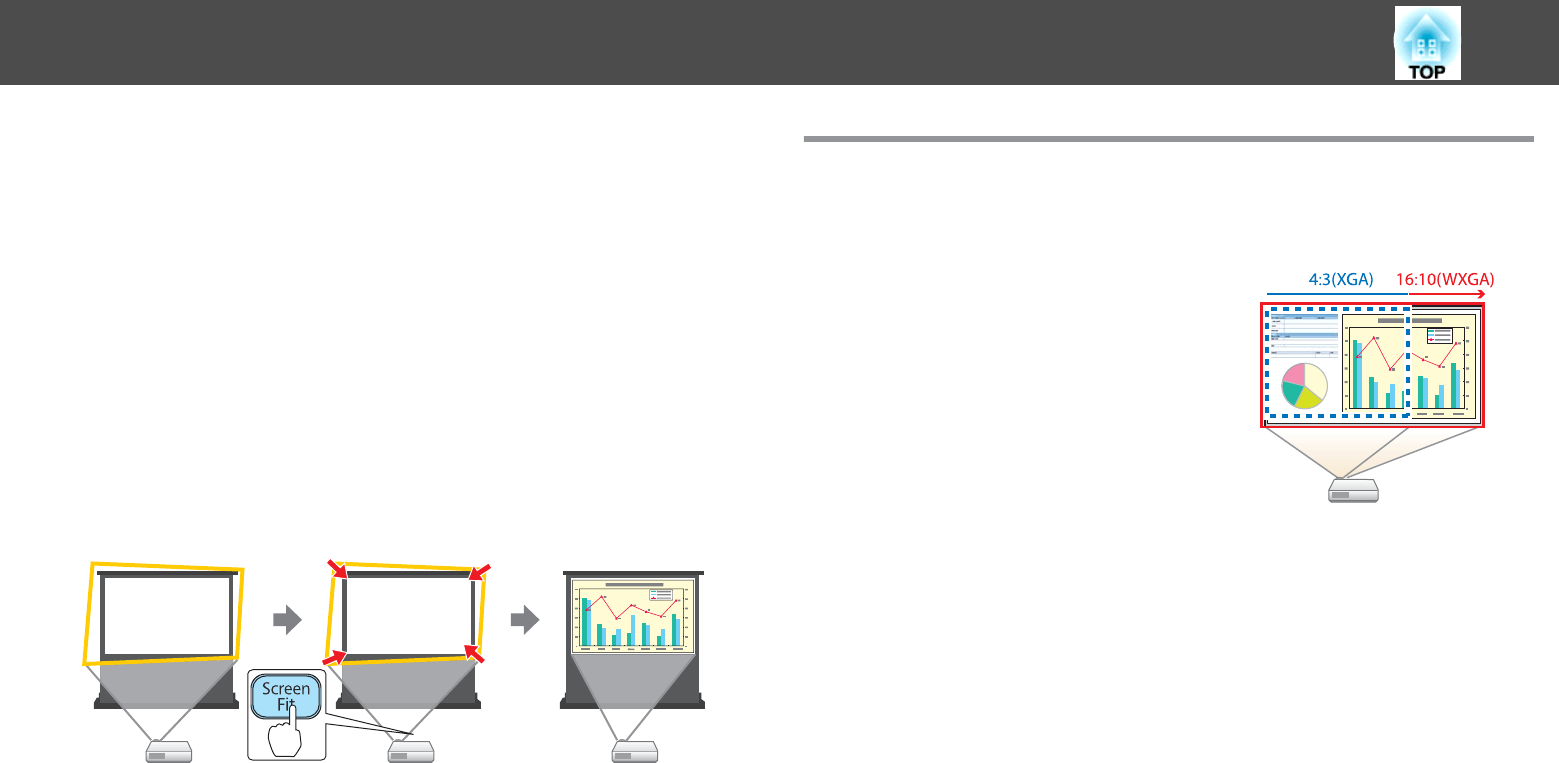

Automatically adjust to fit into the screen frame (Screen Fit) (EB-W16 only).....8
Useful Functions for Projecting Images................................8
Increasing projection content in wide (WXGA) screen....................8
Making the most of the remote control.............................8
Enlarge and project your files with the Document Camera .................8
Connect a USB storage device and project movies and images (PC Free).......9
Enhanced security functions.....................................9
Part Names and Functions .................................. 10

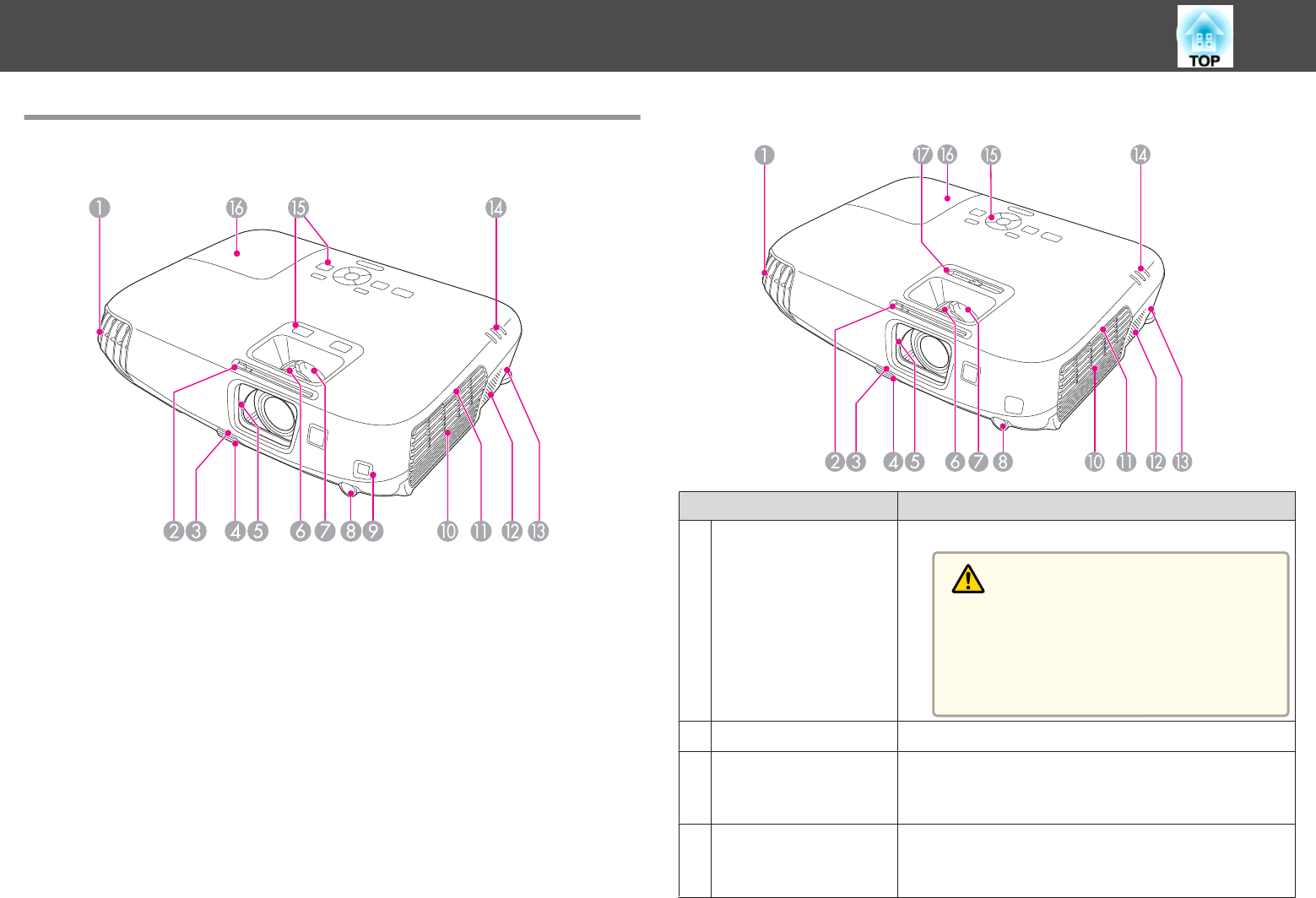

Front/Top...................................................10
Rear.......................................................11
Base ...................................................... 12

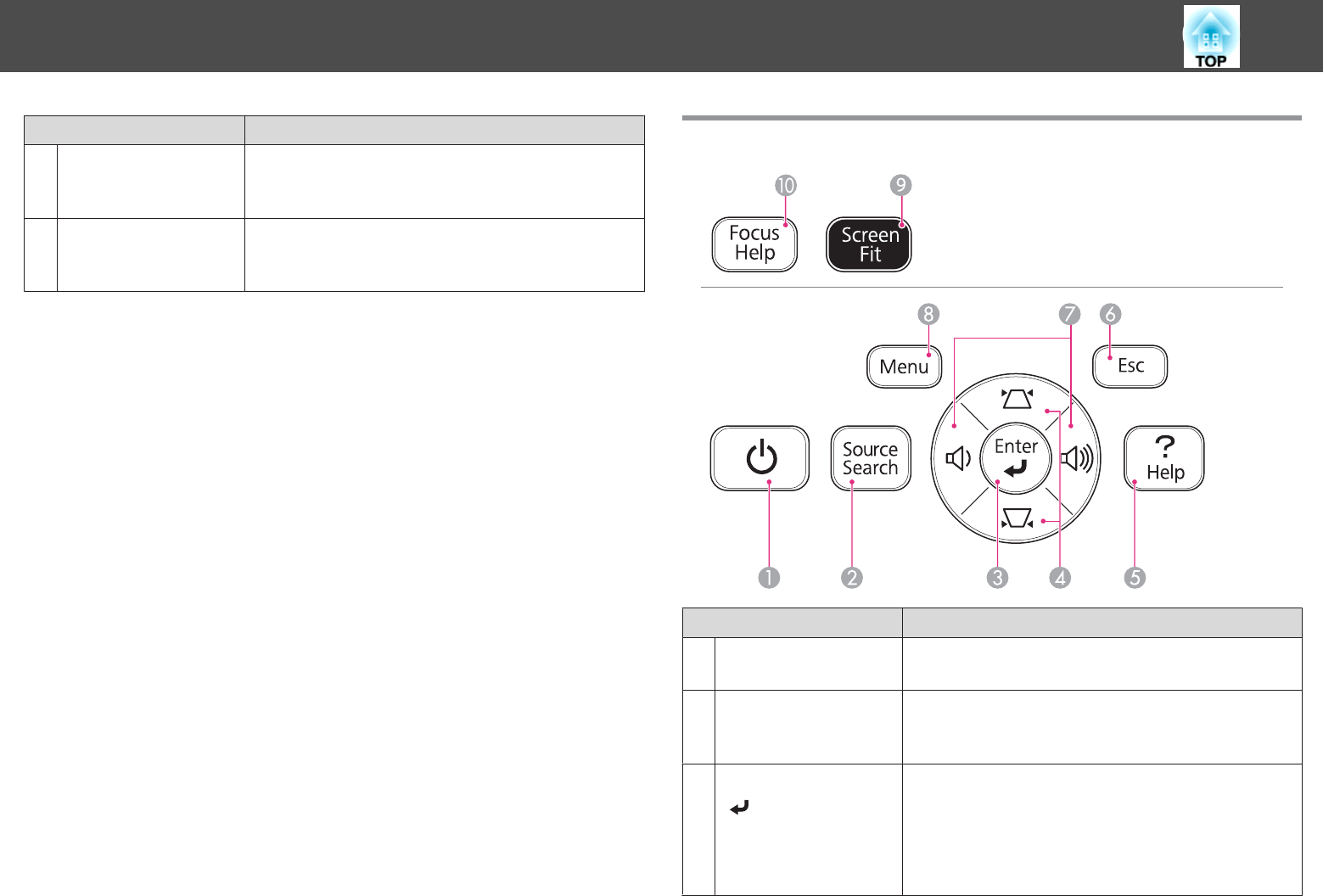

Control Panel................................................13
Remote Control ...............................................15

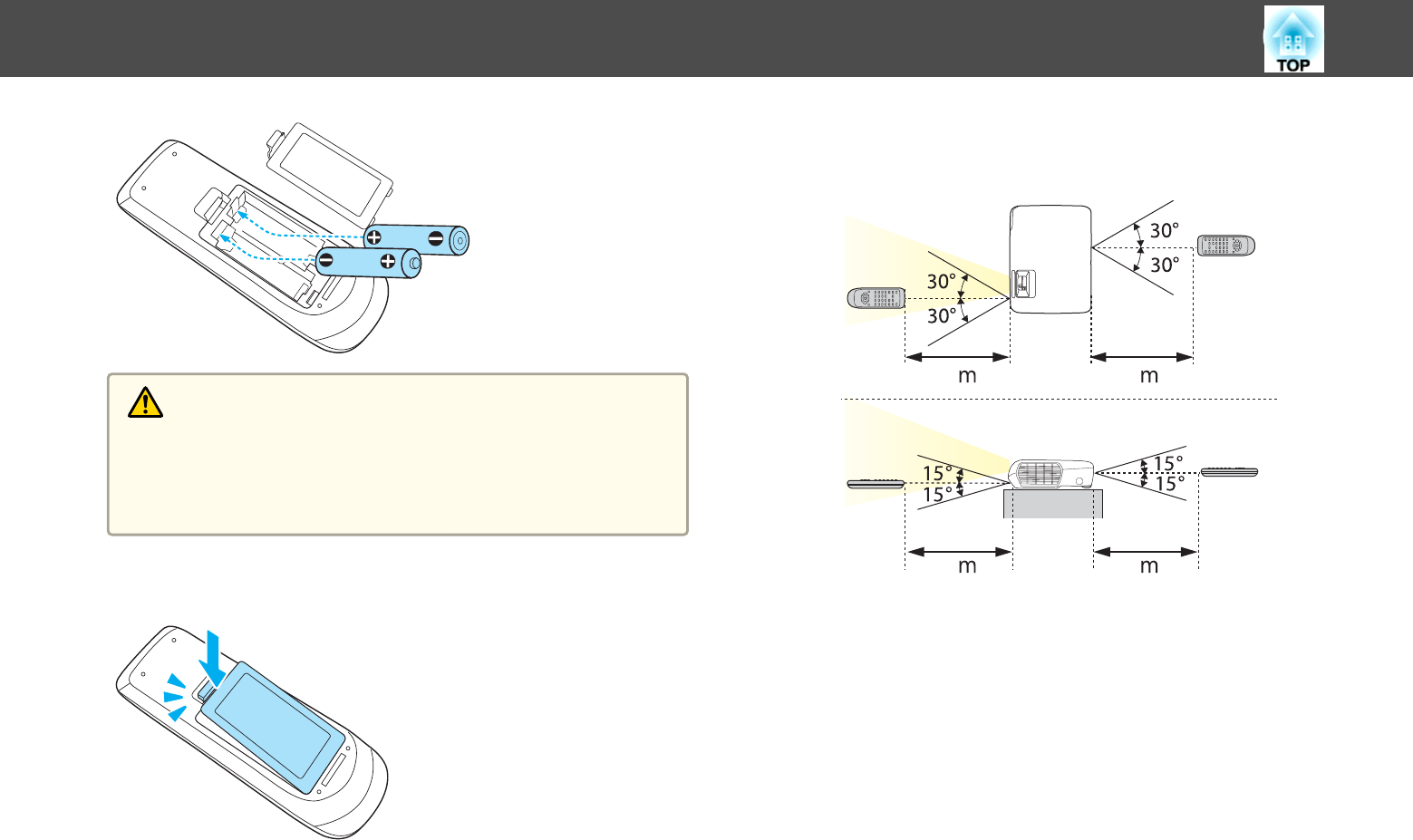

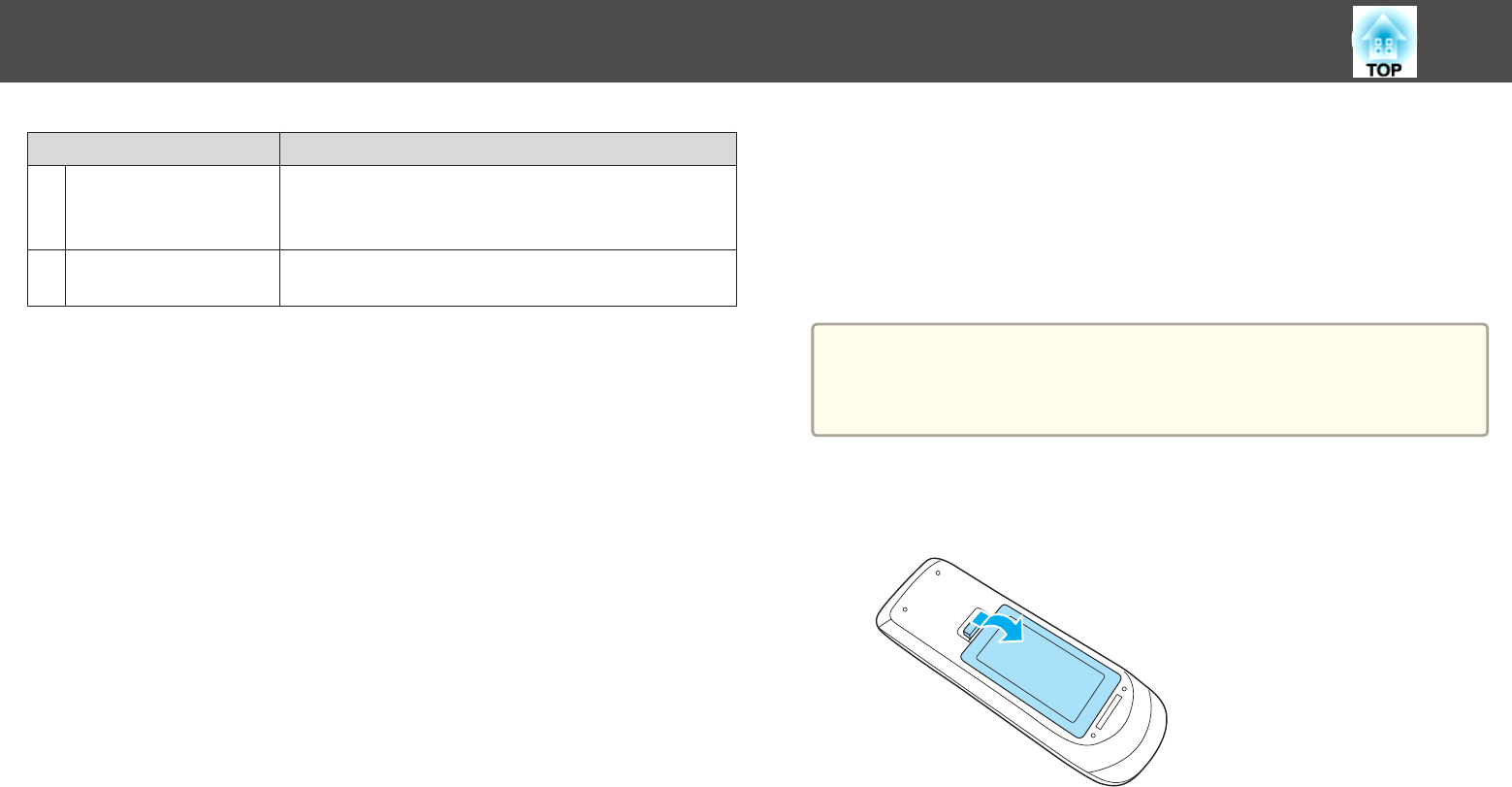

Replacing the remote control batteries.............................17
Remote control operating range.................................18
Preparing the Projector
Installing the Projector ..................................... 20

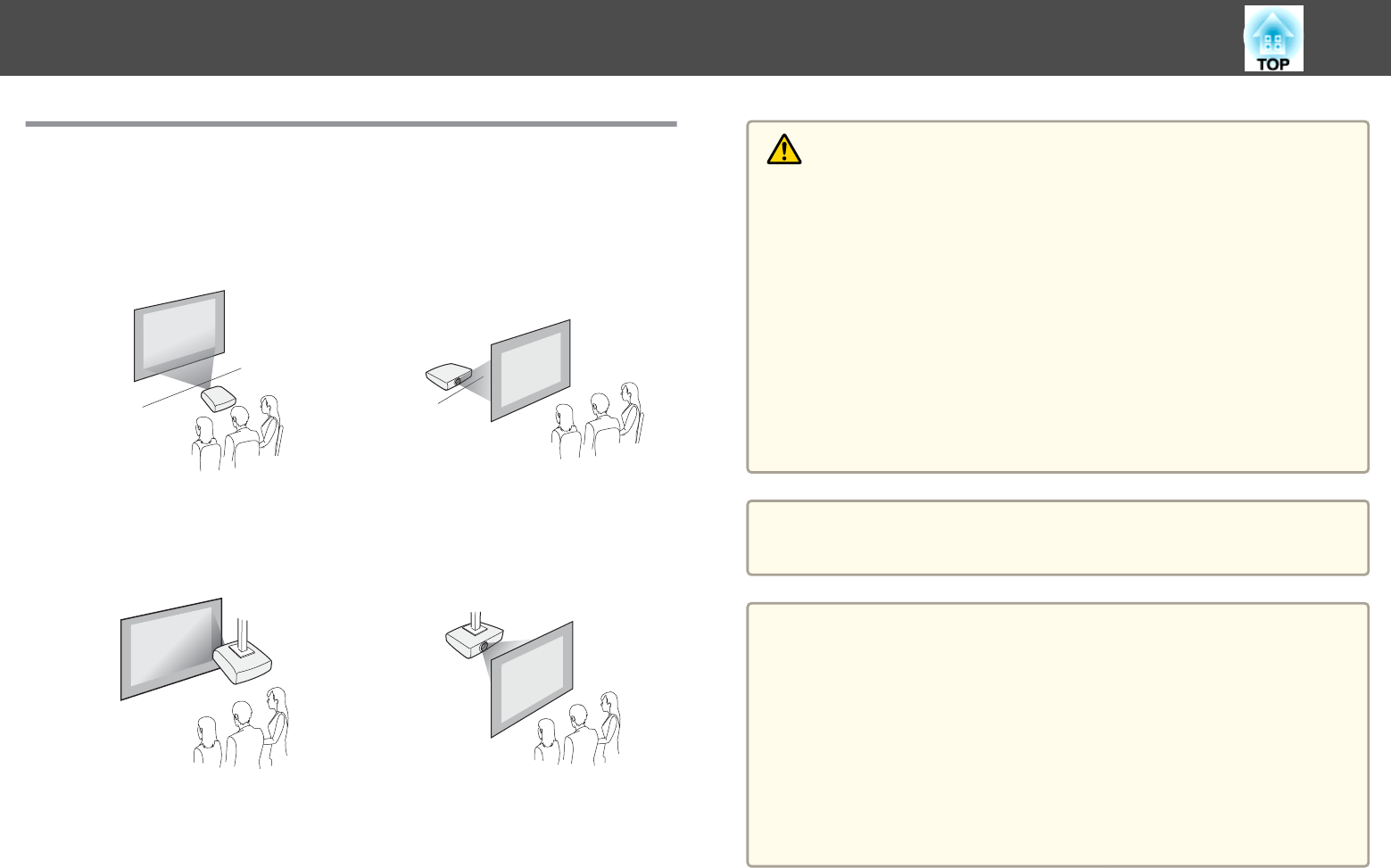

Installation Methods ...........................................20
Installation methods .........................................20

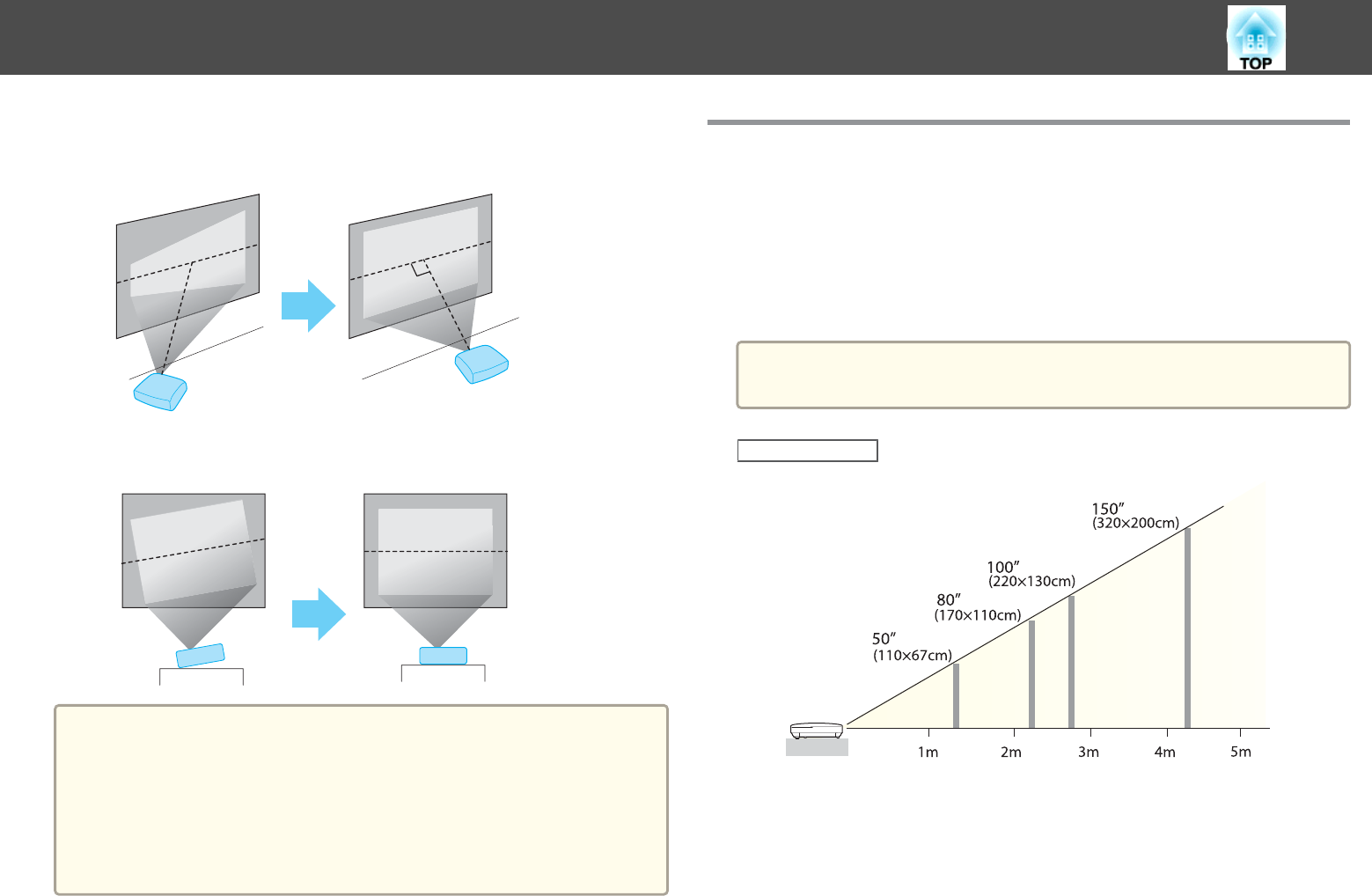

Screen Size and Approximate Projection Distance.......................21
Connecting Equipment ..................................... 22

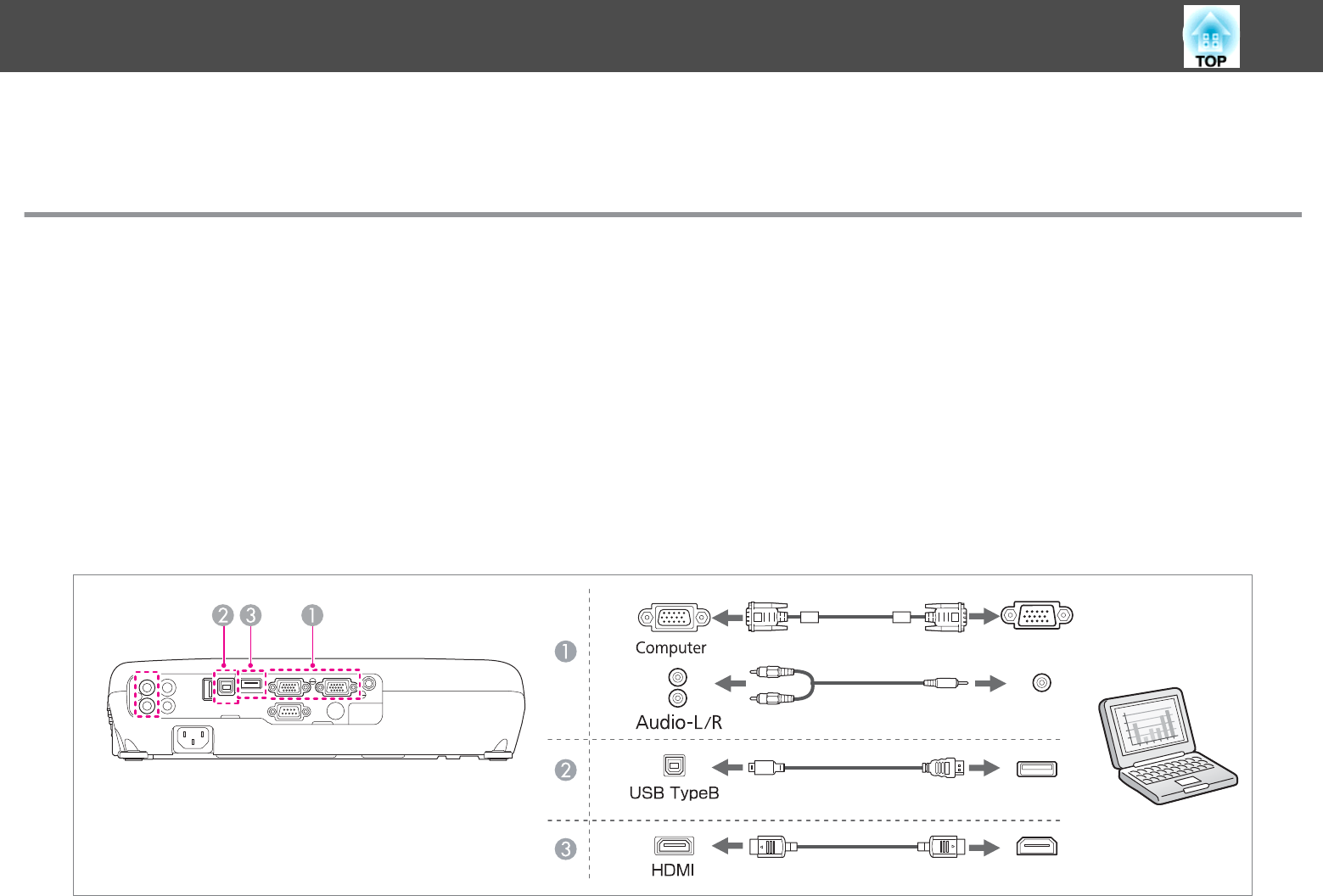

Connecting a Computer .........................................22

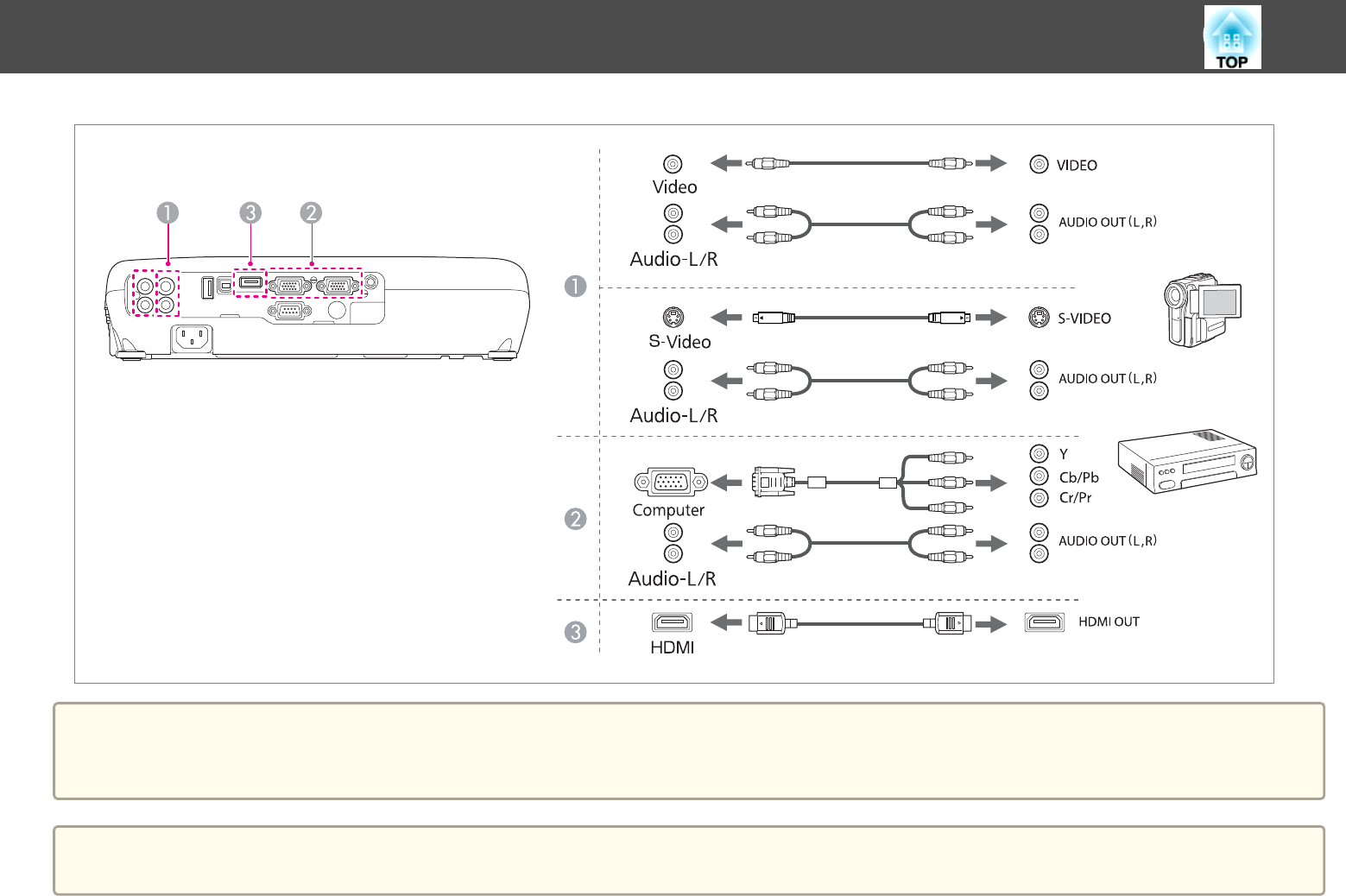

Connecting Image Sources.......................................23

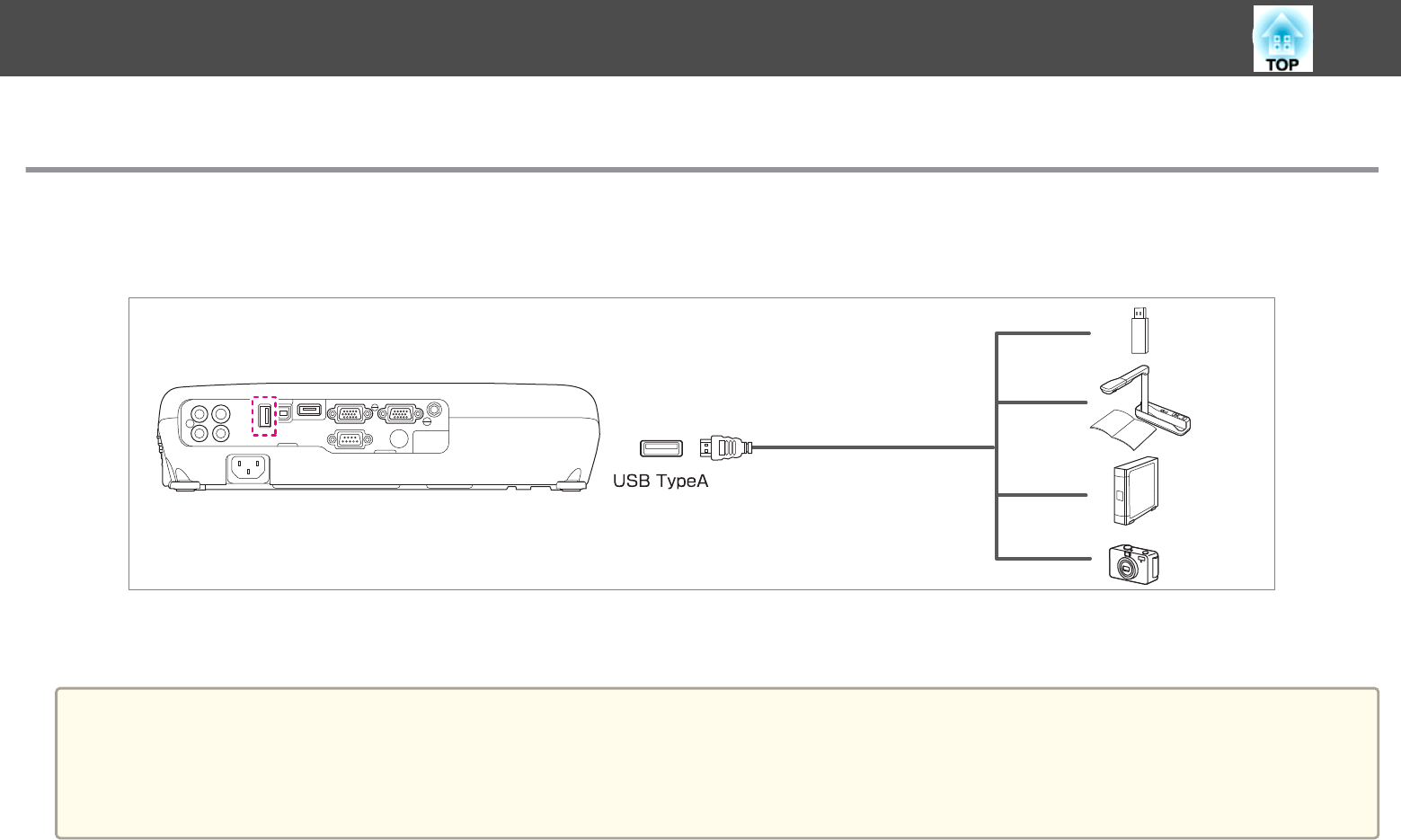

Connecting USB Devices .........................................25

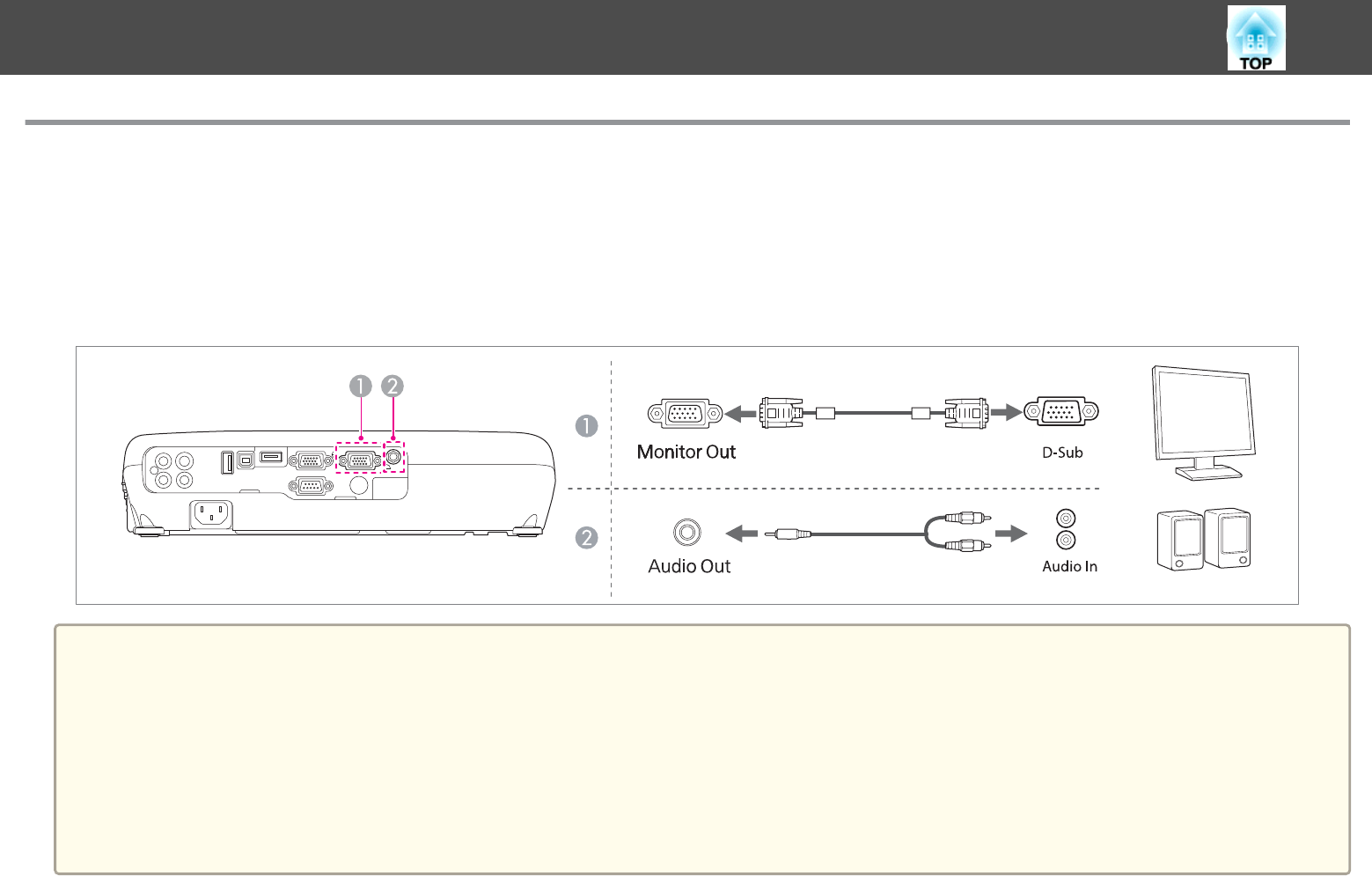

Connecting External Equipment (EB-W16 only).........................26
Basic Usage
Projecting Images ......................................... 28

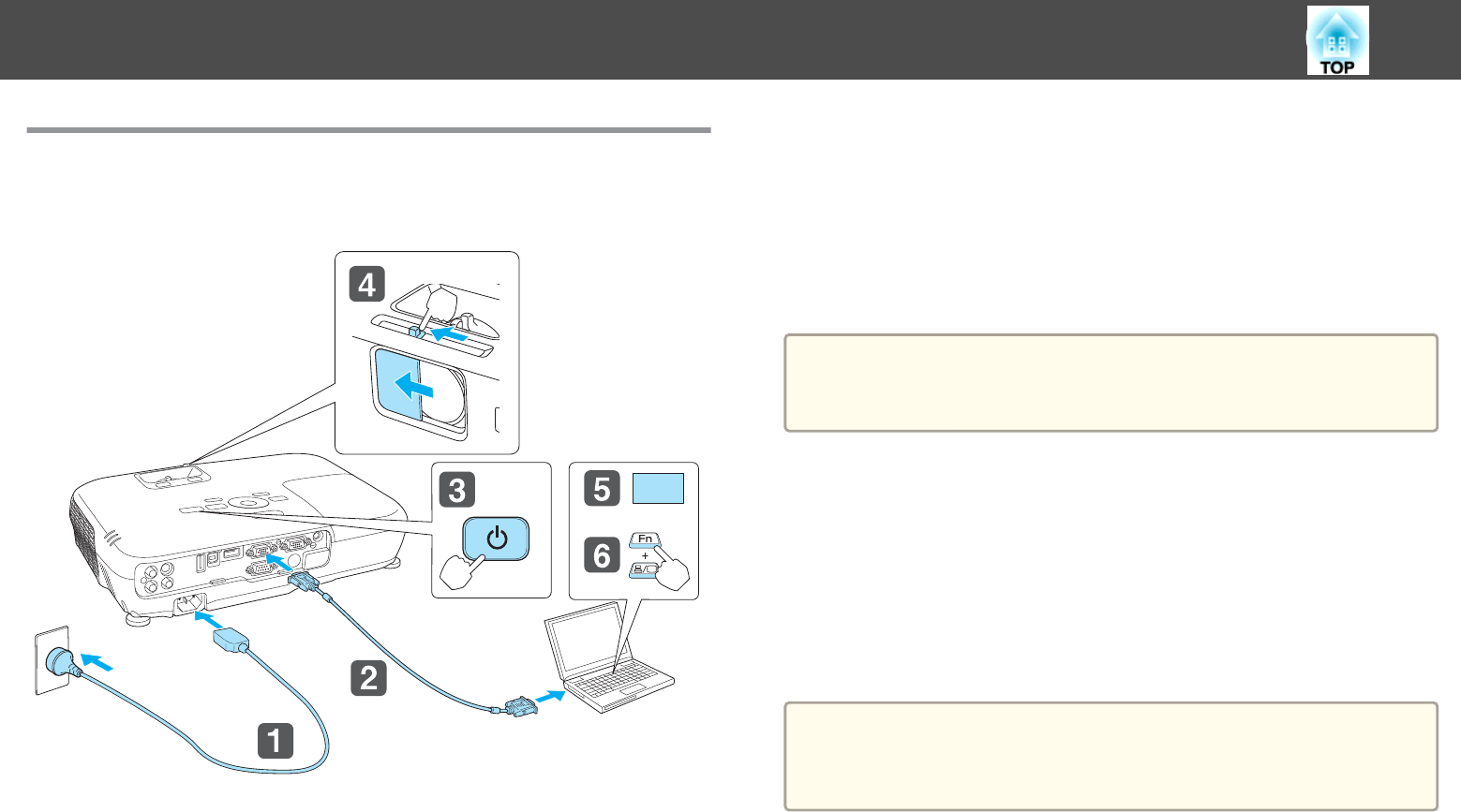

From Installation to Projection .....................................28

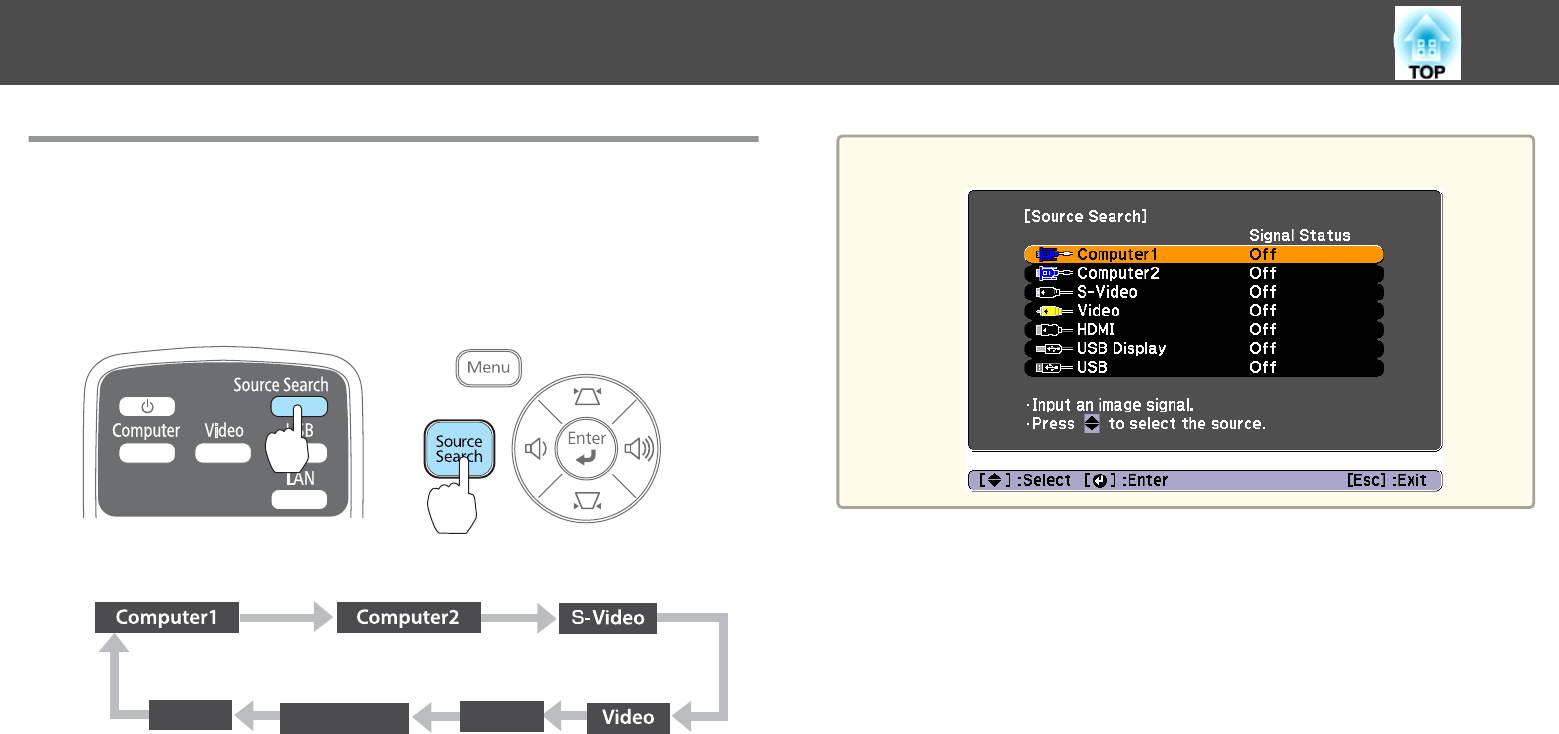

Automatically Detect Input Signals and Change the Projected Image (Source Search)
..........................................................29
Switching to the Target Image by Remote Control.......................30
Projecting with USB Display......................................30
System requirements.........................................30
Connecting for the first time....................................31
Uninstalling ...............................................32
Adjusting Projected Images ................................ 34

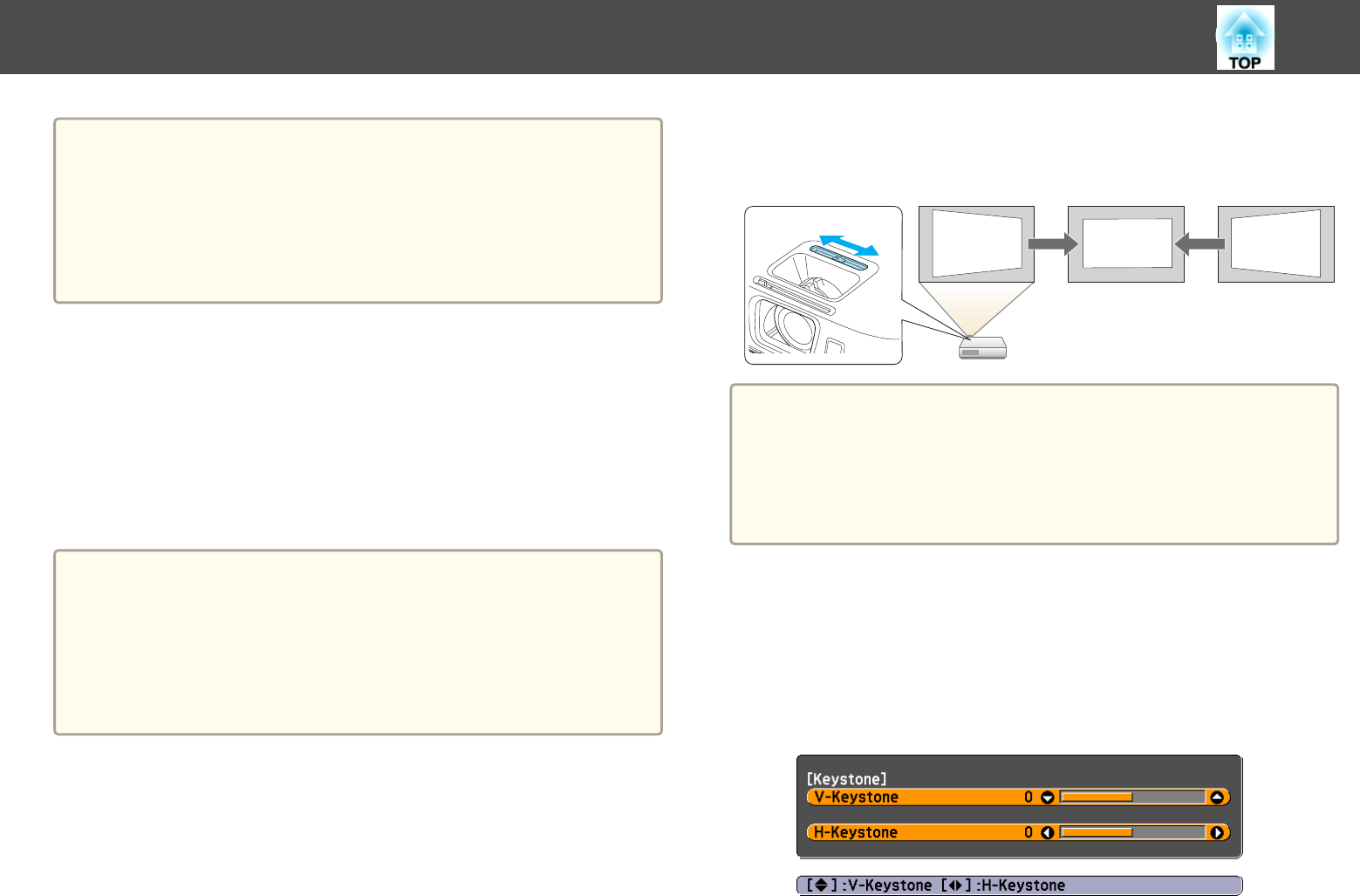

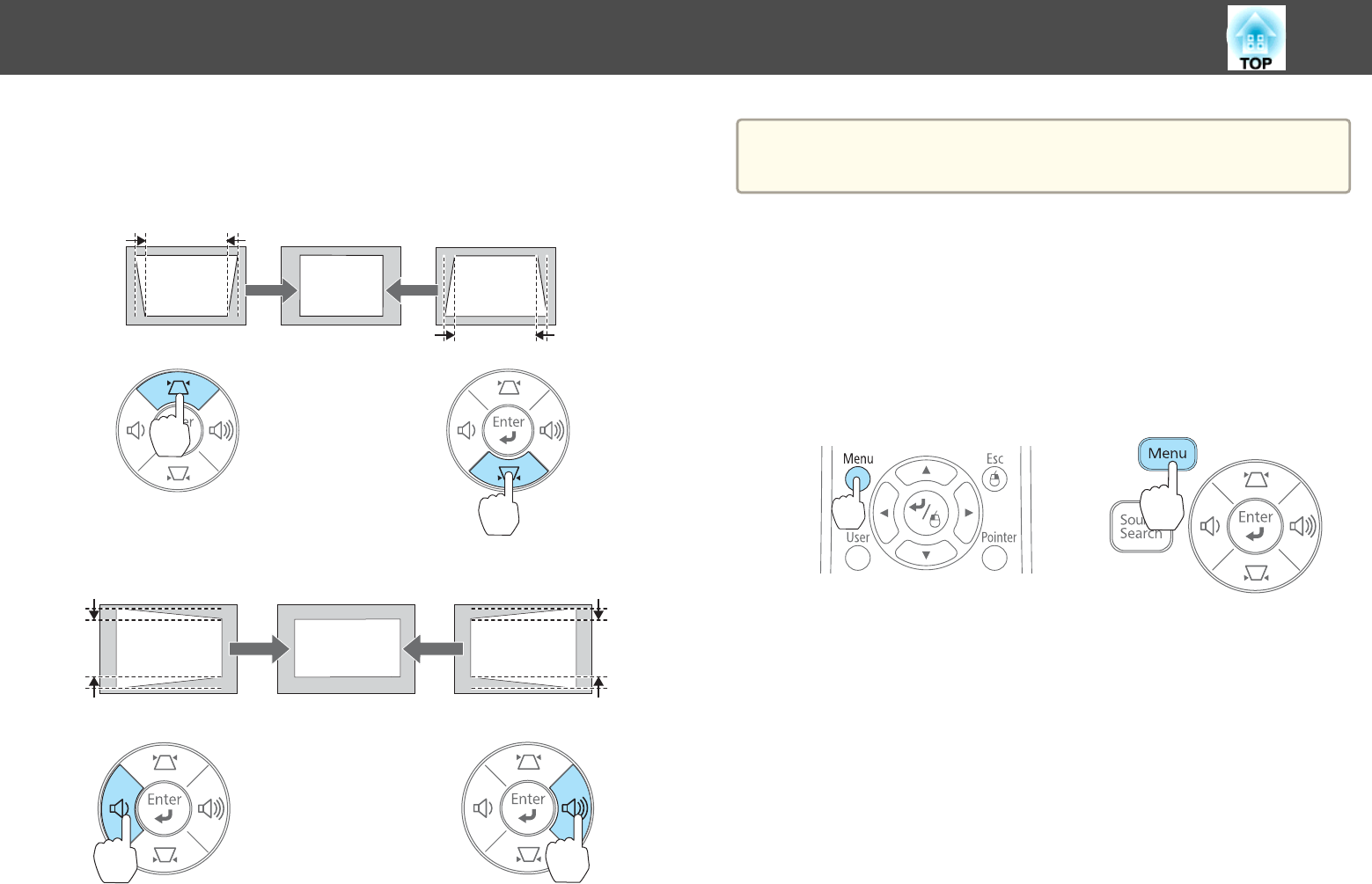

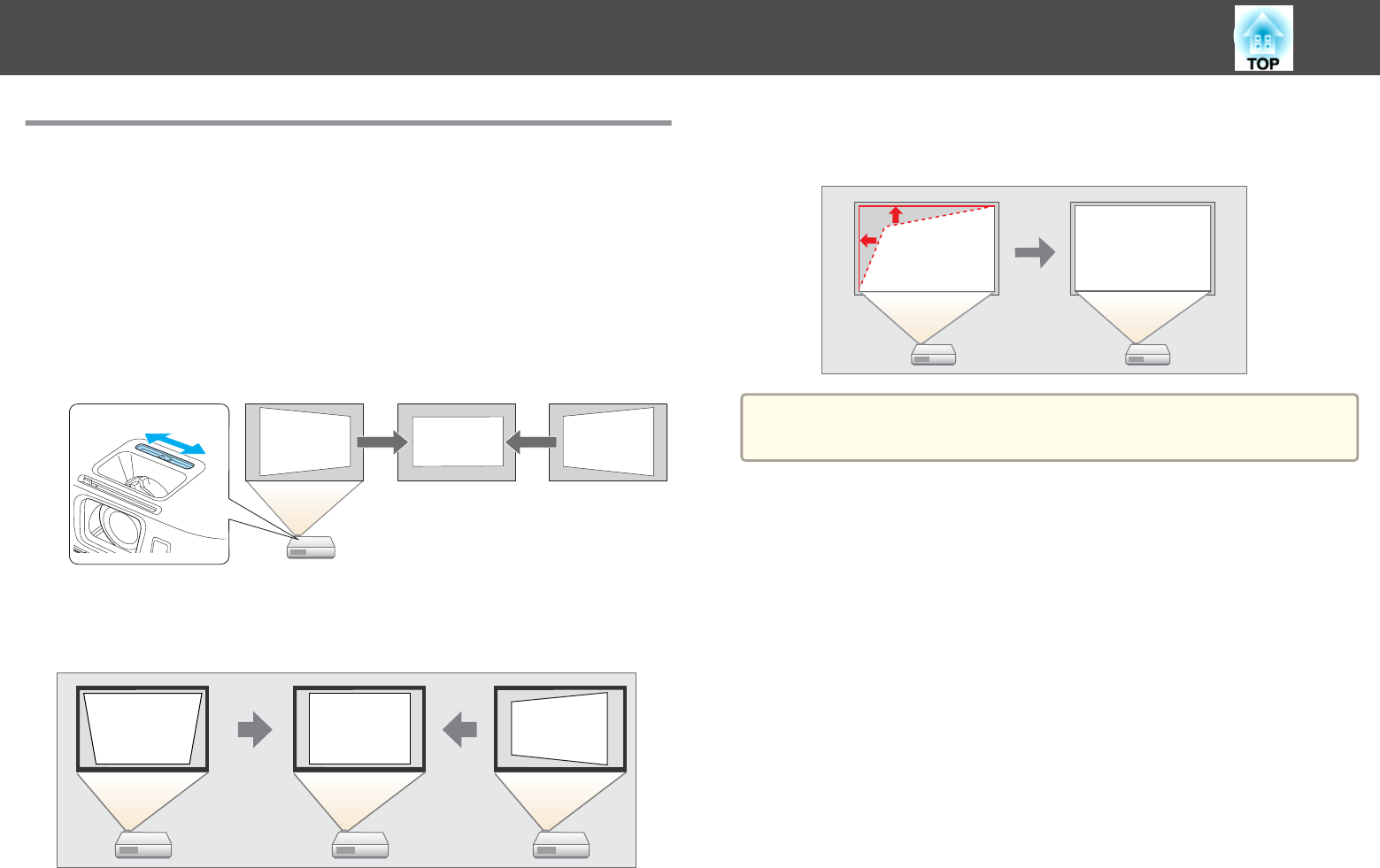

Correcting Keystone Distortion ....................................34
Correcting automatically......................................34
Correcting manually.........................................35
Automatically Adjust to Fit into the Screen Frame (Screen Fit) (EB-W16 only) . . . . . 38
Adjusting the Image Size ........................................40
Adjusting the Image Position .....................................41
Adjusting the Horizontal Tilt......................................41
Correcting the Focus...........................................41
Adjusting the Volume..........................................42
Selecting the Projection Quality (Selecting Color Mode)...................42
For EB-W16 ................................................42
For EH-TW550/EH-TW510 ......................................43
Setting Auto Iris..............................................43

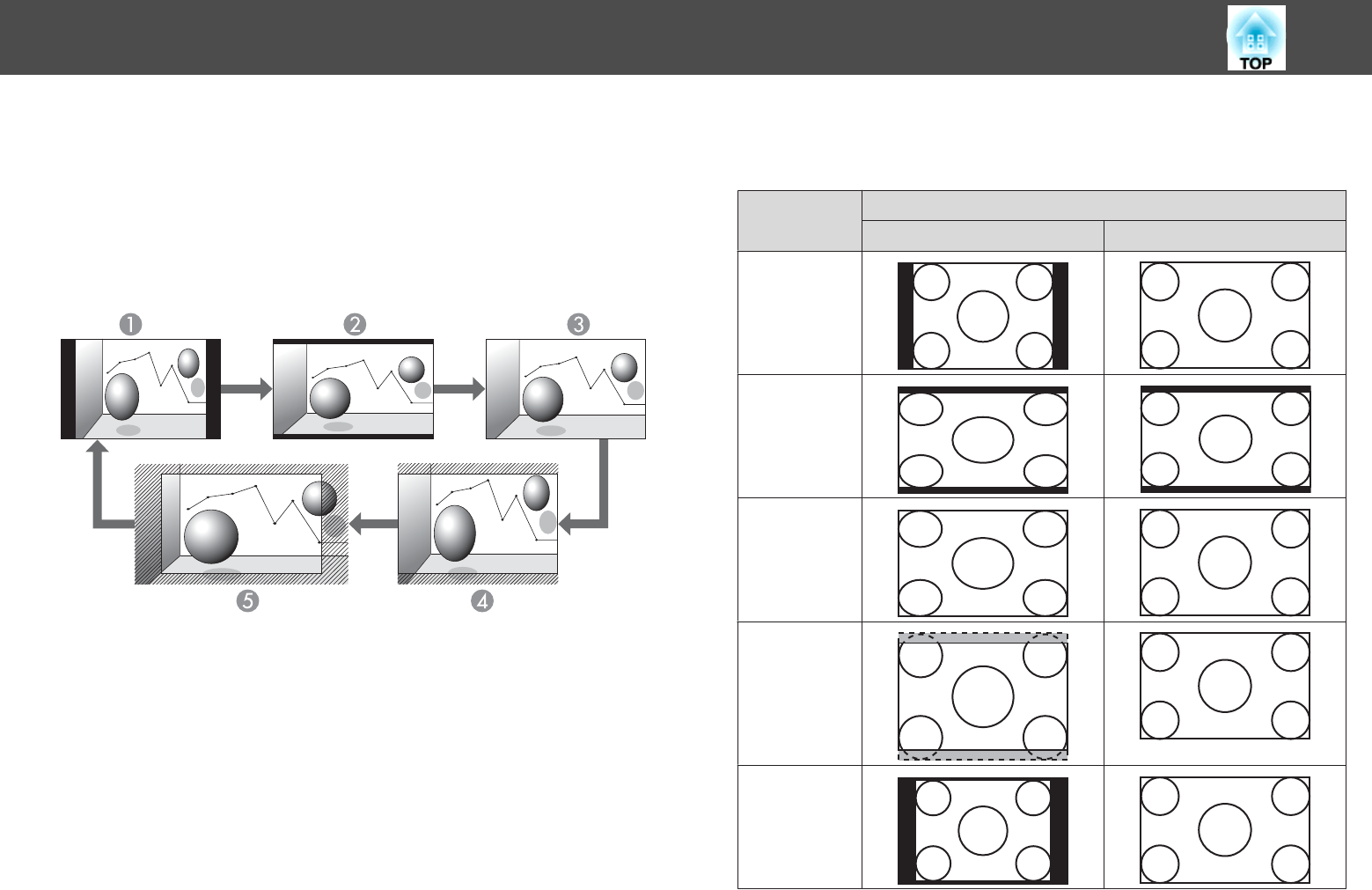

Changing the Aspect Ratio of the Projected Image.......................44
Changing methods..........................................44
Changing the aspect mode ..................................... 45
Contents
3

Useful Functions
Projection Functions ....................................... 48
Projecting 3D Images ........................................... 48
Preparing to view 3D images ....................................48
Viewing 3D images..........................................49
Viewing area for 3D images .....................................50
Warnings regarding viewing 3D images............................51
Projecting Without a Computer (PC Free).............................53
Specifications for files that can be projected using PC Free...............54
PC Free examples...........................................54
PC Free operating methods.....................................54
Projecting the selected images or movies...........................56
Projecting image files in a folder in sequence (Slideshow)................57
Image file display settings and Slideshow operation settings..............58
Hiding the Image and Sound Temporarily (A/V Mute).....................59
Freezing the Image (Freeze)......................................59
Pointer Function (Pointer) ........................................60
Enlarging Part of the Image (E-Zoom)................................61
Using the Remote Control to Operate the Mouse Pointer (Wireless Mouse) . . . . . . 62
Saving a User's Logo ...........................................63
Security Functions ......................................... 65
Managing Users (Password Protect).................................65
Kinds of Password Protect ......................................65
Setting Password Protect ......................................65
Entering the Password........................................66
Restricting Operation (Control Panel Lock)............................67
Anti-Theft Lock ...............................................68
Installing the wire lock........................................68
Monitoring and Controlling ................................ 69
ESC/VP21 Commands (EB-W16 only)................................69
Before getting started........................................69
Command list ..............................................69
Communications protocol.....................................70
Configuration Menu
Using the Configuration Menu .............................. 72
List of Functions ........................................... 73
Configuration Menu Table .......................................73
Image Menu .................................................74
Signal Menu.................................................75
Settings Menu................................................77
Extended Menu ...............................................78
Info Menu (Display Only)........................................79
Reset Menu.................................................80
Troubleshooting
Using the Help ............................................. 82
Problem Solving ........................................... 84
Reading the Indicators .......................................... 84
When the Indicators Provide No Help ................................87
Problems Relating to Images ...................................... 88
No images appear...........................................88
Moving images are not displayed.................................89
Projection stops automatically................................... 89
The message Not supported is displayed...........................89
The message No Signal is displayed...............................89
Cannot view 3D images.......................................90
Images are fuzzy, out of focus, or distorted..........................91
Interference or distortion appear in images ..........................91
The mouse cursor flickers (only when projecting USB Display).............92
The image is truncated (large) or small, the aspect is not suitable, or the image has
been reversed ..............................................92
Image colors are not right ......................................93
Images appear dark .......................................... 94
Problems when Projection Starts...................................94
The projector does not turn on..................................94
Other Problems ...............................................95
Contents
4

No sound can be heard or the sound is faint.........................95
The remote control does not work................................96
I want to change the language for messages and menus.................96
Maintenance
Cleaning .................................................. 98
Cleaning the Projector's Surface...................................98
Cleaning the Lens.............................................98
Cleaning the 3D Glasses.........................................98
Cleaning the Air Filter ...........................................98
Replacing Consumables ................................... 100
Replacing the Lamp ........................................... 100
Lamp replacement period.....................................100
How to replace the lamp......................................100
Resetting the lamp hours ..................................... 103
Replacing the Air Filter ......................................... 103
Air filter replacement period ................................... 103
How to replace the air filter.................................... 103
Appendix
Optional Accessories and Consumables .................... 106
Optional Accessories.......................................... 106
Consumables ............................................... 107
Screen Size and Projection Distance ........................ 108
Projection Distance for EB-W16/EH-TW550/EH-TW510 ................... 108
Supported Monitor Displays ............................... 110
Supported Resolutions ......................................... 110
Computer signals (analog RGB) ................................. 110
Component Video .......................................... 110
Composite video ........................................... 110
Input signal from the HDMI port................................ 110
3D Input Signal............................................ 111
Specifications ............................................ 112
Projector General Specifications ...................................112
Appearance .............................................. 117
Glossary ................................................. 118
General Notes ............................................ 120
About Notations ............................................. 120
Trademarks and Copyrights......................................120
Index .................................................... 122
Contents
5

Introduction
This chapter explains the projector's features and the part names.

Focus help (EB-W16 only)
This projector comes with a built in function to help make accurate focus
adjustments.
s "Correcting the Focus" p.41
Automatically adjust to fit into the screen frame (Screen Fit) (EB-
W16 only)
By pressing the [Screen Fit] button, you can automatically adjust the
projected image to fit into the screen frame by correcting any image
distortion.
s "Automatically Adjust to Fit into the Screen Frame (Screen Fit) (EB-
W16 only)" p.38
Useful Functions for Projecting Images
Increasing projection content in wide (WXGA) screen
With a computer that has a 16:10 WXGA wide
LCD display, the image can be projected in the
same aspect. You can use whiteboards and other
landscape format screens.
s "Changing the Aspect Ratio of the Projected
Image" p.44
Making the most of the remote control
You can use the remote control to perform operations such as enlarging
part of the image. You can also use the remote control as a pointer during
presentations or as a mouse for the computer.
s "Pointer Function (Pointer)" p.60
s "Enlarging Part of the Image (E-Zoom)" p.61
s "Using the Remote Control to Operate the Mouse Pointer (Wireless
Mouse)" p.62
Enlarge and project your files with the Document Camera
You can project paper documents and objects using the optional Document
Camera. Image focus is automatically adjusted using the auto focus
function. You can also enlarge images using digital zoom.
s "Optional Accessories" p.106
Projector Features
8

Front/Top
EB-W16
EH-TW550/EH-TW510
Name Function
AAir exhaust vent Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could
cause burns, warping, or accidents to occur.
BA/V mute slide knob Slide the knob to open and close the A/V mute slide.
CFoot adjust lever Press the foot adjust lever to extend and retract the front
adjustable foot.
s "Adjusting the Image Position" p.41
DFront adjustable foot When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.41
Part Names and Functions
10

Name Function
EA/V mute slide Close when not using the projector to protect the lens. By
closing during projection you can hide the image and the
sound.
s "Hiding the Image and Sound Temporarily (A/V
Mute)" p.59
FFocus ring Adjusts the image focus.
s "Correcting the Focus" p.41
GZoom ring Adjusts the image size.
s "Adjusting the Image Size" p.40
HRemote receiver Receives signals from the remote control.
ISensor (EB-W16 only) Sensor for detecting the screen frame.
JAir intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.98
KAir filter cover section Place your finger to open the air filter cover.
s "Replacing the Air Filter" p.103
LSpeaker Outputs audio.
MSecurity slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.68
NIndicators Indicates the projector's status.
s "Reading the Indicators" p.84
OControl panel Operates the projector.
s "Control Panel" p.13
PLamp cover Open when replacing the projector's lamp.
s "Replacing the Lamp" p.100
QHorizontal keystone
adjuster (EH-TW550/
EH-TW510 only)
Corrects horizontal distortion in the projected image.
s "Correcting manually" p.35
Rear
EB-W16
EH-TW550/EH-TW510
Name Function
AAudio-L/R port Inputs audio from equipment connected to the Computer
port, the S-Video port, or the Video port.
BVideo port Inputs composite video signals from video sources.
CPower inlet Connects the power cord to the projector.
s "From Installation to Projection" p.28
Part Names and Functions
11

Name Function
DRS-232C port (EB-W16
only)
When controlling the device from a computer, connect it
to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands (EB-W16 only)" p.69
ERemote receiver Receives signals from the remote control.
FAudio Out port (EB-
W16 only)
Outputs audio from the currently projected image to an
external speaker.
GMonitor
Out/Computer2 port
(EB-W16 only)
•Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
•When Monitor Out Port is set to Computer2 from the
Configuration menu, image signals from a computer
and component video signals from other video sources
are input.
HComputer1 or
Computer port
Inputs image signals from a computer and component
video signals from other video sources.
IHDMI port Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with HDCP
g
.
s "Connecting Equipment" p.22
JUSB(TypeB) port •Connects the projector to a computer using a USB cable,
and projects the images on the computer.
s "Projecting with USB Display" p.30
•Connects the projector to a computer using a USB cable
to use the Wireless Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.62
KUSB(TypeA) port •Connects a USB memory device or a digital camera and
projects movies or images using PC Free.
s "Projecting Without a Computer (PC Free)"
p.53
•Connects the optional Document Camera.
Name Function
LS-Video port Inputs S-Video signals from video sources.
Base
Name Function
ACeiling mount fixing
points (three points)
Attach the optional Ceiling Mount here when suspending
the projector from a ceiling.
s "Installing the Projector" p.20
s "Optional Accessories" p.106
BRear feet When setup on a surface such as a desk, turn to extend and
retract to adjust the horizontal tilt.
s "Adjusting the Horizontal Tilt" p.41
Part Names and Functions
12

Name Function
CSecurity cable
installation point
Pass a commercially available wire lock through here and
lock it in place.
s "Installing the wire lock" p.68
DFront adjustable foot When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.41
Control Panel
Name Function
A[t] button Turns the projector power on or off.
s "From Installation to Projection" p.28
B[Source Search]
button
Changes to the next input source that is sending an image.
s "Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.29
C[Enter] button
[]
•When the Configuration menu or the Help screen is
displayed, it accepts and enters the current selection and
moves to the next level.
•If pressed while projecting analog RGB signals from the
Computer port, you can automatically optimize
Tracking, Sync., and Position.
Part Names and Functions
13

Name Function
D[w][v] buttons •Displays the Keystone screen allowing you to correct
Keystone distortion in vertical and horizontal
directions.
s "Correcting manually" p.35
•If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s "Using the Configuration Menu" p.72
s "Using the Help" p.82
E[Help] button Displays and closes the Help screen which shows you how
to deal with problems if they occur.
s "Using the Help" p.82
F[Esc] button •Stops the current function.
•If pressed when the Configuration menu is displayed, it
moves to the previous menu level.
s "Using the Configuration Menu" p.72
G[a][b] buttons •Adjusts the speaker volume.
[b] Increases the volume.
[a] Decreases the volume.
s "Adjusting the Volume" p.42
•Corrects keystone distortion in the horizontal direction
when the Keystone screen is displayed.
s "H/V-Keystone" p.35
•If pressed when the Configuration menu or the Help
screen is displayed, these buttons select menu items and
setting values.
s "Using the Configuration Menu" p.72
s "Using the Help" p.82
H[Menu] button Displays and closes the Configuration menu.
s "Using the Configuration Menu" p.72
Name Function
I[Screen Fit] button
(EB-W16 only)
Adjusts the projected image so that it fits the screen frame.
s "Automatically Adjust to Fit into the Screen Frame
(Screen Fit) (EB-W16 only)" p.38
This button is disabled when the projector is suspended
from a ceiling.
J[Focus Help] button
(EB-W16 only)
Opens the dialog to provide focus adjustment assistance.
s "Correcting the Focus" p.41
Part Names and Functions
14

Name Function
K[] button •When the Configuration menu or the Help screen is
displayed, it accepts and enters the current selection and
moves to the next level.
s "Using the Configuration Menu" p.72
•Acts as a mouse's left button when using the Wireless
Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.62
L[User] button Select any frequently used item from the six available
Configuration menu items, and assign it to this button. By
pressing the [User] button, the assigned menu item
selection/adjustment screen is displayed, allowing you to
make one-touch settings/adjustments.
s "Settings Menu" p.77
M[Page] buttons
[[][]]
Changes pages in files such as PowerPoint files when using
the following projection methods.
•When using the Wireless Mouse function
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.62
•When using USB Display
s "Projecting with USB Display" p.30
When projecting images using PC Free, pressing these
buttons displays the previous/next screen.
N[E-Zoom] buttons
[z][x]
Enlarges or reduces the image without changing the
projection size.
s "Enlarging Part of the Image (E-Zoom)" p.61
O[A/V Mute] button •Turns the video and audio on or off.
s "Hiding the Image and Sound Temporarily (A/V
Mute)" p.59
•You can change the Projection mode as follows by
pressing the button for about five seconds.
FrontWFront/Ceiling
RearWRear/Ceiling
Name Function
P[Help] button Displays and closes the Help screen which shows you how
to deal with problems if they occur.
s "Using the Help" p.82
Q[Freeze] button Images are paused or unpaused.
s "Freezing the Image (Freeze)" p.59
R[Volume] buttons
[a][b]
[a] Decreases the volume.
[b] Increases the volume.
s "Adjusting the Volume" p.42
S[Pointer] button Displays the on-screen pointer.
s "Pointer Function (Pointer)" p.60
T[Esc] button •Stops the current function.
•If pressed when the Configuration menu is displayed, it
moves to the previous level.
s "Using the Configuration Menu" p.72
•Acts as a mouse's right button when using the Wireless
Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.62
U[Color Mode] button Each time the button is pressed, the Color Mode changes.
s "Selecting the Projection Quality (Selecting Color
Mode)" p.42
V[2D/3D] button Each time the button is pressed, the mode changes to 2D or
3D. Change to 3D mode when a 3D signal is being input. If
a 3D signal is input while in 2D mode, the image is
projected in 2D.
W[LAN] button This cannot be used on the projector.
X[USB] button Each time the button is pressed, it cycles through the
following images:
•USB Display
•Images from the device connected to the USB(TypeA)
port
Part Names and Functions
16

Name Function
Y[Source Search]
button
Changes to the next input source that is sending an image.
s "Automatically Detect Input Signals and Change the
Projected Image (Source Search)" p.29
ZRemote control light-
emitting area
Outputs remote control signals.
Replacing the remote control batteries
If delays in the responsiveness of the remote control occur or if it does not
operate after it has been used for some time, it probably means that the
batteries are becoming flat. When this happens, replace them with new
batteries. Have two AA size manganese or alkaline batteries ready. You
cannot use other batteries except for the AA size manganese or alkaline.
Attention
Make sure you read the following manual before handling the batteries.
s Safety Instructions
a
Remove the battery cover.
While pushing the battery compartment cover catch, lift the cover
up.
b
Replace the old batteries with new batteries.
Part Names and Functions
17

Caution
Check the positions of the (+) and (-) marks inside the battery holder to
ensure the batteries are inserted the correct way.
If the batteries are not used correctly, they could explode or leak causing
a fire, injury, or damage to the product.
c
Replace the battery cover.
Press the battery compartment cover until it clicks into place.
Remote control operating range
6 6
66
Part Names and Functions
18

Installation Methods
The projector supports the following four different projection methods.
Install the projector according to the conditions of the installation location.
•Project images from in front of
the screen. (Front projection)
•Project images from behind a
translucent screen. (Rear projec-
tion)
•Suspend the projector from the
ceiling and project images from
in front of a screen. (Front/Ceil-
ing projection)
•Suspend the projector from the
ceiling and project images from
behind a translucent screen.
(Rear/Ceiling projection)
Warning
•A special method of installation is required when suspending the projector
from a ceiling (ceiling mount). If it is not installed correctly, it could fall
causing an accident and injury.
•If you use adhesives on the Ceiling mount fixing points to prevent the screws
from loosening, or if you use things such as lubricants or oils on the
projector, the projector case may crack causing it to fall from its ceiling
mount. This could cause serious injury to anyone under the ceiling mount
and could damage the projector.
When installing or adjusting the ceiling mount, do not use adhesives to
prevent the screws from loosening and do not use oils or lubricants and so
on.
•Do not cover the projector's air intake vent or air exhaust vent. If either of
the vents are covered, the internal temperature could rise and cause a fire.
Attention
Do not use the projector on its side. This may cause malfunctions to occur.
a
•An optional Ceiling mount is required when suspending the
projector from a ceiling.
s "Optional Accessories" p.106
•The default Projection setting is Front. You can change from Front
to Rear from the Configuration menu.
s Extended - Projection p.78
•You can change the Projection mode as follows by pressing down
the [A/V Mute] button on the remote control for about five seconds.
FrontWFront/Ceiling
RearWRear/Ceiling
Installation methods
Install the projector as follows.
Installing the Projector
20

•Install the projector so that it is parallel to the screen.
If the projector is installed at an angle to the screen, keystone distortion
occurs in the projected image.
•Place the projector on a level surface.
If the projector is tilted the projected image is also tilted.
a
•See the following if you cannot install the projector parallel to the
screen.
s "Correcting Keystone Distortion" p.34
•See the following if you cannot install the projector on a level
surface.
s "Adjusting the Horizontal Tilt" p.41
s "Correcting Keystone Distortion" p.34
Screen Size and Approximate Projection Distance
Projection size is determined by the distance from the projector to the
screen. See the illustrations on the right to select the best position according
to the screen size. The illustrations show the approximate shortest distance
at maximum zoom. See the following for more information on the
projection distance.
s "Screen Size and Projection Distance" p.108
a
When you correct keystone distortion, the projected image may be
reduced.
16:10 Screen Size
Installing the Projector
21

The illustrations are for EB-W16.
The port name, location, and connector orientation differ depending on the source being connected.
Connecting a Computer
To project images from a computer, connect the computer using one of the following methods.
AWhen using the supplied or commercially available computer cable
Connect the computer's display output port to the projector's Computer port.
You can output audio from the projector's speaker by connecting the audio output port on the computer to the projector's Audio-L/R port using a commercially available audio
cable.
BWhen using the supplied or commercially available USB cable
Connect the computer's USB port to the projector's USB(TypeB) port.
You can send the computer's audio with the projected image.
CWhen using a commercially available HDMI cable
Connect the computer's HDMI port to the projector's HDMI port.
You can send the computer's audio with the projected image.
Connecting Equipment
22

a
•When projecting a computer connected to the Monitor Out/Computer2 port, set the Monitor Out Port to Computer2 from the Configuration menu. (EB-W16
only)
s Extended - Operation - Monitor Out Port p.78
•You can use a USB cable to connect the projector to a computer to project images from the computer. This function is called USB Display.
s "Projecting with USB Display" p.30
Connecting Image Sources
To project images from DVD players or VHS video and so on, connect to the projector using one of the following methods.
AWhen using a commercially available video or S-video cable
Connect the video output port on the image source to the projector's Video port. Or, connect the S-Video output port on the video equipment to the projector's S-Video port.
You can output audio from the projector's speaker by connecting the audio output port on the image source to the projector's Audio-L/R port using a commercially available audio
cable.
BWhen using the optional component video cable
s "Optional Accessories" p.106
Connect the component output port on the image source to the projector's Computer input port.
You can output audio from the projector's speaker by connecting the audio output port on the image source to the projector's Audio-L/R port using a commercially available audio
cable.
CWhen using a commercially available HDMI cable
Connect the HDMI port on the image source to the projector's HDMI port.
You can send the image source's audio with the projected image.
Connecting Equipment
23

Attention
•If the input source is on when you connect it to the projector, it could cause a malfunction.
•If the orientation or shape of the plug differs, do not try to force it in. The device could be damaged or could malfunction.
a
•If the source you want to connect to has an unusually shaped port, use the cable supplied with the device or an optional cable to connect to the projector.
•When using a commercially available 2RCA(L/R)/stereo mini-pin audio cable, make sure it is labeled "No resistance".
Connecting Equipment
24

Connecting USB Devices
You can connect devices such as the optional Document Camera, a USB memory, and USB compatible hard disks and digital cameras.
Using the USB cable supplied with the USB device, connect the USB device to the USB(TypeA) port on the projector.
When the USB device is connected, you can project files on the USB memory or digital camera using PC Free.
s "PC Free examples" p.54
Attention
•If you use a USB hub, the connection may not operate correctly. Devices such as digital cameras and USB devices should be connected to the projector directly.
•When connecting and using a USB-compatible hard disk, make sure you connect the AC adaptor supplied with the hard disk.
•Connect a digital camera or hard disk to the projector using a USB cable supplied with or specified for use with the device.
•Use a USB cable less than 3 m in length. If the cable exceeds 3 m, PC Free may not function correctly.
Removing USB devices
After finishing projecting, remove USB devices from the projector. For devices such as digital cameras or hard disks, turn off the device and then remove it from
the projector.
Connecting Equipment
25

Connecting External Equipment (EB-W16 only)
You can output images and audio by connecting an external monitor or speaker.
AWhen outputting images to an external monitor
Connect the external monitor to the projector's Monitor Out/Computer2 port using the cable supplied with the external monitor.
BWhen outputting audio to an external speaker
Connect the external speaker to the projector's Audio Out port using a commercially available audio cable.
a
•When outputting images to an external monitor, set Monitor Out Port to Monitor Out from the Configuration menu.
s Extended - Operation - Monitor Out Port p.78
•If you set Standby Mode to Communication On, you can output images to an external monitor even if the projector is in standby mode.
s Extended - Standby Setup - Standby Mode p.78
•Only analog RGB signals from the Computer port can be output to an external monitor. You cannot output signals input from other ports or component video
signals.
•Setting gauges for functions such as Keystone, Configuration Menu, or Help screens are not output to the external monitor.
•When the audio cable jack is inserted into the Audio Out port, audio stops being output from the projector's built-in speakers and switches to external
output.
Connecting Equipment
26

Basic Usage
This chapter explains how to project and adjust images.

From Installation to Projection
This section explains the procedure for connecting the projector to a
computer with the computer cable and projecting images.
ON
a
Connect the projector to an electrical outlet with the power cord.
b
Connect the projector to the computer with the computer cable.
c
Turn on the projector.
d
Open the A/V mute slide.
e
Turn on your computer.
f
Change the computer's screen output.
When using a laptop computer, you need to change the screen
output from the computer.
Hold down the Fn key (function key), and press the b key.
a
•The method for changing differs depending on the computer being
used. See the documentation supplied with the computer.
•When turning off the projector, press the [t] button twice.
If the image is not projected, you can change the projected image using one
of the following methods.
•Press the [Source Search] button on the control panel or the remote
control.
s "Automatically Detect Input Signals and Change the Projected Image
(Source Search)" p.29
•Press the button for the target port on the remote control.
s "Switching to the Target Image by Remote Control" p.30
a
After projecting the image, adjust the image if necessary.
s "Correcting Keystone Distortion" p.34
s "Correcting the Focus" p.41
Projecting Images
28

Automatically Detect Input Signals and Change
the Projected Image (Source Search)
Press the [Source Search] button to project images from the port currently
receiving an image.
Using the remote control Using the control panel
HDMI
USB USB Display
*Computer2 is only available when Monitor Out Port is set to Computer2
from the Configuration menu. (EB-W16 only)
When two or more image sources are connected, press the [Source Search]
button until the target image is projected.
When your video equipment is connected, start playback before beginning
this operation.
a
The following screen is displayed while no image signals are input.
Projecting Images
29

Correcting Keystone Distortion
You can correct keystone distortion using one of the following methods.
•Correcting automatically
-Auto H/V-Keystone (EB-W16 only)
-Auto V-Keystone (EH-TW550/EH-TW510 only)
•Correcting manually (H-Keystone Adjuster) (EH-TW550/EH-TW510
only)
Manually corrects horizontal keystone distortion using the horizontal
keystone adjuster.
•Correcting manually (H/V-Keystone)
Manually correct distortion in the horizontal and vertical directions
independently.
•Correcting manually (Quick Corner)
Manually correct the four corners independently.
a
When you correct keystone distortion, the projected image may be
reduced.
Correcting automatically
Auto H/V-Keystone (EB-W16 only)
When the projector detects any movement, for example when it is moved
or tilted, it automatically corrects vertical and horizontal keystone
distortion. This function is called Auto H/V-Keystone.
When the projector is moved, it displays a screen for adjustment and then
automatically corrects the projected image.
You can use Auto H/V-Keystone to correct the projected image under the
following conditions.
Correction angle: approx. 20˚ right and left/approx. 30˚ up and down
Adjusting Projected Images
34

a
•Auto H/V-Keystone only works when Projection is set to Front
from the Configuration menu.
s Extended - Projection p.78
•If you do not want to use the Auto H/V-Keystone function, set Auto
H/V-Keystone to Off.
s Settings - Keystone - H/V-Keystone - Auto H/V-Keystone
p.77
Auto V-Keystone (EH-TW550/EH-TW510 only)
For the EH-TW550/EH-TW510, only vertical keystone distortion is
corrected automatically. Use the horizontal keystone adjuster when
correcting horizontal keystone distortion.
You can use Auto V-Keystone to correct the projected image under the
following conditions.
Correction angle: approx. 30˚ up and down
a
•Auto V-Keystone works only when Projection is set to Front from
the Configuration menu.
s Extended - Projection p.78
•If you do not want to enable Auto V-Keystone, set Auto V-
Keystone to Off.
s Settings - Keystone - H/V-Keystone - Auto V-Keystone
p.77
Correcting manually
You can manually correct keystone distortion.
You can use H/V-Keystone to correct the projected image under the
following conditions.
Correction angle: approx 30˚ right and left/approx. 30˚ up and down
H-Keystone Adjuster (EH-TW550/EH-TW510 only)
Move the horizontal keystone adjuster to the right or left to perform
horizontal keystone correction.
a
•When using horizontal keystone adjuster, set H-Keystone Adjuster
to On.
s Settings - Keystone - H/V-Keystone - H-Keystone Adjuster
p.77
•You can also correct keystone distortion in the horizontal direction
using H/V-Keystone.
H/V-Keystone
Manually correct distortion in the horizontal and vertical directions
independently.
a
Press the [w] or [
v] button on the control panel during
projection to display the Keystone screen.
Adjusting Projected Images
35

b
Press the following buttons to correct keystone distortion.
Press the [w] or [v] button to correct vertical distortion.
Press the [a] or [b] button to correct horizontal distortion.
a
You can also set H/V-Keystone from the Configuration menu.
s Settings - Keystone - H/V-Keystone p.77
Quick Corner
This allows you to manually correct each of the four corners of the
projected image separately.
a
Press the [Menu] button while projecting.
s "Using the Configuration Menu" p.72
Using the remote control Using the control panel
b
Select Keystone from Settings.
Adjusting Projected Images
36

Changing the aspect mode
Projecting images from video equipment or from the HDMI port
Each time the [Aspect] button is pressed, the aspect mode changes in the
order Normal or Auto, 16:9, Full, Zoom, and Native.
Example: 1080p signal input (resolution: 1920x1080, aspect ratio: 16:9)
ANormal or Auto
B16:9
CFull
DZoom
ENative
Projecting images from a computer
The following shows projection examples for each aspect mode.
Aspect Mode Input Signal
XGA 1024X768(4:3) WXGA 1280X800(16:10)
Normal
16:9
Full
Zoom
Native
Adjusting Projected Images
45
