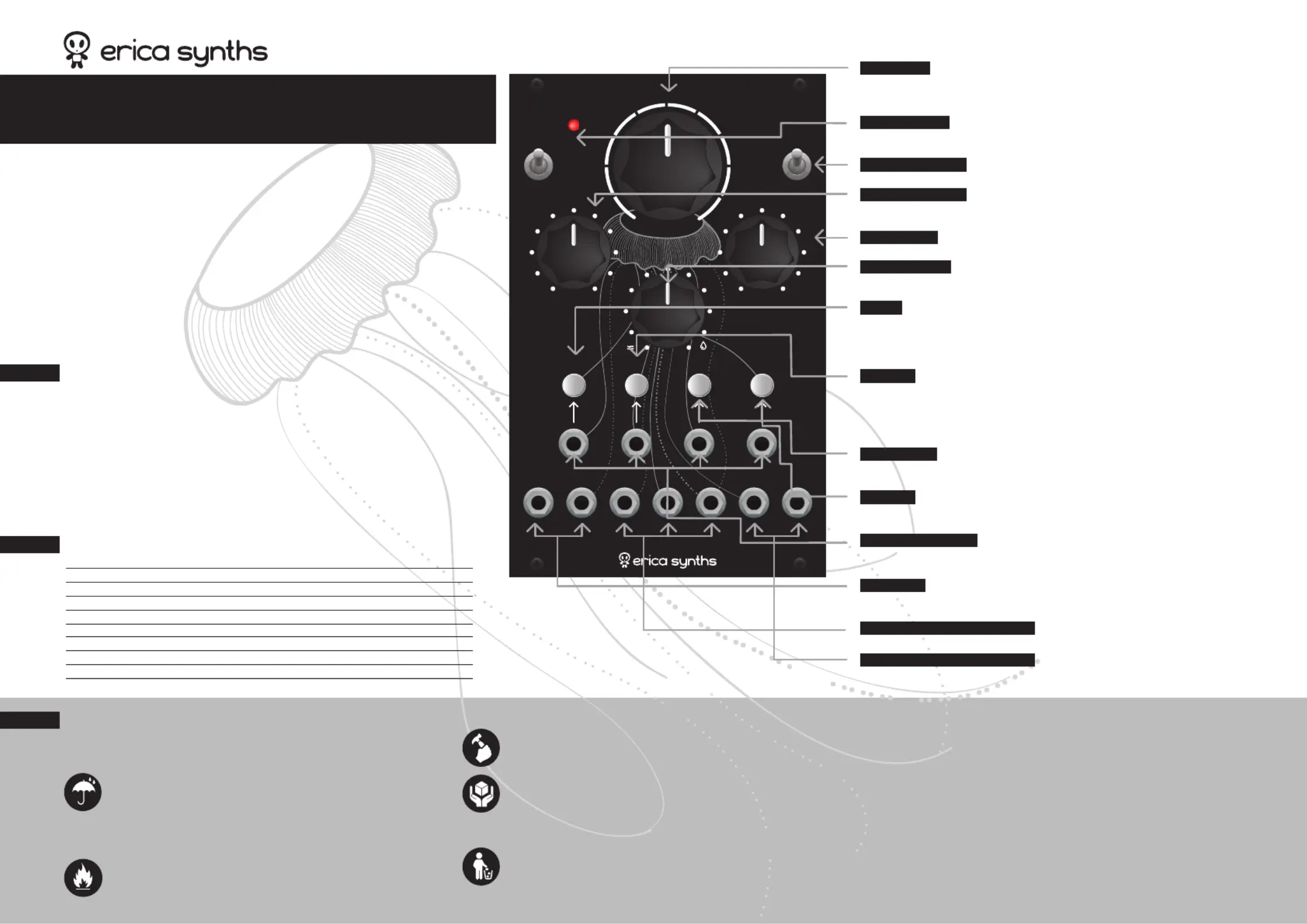

TIME
BLACK STEREO DELAY
IN LVL FEEDBACK
IN L IN R TIME CV MIX CV FBK CV OUT L OUT R
m
s
7
0
3
0
2
.
7
s
1
5
1
.
3
s
7
5
0
0
3
s
3
0
0
3
HOLD ADD REVERSE TAP
PING PONG MODE
ON
OFF
DIGITAL
Transport the instrument carefully, never let it drop or fall
over. Warranty does not apply to modules with visual
damages.
The module has to be shipped in the original packaging
only. Any module shipped to us for return, exchange and/or
warranty repair has to be in its original packaging. All other
deliveries will be rejected and returned to you. Make sure
you keep the original packaging and technical documentation.
This device complies to the EU guidelines and is manufac-
tured RoHS conforming without use of lead, mercury,
cadmium and chrome. Nevertheless, this device is special
waste and disposal in household waste is not recommended.
You will find Erica Synths terms of warranty at www.ericasynths.lv
Items for return, exchange and/or warranty repair have to be sent to:
Erica Synths
Andrejostas Str. 43
Riga
Latvia
LV-1045
User manual by Girts Ozolins@Erica Synths.
Design by Ineta Briede@Black8.
Copying, distribution or any commercial use in any way is prohibited and
needs the written permission by Erica Synths.Specifications are subject to
change without notice.In case of any questions, feel free to contact us through
www.ericasynths.lv or via e-mail info@ericasynths.lv
BLACK STEREO DELAY
THANK YOU FOR PURCHASING ERICA SYNTHS
BLACK SERIES MODULE!
Erica Black Series include high-end, unique functionality and superior quality
modules. Only the best, highest quality components are used, all inputs and outputs
are protected against undesired overvoltage. When designing Black Series, we put
design and usability superior. Big knobs are assigned to key functions of the
module, which makes Black Series ideal for live performances. Enjoy!
Erica Synths Black Stereo Delay is a hi-fi stereo delay with lot of unique features,
based on our custom DSP engine. Developed in collaboration with Tim Pechersky
aka TeemKaa of Useful Circuits. Tape, digital and ping-pong modes of delay,
adjustable stereo spread between chanels, hold with overdub and delicate delay
time and feedback control in combination with CV and trigger control over various
parameters make this module not only great eects unit in your modular system,
but also - an instrument on it’s own.
SPECS:
Max audio input level before clipping 16Vptp
Trigger inputs 0-8V (min 2V for high level)
CV input range (full span) -5V - +5V
Frequency range 5Hz..24kHz
Sampling frequency 48kHz, 24bit
Delay time 3..3000 ms
Audio codecs -108 dynamic range, -98dB THD+N
Power consumption +162mA, -62mA
Module width 16HP
Module depth 37mm
FEATURES:
Stereo delay with adjustable delay time
Tape, digital and ping-pong delay modes
Adjustable stereo spread up to 500ms
Tap and clock synchronization of delay time
Reverse delay mode
Hold mode (samples up to 20" of audio) with Add (overdub) feature
Trigger control over Hold, Add and Reverse
CV control over delay time, dry/wet mix and feedback
Feedback path soft limiting compression
Add to hold soft limiting compression
Adjustable stereo delay spread
TIME
Set delay time manually from super-short 3ms to 3s. The scale is designed so
that you can play with feedback nuances at the short delays and, basically, you
can use the module as an instrument on it’s own
PING PONG
Select regular stereo or ping-pong mode. In HOLD mode - setting this switch to
Ping-Pong will bypass stereo-spread
IN LVL
Adjust input level to avoid clipping! Also, when ADDing samples in HOLD mode,
you can adjust volume of each layer
IN L / IN R
These are L and R audio inputs. If you patch two dierent mono signals here and
have ping-pong o, you'll have 2xmono delay
TIME CV / MIX CV / FBK CV
These are CV inputs to control relevant parameters
OUT L / OUT R
These are L and R audio outputs
TAP
Use TAP button to synchronize the delay time to the BPM. To exit sync mode
simply turn the TIME knob
MODE
Select the delay mode – Tape or Digital (no pitch shifting)
FEEDBACK
Adjust feedback level! In full CW setting the module will go to self oscillation
TRIGGER INPUTS
These are trigger inputs that copy the action of relevant buttons. Use the trigger
sequencer to create the rhythmic delay patterns or complete mess.
DRY/WET
Adjust Dry/Wet setting manually! This is full analogue circuit, and you also can
control Dry/Wet via CV
HOLD
Push the Hold button to record an incoming signal in the module memory buer. You
can record up to 20" of audio, and the module will start to loop the recorded buer. To
exit looping mode, push the HOLD button again. The LED will lit, when the hold mode is
active. You can still apply delay and adjust feedback on the audio in the record buer
REVERSE
Hit the REVERSE button to reverse delayed signal. Note that it will not reverse audio
in the record buer, only the delayed signal will be reversed
ADD
When in Hold mode, push the ADD button to add more loops to the hold buer (overdub).
You can also set the stereo spread between L and R channels by adding some extra
delay to the R channel. In order to do so, make sure HOLD mode is o, push and hold
ADD button and rotate the TIME knob to set desired stereo spread. To remove stereo
spread, rotate time potentiometer full CCW (3ms) or double-click the ADD button
SAFETY INSTRUCTIONS
Please follow the instructions for use of the Erica Synths module below,
‘cause only this will guarantee proper operation of the module and
ensure warranty from Erica Synths.
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a
humid or wet environment. No liquids or other conducting
substances must get into the module. Should this happen, the
module should be disconnected from mains power immediately,
dried, examined and cleaned by a qualified technician.
Do not expose the module to temperatures above +50° C or below
-20° C. If you have transported module in extreme low temperatures,
leave it in room temperature for an hour before plugging it in.
