FUSION DELAY
FLANGER
VINTAGE ENSEMBLE
SHORT
LONG
THANK YOU FOR ORDERING ERICA
FUsION DElAY/FlANGER/VINTAGE
ENsEmblE mODUlE!
The Erica Synths Fusion series modules are
designed combining vacuum tubes and
semiconductors therefore they bring warm,
powerful sound and overdrive possibilities
of vacuum tubes into your modular system.
Erica Fusion series consist of range of
modules used in sound shaping circuit –
VCO, Mixer, real Ringmodulator using audio
transformers and germanium diode ring,
VCF, VCA and Analogue Delay/Flanger.
Erica Synths Fusion Delay/Flanger/Vintage
Ensemble module is distinct multifunctional
analogue eects module that combines
BBD chip based eects with an adjustable
tube overdrive in the delay output and
feedback path for extra thickness of sound.
For more flexibility, lowpass filtering is fully
adjustable from none to extreme. Special
feature, not found in eurorack, is Vintage
Stereo Ensemble – eect that’s common on
vintage synthesizers to create moving and
thick spatial sound from a monaural tone
generator, be it FM, DCO or any other kind.
Such a spatial eect is achieved by mixing
dry source with delayed and lowpass
filtered out of phase signal.
FEATUREs:
2 BBD chips (1024 and 4096 stages)
Delay and Flanger eects
Vintage Ensemble Stereo eect
Tube overdrive in the delay output and feedback path
Dry/Wet mixing
Passive Lowpass filter for extreme subbass sound
TECHNICAl sPECIFICATIONs:
Audio input level: .....................................................................................................up to 20V ptp
Max delay time SHORT setting: ..........................................................................................20ms
Max delay time LONG setting: ......................................................................................... 200ms
LFO range: .................................................................................................................0,1Hz – 30Hz
Panel width: ............................................................................................................................20HP
Module depth: ..................................................................................................................... 35mm
Power supply: .................bipolar +-12V , eurorack standard and/or Erica Synths 6VAC PSU
Power consumption:
Tube heater PSU configuration: .......................... 35mA@+12V, 20mA@-12V, 300mA@6VAC
Eurorack PSU configuration: ........................................................... 35mA@+12V, 185mA@-12V
(NB – start-up power consumption for few seconds is -250mA)

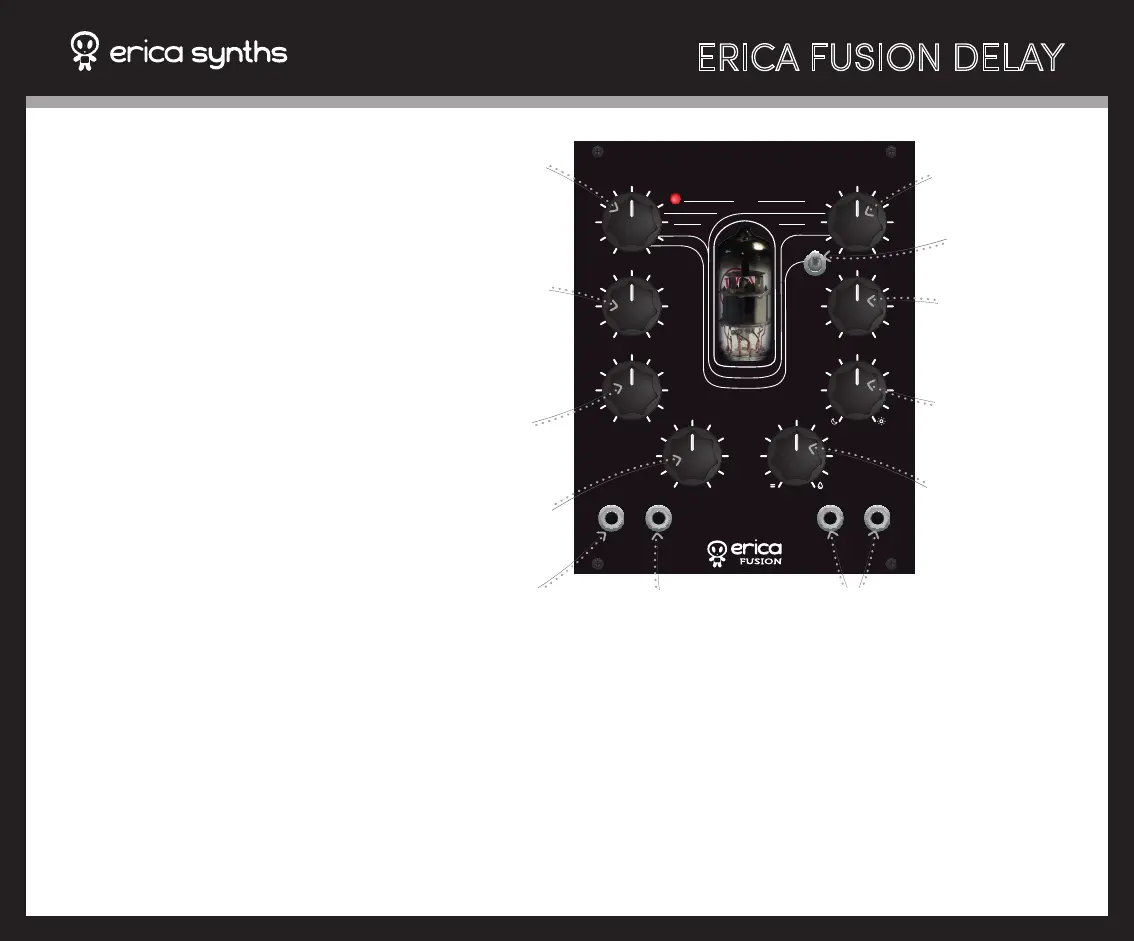

Adjust Delay time
manually! Full CW setting
will give you extreme
delays and obscure eects
Use COLOUR
potentiometer to filter
o higher harmonics for
extreme bass sound. Full
CCW setting works best at
really low frequencies –
C1 and below
Select between 1024 and
4096 stage delay!
Adjust eect feedback
manually! Turning the
know CW will initiate self
oscillation
This knob provides smooth
mix between Dry and Wet
signals
These are Left and Right outputs.
To enjoy Vintage Ensemble eect,
use stereo mixer.
Adjust manually internal
modulation LFO frequency
that alters BBD sample rate
and thus delay time
Adjust overdrive level form
none to extreme in full
CW setting. This is dual
potentiometer that controls
tube overdrive level in the
delay output and feedback
path simultaneously.
Try it with guitar!
Adjust input audio signal
level! Fusion modules are
sensitive to input signal
levels too high input
signals give interesting
overdrive eects, but
reduce brightness of
delay eect
This is internal and external
modulation level attenuator
Connect audio
signal here!
Patch an external modulation
sinal (LFO, EG, etc) here.
Internal LFO will be
automatically disconnected
Erica Fusion DElay
