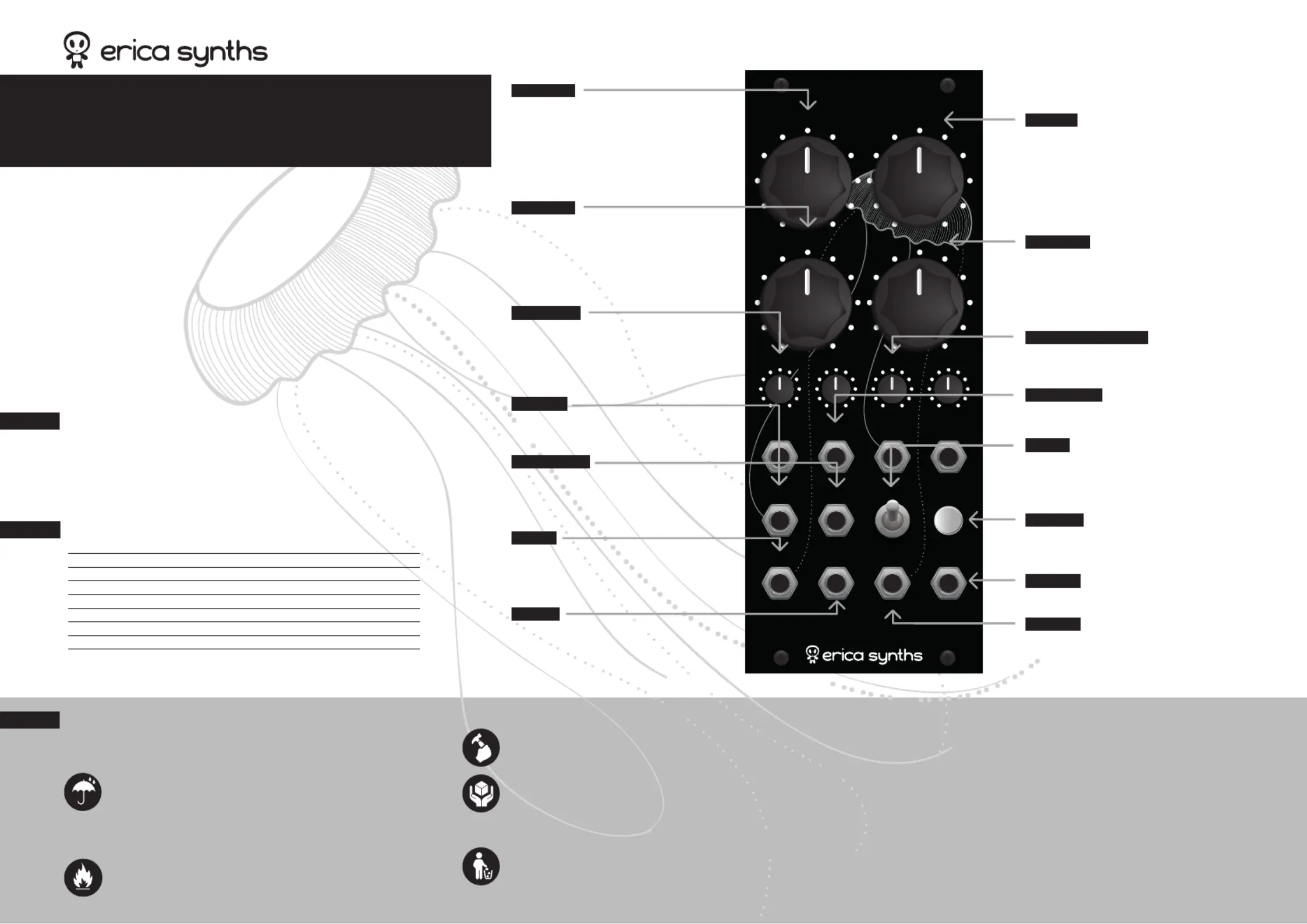

BLACK DADSR EG

A CV D CV S CV R CV

D GATE DELAY OUT

GATE TRIGG BP OUT EG OUT

ATTACK DECAY

SUSTAIN

RELEASE

GATE DEL A CV S CV R CV

LOOP M. GATE

Transport the instrument carefully, never let it drop or fall

over. Warranty does not apply to modules with visual

damages.

The module has to be shipped in the original packaging

only. Any module shipped to us for return, exchange and/or

warranty repair has to be in its original packaging. All other

deliveries will be rejected and returned to you. Make sure

you keep the original packaging and technical documentation.

This device complies to the EU guidelines and is manufac-

tured RoHS conforming without use of lead, mercury,

cadmium and chrome. Nevertheless, this device is special

waste and disposal in household waste is not recommended.

User manual by Girts Ozolins@Erica Synths.

Design by Ineta Briede@Black8.

Copying, distribution or any commercial use in any way is

prohibited and needs the written permission by Erica

Synths.Speciﬁcations are subject to change without notice.In

case of any questions, feel free to contact us through

www.ericasynths.lv.

You will ﬁnd Erica Synths terms of warranty at

www.ericasynths.lv

Items for return, exchange and/or warranty repair have to

be registered at SUPPORT on www.ericasynths.lv and send

back to us according to instructions in the support page.

SAFETY INSTRUCTIONS

Please follow the instructions for use of the Erica Synths module below,

‘cause only this will guarantee proper operation of the module and

ensure warranty from Erica Synths.

Water is lethal for most of the electric devices, unless they are made

waterproof. This Erica Synths module is NOT intended for use in a

humid or wet environment. No liquids or other conducting

substances must get into the module. Should this happen, the

module should be disconnected from mains power immediately,

dried, examined and cleaned by a qualiﬁed technician.

Do not expose the module to temperatures above +50° C or below

-20° C. If you have transported module in extreme low temperatures,

leave it in room temperature for an hour before plugging it in.

THANK YOU FOR PURCHASING THIS ERICA SYNTHS

BLACK SERIES MODULE!

The Erica Black Series includes high-end modules with unique functionality and

superior build quality. Only the best, highest quality components are used, all inputs

and outputs are protected against undesired overvoltage. When designing the

Black Series, we placed an emphasis on usability with the goal of providing an

enjoyable user experience. Big knobs are assigned to functions that make

dierences in sound. The Erica Black Series consists of a range of modules that are

needed to put together an entire synth. Enjoy!

The Erica Synths Black DADSR (Delay-Attack-Decay-Sustain-Release) is a fully

analogue envelope generator that gives you extended control over events in your

modular synth. It’s a looping exponential envelope generator that has voltage

control over each stage of the envelope. An independent Gate Delay section adds

extra functionality to design advanced soundscapes, like delayed modulation

eects, wave morphing, etc.

FEATURES:

Re-triggerable exponential DADSR envelope generator

CV control over each stage

Gate delay with manually controlled delay time

CV attenuators

Looping function

Manual gate button

SPECS:

Attack time (with max CV) 0…2,5” (4,4”)

Decay time (with max CV) 0…5” (12”)

Sustain level 0…10V

Release time (with max CV) 0…4,5” (10”)

Gate delay time 0,7”

CV level (full sweep) -5V - +5V

Panel width 10HP

Module depth 30mm

Power consumption 42mA@+12V, 58mA@-12V

ATTACK

Set the attack time of the envelope

GATE

Patch the gate signal here to start

the envelope. If nothing is patched here,

the gate input is normalled to the gate

DELAY OUT

CV ATTENUATORS

These are CV attenuators for attack, sustain

and release stages

SUSTAIN

Set the sustain level of the envelope

GATE DEL

Set the gate delay time

TRIGG

You can retrigger the envelope at

any stage by applying trigger signal

here. The trigger alone initiates an

AD envelope instead of ADSR

DELAY OUT

This is the gate delay output.

The gate delay section can be used

independently to control other modules

in your modular setup

D GATE

If you wish to use gate delay functionality,

patch the gate signal here

BP OUT

This is the bipolar output – the CV here is

centered against 0V and this output serves

as an LFO

EG OUT

This is the envelope generator output

M. GATE

This is the manual gate button. A built in LED

gives a visual reference of the output voltage

RELEASE

Set the release time of the envelope

DECAY

Set the decay time of the envelope

LOOP

This is a LOOP switch. When it’s ON, the envelope

generator outputs a signal for which the rise time

is deﬁned by the Attack setting and the fall time is

deﬁned by the Release knob setting

CV INPUTS

These are CV inputs to alter time/level

for each stage of the envelope

BLACK VC DADSR

ENVELOPE GENERATOR
