THANK YOU FOR ORDERING

ERICA FUSION VCF3!

The Erica Synths Fusion series

modules are designed combining

vacuum tubes and semiconductors

therefore they bring warm, powerful

sound and overdrive possibilities of

vacuum tubes into your modular

system. Erica Fusion series consist of

range of modules used in sound

generation and shaping circuit – two

types of VCO, Mixer, real Ringmodula-

tor using audio transformers and

germanium diode ring, two VCFs, VCA,

Analogue Delay/Flanger, Palsma Drive

and others. Also Erica Fusion Systems

are available.

The Fusion VCF3 is resonant 24dB/oct

lowpass filter of unique design that

combines vacuum tubes and vactrols,

providing distinct, soft filtering. For

more versatility, the independent

audio mixer and buffered multiple is

incorporated in the module, and, most

importantly – a CV recorder that

records motion of the potentiometer,

so you can design advanced

modulation patterns.

These are audio mixer input level

controls. The mixer has gain 2, so

you can overdrive the signal for

nice distortion effects.

These are the audio mixer inputs.

This is dedicated mixer output. If

nothing is patched here, it is

normalled to the VCF input.

This is precision buffered

multiple input. Use it to split

audio and CV signals for use in

several modules, also for

feedback loops.

These are buffered multiple

outputs.

This is manual VCF cutoff

frequency control knob; the CV is

added to the knob position.

This is the VCF resonance control.

This is CV record knob.

Rotate it to record a

desired automation. When

the automation is played back,

the knob becomes divider

and multiplier. If you rotate the

knob past 12:00 clockwise,

multiplication with 2, 3, 4, 8 is

available, when rotating it

counterclockwise, same divisions

are available.

This is CV record button. In order

to record the potentiometer

automation, push and hold the

button and rotate the potentiometer.

The brightness of the knob will

indicate the CV output. To record a

next automation, push and hold the

CV record button while the

previous automation is playing and

rotate the CV record potentiome-

ter; the previous automation will be

deleted. You can pause the

automation playback on the

momentary CV value by pushing

the CV record knob promptly once.

To clear the recorded buffer, push

the button twice.

This is the recorded CV Output.

Maximum CV range is 0 - +5V.

The CV Output is normalled to

the VCF CV IN1, so, if nothing is

patched into CV1 IN, the recorded

CV directly controls the VCF

cutoff. Obviously, you can use the

recorded CV to control other

modules in your system.

This is the gate output – the unit

will output +5V gate, when the

RECORD CV knob is turned past

12:00; the LED gives visual

feedback on the gate ON. You can

use gate out for creating rhythmic

patterns manually.

This is the first external cutoff CV

input, and it’s normalled to the CV

recorder output. So, if nothing is

patched here, the CV OUT of the

recorder controls VCF cutoff.

This is the second cutoff CV input.

This is an external cutoff CV2

attenuator. CV1 and CV2 are mixed,

so you can adjust CV levels for

best effect.

This is the VCF audio input. It is

normalled to the Mixer output, so

you can mix several audio sources

before the VCF. If you use the

mixer output for patching mixer

output to different modules, patch

the VCF audio input here.

This is the VCF output

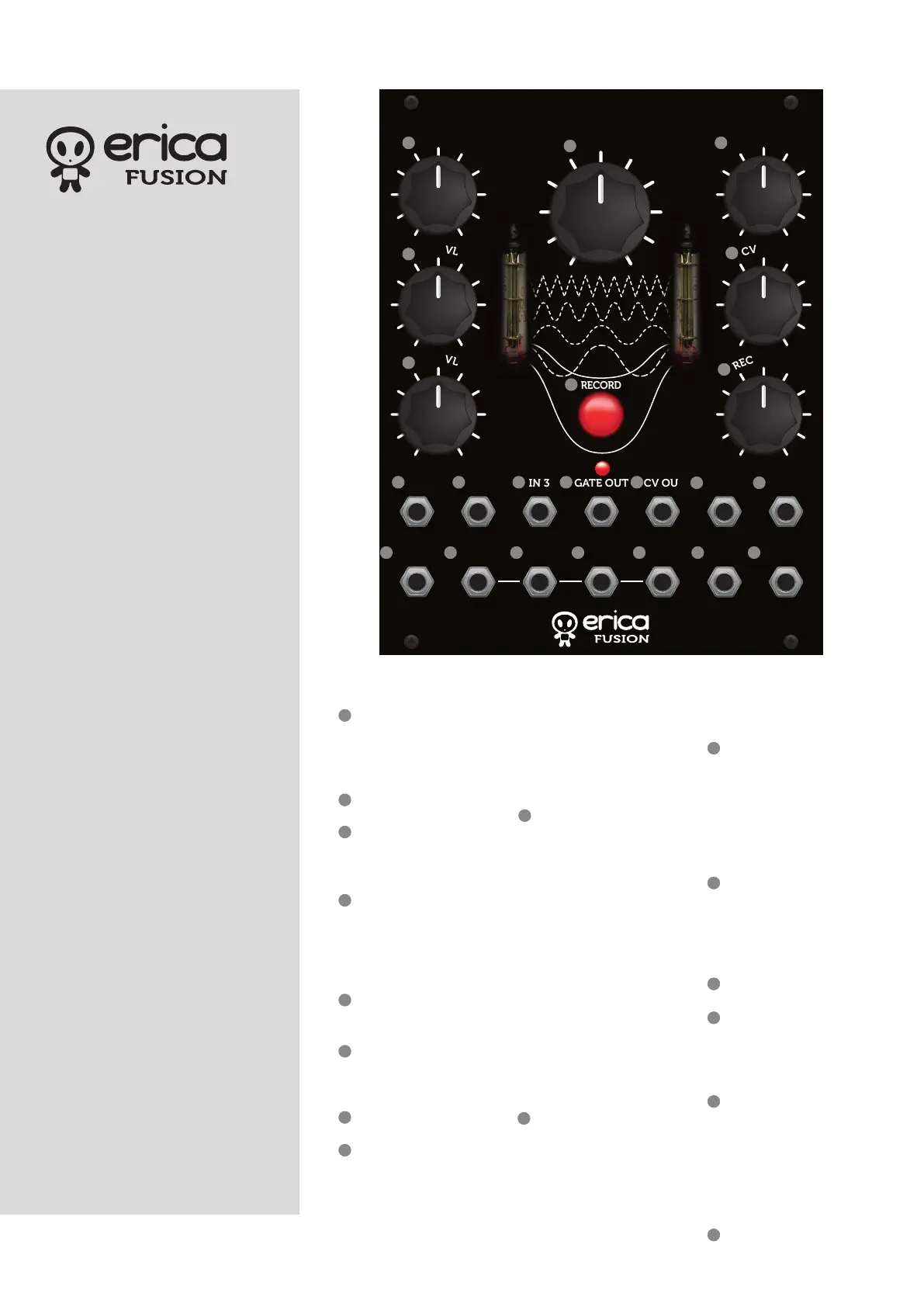

FUSION VCF3

MIX OUT MULT IN OUT1 OUT2 OUT3 VCF IN VCF OUT

IN1 IN2 T CV1 IN CV2 IN

1 7

1312

3 4 5 5 5 15 16

2 2 11 10

FEATURES:

Full analogue design

Vacuum tube and vactrol based filter circuit. Because of vactrol lag,

the VCF will not accept audio rate modulation, the maximum

modulation frequency is 10Hz

Input signal mixer with gain 2 for signal overdrive

Buffered multiple for splitting audio and CV signals

Potentiometer motion record unit with CV and gate outputs

Recorded CV multiplication and division

TECHNICAL SPECIFICATIONS:

Filter slope 24dB/oct

Audio Input level 10Vptp

CV input level -5V - +5V

CV Output level 0V - +5V

Panel width 20HP

Module depth 36mm

Power consumption 81mA@+12V, 76mA@-12V

You will nd Erica Synths terms of warranty at www.ericasynths.lvﬁ

Items for return, exchange and/or warranty repair have to be sent to:

Erica Synths

Andrejostas Str. 43

Riga

Latvia

LV-1045

User manual by Girts Ozolins@Erica Synths.

Design by Ineta Briede@Black8.

Copying, distribution or any commercial use in any way is prohibited and needs the

written permission by Erica Synths.

Speciﬁcations are subject to change without notice.In case of any questions, feel

free to contact us through www.ericasynths.lv.
