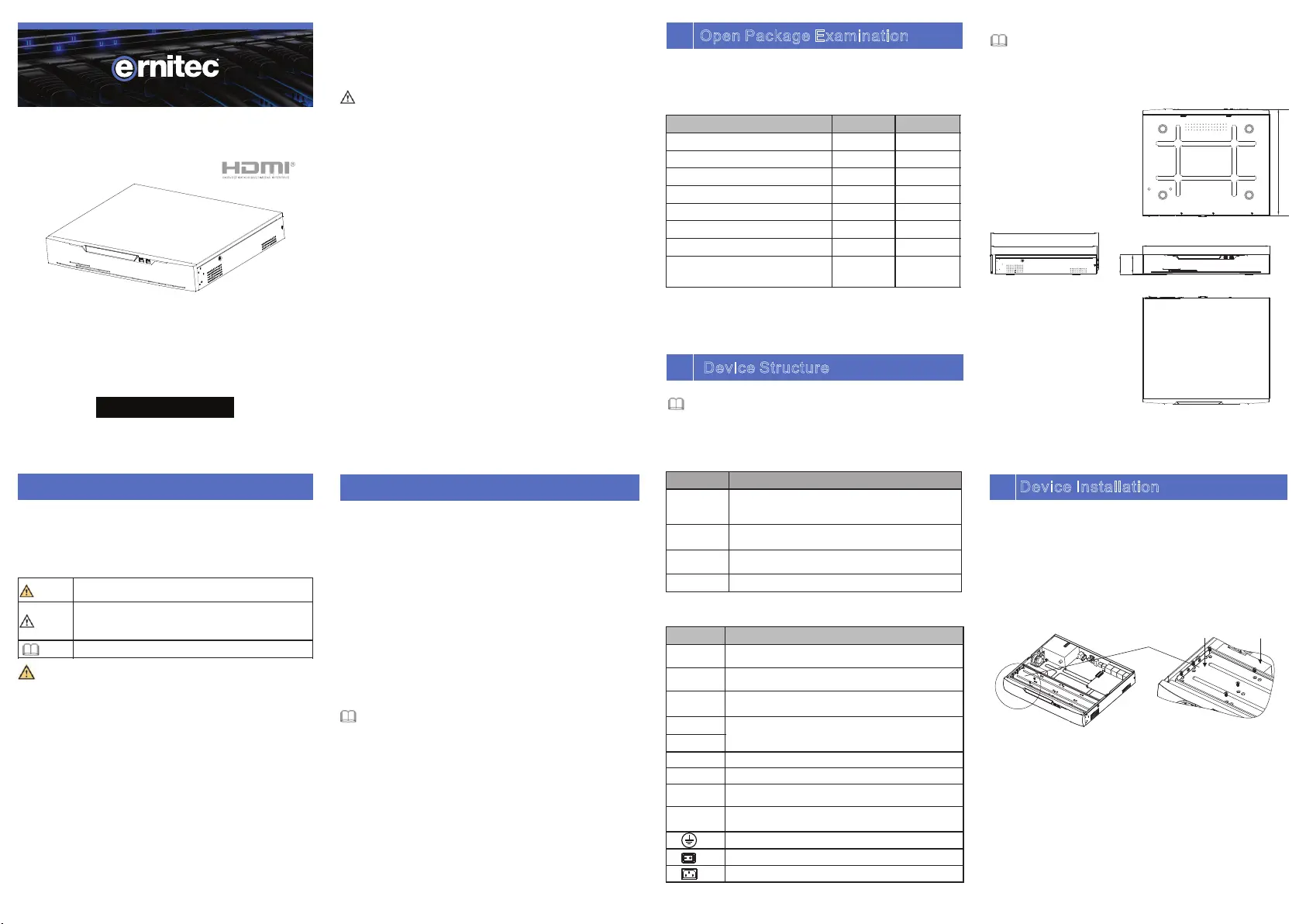

Fully understand this document before using this device, and

strictly observe rules in this document when using this device. If

you install this device in public places, provide the tip "You have

entered the area of electronic surveillance" in an eye-catching

place. Failure to correctly use electrical products may cause fire

and severe injuries.

It alerts you to moderate dangers which, if not

avoided, may cause minor or moderate injuries.

It alerts you about risks. Neglect of these risks may

cause device damage, data loss, device

performance deterioration, or un

predictable results.

It provides additional information.

Ÿ Strictly observe installation requirements when installing the

device. The manufacturer shall not be liable for device damage

caused by users' non-conformance to these requirements.

Ÿ Strictly conform to local electrical safety standards and use

power adapters that are marked with the LPS standard when

installing and using this device. Otherwise, this device may be

damaged.

Ÿ Use accessories delivered with this device. The voltage must

meet input voltage requirements for this device.

Ÿ If this device is installed in places with unsteady voltage, ground

this device to discharge high energy such as electrical surges in

order to prevent the power supply from burning out.

Ÿ When this device is in use, ensure that no water or any liquid

flows into the device. If water or liquid unexpectedly flows into

the device, immediately power off the device and disconnect all

cables (such as power cables and network cables) from this

Precautions

Special Announcement

For more information, please refer to our website.

Ÿ Avoid heavy loads, intensive shakes, and soaking to prevent

damages during transportation and storage. The warranty does

not cover any device damage that is caused during secondary

packaging and transportation after the original packaging is

taken apart.

Ÿ Protect this device from fall-down and intensive strikes, keep the

device away from magnetic field interference, and do not install

the device in places with shaking surfaces or under shocks.

Ÿ Clean the device with a soft dry cloth. For stubborn dirt, dip the

cloth into slight neutral cleanser, gently wipe the dirt with the

cloth, and then dry the device.

Ÿ Do not jam the ventilation opening. Follow the installation

instructions provided in this document when installing the device.

Ÿ Keep the device away from heat sources such as radiators,

electric heaters, or other heat equipment.

Ÿ Keep the device away from moist, dusty, extremely hot or cold

places.

Ÿ If the device is installed outdoors, take insect- and moisture-

proof measures to avoid circuit board corrosion that can affect

monitoring.

Ÿ Remove the power plug if the device is idle for a long time.

Ÿ When unpacking, please first confirm whether fragile label is

damaged, if damaged, please contact customer service or sales

personnel in time. The company will not be liable for any human-

made damage to fragile labels.

Ÿ All complete products sold by the manufacturer are delivered

along with nameplates, quick setup guide and accessories after

strict inspection. The manufacturer shall not be liable for

counterfeit products.

Ÿ The manufacturer will update this manual according to product

function enhancement or changes and regularly update the

software and hardware described in this manual. The updated

content will be added to new versions of this manual without prior

notice.

Ÿ This manual may contain misprints, technology information that

is not accurate enough, or product function and operation

description that is slightly inconsistent with the actual product,

the final interpretation of company is as a standard.

Ÿ This manual is only for reference and does not ensure that the

information is totally consistent with the actual product. For

consistency, see the actual product.

NOTE

device.

Ÿ If this device is installed in places where thunder and lightning

frequently occur, ground the device nearby to discharge high

energy such as thunder strikes in order to prevent device

damage.

CAUTION

Open the package, check the appearance of product for no

obvious damage, and confirm the item list for table 1-1 is

consistent.

Table 1-1 Packing list

Open Package Examination

NOTE

CAUTION

WARNING

Component

Network video recording

Countersunk head black screws

Power Cord

Green female wiring terminal

Mouse

Quick Setup Guide

Countersunk head imperial white

screws

Quantity

2(8)

Remark

Table 2- 1 Front panel description

2.1 Device Ports

Different devices may have different ports and multi-head

cables; Please refer to the actual product.

NOTE

D evice Structure

Table 2- 2 Rear panel description

For front panel description of device refer to table 2-1.

Port Name

Description

HDD

Indicator

Hard disk status indicator.

This indicator flashes when data is transmitted.

USB 2.0

Support connected to an USB mouse or USB disk.

PWR

Indicator

When the NVR is operating, the PWR indicator

is steady on. When the NVR is shut down, the

PWR indicator is off.

PoE

Indicator

PoE network status indicator.

This indicator flashes when data is transmitted.

For rear panel description of device, please refer to table 2-2.

Port Name

Description

HDMI1/2

Support connected to 3.0 U disk.

VGA

USB 3.0

Alarm input and alarm output, 1A&1B~4A/4B are

alarm out. A is RS 485+, B isRS485-.

Audio out/

Audio in

Audio output and audio input.

LAN

RJ 1000 Mbps adaptive Ethernet interface, connect

to intranet to add cameras.

The hard disk of the NVR must be provided by the user. Take the

following steps to install the hard disks：

Step 1 Remove the screws for fixing the cover and take down the

cover.

Step 2 Put the hard disk under the hard disk bracket, hold the hard

disk with one hand and aim the hard disk hole at the

bracket hole, then fix the screws for hard disk(Install the

hard disk near the fan first).

Figure 3-1 Installing the hard disk

2.2 Device Dimensions

Different devices may have different dimensions; Please

refer to the actual product.

NOTE

evice Installation

Figure 2-1 Dimensions (Unit:mm)

Step 3 Repeat step 2 to install other hard disks, and insert the hard

disk data cables and power cables, then replace the upper

cover and fasten the fixing screws.

Hard disk

Hard disk bracket

AC 110V/220V power input interface.

RS232

Standard Rs232 serial communication interface

of the device.

Power switch.

Safe ground screw of the device.

376

440

376

369

ALARM I/O

RS 485

WAN

RJ 1000 Mbps adaptive Ethernet interface, connect

to Internet .

e SATA

External hard disk interface.

Video output interface. If the Auxiliary Screen is

enable, HDMI1’s output is main screen, VGA’s

output is auxiliary screen.

Hanger

NVR 32

channel

Quick Setup Guide

Item no.: 0070-10404

Produkt Specifikationer

Mærke:	Ernitec
Kategori:	Videooptager
Model:	0070-10405
Vekselstrømsindgangsspænding:	100 - 240 V
Bredde:	372 mm
Dybde:	315 mm
Højde:	47 mm
Vægt:	4650 g
Produktfarve:	Sort
Strøm:	140 W
Pakkevægt:	6000 g
Antal HDMI-porte:	2
Ethernet LAN-porte (RJ-45):	2
Antal USB 2.0-porte:	2
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	1
Strømforbrug (typisk):	15 W
Driftstemperatur (T-T):	-10 - 50 °C
Maksimal opløsning:	3840 x 2160 pixel
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
HDD kapacitet:	- GB
Antal brugere:	8 bruger(e)
Bæredygtighedscertifikater:	CE, Federal Communications Commission (FCC)
Optagelsestilstande:	Continuous, Event, Manual, Schedule
Strøm over Ethernet (PoE):	Ja
Overholdelse af bæredygtighed:	Ja
Bevægelsessensor (video):	Ja
Ansigtsgenkendelse:	Ja
HDD-grænseflade:	SATA, eSATA
RS-232-porte:	1
Lydudgang:	1
RS-232 grænseflade:	Ja
Understøtter RAID:	Ja
Maksimal lagerkapacitet:	16 TB
RS-485-porte:	1
Antal understøttede HHD'er:	4
Understøttede opløsninger:	3840×2160, 1920×1080, 1280×1024, 1024×768
eSATA:	Ja
Multi-skærm:	Ja
RAID-niveauer:	5, 6,10
Video indgangskanaler:	32 kanaler
HDMI udgang:	Ja
Skærm funktioner:	Afspilning
Indgang båndbredde:	320 Mbit/s
Udgang båndbredde:	320 Mbit/s
VGA (D-Sub) udgangsporte:	1
Sporing af videotab:	Ja
Alarm indgangskanaler:	6
Alarm udgangskanaler:	2
Mennesketæller:	Ja
