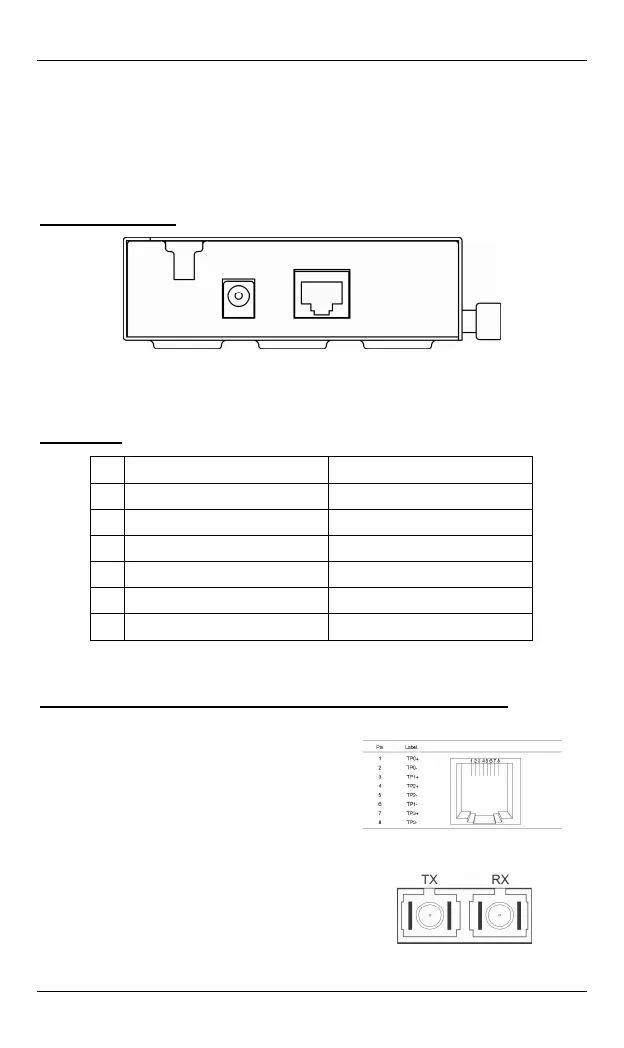

Gigabit Ethernet Media Converter
Quick Start Guide
This quick start guide describes how to install and use the Gigabit Ethernet media converter. The
converter introduced here provides one channel media conversion solution.
Physical Description
Product Overview
This Gigabit Ethernet media converter is a plug-and-play device. Connect the supplied AC to DC power
adaptor to the receptacle on the front panel of the Gigabit Ethernet media converter, and then attach
the plug into a standard AC outlet.
DIP Switch
No. Down Up
1 Disable LFPT Enable LFPT
2 Enable Auto-Negotiation for TX port Enable Force mode for TX port
3 TX port Force mode: Full-duplex TX port Force mode: Half-duplex
4 TX port Force mode: 100Mbps TX port Force mode: 10Mbps
5 Function reserved Function reserved
6 Function reserved Function reserved
<Note> LFPT: Link-Fault-Pass-Through function. Power must be off/on after re-setting LFPT function.
The 10/100/1000Base-TX and 1000Base-SX/LX/BX Connectors
The 10/100/1000Base-TX Connection
The following lists the pinouts of
10/100/1000Base-TX port.
The 1000Base-SX/LX Connections
The fiber port pinouts
The Tx (transmit) port of device I is connected to the
Rx (receive) port of device II, and the Rx (receive)
port of device I to the Tx (transmit) port of device II.
User’s Manual 1
