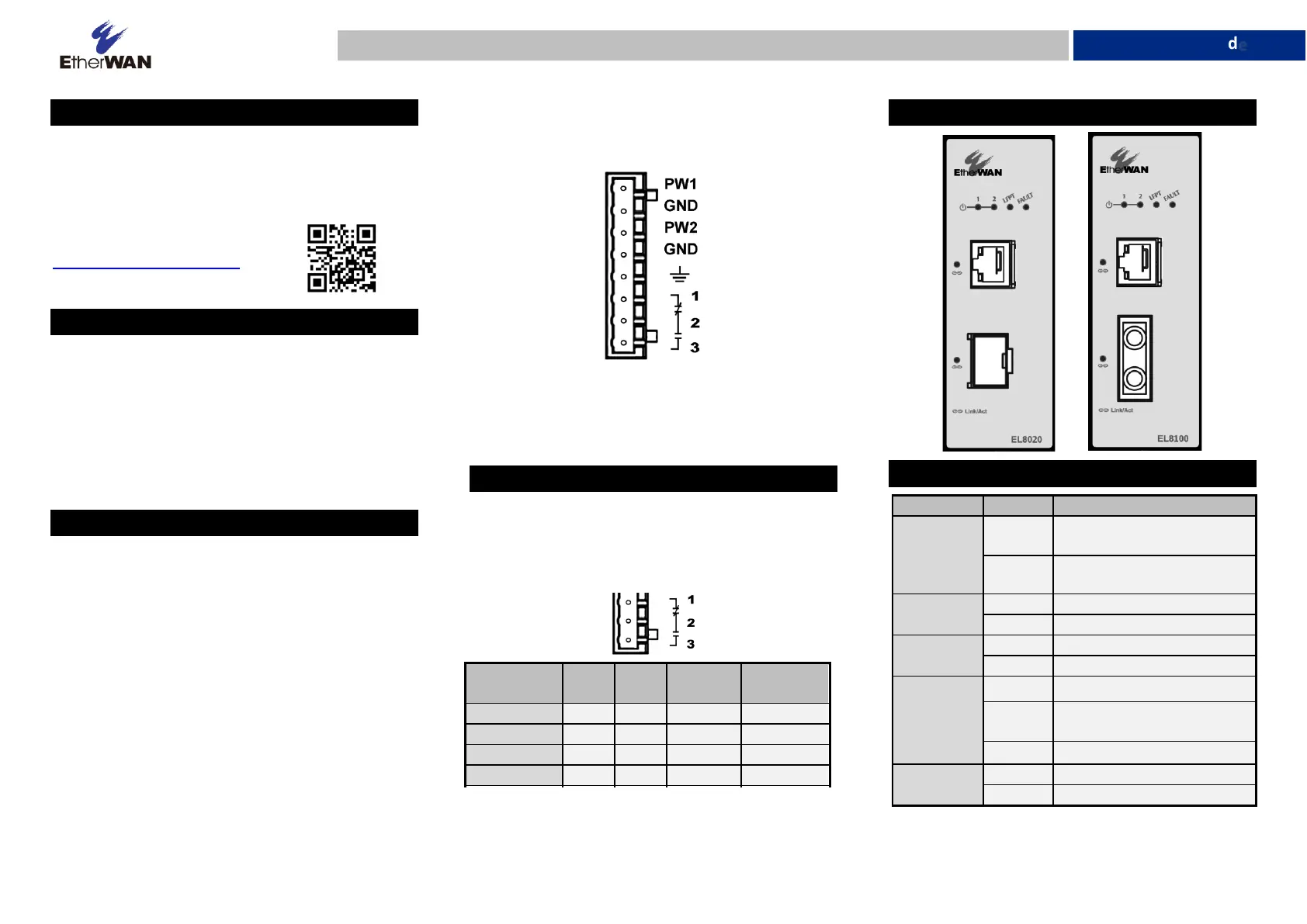

W70G-EL8100XQ3 Page 1

Installation Guide

EL8020/EL8100 Series | Hardened Media Converter

Relay

contact

PW1

PW2

Point

1 - 2

Point

2 - 3

Alarm

Off

Closed

Open

Alarm

Off

Closed

Open

Alarm

Off

Closed

Open

Non-Alarm

Open

Closed

LED

State

Indication

Fault

Steady

Power redundancy or

port malfunction

Off

Power redundancy/ports

functioning normally

PW1

Steady

PW1 on

Off

PW1 off

PW2

Steady

PW2 on

Off

PW2 off

LNK/ACT

Steady

Connection established

Flashing

Transmitting or

receiving data

Off

No connection established

LFPT

Steady

LFPT function enabled

Off

LFPT function disabled

1 Unpacking

Open the carton and unpack the items. Your package

should include an EL8020 or EL8100 media converter

and this Quick Install Guide. If items are missing or

damaged, notify your EtherWAN representative.

Download the full manual at:

https://www.etherwan.com

2 Select Installation Location

Installation is DIN rail-mount, or wall mount (in an

enclosure or industrial panel). Ensure that the power

source is within 6 feet (1.8 meters), and check that

there is adequate airflow.

Place the media converter on the DIN rail from above

using the slot. Push the front of the media converter

toward the mounting surface until it audibly snaps

into place.

3 Connect Power

The media converter is equipped with an eight-

contact terminal block. The terminal block provides

dual DC power inputs, and a relay output contact.

Redundant power supply is supported, but only one

power input is required for operation. Note that the

media converter does not have a power switch; it is

turned on/off by connecting/disconnecting power.

Input voltage is 12 to 48VDC.

The power consumption under full load is as follows:

▪ 12~48VDC, 0.12~0.03A

Note: Use qualified power supply that is SELV rated,

or double insulation of UL 60950 or UL 61010-1 or UL

61010-2-201 standards.

Insert the DC input wires into the corresponding

terminals, and tighten the clamp screws to hold

them in place. Make sure that the plastic terminal

block connector prongs are plugged firmly into the

terminal block receptacles.

4 Relay Output Alarm

The media converter is equipped with relay output

contacts on the terminal block for signaling of a power

or port failure. The relay output can be connected to

an alarm signaling device. Current is 0.6A @ 30VDC.

5 Front Panel Reference

6 LED Indicators
