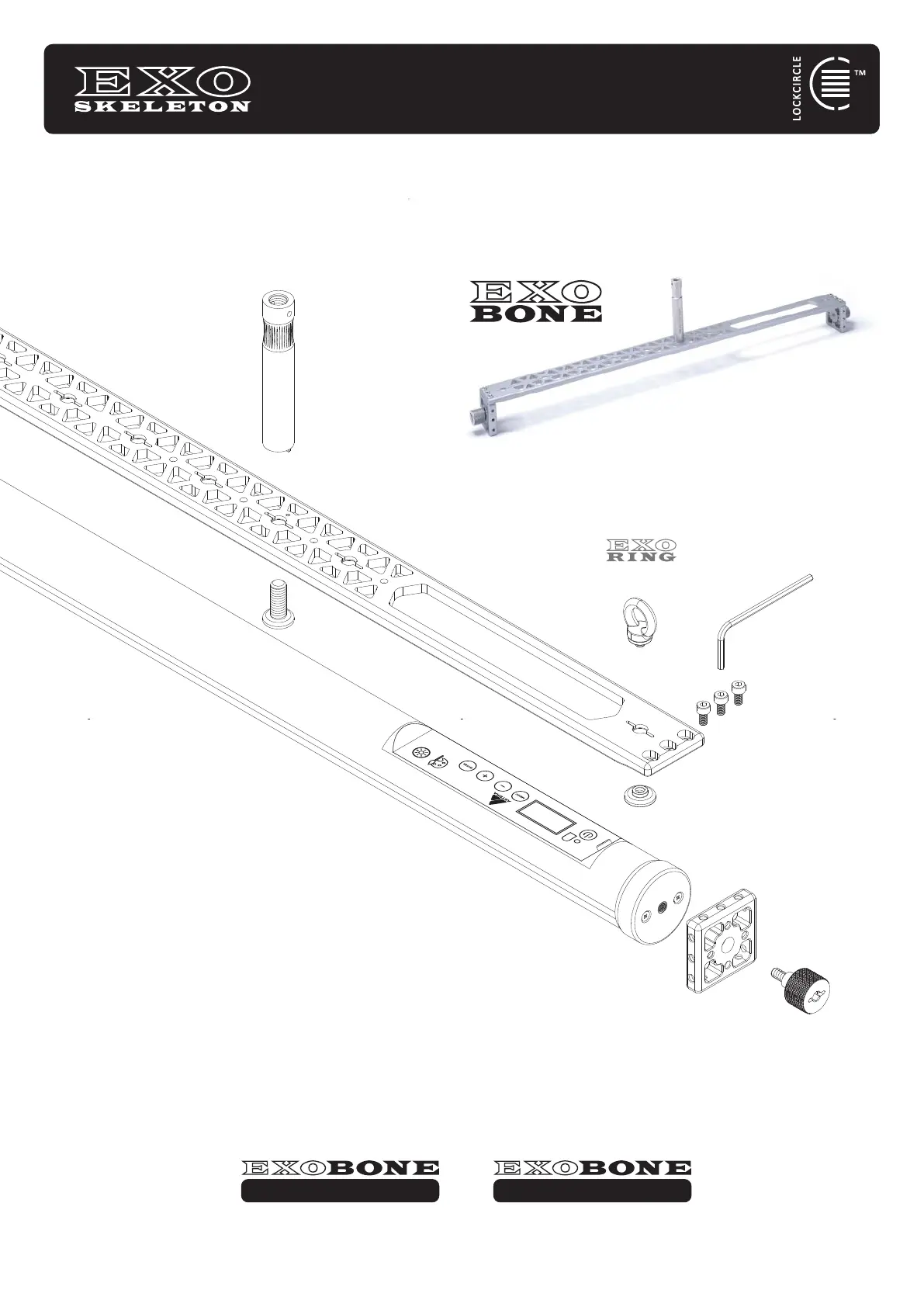

Exo Bone Kit for Astera Helios or Titan with (1x) Exo Bone Silver, (2x) Exo Slab Silver,

(2x) Exo Knobs Titanium, (1x) Exo Pin Titanium mount. Aluminium Silver Anodized,

(6x) hex screws M4X8, (2x) hex screws M5X8, (1x) hex key SW3, (1x) hex key SW4.

Neoprene Kit Pouch with crystal pocket for accessories.

U S E R M A N U A L

E XO B O N E K I T

The Exo Bone Kit

has been designed to offer effective

and professional use to the increasingly massive

use of Astera LED tubes on ﬁlm sets around the world.

The goal was to transform the Astera tube into

an authentic ﬁxture for ﬁlm production by becoming

the center of a system with many accessories

to emphasize the potential of a line of LEDs that have

now become an international production standard.

The particular attachment system of the Exo Pin allows you to use countless

accessories for mounting on standard grips of the ﬁlm and entertainment industry.

T I T A N K I TH E L I O S K I T

E X B E - H K I T E X B E -T K I T

E X R K

Wgt: gr. 412, oz. 14,5. Wgt: gr. 691, oz. 24,4.

U S E R M A N U A L

E XO B O N E K I T

Astera LED tube tolerance adjustement

To mount the Exo Bone Kit on the Astera tube, mount the two Exo Slabs

on both sides with the 3 +3 Allen screws (do not tighten the screws),

then install the Exo Pin and then the Astera tube.

Adjust the size of the Astera tube (which have manufacturing tolerances)

by pressing the two Exo Slabs against the Astera tube, then ﬁx the 6 hex screws.

Mount the Astera tube and ﬁnally, fully screw the two Exo Knobs

centering the M5 thread of the tube.

The Astera tube can be mounted both with the Exo Knob and with the two Allen

screws with washer supplied in the kit if there

is a need to mount the Astera tubes closer together.
