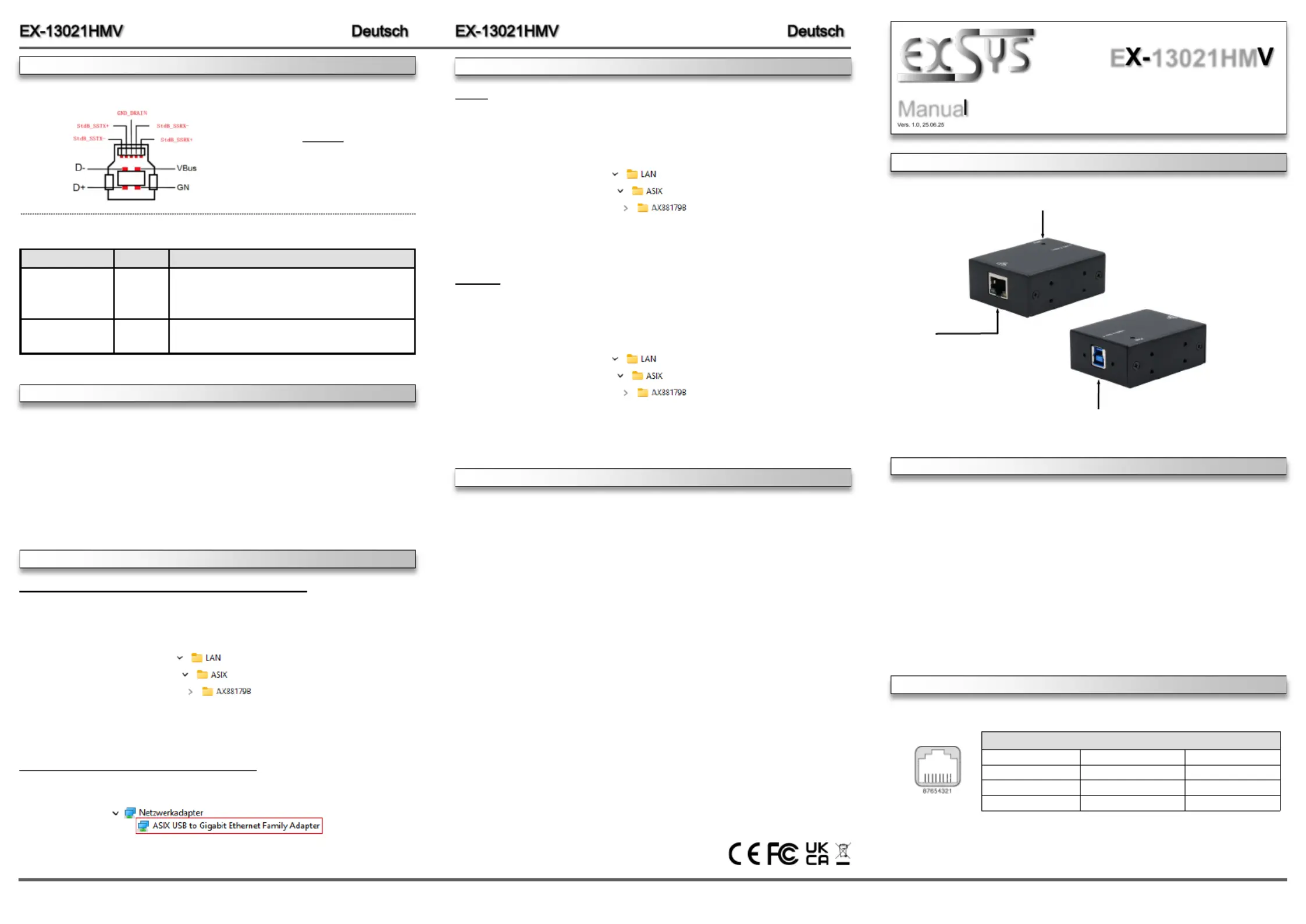

Side 1/2
6 5
Mit dem EX 13021HMV können Sie Notebook, Desktop Rechner oder Server im 19 Zoll Rack - -
über den USB 3.2 Gen 1 B Anschluss in ein 10/100/1000Mbps Netzwerk einbinden. Der EX- -
13021HMV kann gleichzeitig zu einer bestehender Netzwerkkarte installiert werden. Die Instal-
lation ist sehr einfach ohne, dass die Systeme geöffnet werden müssen. Die Bauform des EX-
13021HMV ist sehr kompakt und robust und bietet somit einen optimalen Einsatz in rauen
Umgebungen. Zusätzlich ist es möglich das UBS 3.2 Gen 1 Kabel mit dem EX 13021HMV zu -
verschrauben. Mit dem EX 13021HMV wir ein DIN Rail Kit mitgeliefert, für die Installation in ein - -
19- Zoll Rack.
Betriebssysteme: Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx / Linux / Mac OS
Anschlüsse: 1x USB 3.2 Gen 1 B Buchse, 1x RJ45 Gigabit Ethernet Anschluss -
Lieferumfang: 13021HMV, USB 3.2 Gen 1 Kabel (verschraubbar), EX-
-Wandmontagehalterung, DIN Rail Kit, Anleitung
1
BESCHREIBUNG & TECHNISCHE DATEN
AUFBAU
ANSCHLUSS & STATUS L sED
RJ45 Anschluss:
RJ45 Anschluss
Pin Signal Pin Signal Pin Signal
1 BI_DA+ 4 BI_DC+ 7 BI_DD+
2 BI_DA 5 BI_DC 8 BI_DD - - -
3 BI_DB+ 6 BI_DB -
Anleitun
E 13021HM
Switzerland:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
Italy:
EXSYS Italia Srl
Via Belvedere, 45/B
I 22100 Como -
www.exsys.it
USB 3.2 Gen 1 B Buchse (verschraubbar) -
zum Anschluss an den PC
Betriebs LED
RJ45 Anschluss
HARDWARE INSTALLATION
DRIVER INSTALLATION
Because there are large differences between PC s, we can give you only a general installation ’
guide for the EX 13021HMV. Please refer your computer s reference manual whenever in -’
doubt.
1. - - Connect the supplied USB 3.2 Gen 1 cable to the USB B Port of the EX 13021HMV.
2. -Now connect the other end of the supplied USB 3.2 Gen 1 cable to a USB A Port on your
PC.
3. Now you can connect a network cable at the EX-13021HMV.
CLEANING
Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx
Once the hardware installation is complete, the operating system automatically recognizes the
EX-13021HMV and installs it. If the drivers are not installed automatically, you can download
the drivers from our website (www.exsys.de or www.exsys.ch) under Downloads for your “ ”
product.
Now open the folder of your operating system and start the application located there. „ “setup
Now follow the installation instructions and complete the installation.
CHECK INSTALLED DRIVER
Open the . Now you should see at >Device manager< „Ethernet Adapter“ the following new
entry:
If you see this or a similar information the device is installed correctly.
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
CONNECTOR & STATUS L sED
Status LED‘s:
LED Name
Color
LED Function
Link/Act
Green
Continuously on: The Connection on the Ethernet port
is built and Active
Flash: Transmit Data
Off: Network connection is disconnected
Speed
Yellow
Off: 10/100Mbps Mode
Continuously on: Gigabit (1000Mbps) Mode
Attention!
Never plug in with
force or in wrong
direction
USB 3.2 Gen 1 B Port:-
DRIVER INSTALLATION
Linux
Once the hardware installation is complete, the operating system automatically recognizes the
EX-13021HMV and installs it. If the drivers are not installed automatically, you can download
the drivers from our website (www.exsys.de or www.exsys.ch) under Downloads for your “ ”
product.
Now open the folder of your operating system and remove the drivers for installing the EX-
13021HMV.
Mac OS
Once the hardware installation is complete, the operating system automatically recognizes the
EX-13021HMV and installs it. If the drivers are not installed automatically, you can download
the drivers from our website (www.exsys.de or www.exsys.ch) under Downloads for your “ ”
product.
Now open the folder of your operating system and remove the drivers for installing the EX-
13021HMV.
