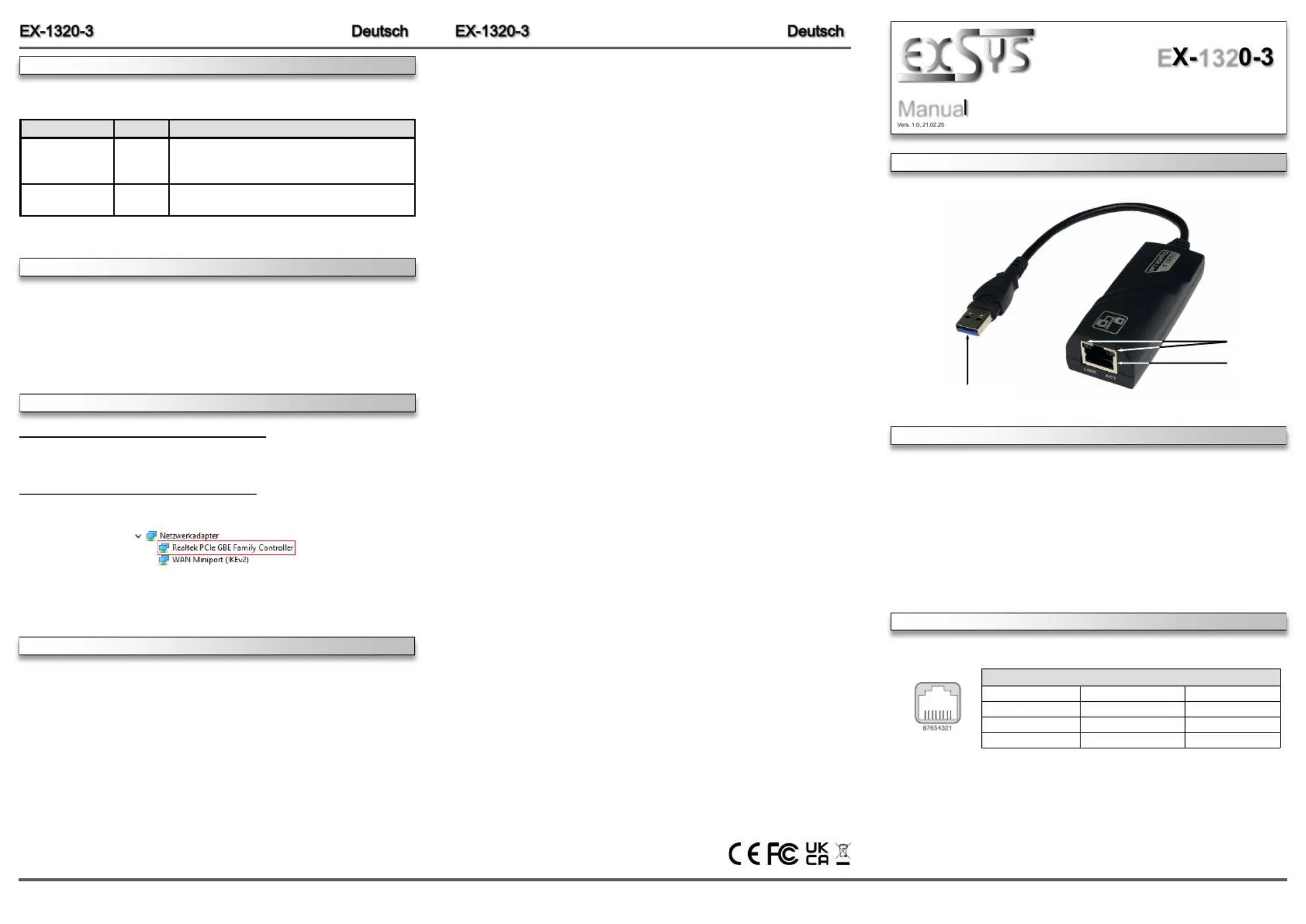

Side 1/2
6 5
Mit dem EX 3 können Notebooks und Desktop PCs über den USB 3.2 Gen 1 (ehemals -1320- -
USB 3.0) oder 2.0 Ausgang in ein 10/100 oder 1000Mbps Netzwerk eingebunden werden. Er
kann parallel zu einer vorhandenen Netzwerkkarte installiert werden. Die Installation ist sehr
einfach und kann ohne Öffnen des Rechners durchgeführt werden. Die Stromversorgung erfolgt
über den USB Port (Bus Powered).-
Kompatibilität: USB 1.1, 2.0, 3.2 Gen 1 Anschluss / TCP/IP 10/100/1000
Betriebssysteme: Windows XP/ Vista/ 7/ 8.x/ 10/ 11/ Server 20xx/ Linux/ Mac OS 10.x
Anschlüsse: 1x USB 3.2 Gen 1 A Stecker, 1x RJ45 Gigabit Ethernet Anschluss -
1
BESCHREIBUNG & TECHNISCHE DATEN
AUFBAU
ANSCHLUSS & STATUS L sED
USB 3.2 Gen 1 A Stecker -
zum Anschluss an PC
Status LEDs
RJ45 Anschluss
RJ45 Anschluss:
RJ45 Anschluss
Pin Signal Pin Signal Pin Signal
1 BI_DA+ 4 BI_DC+ 7 BI_DD+
2 BI_DA 5 BI_DC 8 BI_DD - - -
3 BI_DB+ 6 BI_DB -
HARDWARE INSTALLATION
Because there are large differences between PC s, we can give you only a general installation ’
guide for the EX 3. Please refer your computer s reference manual whenever in doubt.-1320-’
1. -Connect the EX 1320- - 3 to the A Port at your PC.
2. Now you can connect a network cable at the EX-1320-3.
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
DRIVER INSTALLATION
Windows XP/ Vista/ 7/ 8.x/ 10/ Server 20xx
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the . Now you should see at >Device manager< „Ethernet Adapter“ the following new
entry:
If you see this or a similar information the device is installed correctly.
CONNECTOR & STATUS L sED
Status LED‘s:
LED Name
Color
LED Function
Link/Act
Green
Continuously on: The Connection on the Ethernet port
is built and Active
Flash: Transmit Data
Off: Network connection is disconnected
Speed
Yellow
Off: 10/100Mbps Mode
Continuously on: Gigabit (1000Mbps) Mode
Anleitun
E 132
Switzerland:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
Italy:
EXSYS Italia Srl
Via Belvedere, 45/B
I 22100 Como -
www.exsys.it
