AAP 301 and AAP 302 Installation Instructions

The Extron AAP 301 and AAP 302 are 1U and 2U high metal panels that support the

installation of AAP (Architectural Adapter Plate) panels into an equipment rack. The

AAP 301 has four AAP openings that can be populated with up to eight single space or

four double space AAPs. The AAP 302 has four AAP openings that can be populated with

up to 16 single space or 8 double space AAPs.

1. Cable the rear of the AAPs to be installed before attaching the AAPs to the panel. If

applicable, refer to the cabling information in the documentation for the AAP.

2. Insert the adapter plate screws through the holes in the faceplate. Attach the adapter

plates to the faceplate with the provided #4-40 nuts with captive washers. Fill unused

openings with the provided blank AAPs.

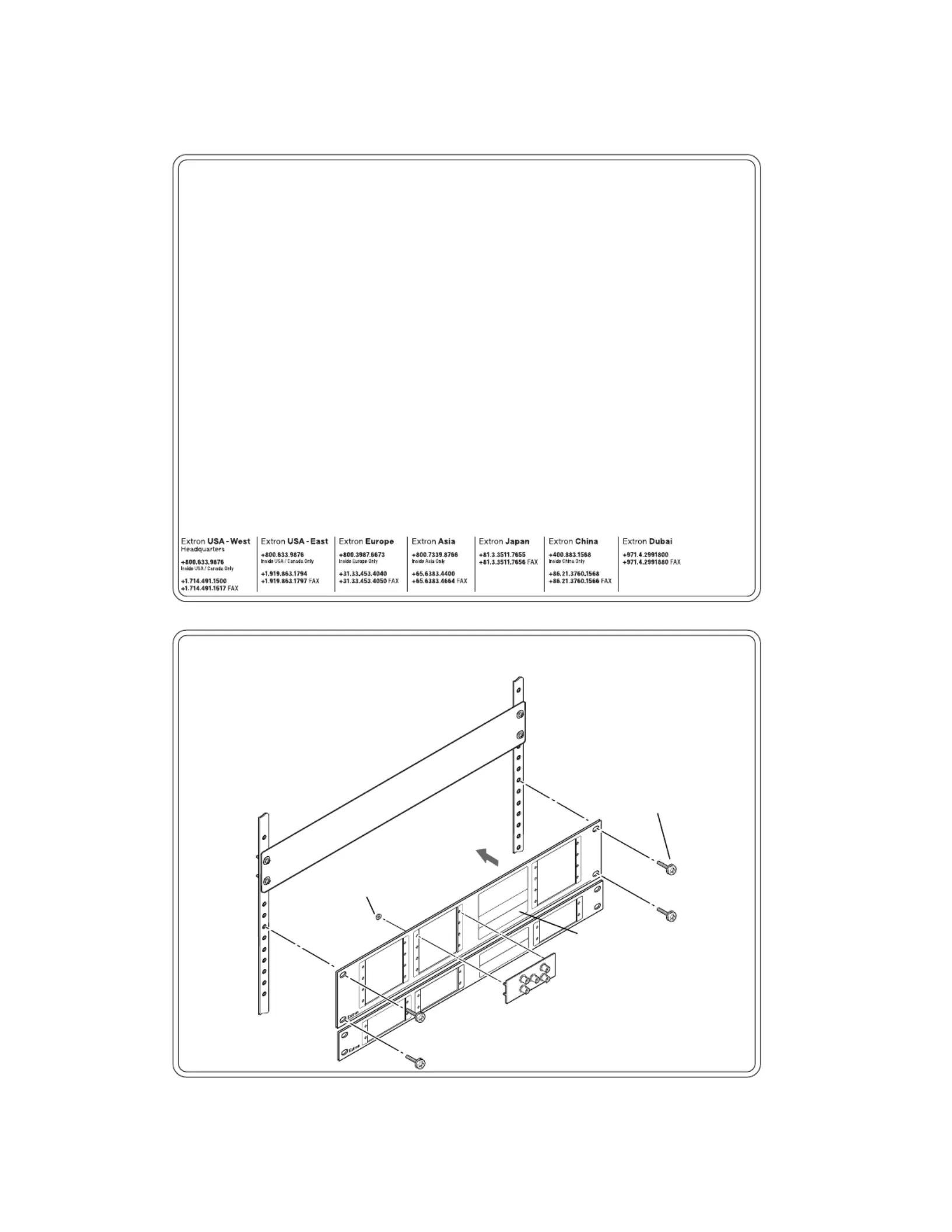

3. Secure the panel to the rack using the supplied machine screws. See the figure on the

reverse side of this card.

68-637-01 Rev. B

08 08

AP 302

P 301

#4-40 Nut w/ Captive

Washer

Double Space

Architectural Adapter

Plate

Blank Plates

AAP 302

AAP 301

#10-32 Screw

w/ Nylon Captive

Cap Washer

AAP 301 and AAP 302 Installation Instructions (Cont’d)

Produkt Specifikationer

Mærke:	Extron
Kategori:	AV forlænger
Model:	AAP 302
Type:	Stativdæksel
Bredde:	482.6 mm
Dybde:	12.7 mm
Højde:	87.8 mm
Produktfarve:	Sort
Husmateriale:	Metal
Harmoniseret systemkode (HS):	85389099
