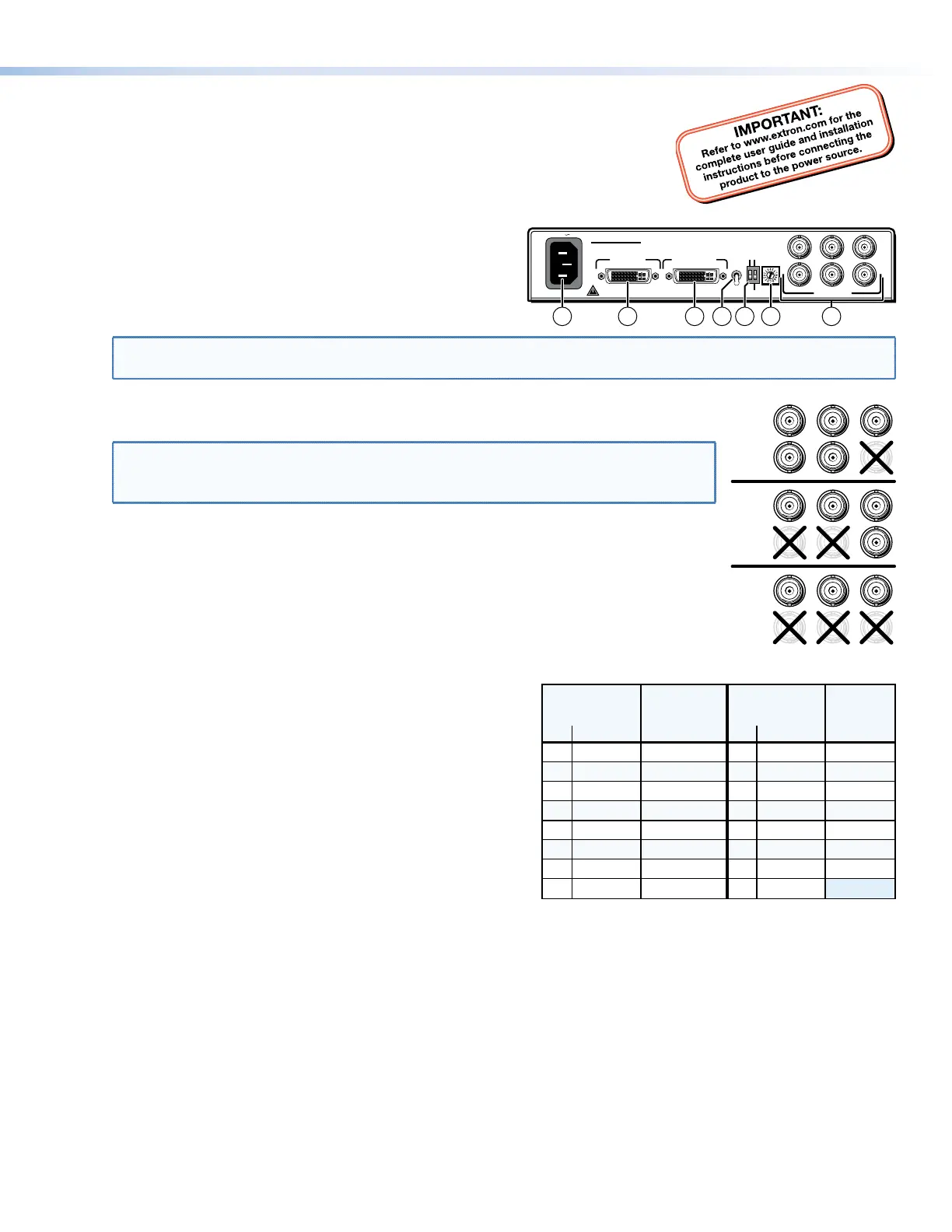

This guide provides instructions for an experienced installer to set up and operate Extron DVI-RGB 200 ®

DVI to Analog RGB Video Interface.

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources and mount the interface as required.

Step 2 — Connections and Initial Settings

a Connect a single link of direct DVI-D Input connector —

digital video to this DVI-I connector using the included cable.

b Buffered Loop-through connector — If desired, connect a

direct digital local monitor to this DVI-I connector.

NOTE: Use only cables speciﬁcally intended for DVI interfaces. Use of non-DVI cables or modiﬁed cables can cause

the DVI-RGB 200 to not operate correctly.

c Connect an RGB display to these female BNC connectors. Connect the Output connectors —

BNCs as shown at right for the desired RGB video format.

NOTE: Ensure that the SOG DIP switch (f) is turned off (down) for RGBHV and RGBS

video.

Ensure that the SOG DIP switch is turned on (up) for RGsB video.

d EDID Source switch —

Set this switch to the Monitor (up) position to connect the DDC channel between the direct

digital video source and the local monitor.

Set this switch to the Selector (down) position to connect the DDC channel between the

direct digital video source and the built-in DVI-RGB 200 EDID logic.

e If the EDID Source switch (EDID Select — d) is in the Selector (down) position, set this switch

to the appropriate position to select the desired video resolution. Use the Refresh DIP switch

(f) to select the refresh rate. The table at right identiﬁes the

switch positions and the associated resolutions and vertical

refresh rates.

f DIP switches —

SOG (Sync on Green) On/Off switch — Set this switch to the

On (up) position to enable SOG for RGsB video. Set this switch

to the Off (down) position to disable SOG for RGBS or RGBHV

video.

Refresh switch —

If the EDID Source switch (d) is in the Selector position (down)

and the EDID select switch (e) is in position 1 through F

position, set this switch either up or down to select the refresh

rate of the selected output. See the table at right.

If the EDID Source switch (d) is in the Selector (down) position and the EDID select switch is in position 0, set this switch

up to capture the EDID data from the connected Buffered Loop-through monitor. See Capturing a User-recorder EDID.

g AC power connector — Plug a standard IEC power cord into this connector to connect the interface to a

100 to 240 VAC, 50 Hz or 60 Hz power source.

100-240V 0.4A

OUTPUT

DVI-D INPUT BUFFERED

LOOP-THROUGH

SO G O N/OFF

REFRESH

EDID

SO URCE

MONIT OR

HIG H

LO W

SELECT OR

EDID

SELECT

DVI-RGB 200

50/60 Hz

21 57 364

RGBHV

RGBS

RGsB

Pos. Resolution

EDID Select

Switch

Refresh

DIP Switch

0 User EDID EDID capture

2 1024x768

3 1280x720

50 Hz 60

1280x768

1280x800

50 Hz 60

800x600

< >

Dwn Up

1366x768

1400x1050

Pos. Resolution

50 Hz 60

1440x900

1600x1200

50 Hz 50

50 Hz 60

50 Hz 50

50 Hz 60

Refresh

DIP Switch

Dwn Up

EDID Select

Switch

1280x1024

1360x768

1680x1050

1920x1080

1920x1200

N/A

DVI-RGB 200 Setup Guide

Operation

Apply power to the devices in the following order: 1) DVI-RGB 200, 2) display device, 3) input device. After all devices are

powered up, the system is fully operational.

If any problems are encountered, verify that the cables are routed and connected properly. If your problems persist, call the

Extron S3 Sales & Technical Support Hotline that is closest to you, at the number shown below.

NOTES: • High-bandwidth Digital Content Protection (HDCP) is an encryption method that protects copyrighted digital

entertainment material that uses DVI video.

• The DVI-RGB 200 cannot respond to the HDCP decryption key. When the DVI input is HDCP encrypted, the

output of the DVI-RGB 200 RGB is blank.

• The computer reads the DDC on power up to determine the direct digital video resolution and refresh rate

to output. Ensure that the local DVI monitor and the RGBHV monitor can both display the selected resolution

and refresh rate, otherwise images may be distorted or missing.

• Ensure that the computer and local monitor are connected to the DVI-RGB 200, and the DVI-RGB 200 and

local monitor have power applied, before applying power to the computer. If the other devices are not

turned on before the computer is powered on, the image will not appear.

Front Panel Controls and Indicator

NOTE: Level Boost and Peaking have no affect on the DVI

output of the Buffered Loop-through connector.

h The two-color Power LED lights amber or Power LED —

green:

Amber when the DVI-RGB 200 is receiving power but no DVI input signal is applied.

Green when the DVI-RGB 200 is receiving power and a DVI input is present.

i Level Boost control — The Level Boost control alters the brightness of the picture on the RGB output. Judge the

adjustment visually by looking at the display.

• At the minimum level setting (the counterclockwise limit of this control), the interface outputs video at 0.7 Vp-p.

• At the maximum level setting (the clockwise limit of this control), the interface outputs video at 1.45 Vp-p.

Select a level setting of 0.7 V and above to compensate for the signal level decrease that occurs with long cables. Set

the level at the maximum setting for cable lengths over 500 feet.

j Peak(ing) control — The Peaking control affects the sharpness of the RGB output. Increased peaking can compensate

for detail (mid- and high-frequency) loss from low bandwidth or long cables. The minimum setting (counterclockwise

limit) provides no peaking. The maximum setting (clockwise limit) provides 100 percent peaking.

Capturing a User-recorded EDID

Record the EDID from a display connected on the Buffered Loop-through connector as follows:

1. Set the rear panel EDID Source switch to the Selector (down) position.

2. Set the Output Resolution switch to the 0 position.

3. Change the Refresh dip switch to on (up).

NOTE: The front panel Power LED lights amber whether the DVI-D Input connector is receiving a signal or not.

4. Connect the display device to Buffered Loop-through connector.unpowered

5. Power on the display device. The DVI-RGB 200 copies the EDID of the display connected in step to its memory.4

After the EDID is successfully copied, the front panel Power LED lights green.

6. Set the Refresh DIP switch to off (down).

68-1791-50

Rev A

10 10

DVI-RGB 200

DVI TO RGB CONVERTER

BOOST

LEVEL

CONT ROL

PEAK

8 9 10

SOG ON/OFF

REFRESH

DDC

SOURCE

MONITOR

HIGH

LOW

SELECTOR

EDID

SELECT

Extron USA - West

Headquarters

+800.633.9876

Inside USA/Canada Only

+1.714.491.1500

+1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA/Canada Only

+1.919.863.1794

+1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+400.833.1568

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

DVI-RGB 200 Setup Guide (Continued)
