The Extron DVS 304 Series of video and RGB digital scalers incorporate advanced technology

to provide high performance video processing with selectable output rates up to 1920x1200

(DVI models only) and HDTV 1080p, as well as simultaneous DVI (DVI models only) and

analog RGB or component video outputs.

This setup guide allows quick and easy set up and conguration of a DVS scaler using step by step instructions. It covers

performing basic operations using the front panel controls and selected Simple Instruction Set (SIS

™

) commands.

For full installation, conﬁguration, and operation details, refer to the DVS 304 Series User’s Manual, online at www.extron.com.

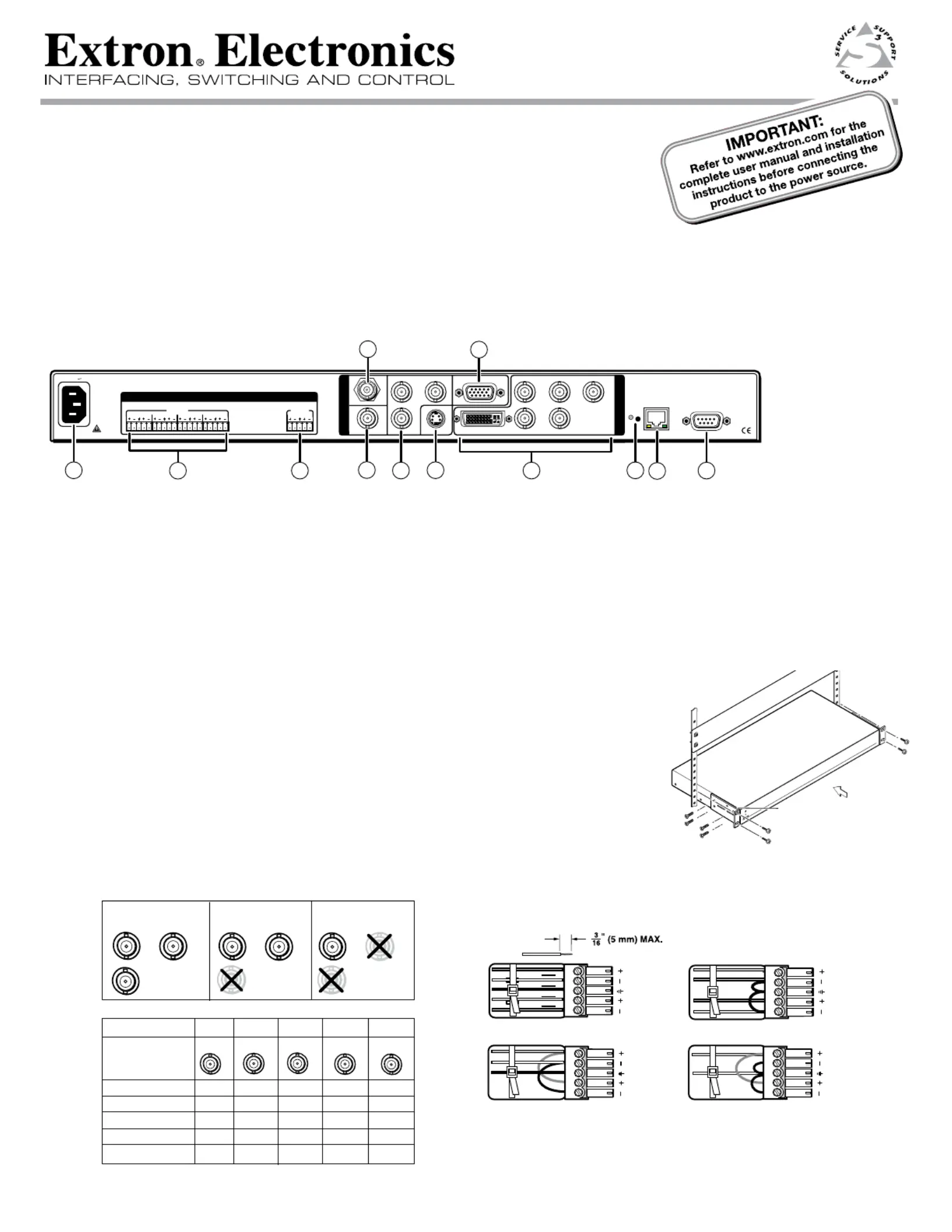

Installation — Rear Panel Features (DVS 304 DVI AD model shown)

INPUTS TOUTPU

RS-232

LAN

RESET

ACT LINK

50/ 0 Hz

100-240V .3A

L R

AUDIO

VID

/VID

R-Y

/R-Y

/B-Y

DVI-I

SDI

B-Y

RGB/R- B-Y/YC/VIDY,Y

DVS 304 I ADDV

Power and video input connections Output and control connections

a AC power connector Audio output connectors - (audio models only)g

b Audio input captive screw connectors (inputs 1 to 4) - audio models only RGB/YUV-HD BNC and DVI* output connectorsh

c i Composite video BNC connector (input 1) Reset button and LED

Ñ j (Optional) SDI BNC connectors (congurable) RJ-45 Ethernet connector

d k Composite video/S-video/component video BNC connectors (input 2) 9-pin D RS-232 connector

e S-video 4-pin mini-DIN connector (input 3)

f 15-pin HD connector (input 4) with EDID emulation*

Installation and cabling

Step 1 — Mount the DVS

Turn off or disconnect all equipment power sources and rack mount the DVS unit, using

suitable mounting brackets or rack shelf (see image at right).

Refer to the DVS 304 Series User’s Manual for details.

Step 2 — Connect inputs

Connect inputs from video and/or audio sources to the applicable connectors marked

“Inputs” (see above for connector types). See diagrams below for signal format on BNC b to f

connectors and audio input captive screw wiring (balanced or unbalanced, mono or stereo).

N When connecting a VGA input to a DV 304 DVI model, by default the EDID emulation is set to match the current output rate. To set to a speciﬁc rate,

or set to a display's EDID rate, or to upload a custom EDID table refer to the , available at DVS 304 Series User’s Manual www.extron.com.

Component video

(Y, R-Y, B-Y)

S-video

Composite video

B-Y

/VID

R-Y

B-Y

/VID

R-Y

B-Y

/VID

R-Y

Input 2

Input 4

Pin 1

15-HD pins Pin 2

Pin 3

Pin 13 Pin 14

Input source

BNC’s

RGB

RGBcvS

YUV

S-video

Composite video

G(S)

H V

cvS

R-Y

B-Y

DVS 304 Series – Setup Guide

Rack Mount

Bra tcke

Unbalanced Stereo Input

Tip

Sleeve

Tip

L R

Unbalanced Mono Input

Balanced Mono Input

L R

Tip

Ring

Sleeve

Tip

Ring

L R

Tip

Sleeve

Tip

Sleeve

Balanced Stereo Input

L R

Tip

Ring

Sleeve

Tip

Ring

Do not tin the wires!

N * DVI models only. Non DVI models have a 15-pin HD connector

in place of the DVI connector and do not feature EDID emulation.

68-1039-50

Rev. A

08 09

DVS 304 Series • Setup Guide

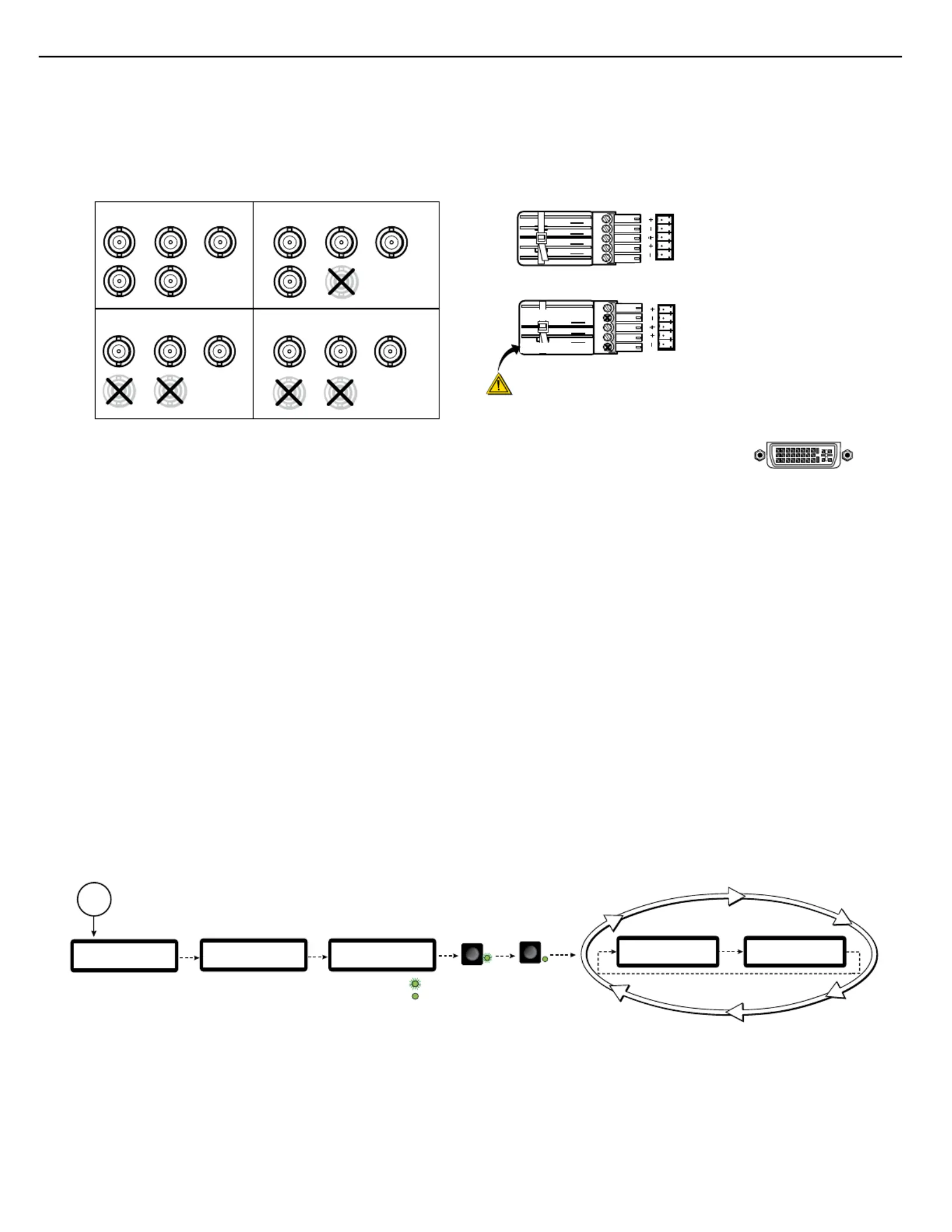

DVS 304 Series — Setup Guide (cont'd)

Step 3 — Connect outputs

Connect video and audio output devices to the applicable connectors marked “Outputs” (see above). g and h

Video RGB (RGBHV, RGBS, RGsB) or HD component (R-Y, Y, B-Y) video output — For connect cables to the BNC's or VGA/DVI-I as shown

below. Outputs are scaled or pass-through RGB ,or scaled component video and can be scaled to more than 60 different output rates.

RGB pass-through is available on analog outputs only. DVI output is disabled in RGB pass-through mode.

RGBHV

/R-Y

/B-Y

/R-Y

/B-Y

RGsB

/R-Y

RGBS

/B-Y

Component video (Y, R-Y, B-Y)

/R-Y

Analog video output

For connect a suitable display device DVI-I (digital and analog) output (DVS 304 DVI models only) ,

to this DVI-I connector for scaled RGB or component video (simultaneous digital and analog outputs).

Audio — Wire the captive screw audio connectors as shown above.

Step 4 — Connect control devices

LAN Ethernet port

— Connect to an Ethernet LAN or WAN via this RJ-45 connector to control the switcher from a remote

location using a PC’s Internet browser, or the control program (the Extron Signal Processing Products Control Program).

The Ethernet connection indicator LEDs indicate the status of the Ethernet connection: the green LED lights when connected to an

Ethernet LAN, and the amber LED ickers as the devices communicate.

Do not use standard telephone cables, as they do not support Ethernet or Fast Ethernet. Do not stretch or bend cables as transmission

errors could occur.

Remote port —k For serial RS-232 control, connect a host computer or control system via this 9-pin D connector.

RS-232 protocol (default values): 9600 baud, 1 stop bit, no parity, 8 data bits, no ow control.

See chapter 4, “SIS

™

Programming and Control”, in the , for deﬁnitions of the SIS commands. DVS 304 Series User’s Manual

See chapter 5, “DVS 304 Series Control Software” to install and use the control software.

Use an RS-232 cable that only utilizes Tx (2), Rx (3), and ground (5) to avoid activating the contact closure feature (refer to the

DVS 304 Series User's Manual , chapter 2).

Step 5 — Connect power

AC power connector

— Plug in a standard IEC power cord from a 100 to 240 VAC, 50 - 60 Hz power source into this receptacle

Powering Up

When applying power to the DVS, the unit undergoes a start-up self testing sequence (see image below), and then the LCD displays

the default display cycle, showing the active input, input signal type, and the output resolution and refresh rate.

sec.

App ly

Power

Extron

El ec tronics

sec.

2 sec.

sec.

Default Display Cycle

INPUT 4

RGB SCALE D

1024x768 @60.0Hz

OUTPUT

The i np u t a nd ou tp ut r at es s ho wn

i n th e def ult d is p la y c y cl e ma y di fa fer,

d ep en d ing o n th e a ct i in p ut an d t yp e of v ideo s ig na lve

All input LEDs flash

once in sequence

(last activ then 1-4).e,

sec.

Last active input

LED remains lit

(here input 3).

= flashing

Key

60-xxxx-xx

FW v e 2. 00r.

= lit

DVS 304

DVI AD

sec.

When in use and not in any menu, the LCD screen defaults to cycling through the current input/output conﬁguration. The displayed

content may vary, depending on the input video signal type (see typical default display above).

DVI-I

Unbalanced Stereo Output

L R

Balanced Stereo Output

Left

Right

CAUTION

For unbalanced audio, connect the sleeve(s) to the center contact

ground. DO NOT connect the sleeve(s) to the negative (-) contacts.

Tip

Slee sve

Tip

NO GROUND HERE

L R

Left

Right

Tip

Ring

Slee sve

Tip

Ring

A o outputudi

Produkt Specifikationer

Mærke:	Extron
Kategori:	Audio/video konverter
Model:	DVS 304 DVI
Bredde:	222 mm
Dybde:	267 mm
Højde:	44 mm
Vægt:	1500 g
Produktfarve:	Sort
Kontroltype:	Knapper
Pakkevægt:	2010 g
Pakkedybde:	330 mm
Pakkebredde:	356 mm
Pakkehøjde:	102 mm
Understøttede videotilstande:	480p, 576p, 720p, 1080i, 1080p
Opbevaringstemperatur (T-T):	-40 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Format til analogt signal:	NTSC 3.58, NTSC 4.43, PAL, SECAM
Strømforbrug (typisk):	30 W
Driftstemperatur (T-T):	0 - 50 °C
Husmateriale:	Metal
Indgangsspænding for vekselstrømsadapter:	100 - 240 V
Frekvens for vekselstrømsadapter:	50 - 60 Hz
Certificering:	CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI Class A
LED-indikatorer:	Ja
AC (strøm) indgang:	Ja
Digital vertikal frekvens:	50 - 120 Hz
Skalerede opløsninger:	640 x 480,1920 x 1200
Antal RJ-45-porte:	1
Digital horisontal frekvens:	15 - 100 kHz
Rackkapacitet:	1U
Indgangsstrøm til vekselstrømsadapter:	0.3 A
Sync output impedans:	75 ohm (Ω)
DC-forskydning:	1300 mV
