User’s Guide
VGA Line Driver
68-480-01 Rev. C
07 06
P/2 DA1

P/2 DA1 Installation and Operation
Installation
2
The Extron P/2 DA1 is a one input, one output VGA line driver. It
boosts the video signal between a laptop or desktop computer (input
device) and a monitor or large screen projector (output device).
Features
• The P/2 DA1 accepts and outputs VGA, XGA, SXGA, RsGsBs,
RGsB, RGBS, and RGBHV signals.
• The gain/peaking switch increases video signal voltages to
compensate for signal degradation caused by long cables.
Installation
To install the P/2 DA1, do the following:
1. Turn off power to the input and output devices and unplug
their power cords.
2. Connect the computer to the 15-pin HD male input
connector (see
1
in the “Operation” illustration below).
3. Connect the output device to the 15-pin HD female output
connector (see
5
in the “Operation” illustration below).
4. Reattach power cords, and apply power to the P/2 DA1
and to the input and output devices.
Many laptop computers have an external video port, but
they require special commands to output the video to that
connector. Also, many laptops’ screens shut off after the
port is activated. See the computer’s user’s guide for
details, or contact Extron for a list of laptop keyboard
commands.

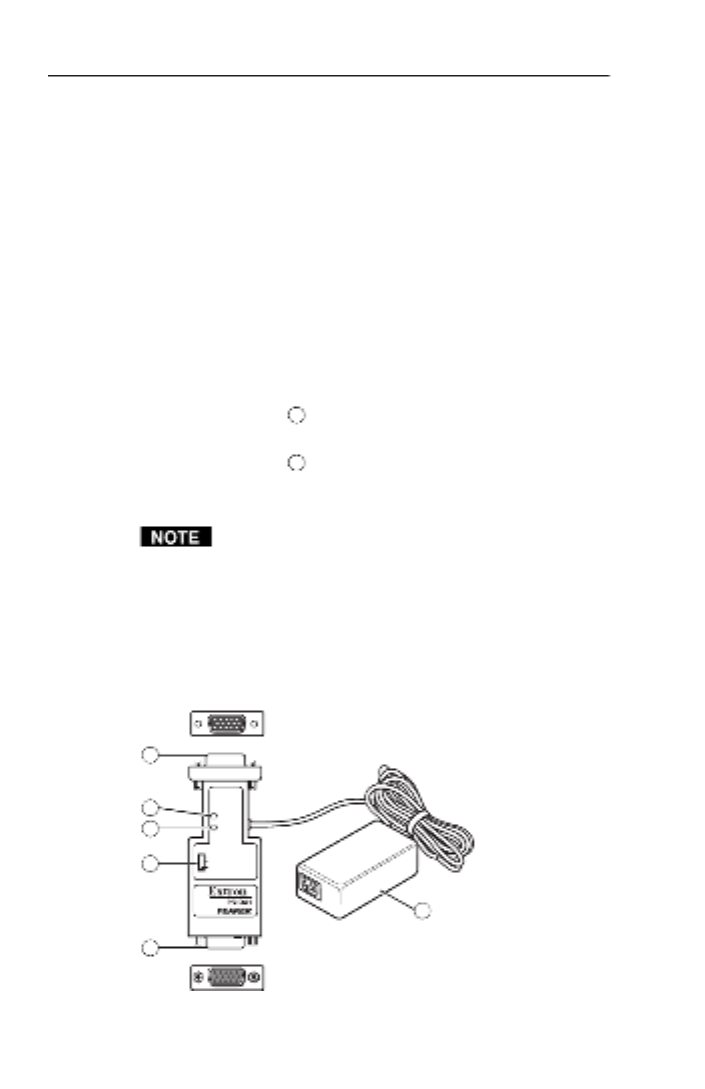

Operation
VGA IN
POWER
POWER
POWER
POWER
POWER
NORMAL
GAIN/PEAKING
MEDIUM
MAXIMUM
VGA OUT
SIGNAL
SIGNAL
SIGNAL
SIGNAL
SIGNAL
1
2
3
4
5
To computer
To display device
6
Produkt Specifikationer
Mærke: | Extron |
Kategori: | AV forlænger |
Model: | P/2 DA1 |
Vekselstrømsindgangsspænding: | 100-250 V |
Vægt: | 300 g |
Produktfarve: | Sort |
Opbevaringstemperatur (T-T): | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H): | 10 - 90 % |
Relativ luftfugtighed ved opbevaring (H-H): | 10 - 90 % |
Driftstemperatur (T-T): | 0 - 50 °C |
Maksimal opløsning: | - pixel |
Dimensioner (BxDxH): | 33 x 79 x 14 mm |
Maksimal overførselsafstand: | 75 m |
VGA (D-Sub) indgangsporte: | 1 |
Båndbredde: | 300 MHz |
VGA (D-Sub) udgangsporte: | 1 |
