Side 1/12

OWNER’S MANUAL | MANUAL DE INSTRUCCIONES

MODE D’EMPLOI | BEDIENUNGSHANDBUCH

オーナーズ・マニュアル

BASS AMPLIFIER

ENGLISH

ACB 50

Created with acclaimed U2 bassist Adam Clayton, the Fender ACB 50

combo bass amplier pumps warm and harmonically rich all-tube tone

prized by bassists everywhere for studio, club and arena alike. In close

collaboration with the man himself on its sound and modern style, it’s

Fender’s rst-ever signature bass amp. Premium features include:

• 50 watts tube output power

• Dual-channel design—channel one has vintage Fender “black

panel” preamp tonality with volume, bass and treble controls, a

mid-boost control and three-position mid-frequency selection

switch; channel two has at frequency response with volume,

treble boost/cut and bass boost/cut controls

• Two 6L6 power tubes

• Three 12AX7 preamp tubes

• One 12AT7 phase splitter tube

• Single 15” Eminence® Special Design speaker

• Extension speaker output

• Transformer-coupled post-power amp line output with XLR and

1/4” jacks

• Ground lift switch for direct out XLR jack

• Lightweight plywood ported enclosure

• Caster sockets

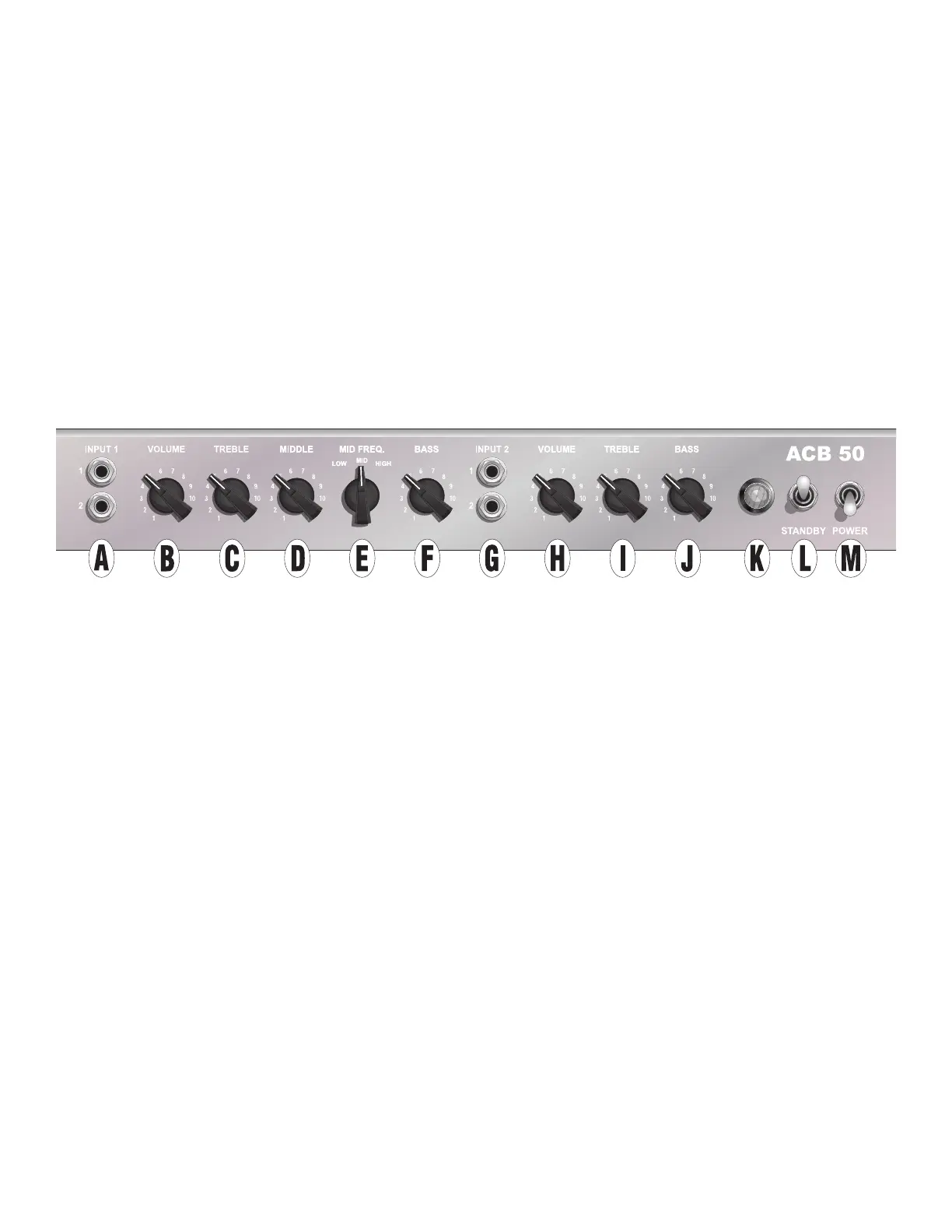

CONTROL PANEL

A. CHANNEL ONE DUAL INPUTS: Connect instrument here. Input

 is for normal sensitivity; input  has lower-sensitivity (-dB) for

higher-output (active) basses.

Note that channel one delivers a more traditional Fender bass

sound, with the addition of an adjustable mid frequency boost

control (see item “E” below).

B. CHANNEL ONE VOLUME: Controls channel one volume level.

C. CHANNEL ONE TREBLE: Controls channel one treble tone level.

D. CHANNEL ONE MIDDLE: Boosts channel one midrange tone

level, in connection with CHANNEL ONE MID FREQUENCY SWITCH

(E) setting.

E. CHANNEL ONE MID FREQUENCY SWITCH: Three-position dial

switch selects low, middle or high midrange frequency setting

for boost using CHANNEL ONE MIDDLE control knob (D); note

that tonality dierences of the three settings are best observed

at high settings of the CHANNEL ONE MIDDLE control.

F. CHANNEL ONE BASS: Controls channel one bass tone level.

G. CHANNEL TWO DUAL INPUTS: Connect instrument here. Input

 is for normal sensitivity; input  has lower-sensitivity (-dB) for

higher-output (active) basses.

Note that channel two oers boost/cut treble (I) and bass (J)

tone controls for which frequency response is “at” in the center

position (.).

H. CHANNEL TWO VOLUME: Controls channel two volume level.

I. CHANNEL TWO TREBLE: Controls channel two treble tone level.

J. CHANNEL TWO BASS: Controls channel two bass tone level.

K. POWER JEWEL: Illuminates when amplier is on.

L. STANDBY: Puts amplier in standby mode, extending tube life by

disabling speaker output while power remains on.

M. POWER: Turns amplier on and o.
