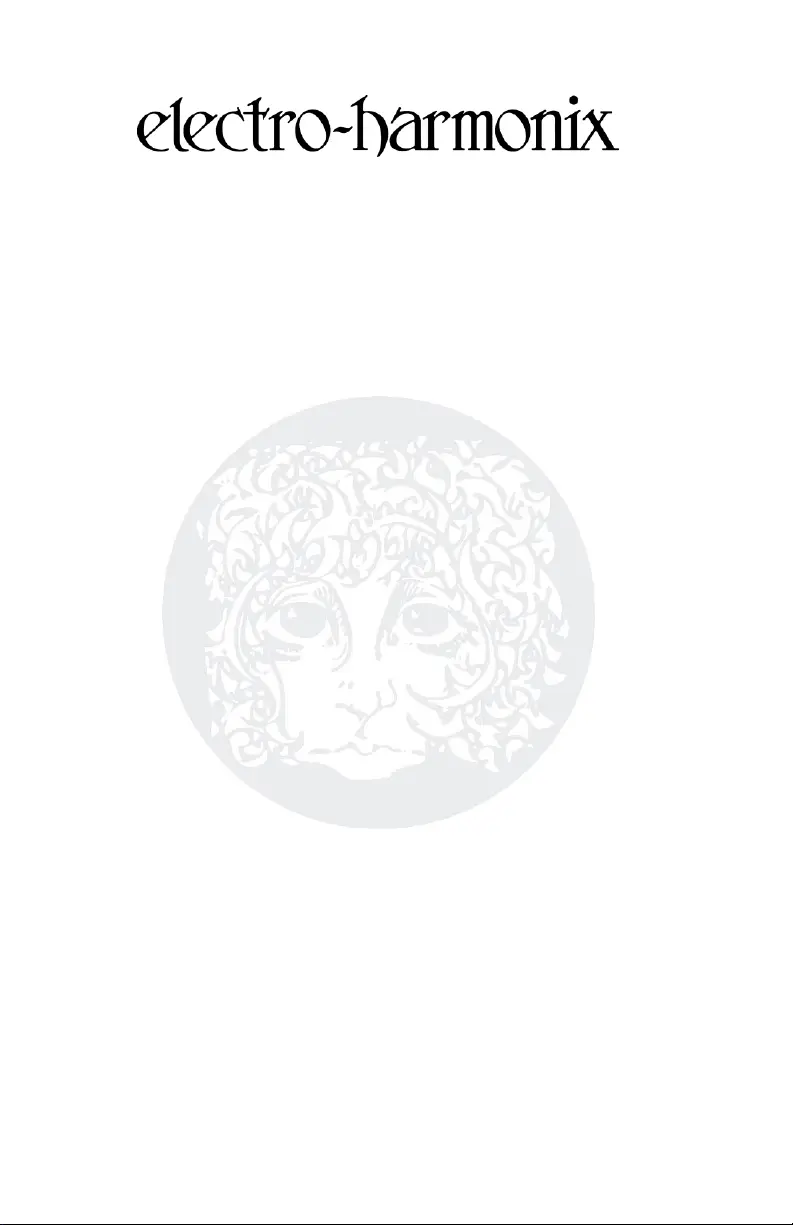

Side 1/8

- FCC COMPLIANCE -

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation. If the device is

not installed and used in accordance with the instructions, it may cause

harmful interference to radio communications and void the user's authority

to guarantee the equipment.

Note:

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's

authority to operate the equipment under FCC rules.

BATTALION

BASS PREAMP + DI

Congratulations on your purchase of the Electro-Harmonix Battalion. The all-

analog circuitry of the Battalion provides you with an amazing amount of

features in a sturdy and compact pedal. Basic functions include a four-band

equalizer, a compressor, and a noise gate. The Battalion also packs a full-

featured MOSFET distortion section, including a three-way toggle switch to

change where the distortion section is placed in the signal path, thereby

expanding the tonal versatility of the preamp.

In addition, the Battalion includes a balanced, XLR output for use as a DI, as

well as separate level and bypass controls for the XLR out. The ¼” output

jack is headphone ready and perfect for quiet practicing. So, are you ready

to head into the trenches? Road warriors and studio musicians alike will

appreciate the stunning quality and multiple features at their disposal.

- USING THE BATTALION -

Plug the 9VDC adapter into the jack on the top of the Battalion. The unit

must be powered to pass a signal. Connect an instrument cable from your

bass into the INPUT jack. Insert an instrument cable between the OUTPUT

jack and a suitable amplifier, or insert an XLR cable between the DI

OUTPUT jack and a suitable mixing console or recording interface. Click the

BYPASS footswitch to engage the Battalion. The green LED lights to indicate

that the unit is active, and the equalizer and gate will be in effect. Push in

the COMPRESSION button to engage the compressor. The blue LED will

illuminate to show that the compressor is active. Press the DISTORTION

footswitch to activate distortion. The red LED will light indicating the

distortion is active.

- CONTROLS -

BYPASS Footswitch & Green LED – The right LED illuminates when the

effect is engaged. The LED will not light if the Battalion is bypassed. Press

the footswitch to toggle between effect on and buffered bypass mode.

VOL Knob – Sets master output level of the pedal.

GATE Knob – Sets the threshold for the noise gate. Turn this up to cut

signal when no/little bass signal is coming through.

-10dB Pad Button – Press to cut the input signal by 10dB, good for active

basses or other basses with very strong output signals.

EQ CONTROLS:

BASS Knob – Boost or cut low end. No effect when the knob is at 50%.

Boosts/cuts frequencies below 200Hz.

LO MID Knob – Boost or cut low midrange frequencies. No effect when the

knob is at 50%. Boost/cut at 280Hz.

HI MID Knob – Boost or cut high midrange frequencies. No effect when

the knob is at 50%. Boost/cut at 750Hz.

TREBLE Knob – Boost or cut high end. No effect when the knob is at 50%.

Boosts/cuts frequencies above 2kHz.

COMPRESSOR CONTROLS:

COMPRESSOR Button & Blue LED – Use this switch to engage or bypass

the compressor circuit. The blue LED will illuminate when the compressor is

active. If active, the blue LED will stay lit even when the entire pedal is

bypassed, indicating compression will be active upon activating the pedal.

COMPRESSOR Knob – Determines the intensity of the compression. Turn

up to increase the compression ratio.

- WARRANTY INFORMATION -

Please register online at http://www.ehx.com/product-registration or

complete and return the enclosed warranty card within 10 days of purchase.

Electro-Harmonix will repair or replace, at its discretion, a product that fails

to operate due to defects in materials or workmanship for a period of one

year from date of purchase. This applies only to original purchasers who

have bought their product from an authorized Electro-Harmonix retailer.

Repaired or replaced units will then be warranted for the unexpired portion

of the original warranty term.

If you should need to return your unit for service within the warranty period,

please contact the appropriate office listed below. Customers outside the

regions listed below, please contact EHX Customer Service for information on

warranty repairs at info@ehx.com or +1-718-937-8300. USA and Canadian

customers: please obtain a Return Authorization Number (RA#) from

EHX Customer Service before returning your product. Include  with your

returned unit  a written description of the problem as well as your name,

address, telephone number, e-mail address, RA# and a copy of your receipt

clearly showing the purchase date.

United States & Canada Europe

EHX CUSTOMER SERVICE JOHN WILLIAMS

ELECTRO-HARMONIX ELECTRO-HARMONIX UK

c/o NEW SENSOR CORP. 13 CWMDONKIN TERRACE

47-50 33RD STREET SWANSEA SA2 0RQ

LONG ISLAND CITY, NY 11101 UNITED KINGDOM

Tel: 718-937-8300 Tel: +44 179 247 3258

Email: info@ehx.com Email: electroharmonixuk@virginmedia.com

To hear demos of all EHX pedals visit us on the web at www.e.com

Email us at info@ehx.com
