Utility Model - IB1281001 - 09/16 - FINDER S.p.A. - 10040 ALMESE (TO) - ITALY
2
A
B
D
F
E
I
G
H
C
1
EN 60669-1 / EN 6066 -19-2
12.81.8.230.0000
UN 110...230 V AC (50/60 Hz) / DC
Umin 90 V AC / DC
Umax 264 V AC / DC
P 2.8 VA (50 Hz) / 0.9 W
1 CO (SPDT)
16 A 250 V AC
AC1 4000 VA
AC15 (230 V AC) 750 VA
(230 V) 2000 W
(230 V) 750 W
CFL - LED (230 V) 400 W
(–20…+50)°C
IP20
JOYSTICK
88.8 mm
60.8 mm
35 mm
6
3a3
4a
4
4b
5a5
4c
5b
7
3b
0.8 Nm
9mm
(1x6/2x4) mm2
(1x10/2x12) AWG
9mm
(1x4/2x2.5) mm2
(1x12/2x14) AWG

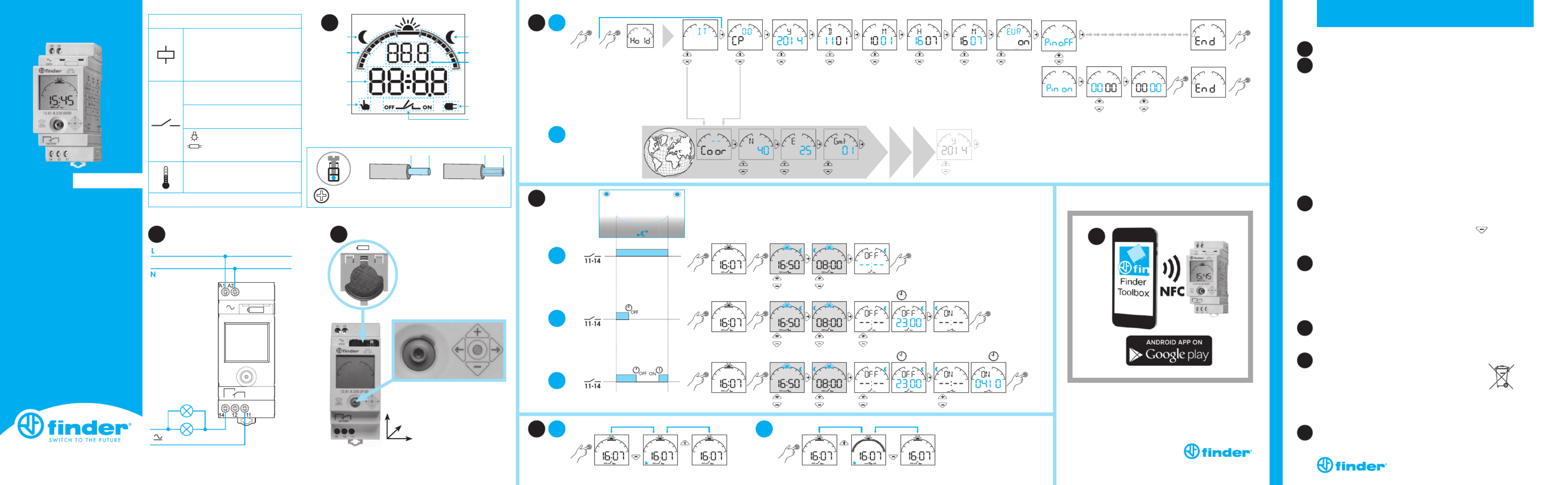

ENGLISH
12.81 DIGITAL ASTRO TIME SWITCH
WIRING DIAGRAM
DISPLAY INDICATORS
A Switch-o at sunrise
B Switching advanced (■=10min)
C CP(post code) − Coor(geographic coordinates in degrees)
− Time zone(with respect to Gmt) − year − day − month − hour
− minutes − Daylight saving − PIN − END
D Manual mode active
E Current contact state
F Time switch without power supply connected (powered by battery)
G IT(country), CP(leading two characters of CP), Y(year), D(day),
M(month), H(hour), M(minutes), Daylight saving ON/OFF
(EUR=Europe−BRA=Brazil−AUS=Australia)
Coor N(North), S(South), E(East), W(West), Gmt(Time zone)
Prog OFF(switch-o), ON(switch-on)
H Switching retarded (■=10min)
I Switch-on at sunset
SETUP (examples)
3a Setup PIN− − − −Country Postcode Data Summer time
3b Setup by geographic coordinates. Start at 3a, but at the select
Country or select CP stage, scroll down with to enter Coor
setting. Continue by setting the coordinates and time zone.
Latitude: North-South. Longitude: East-West. Time zone(Gmt).
PROGRAMMING (examples)
4a ASTRO function
4b ASTRO function + (Time Switch) OFF
4c ASTRO function + (Time Switch) OFF & ON
NOTE
- (■=10min) Advanced/Retarded
- ASTRO times vary over the year, time switch times remain constant
MODE SETUP
5a MANUAL OFF mode setting (activate g.1/deactivate g.2)
5b MANUAL ON mode setting (activate g.1/deactivate g.2)
Battery replacement
BATTERY CR 2032 (LiMnO2) 3V, 230mAh.
Complies with Article 11, EU directive 2006/66/CE.
Dispose of batteries according to local regulations.
NOTE
- Back-light display (only with power supply)
- Minimum switching interval: ■=10min
Programmable with technology by the App NFC FINDER TOOLBOX
downloaded from Google Play™.
1
2
3
4
5
6
7
