INSTRUCTION MANUAL/MANUAL DE USUARIO/

MODE D’EMPLOI/MANUAL DE INSTRUÇÕES

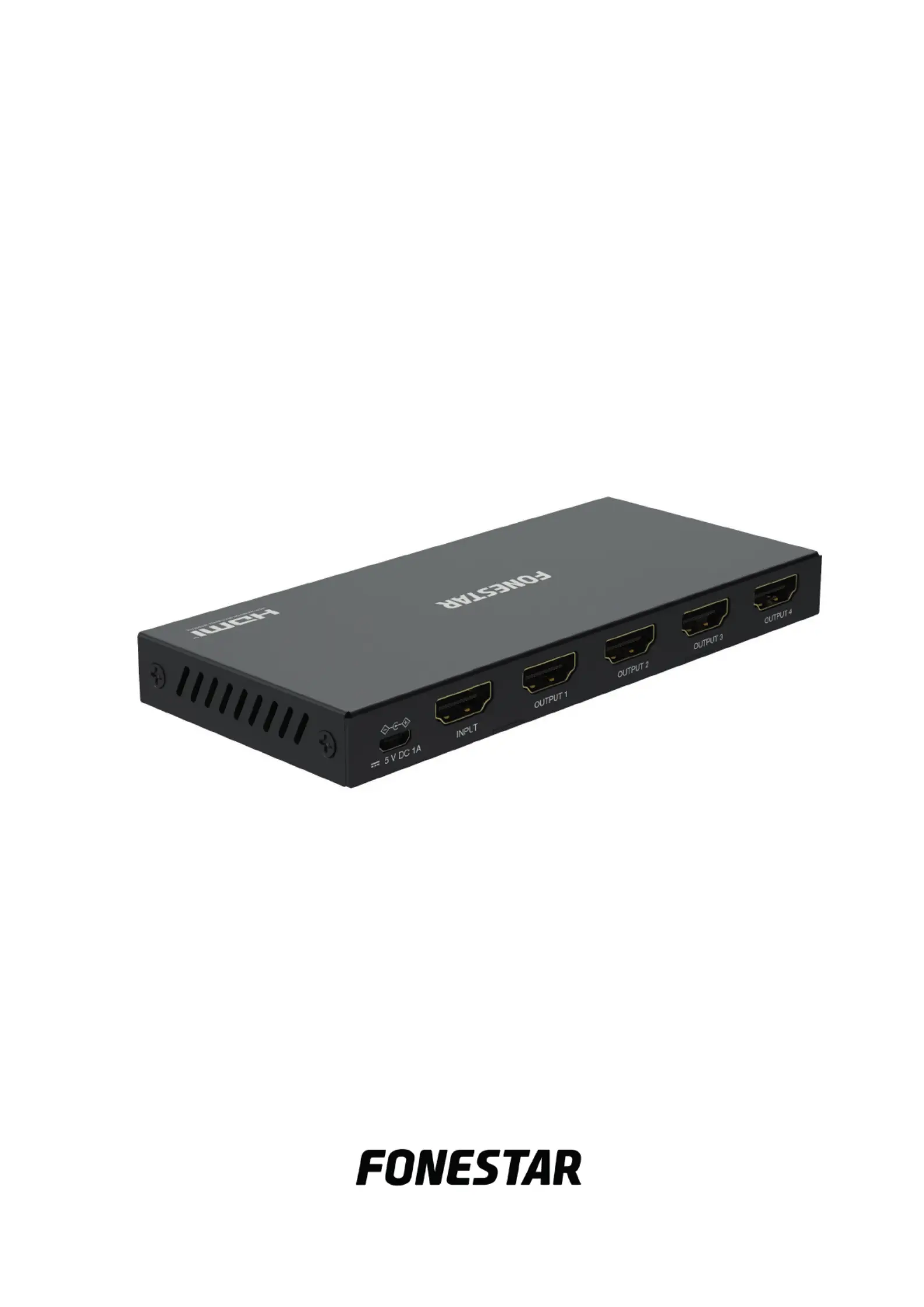

FO-22S2ED, FO-22S4ED,

FO-22S8ED

HDMI SPLITTER

DISTRIBUIDOR HDMI

DISTRIBUTEUR HDMI

DISTRIBUIDOR HDMI

- 2 -

DESCRIPTION

- Multi-output, 1-input HDMI splitter (FO-22S2ED: 2 outputs; FO-22S4ED: 4 outputs,

FO-22S8ED: 8 outputs) which allows the same image to be distributed to several TVs. You can display

the same video and audio content on different TVs to be seen by more people.

- In addition, you can distribute the signal to TVs of different resolution, thanks to the DOWN-SCALING

function that adjusts the output signal to the TV resolution.

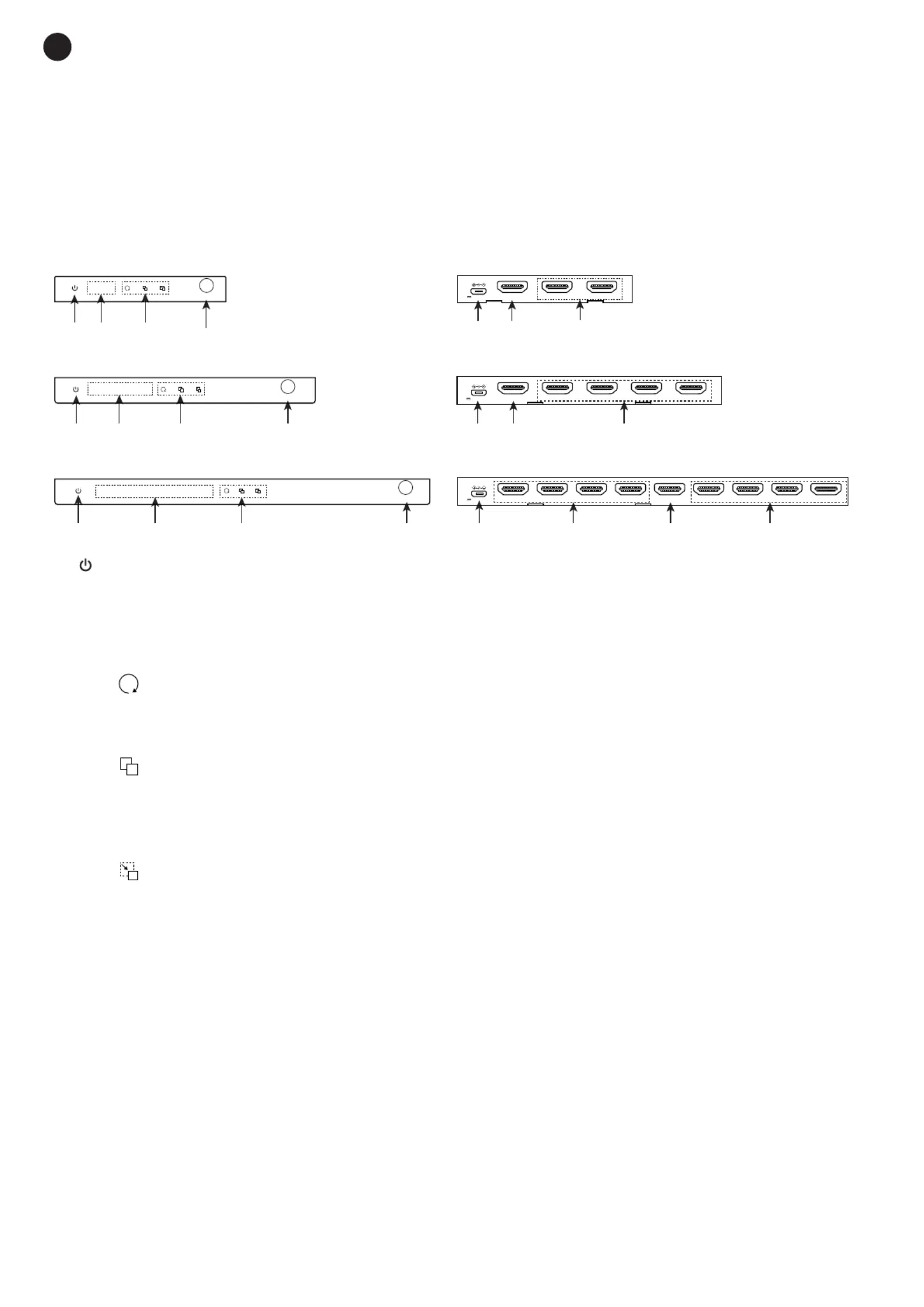

CONTROLS AND FUNCTIONS

1 2 3 4 5 76

1 2 3 4 5 7 6

1 2 3 4

5 76

FO-22S2ED

FO-22S4ED

FO-22S8ED

1 2 3 4 5 6 7 8

SET

1 2 3 4

5 V DC 1A

INPUT

OUTPUT 1 OUTPUT 2

5 V DC 1A

INPUT

OUTPUT 1 OUTPUT 2

OUTPUT 3 OUTPUT 4

5 V DC 2A

INPUT

OUTPUT 1 OUTPUT 2

OUTPUT 3 OUTPUT 4

OUTPUT 5 OUTPUT 6

OUTPUT 7 OUTPUT 8

SET

1.- : LED splitter power on indicator.

2.- 1-2, 1-4 or 1-8: output status LED indicators. The LEDs will light up when they detect that the signal is

being transmitted through this output, otherwise they will remain turned off.

3.- :EDID/DOWN-SCALING

a.-

(EDID NORMAL): compares the video resolutions and audio formats that can be played on the

devices and applies the lowest audio and video format to the input signal so that all devices can

play it.

b.-

(EDID+DOWN-SCALING): applies the video resolution of the OUTPUT 1 and the audio format

of the INPUT to all outputs. If the maximum resolution supported by the other outputs is lower than

that of the OUTPUT 1, the DOWN-SCALING function will reduce the resolution on those outputs

with higher resolution devices.

c.-

(DOWN-SCALING): if the input signal resolution is 4K, this mode allows you to reduce the

resolution to 1080p on the outputs with 1080p devices and maintain the 4K resolution on the other

outputs with devices that can reproduce 4K signals.

NOTE: the DOWNSCALER function automatically adjusts the resolution of the HDMI output to the

resolution that can be reproduced by the monitor/projector to which it is connected. This function

has been improved by allowing the DOWNSCALER function to be applied to each of the outputs

independently so as not to have to give up a higher quality image when there are lower resolution

devices in the installation. The DOWNSCALER function will convert HDMI 4K signals to 1080p@60Hz.

4.- : EDID/DOWN-SCALING mode selection switch.SET

5.- 5 V DC, 1A V or 5 V DC, 2A: power supply connection for the supplied power adapter

5 V DC, 1 A ( and FO-22S4ED) or 5 V DC, 2 A ( ).FO-22S2ED FO-22S8ED

6.- OUTPUT 1-2, 1-4 or 1-8: AV signal outputs for the connection of devices such as TV, projectors, etc.

HDMI connector.

7.- : AV signal input for connection of devices such as DVD, PC, etc. HDMI connector.INPUT
