Easy Installation Guide
P/N: 91-185-U48-A0-0E
Remark:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.

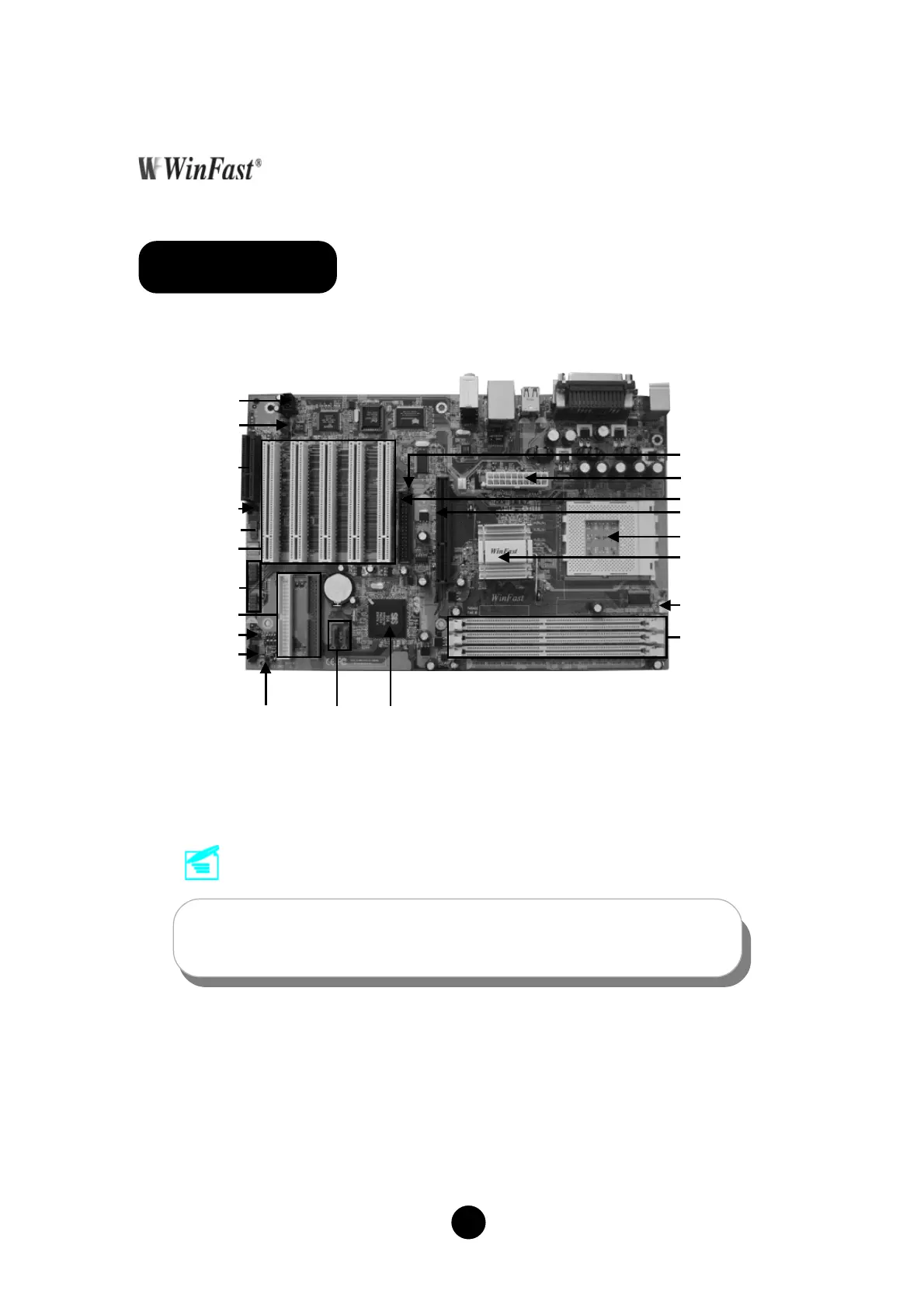

748K7AA Layout
SiS 964/964L
Chipset
CD_IN Connector
FDD Connector
SATA
Connector
(optional)
Front Panel
Connector
184-pin DIMM Slots
CPU FAN Connector
462-pin CPU Socket
SiS 748 Chipset
USB2.0 Connector
Front Audio
Connector
8X AGP Slot
PCI Expansion Slots
Clear CMOS Jumper
ATA 66/100/133
IDE Connectors
Speaker Connector
1394 Connector
(optional)
CNR AudioSelection
Jumper (optional)
CNR Slot (optional)
ATX Power Connector
FSB100MHz CPU
Selection Jumper
2
748K7AA Rear Panel
PS/2 Mouse Connector
This green 6-pin connector is for a PS/2 mouse.
PS/2 Keyboard Connector
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port (COM1)
This 9-pin COM1 port is for pointing devices or other serial devices.
Parallel Port (Printer Port)
This 25-pin port connects a parallel printer, a scanner, or other devices.
S/PDIF Coaxial Out Port
This port connects to external audio output devices with coaxial cable connectors.
1394 Port (optional)
This digital interface supports electronic devices such as digital cameras,
scanners, and printers.
USB 2.0 Ports
These four Universal Serial Bus (USB) ports are available for connecting USB 2.0 /
1.1 devices.
LAN Connector
This port allows connection to a Local Area Network (LAN) through a network hub.
Line-in jack, Line-out jack, Microphone jack
Use the three audio ports to connect audio devices. The Line-in jack is for a tape
player or other audio sources. The Line-out jack is for a headphone or a speaker.
The Microphone jack is for a microphone. In 6-Channel mode, the function of the
three jacks becomes Rear Speaker Out, Front Speaker Out and Center/Subwoofer
Speaker respectively.
Serial Port
(COM1) 1394
Port USB 2.0
Ports
PS/2 Mouse
Connector
Parallel Port
(Printer Port) LAN Connector
1
2
7
8
PS/2 Keyboard
Connector
3
Line-in jack
Line-out jack 9
Microphone
jack
6
4
5S/PDIF
Coaxial Out
Port
1
2
5
3
4
6
7
8
9
