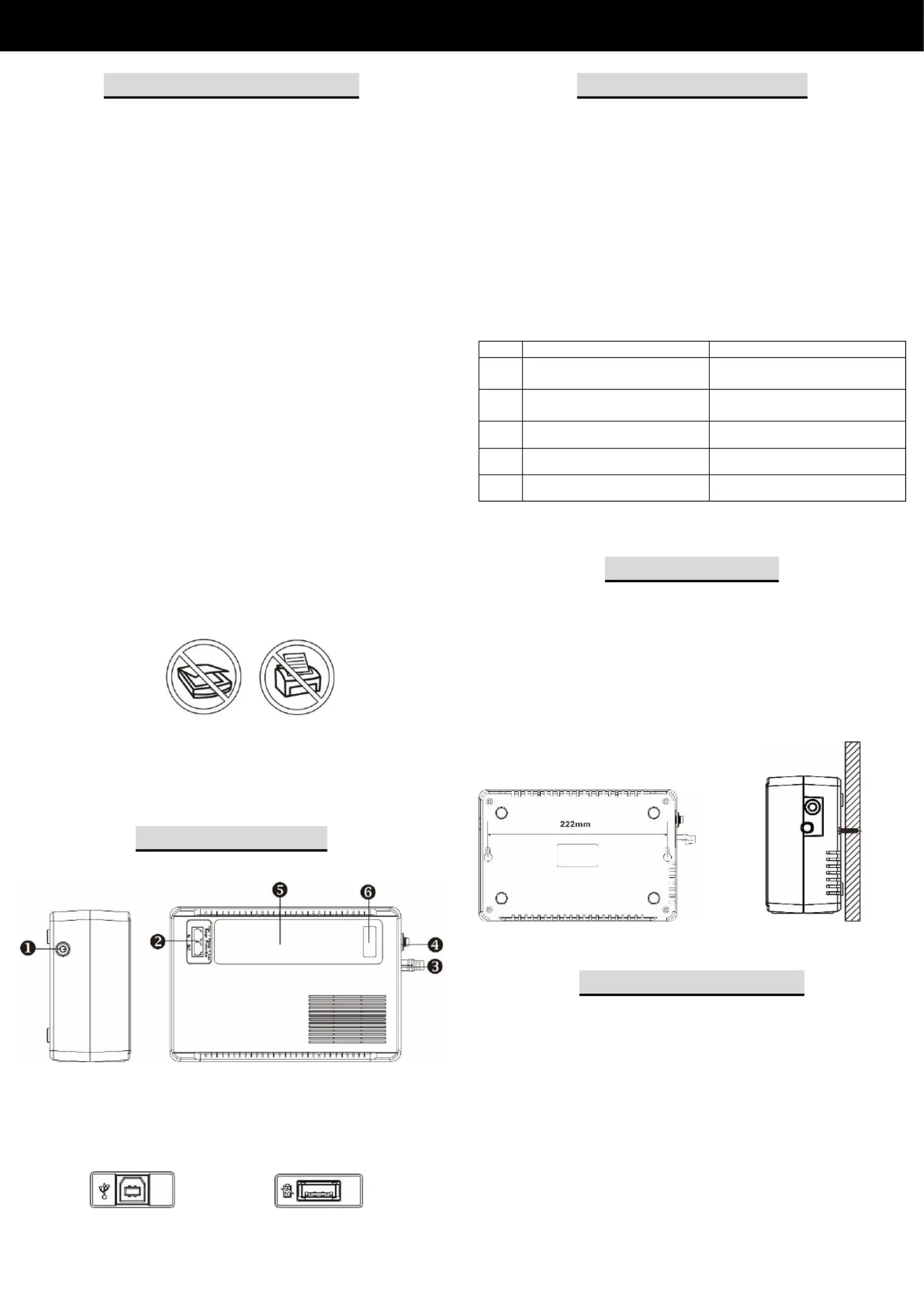

Installation & Operation

1. Inspection

The following items are inside the box:

●UPS unit User manual &

• Remove the UPS from its package and inspect it for damage that

may have occurred during shipping. If any damage is discovered,

re-pack the unit and return it to the place of purchase.

2. Connect to Utility Power

• Connect AC power cord to utility power. Then, the UPS will start

to charge inside battery. For best result, charge the battery for 6

hours prior to initial use.

3. Connect Modem/Phone Line/Network(only for

the model with RJ 11/45 port)

• This UPS protects a single line (1 in/1 out) phone, modem, or fax

machine from surges when connected through the UPS. Plug in

conning Internet line into the “IN” socket. Use one more Internet

line cable in the “OUT” socket and plug one other end to the

modem input socket.

4. Plug in Equipment

• Plug your equipment to Battery Backup Outlets on the rear panel

of the UPS.

NOTE: Make sure that the UPS is powered on to protect all

important devices from data loss during power failure.

CAUTION: NEVER connect a laser printer or scanner to the

battery backup outlets of UPS. The equipment may draw

significantly power to overload the UPS.

5. Connect Com. Port and Install Software(only

for the model with USB com. port)

• Connect one end of the USB cable to PC and the other to the

USB port at the rear of the UPS.

Product Overview

1: Power switch with status indicator

2: Modem/Phone line/Network surge protection

3: AC input

4: Circuit breaker

5: Battery backup outlets (Schuko ~4, Universal*3, *3, NEMA ~5) *3 UK *4

6: Options* USB com. port / USB charger

*This option is not available for the selection of 4 x schuko

Operation & Function

Operation:

1. Turn On the UPS

To turn on the UPS unit, press the power switch lightly. Then, the

LED will light up.

2. Turn Off the UPS

To turn off the UPS unit, press the po wer switch again. Then, the

LED will go off.

3. Cold Start Function

When the UPS is off and there is no power utility, it's still possible to

cold start the UPS unit to power the loads.

LED Indicator:

LED

Alarm

UPS Status

●

Off

The mains is normal and UPS

is operated no rmally.

★

Sounding every 10 seconds

Power failure occurs and UPS

is on battery mode.

★

Sounding every second

Low battery

○

Off

UPS is o.

●

Continuously sounding

UPS fault

● ○ ★LED on LED O LED flashing

MOUNTING UPS

The unit can be mounted to a wall surface.

1. Use a ruler to draw a straight line in 222 mm

horizontally on the wall. (see chart 1)

2. Use a sharp nail to puncture the center of the two

ends to mark the wall.

3. Mount the unit by positioning the key-hole slots

over the mounting nails. (see chart 2)

Chart 1 Chart 2

Placement & Storage

Placement:

Install the UPS in a protected area that is free of excessive dust

and has adequate air flow. Place the UPS away from other units at least

20 cm to avoid interference. For best performance, keep the indoor

temperature between 0° C and 40° C.

Storage:

All connected equipment should be turned o, then disconnect from

the UPS to avoid battery drain. Unplug the UPS from the wall outlet.

Then turn off the UPS for storage. Store the UPS unit covered and

upright in environments where the ambient temperature is -20° C to 50°

C with its battery fully charged.

Line-interactive UPS

ECO 400VA~800 VA

FSP Manual Guide

Safety caution

This manual contains important instructions that

should be followed during installation and

maintenance of the UPS and batteries.

• This UPS utilizes voltage that may be hazardous. Do not attempt

to disassemble the unit. The unit contains no user replaceable

parts. Only factory service personnel may perform repairs.

• This pluggable type A equipment with battery already installed by

the supplier is operator installable and may be operated by

laymen.

• The mains socket outlet that supplies the UPS shall be installed

near the UPS and shall be easily accessible.

• During the installation of this equipment it should be assured that

the sum of the leakage currents of the UPS and the connected

loads does not exceed 3.5mA.

• Connection to any other type of receptacle other than a two-pole,

three-wire grounded receptacle may result in shock hazard as

well as violate local electrical codes.

• In the event of an emergency, press the "OFF" button and

disconnect the power cord from the AC power supply to properly

disable the UPS.

• Do not allow any liquids or any foreign object to enter the UPS.

• Do not place beverages or any other liquid-containing vessels on

or near the unit.

• This unit intended for installation in a controlled environment

(temperature controlled, indoor area free of conductive

contaminants). Avoid installing the UPS in locations where there

is standing or running water, or excessive humidity.

• Do not plug the UPS input into its own output.

• Do not attach a power strip or surge suppressor to the UPS.

• Do not attach non-computer-related items, such as medical

equipment, life-support equipment, microwave ovens, or vacuum

cleaners to UPS.

• Do not dispose of batteries in a fire as they may explode.

• A battery can present a risk of electrical shock and high short

circuit current. The following precautions should be observed

when working on batteries:

1) Remove watches, rings, or other metal objects from the hands.

2 Use tools with insulated handles. )

3) Wear rubber gloves and boots.

4) Do not lay tools or metal parts on top of batteries.

5) Disconnect charging source prior to connecting or

disconnecting batteries terminal.

6) Remove battery grounds during installation and maintenance to

reduce likelihood of shock.

• Internal battery voltage is 12VDC.Sealed, lead-acid, 6-cell battery.

• Servicing of batteries should be performed or supervised by

personnel knowledgeable of batteries and the required

precautions. Keep unauthorized personnel away from batteries.

• When replacing batteries, replace with the same number and type

of sealed lead-acid battery.

• Do not open or mutilate the battery or batteries. Release

electrolyte is harmful to the skin and eyes. It may be toxic.

• Attention, hazardous through electric shock. Also with dis-

connection of this unit from the mains, hazardous voltage still may

be accessible through supply from battery. The battery supply

should be therefore disconnected in the plus and minus pole at

the connectors of the battery when maintenance or service work

inside the UPS is necessary.

• To reduce the risk of overheating the UPS, do not cover the UPS'

cooling vents and avoid exposing the unit to direct sunlight or

installing the unit near heat emitting appliances such as space

heater or furnaces.

• Unplug the UPS prior to cleaning and do not use liquid or spray

detergent.

Troubleshooting

Problem

Possible Cause

Solutions

LED not lit.

The UPS is not

on.

Press the power switch again to

turn on the UPS.

Battery voltage

is too low.

Charge the battery at least 6

hours.

Battery fault.

Replace the battery.

The UPS

always on

battery mode.

Power cord

loose.

Re-plug the power cord.

The UPS

continuously

beeps.

Please check

the fault code

for the details.

Please check the fault code for

the details.

Backup time

too short.

Battery voltage

is too low.

Charge the battery at least 6

hours.

Overload.

Remove some unnecessary

loads. Before reconnecting

equipment, please verify that the

load matches the UPS capability

specied in the specs.

Battery defect.

Replace the battery.

If any abnormal situations occur that are not listed above, please

call for service immediately.

Specification

400VA/600VA/800VA

Model

400

600

800

Capacity

400VA/

240W

600VA/

360W

800VA/

480W

Input voltage

220/230/240 Vac

Input Voltage

Range

162 290- Vac

Output Voltage

Regulation

± 10%(bat mode)

Transfer Time

Typical 2-6 ms

Waveform

Simulated Sinewave

Battery Type

12V/4.5Ah

12V/5Ah

Battery Number

Charging Time

4 hours recover to 90% capacity

Dimension(mm)

245 x 163 x 90

Net Weight (kgs)

3.5

4.0

4.5

Humidity

0-90% RH @ 0-40°C non-condensing)

Noise Level

Less than 40dB

*Specifications are subject to change without notice.
