PUBLISHED BY FUSION ELECTRONICS LIMITED

USER / INSTALLATION MANUAL

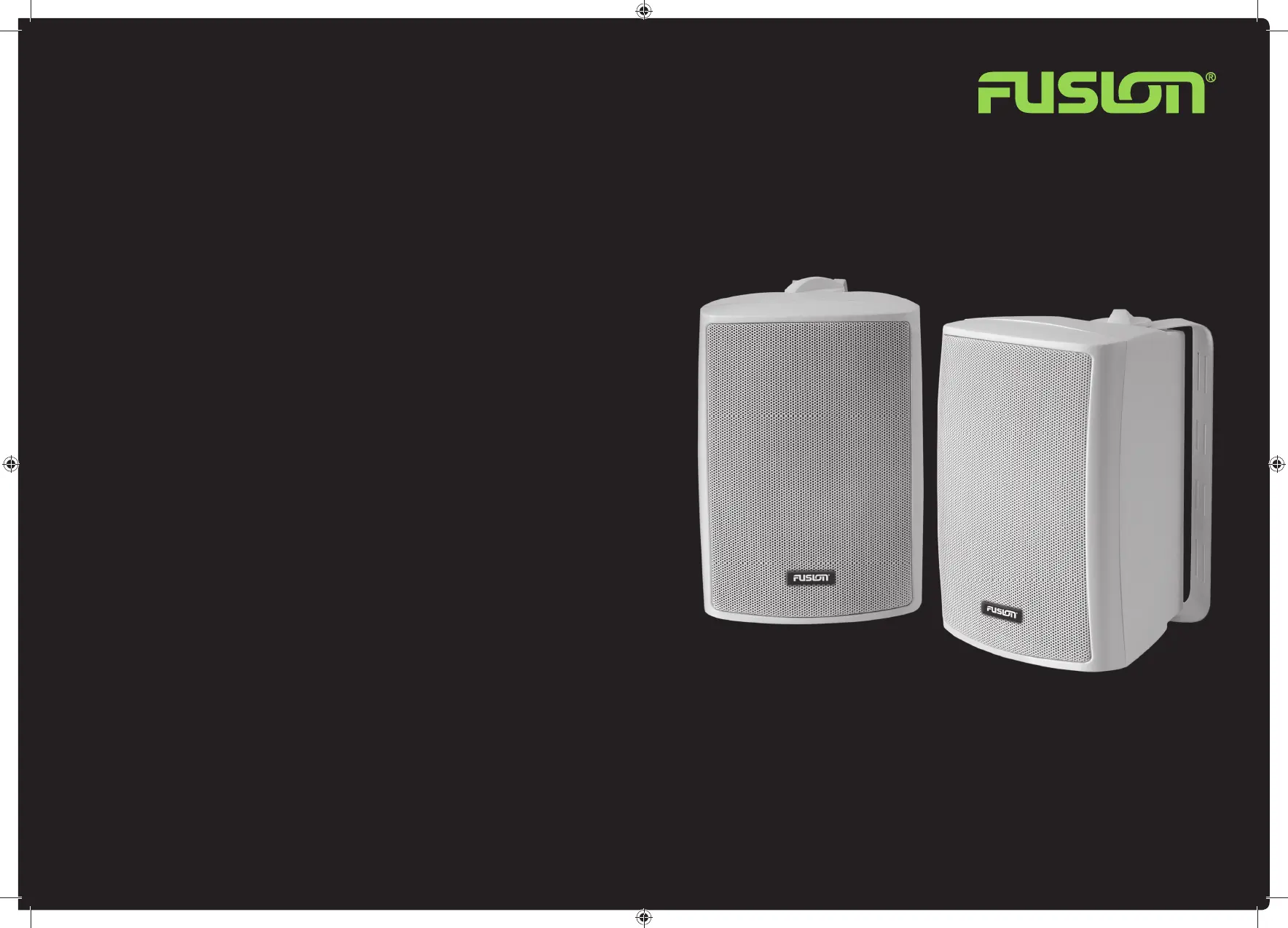

MS-OS420

4” 2 WAY MARINE

BOX SPEAKERS

INSTALLATION TIPS

TROUBLESHOOTING

Any speaker will perform to its best capabilities, when correctly placed in

the listening area. FUSION Engineers recognise that unlike a home or motor

vehicles installation, there are an extremely wide range of marine environments

where speakers may be placed. FUSION Marine Speakers are optimised to

perform in the widest possible range of mounting locations, but a little thought

and care with placement will always be rewarded with better sound.

• High frequencies are directional. Placing the speakers low down in

the boar will lose some of this information.

• Speakers should be placed to simulate “sound stage”, by being

placed where you are able to hear both speakers in a stereo situation.

Before you contact your FUSION dealer or service centre, FUSION requires that

you do some simple trouble shooting to help diagnose the problem.

Problem Solution

No sound Check all connections from the

source unit ampliﬁ er to the speaker

terminals are connected correctly

System lacks in bass Check the connections from the

source unit/ampliﬁ er to the speaker.

Ensure the positive wire from the

source is connected to the positive

of the speaker.

System lacks in

high frequencies

Check polarity

Check the bass / treble control

settings on the source unit

Distorted sound Check all wiring

Check that it is not the surrounding

panels of the craft rattling.

Check connections from the source

to the speaker.

YOU CAN HELP PROTECT THE ENVIRONMENT

Please remember to respect the local regulations:

Hand in the non-working electrical equipment to an appropriate waste disposal centre.

Produkt Specifikationer

Mærke:	Fusion
Kategori:	Højttaler
Model:	MS-OS420
Produktfarve:	Hvid
Udgangseffekt (RMS):	25 W
Anbefalet brug:	Universel
Frekvensområde:	80 - 20000 Hz
Impedens:	4 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	2.0 kanaler
Højttaler, placering:	Floor, Wall-mountable
Antal drivere:	2
Diskanthøjttaler:	Ja
Peak Music-Udgangseffekt (PMPO):	100 W
Sensitivitet:	86 dB
Bashøjttaler:	Ja
Woofer diameter:	10 mm
Woofer diameter (britisk mål):	4 "
Maksimal strøm:	100 W
Drivercylinder, materiale:	Polypropylen
