Signature Series Speakers Installation
Instructions
Important Safety Information
WARNING
See the guide in the Important Safety and Product Information
product box for product warnings and other important
information.
WARNING
This device must be installed according to these instructions.
Disconnect the vehicle's or vessel's power supply before
beginning to install this device.
CAUTION
Continuous exposure to sound pressure levels over 100 dBA
may cause permanent hearing loss. The volume is typically too
loud if you cannot hear people speaking around you. Limit the
amount of time you listen at high volume. If you experience
ringing in your ears or muffled speech, stop listening and have
your hearing checked.
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite
side of the surface.
It is strongly recommended that you have your audio system
installed by a professional installer to ensure optimum
performance.
You must read all installation instructions before beginning the
installation. If you experience difficulty during the installation, go
to for product support.www.fusionentertainment.com
Tools Needed
• Electric drill
• Drill bit (size varies based on surface material)
• Phillips screwdriver
• Appropriate saw or utility knife to cut surface material
• 18 AWG (0.82 mm2) or larger speaker wire
• 4.8 mm and 6.3 mm female speaker spade connectors
(recommended)
• 22 AWG (0.33 mm2) or larger wire for the LEDs (sports
models only)
• 4 mm male and female bullet connectors for the LED wires
(recommended, sports models only)
• Wire strippers (optional)
• Crimping tool (optional)
• Electrical tape (optional)
• Marine sealant (optional)
NOTE: For customized installations, additional tools and
materials may be needed.
Mounting Considerations
NOTICE
When mounting the speaker in an area exposed to weather or
water, you must mount the speaker on a vertical surface. If you
mount the speaker on a horizontal surface facing up, water can
gather in and around the speaker, causing damage over time.
If you intend to mount the speakers outside the boat, you must
mount them in a location well above the waterline, where they
are not submerged or damaged by docks, pilings, or other
pieces of equipment. When mounted correctly, these speakers
are rated for protection from the front of the speaker. Water
exposure and damage to the rear of the speaker voids the
warranty. This includes situations when the speakers are
mounted in a sealed enclosure, especially if they are exposed to
wash down. Using an enclosure with a port or vent exposed to
the outside environment may allow water to collect and damage
the speaker.
You must turn off the audio system before making any
connections to the source unit, amplifier, or speakers. Failure to
do so could result in permanent damage to the audio system.
You should protect all terminals and connections from grounding
and from each other. Failure to do so could result in permanent
damage to the audio system and void the product warranty.
When selecting a mounting location for the speakers, observe
these considerations:
• You must select mounting locations that provide sufficient
clearance for the mounting depth of the speakers as
specified in the product specifications.
• You should select a flat mounting surface for the best seal.
• You should protect the speaker wires from sharp objects and
always use rubber grommets when wiring through panels.
• To avoid interference with a magnetic compass, you should
not mount the speakers closer to a compass than the
compass-safe distance value listed in the product
specifications.
Selecting the correct mounting location optimizes the
performance of each speaker. FUSION
® speakers are designed
to perform in the widest possible range of mounting locations,
but the more you plan the installation, the better the speakers'
sound will be. For more information on speaker placement and
specifications, go to .www.fusionentertainment.com

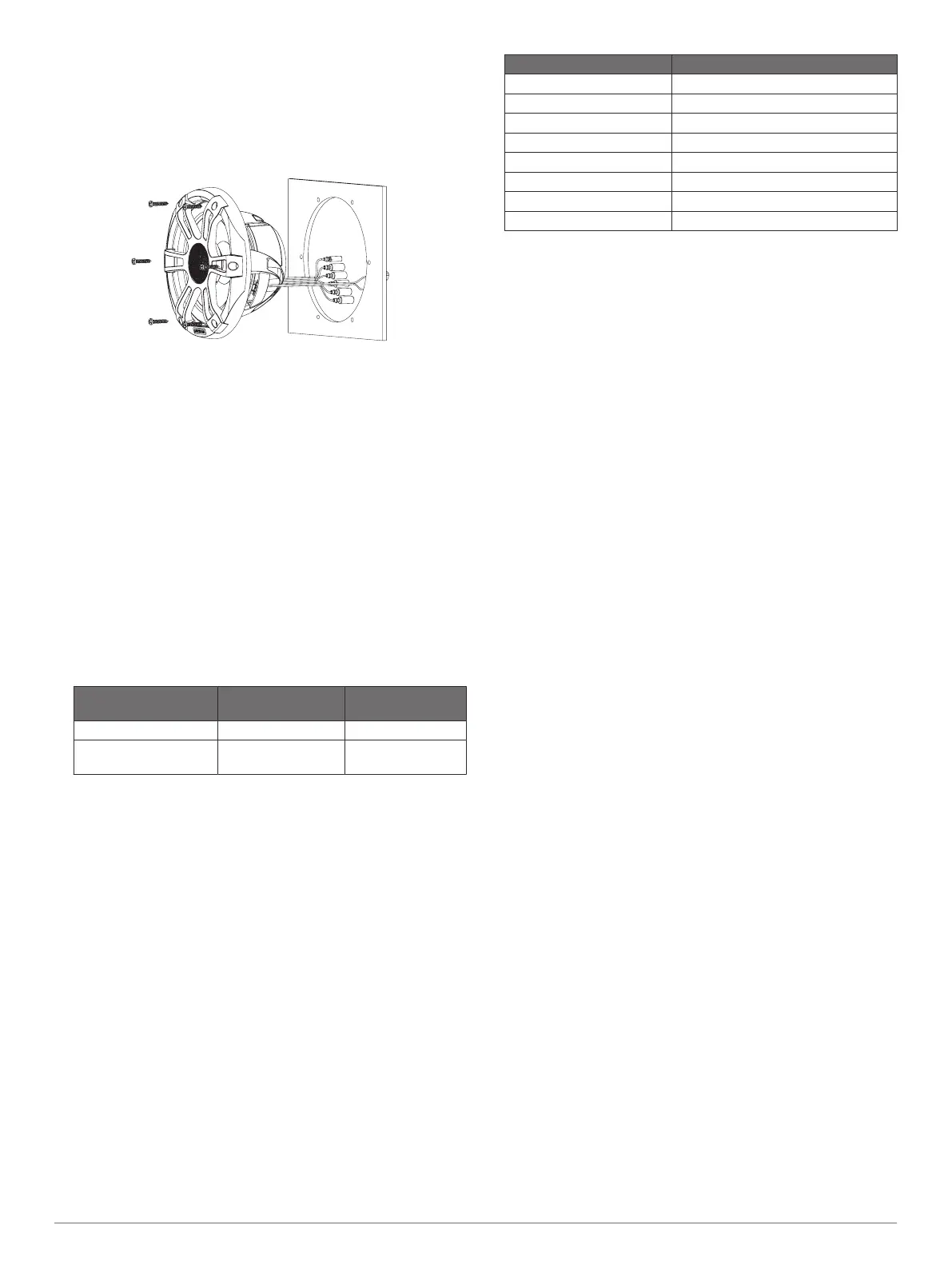

Mounting the Speakers
Before mounting the speakers, you must choose a location
following the guidelines above.
1Route the speaker wires (and LED wires, if applicable) from
the source to the speaker location.
2Trim the template and make sure it fits in the selected
location.
3Orient the template with the FUSION logo at the bottom of
the template.
4Secure the template to the selected location.
5Using a drill bit appropriate for the mounting surface, drill a
hole inside the dashed line on the template to prepare the
mounting surface for cutting.
6Using a jigsaw or rotary tool, cut the mounting surface along
the inside of the line on the template.
7Place the speaker in the cutout to test the fit.
8If necessary, use a file and sandpaper to refine the size of
the cutout.
9After the speaker fits correctly in the cutout, ensure the
mounting holes on the speaker line up with the pilot holes on
the template.
10If the mounting holes on the speaker do not line up, mark the
new hole locations.
11Using an appropriately sized drill bit for the mounting surface
and screw type, drill the holes.
December 2019
190-02675-90_0A
12 Remove the template from the mounting surface.
13 Connect the speaker wires while observing polarity (Speaker
Wiring, page 2).
14 If necessary, connect the LED wires to the Sports model
speakers ( ).LED Wiring, page 2
15 Place the speaker in the cutout.
16 Secure the speaker to the mounting surface using the
included screws.
NOTE: Do not over tighten the screws, especially if the
mounting surface is not flat.
For Classic model speakers, attach the grille to the speaker
front.
Speaker Wiring
When connecting the speakers to your stereo, observe these
considerations.
• Speaker wire is not included with the speakers. You should
use 18 AWG (0.82 mm2) or larger speaker wire to connect
the speakers to the stereo.
• The leads on the speakers are terminated using male spade
connectors. You should use female spade connectors (not
included) to connect the speaker wire to the speaker leads
for the best connection.
• You can use this table to identify the polarity and spade-
connector sizes of the leads on the speaker.
Speaker wire color Speaker wire
polarity
Spade connector
size
White Positive (+) 6.3 mm
White with a black
stripe
Negative (-) 4.8 mm
LED Wiring
Connecting the LED Wires
You can control the color of the LEDs by connecting the colored
LED wires to the negative (-) terminal of a 12 VDC power
source. You can splice the negative (-) wire to multiple LED
wires to customize the LED color and tone. You must connect
the black LED wire to the positive (+) terminal of the same
12 VDC power source to complete the circuit.
NOTE: This feature is available only on the sports model.
NOTE: Instead of connecting the LED wires for one dedicated
color, you can install a remote control to turn the LEDs on and
off, change the color, and create lighting effects. See your
FUSION dealer or for more www.fusionentertainment.com
information.
The black wire on the LED cable is terminated with a 4 mm
female bullet connector, and the color wires are terminated with
4 mm male bullet connectors. You can connect these to 4 mm
bullet connectors on your wires (not included), or remove the
bullet connectors to connect to the bare wires instead.
1Connect the positive (+) wire from a 12 VDC power source to
the black wire on the LED cable.
2Connect the negative (-) wire from the same 12 VDC power
source to the colored wire or wires on the LED cable
according to the preferred LED color.
LED Color LED Wire Color
Red Red
Green Green
Blue Blue
Yellow Red and green
Magenta Red and blue
Cyan Blue and green
Cool white Turquoise
Warm white Yellow
NOTE: You can connect the cool white or warm white wire to
change the tone of any LED color combination.
3If necessary , route the positive and negative wires, and
connect them to a 12 VDC power source (Connecting the
LED Wires to Power, page 2).
Connecting the LED Wires to Power
NOTE: This feature is available on only the sports model.
You must connect all 12 Vdc wiring to the LEDs to a 3 A fuse at
the power-source end of the cable. You should connect the
positive (+) power wire to a 12 Vdc power source through an
isolator switch or circuit breaker to turn the LEDs on and off. You
can use the same isolator or circuit breaker controlling the
power supply to your stereo, which allows you to turn the LEDs
and the stereo on and off at the same time.
You should use 22 AWG (0.33 mm2) or thicker wire to connect
the LEDs to the battery.
1Route the positive power (+) and negative ground (-) wires
from the LED-wire connections to the battery.
2Connect the negative wire to the negative (-) battery terminal.
3Connect the positive wire to the positive (+) terminal through
a 3 A fuse and isolator switch or circuit breaker.
Attaching the Grille to the Classic Model Speakers
NOTE: This feature is available only on the Classic model
speakers.
1With the speakers mounted, hold the grille with the FUSION
logo at the bottom, or at the 6 o'clock position.
2Turn the grille counter-clockwise about 10°, so the FUSION
logo is at the 5 o'clock position.
3Place the grille on the rim of the speaker.
4Twist the grille clockwise to secure it.
Speaker Information
True-Marine™ Products
True-Marine products are subjected to rigorous environmental
testing under harsh marine conditions to surpass industry
guidelines for marine products.
Any product that bears the True-Marine stamp of assurance has
been designed for simplicity of use and combines advanced
marine technologies to deliver an industry leading entertainment
experience. All True-Marine products are supported by the
FUSION 3-year worldwide limited consumer warranty.
Registering Your Speakers
Help us better support you by completing our online registration
today.
• Go to .www.fusionentertainment.com
• Keep the original sales receipt, or a photocopy, in a safe
place.
2 Signature Series Installation Instructions

Produkt Specifikationer

Mærke: Fusion
Kategori: Højttaler
Model: SG-F772W

Har du brug for hjælp?

Hvis du har brug for hjælp til Fusion SG-F772W stil et spørgsmål nedenfor, og andre brugere vil svare dig


Højttaler Fusion Manualer

Fusion

Fusion EL-F653W Manual

9 Januar 2025
Fusion

Fusion SG-CL65SP Manual

20 August 2024
Fusion

Fusion XS-F40CWB Manual

19 August 2024
Fusion

Fusion MS-EL602 Manual

18 August 2024
Fusion

Fusion XS-F65SPGW Manual

17 August 2024
Fusion

Fusion XS-FL65SPGW Manual

16 August 2024
Fusion

Fusion SG-F65W Manual

16 August 2024
Fusion

Fusion FM-F65RW Manual

16 August 2024
Fusion

Fusion SG-F772W Manual

16 August 2024
Fusion

Fusion SG-FL882SPC Manual

16 August 2024

Højttaler Manualer

Nyeste Højttaler Manualer

Tannoy

Tannoy CVS 401X Manual

12 August 2025
Moonki

Moonki MW-T400 Manual

12 August 2025
Klipsch

Klipsch Reference RS-3 II Manual

12 August 2025
Phonic

Phonic JUBI 15AR Manual

12 August 2025
Crosley

Crosley Mini Boombox CR3050A Manual

12 August 2025
Moonki

Moonki MW-T520 Manual

12 August 2025
Phonic

Phonic JUBI 15 Manual

12 August 2025
Phonic

Phonic JUBI 12AR Manual

12 August 2025
RCF

RCF G-MAX 12 Manual

12 August 2025
RCF

RCF G-MAX 10 Manual

12 August 2025
