Blind controller insert without auxiliary input

Order No. : 0399 00

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or

load. At the same time, take into account all circuit breakers that supply dangerous

voltage to the device or load.

Risk of injury. Use the device only for controlling Venetian blind and roller shutter

motors or awnings. Do not use it to switch other loads.

For parallel connection of several motors to an output it is essential to observe the

corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.

The motors may be destroyed.

Use only venetian blind motors with mechanical or electronic limit switches. Check the

limit switches for correct adjustment. Observe the specifications of the motor

manufacturers. Device can be damaged.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

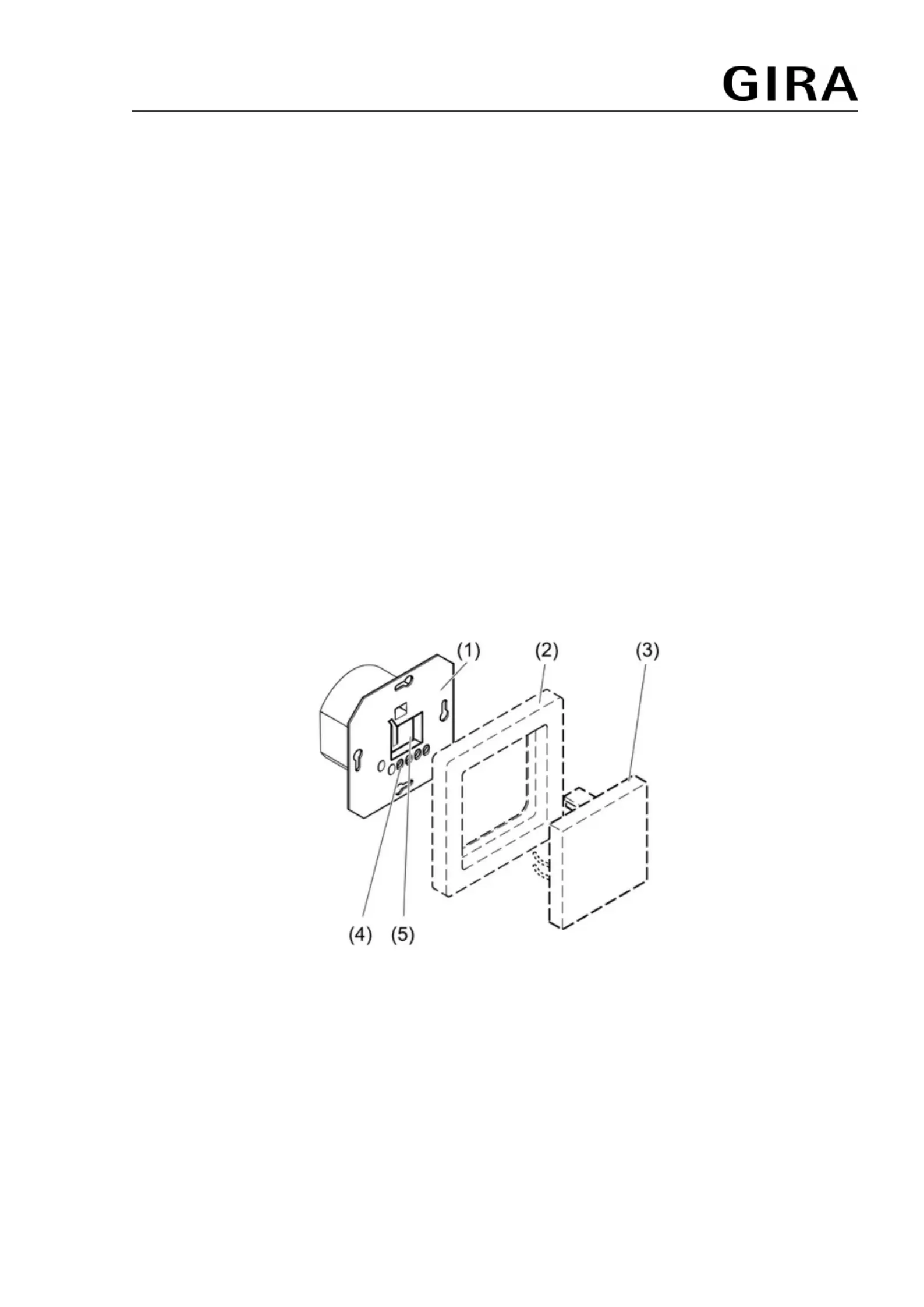

Figure 1

(1) Venetian blind control

(2) Frame

(3) Shutter cover

(4) Terminals

(5) Space for sensor terminal block

1/6

32537112 11.09.2013

Blind controller insert without auxiliary input

10860473

Blind control system

3 Function

Intended use

- Controlling electrically driven blinds, rolling shutters and awnings

- Operation with suitable shutter cover

- Installation in appliance box according to DIN 49073

Product characteristics

- Relay contacts of both running directions are mechanically interlocked

- Supports sensor functions of the cover

4 Information for electrically skilled persons

4.1 Fitting and electrical connection

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

Before carrying out work on the device or load, disengage all the

corresponding circuit breakers. Cover up live parts in the working environment.

Connecting and mounting the Venetian blind control

Figure 2: Connection of control

o Connect venetian blind control according to connection diagram (Figure 2).

o Install Venetian blind control in appliance box, terminals must be at the bottom.

Recommendation: Use deep accessory sockets.

o Attach the frame and the cover.

o Check function. If the blind/shutter moves in the wrong direction, exchange the

connections.

4.2 Installing sensor cable for covers with sensor evaluation

Installation instructions for sensors

i The sensor cable carries safety extra-low voltage (SELV). Observe fitting instructions

according to VDE 0100.

32537112 10860473 11.09.2013

2/6

Blind control system

Blind controller insert without auxiliary input

Produkt Specifikationer

Mærke:	Gira
Kategori:	Smart hjem
Model:	039900
Produktfarve:	Metallic
Indbygget skærm:	Ingen
Produkttype:	Persienne/skodder aktuator
Driftstemperatur (T-T):	0 - 55 °C
Certificering:	CE
Strømkilde type:	Vekselstrøm
Monteringstype:	Planmonteret
Indgangsspænding:	230 V
Indgangsfrekvens:	50 Hz
Indbygget dybde:	33 mm
