Wireless remote control, 2-gang

Order No. : 5352 10

Wireless remote control, 4-gang

Order No. : 5354 10

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled

persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Keep button cells out of reach of children! If button cells are swallowed, get medical help

immediately.

Risk of explosion! Do not throw batteries into fire.

Risk of explosion! Do not recharge batteries.

The radio communication takes place via a non-exclusively available transmission path,

and is therefore not suitable for safety-related applications, such as emergency stop and

emergency call.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

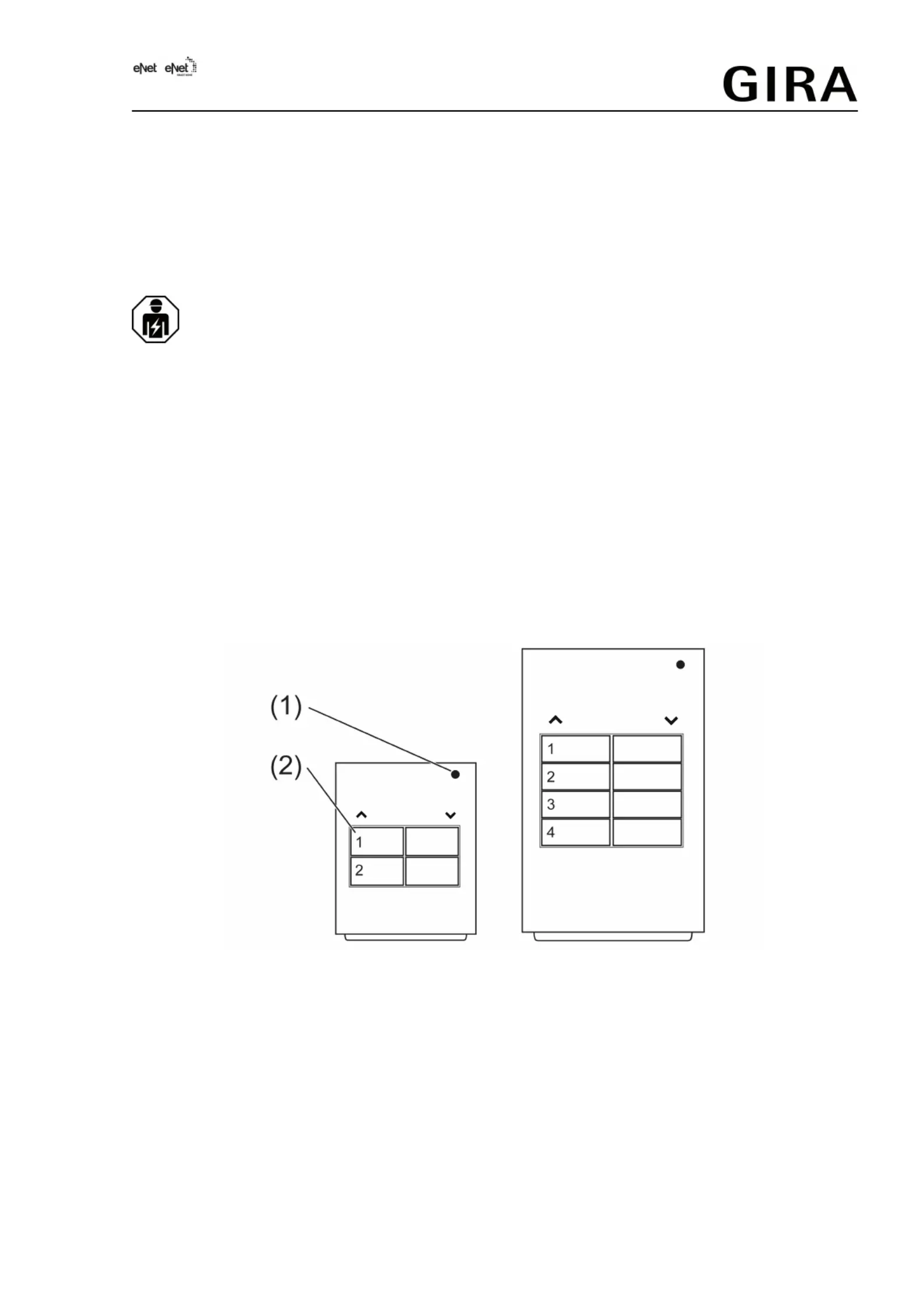

Figure 1: Radio hand transmitter 2-gang and 4-gang

(1) Status LED

(2) Buttons

3 Function

Intended use

- Hand transmitter for radio transmission of switching, dimming, blind movement and scene

commands

- Operation with radio actuators from the eNet system

Product characteristics

- Two adjacent buttons each belong to one channel

1/7

32582422 25.04.2017

Wireless remote control, 2-gang, Wireless remote control, 4-gang

10864952

- Status indication with LED

- Switch-on brightness of dimmer actuators can be saved.

- Battery-powered device

- Scenes, radio hand transmitter, 2x: All Off, three individual scenes.

- Scenes, radio hand transmitter, 4x: All Off, seven individual scenes.

- Signalling of transmission errors can be switched off

Can be set with eNet server:

- Scene All On

- Operation locks

Supplementary functions with eNet Server

- Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0

- Update of the device software

- Reading of error memory

4 Operation

iWhen operating with the eNet Server, operation and signalling could vary from what is

described here.

One channel of a radio hand transmitter consists of two buttons. These can be used in two

different ways.

- As channel buttons for switching, dimming, Venetian blind operation

- As scene buttons to recall set scenes

Function of status LED in operation

As soon as a button is pressed or released, the status LED (1) first signals radio transmission

- LED turns red for 3 seconds

and then the actuator status/group status

- LED turns green for 3 seconds:

At least one actuator is switched on, or one Venetian blind is not in the top end position

- LED remains off:

All the actuators are switched off or the blinds are all in the upper end position

or - if there is no status message from an actuator - a transmission error.

- The LED rapidly flashes red for 5 seconds:

The status message of at least one actuator is missing

Operating light

oSwitching: Press button for less than 0.4 seconds.

oDimming: Press the button for longer than 0.4 seconds. The dimming process ends when

the button is released.

oSwitching on dimmer actuators at minimum brightness: Press the right button for longer

than 0.4 seconds.

oSwitching on dimmer actuators at minimum brightness and dimming to maximum

brightness: Press the left button for longer than 0.4 seconds.

Operating blind

oMoving the Venetian blind: Press the button for longer than 1 second.

oStopping or adjusting the Venetian blind: Press the button for less than 1 second.

Operating push-button actuator

oPress the button. The load is switched on for the duration of the button-press.

iThe maximum actuation length is 60 seconds.

Recalling scenes

oPress the scene button briefly.

Actuators switching to the saved scene.

32582422 10864952 25.04.2017

2/7

Wireless remote control, 2-gang, Wireless remote control, 4-gang

Produkt Specifikationer

Mærke:	Gira
Kategori:	Smart hjem
Model:	535410
Kode for international beskyttelse (IP):	IP20
Type:	Håndholdt
Bredde:	53 mm
Dybde:	15.5 mm
Højde:	93 mm
Produktfarve:	Anthracit
Indbygget skærm:	Ingen
Batteriteknologi:	Lithium
Driftstemperatur (T-T):	-5 - 45 °C
Batterier inkluderet:	Ja
Forbindelsesteknologi:	Trådløs
Programmerbar:	Ja
LED-indikatorer:	Ja
Batteritype:	CR 2450N
Antal understøttede batterier:	1
Grænseflade:	RF trådløst
Driftsspænding:	3 V
Driftsfrekvens:	868.3 MHz
Antal kanaler:	4 kanaler
Store knapper:	Ja
Sendereffekt:	20 mW
