Mobile Gate

Order No. : 5305 00

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled

persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

The radio communication takes place via a non-exclusively available transmission path,

and is therefore not suitable for safety-related applications, such as emergency stop and

emergency call.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

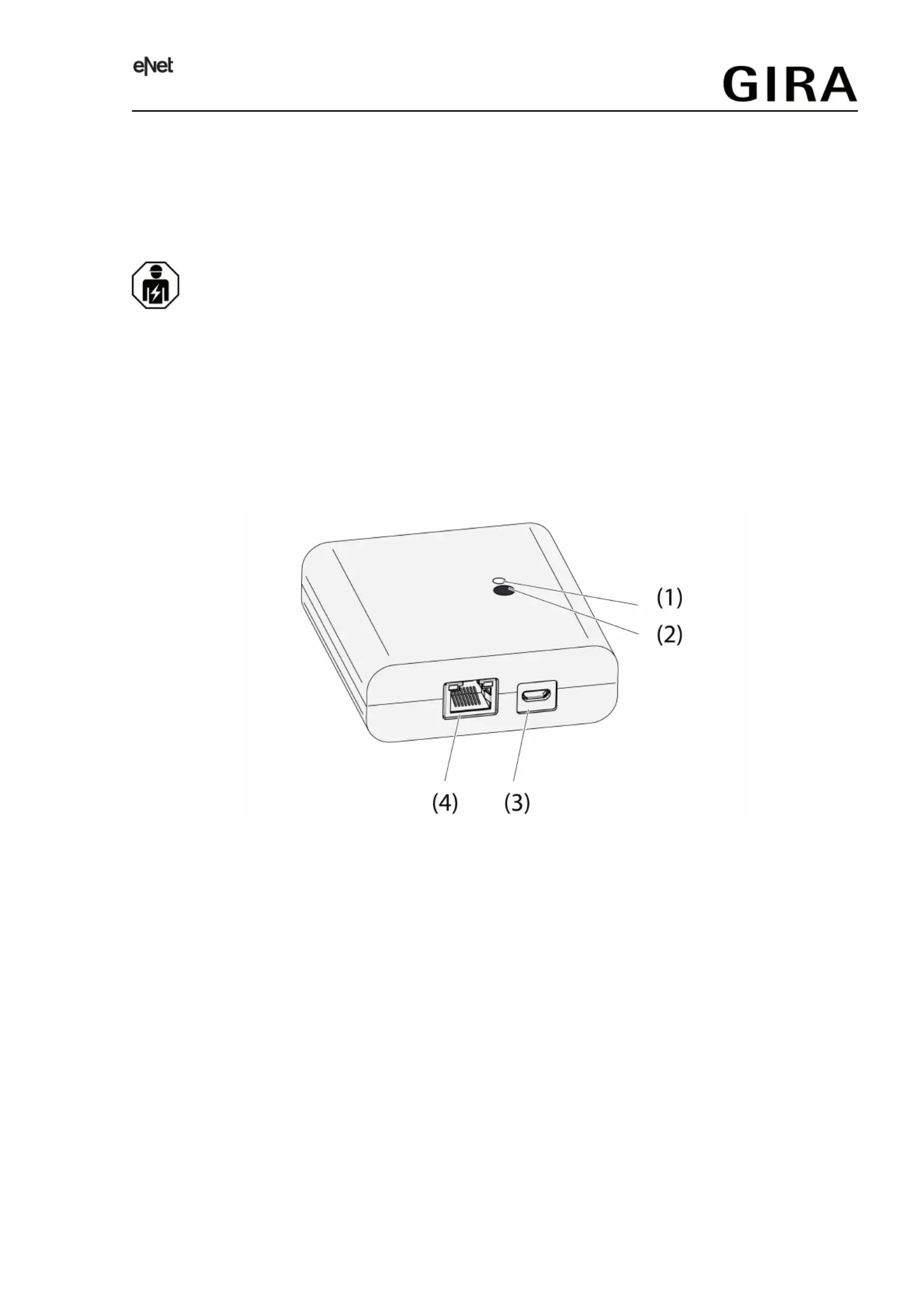

Figure 1: Gateway

(1) Status LED

(2) Button Update/Prog.

(3) USB connection for power supply

(4) Ethernet connection

3 Function

Legal Notice

This product incorporates open source software components covered by the terms of third party

for details.

Intended use

- Gateway for the operation of eNet switching, dimming and Venetian blind actuators via

tablet PC or smartphone

- Operation with USB power supply

1/8

32589522 05.04.2017

Mobile Gate

10865122

- Operation with WiFi router or access point, which support DHCP (Dynamic Host

Configuration Protocol), or with fixed IP address

- Operation indoors

Product characteristics

- Up to 5 tablet PCs or smartphones can be simultaneously connected to the gateway

- Status LED to display the state of operation

- 20 lists for the compilation of favourite functions

- 24 channels for the operation of eNet actuators

- 16 scenes

- Update of the device software via tablet PC or smartphone

- Wall bracket

Function dependent on the app used:

- All On and All Off

- Lock-out protection for roller shutters or Venetian blinds

- Restraint function

- Master dimming function

Supplementary functions with eNet Server:

- Operation locks

- Repeater function

- Reading of error memory

iOnly with eNet Server Software up to version 1.4.

Function of status LED (1) in operation

LED turns green Ready for operation

LED flashes green Gateway obtains the IP address from the

router

LED turns green, alternately 5 seconds on and

off

No IP connection available

LED flashes red for 5 seconds Transmission error. The status message of at

least eNet one actuator is missing.

4 Operation

Operation takes place using an app installed on a tablet PC or smartphone. The basic operation

steps are described below. Operation may deviate from this, depending on the app used.

Operating light

oSwitching: Press the control surface of the app for less than 0.4 seconds.

oDimming: Press the control surface of the app for longer than 0.4 seconds. The dimming

process ends when the control surface is released.

Operating blind

oMove Venetian blind: Press the control surface of the app for longer than 1 second.

oStopping or adjusting the Venetian blind: Press the control surface of the app for less than

1 second.

Operating push-button actuator

oPress the control surface of the app. The load is switched on for the length of actuation.

iThe maximum actuation length is 60 seconds.

Recalling scenes

oBriefly press the control surface of the app.

Actuators switching to the saved scene.

32589522 10865122 05.04.2017

2/8

Mobile Gate

Produkt Specifikationer

Mærke:	Gira
Kategori:	Smart hjem
Model:	530500
Kode for international beskyttelse (IP):	IP20
Type:	Vægmonteret
Bredde:	80 mm
Dybde:	26 mm
Højde:	76 mm
Produktfarve:	Sort
Indbygget skærm:	Ingen
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	1
Driftstemperatur (T-T):	0 - 45 °C
Dimensioner (BxDxH):	80 x 26 x 76 mm
Forbindelsesteknologi:	Kabel & trådløs
Certificering:	CE
Programmerbar:	Ja
LED-indikatorer:	Ja
Indgangsspænding:	5 V
Grænseflade:	RF Trådløs/Kabelforbundet
Driftsspænding:	5 V
Driftsfrekvens:	868 - 868.6 MHz
Antal kanaler:	24 kanaler
Antal understøttede enheder:	5
Sendereffekt:	20 mW
