Automatic control switch comfort top unit

Order-No. : 0661 ..

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Failure to observe the instructions may cause damage to the device and result in fire and

other hazards.

Danger of electric shock. Always disconnect before carrying out work on the devise or

load. At the same time, take into account all circuit breakers that supply dangerous

voltage to the device or load.

Danger of electric shock. Device is not suitable for disconnection from supply voltage.

The load is not electrically isolated from the mains even when the device is switched off.

Do not press on the sensor window. Device can be damaged.

The device is not suitable for use as a burglar alarm or other alarm.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

Figure 1

1/11

32540232 24.11.2011

Automatic control switch comfort top unit

10499158 I00

System 2000

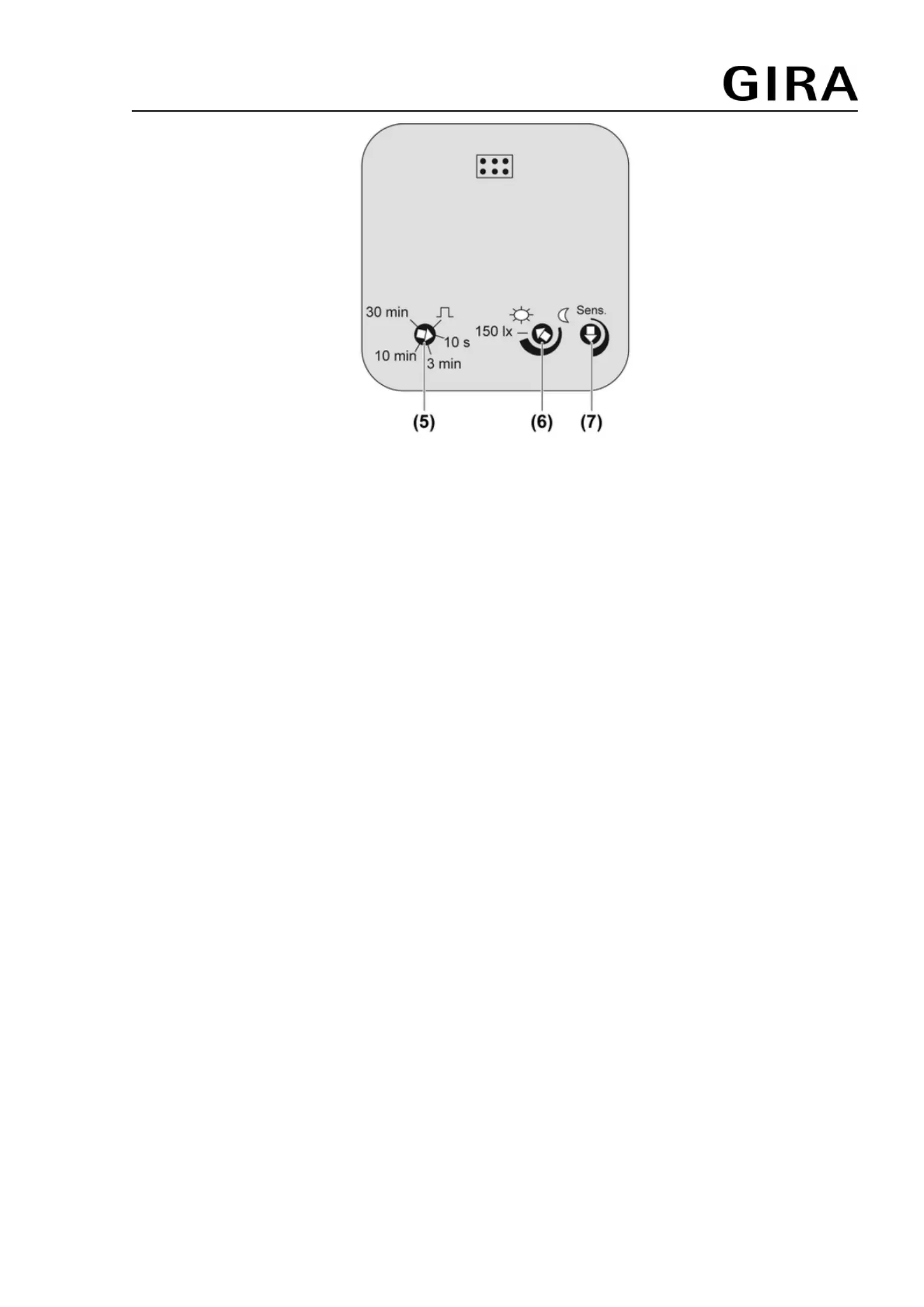

Figure 2: Adjusters on the rear

(1) Flush-mounted insert

(2) Frame

(3) Motion detector cover

(4) Operating mode switch

(5) Adjuster, run-on time

(6) Adjuster, brightness

(7) Adjuster, sensitivity

3 Function

Intended use

- Automatic switching of lighting depending on the heat motion and ambient brightness.

- Operation with concealed insert for dimming, switching or extension insert, 3-wire

- Mounting on concealed insert

Product characteristics

- Run-on time, sensitivity and brightness threshold settable

- Teach function to adjust the brightness threshold

- Operating mode switch for Automatic operation, Continuous on or Continuous off

- Short-time operation, e.g. to control acoustic signal encoders

- Manual switch-on possible via extension insert, 2-wire, or installation button

- With the dimmer insert, it is possible to change the brightness using a 2-wire extension

insert

- Switch-on brightness can be saved with the dimmer insert

- With the dimmer insert, the dim-down function is possible at the end of the run-on time

- 18 lens segments in 2 recording levels

- Extension of the detection area in combination with the 3-wire extension insert

- Detection area can be limited using cover plate

- High protection against ambient light

Automatic operation

The controller detects heat motions of people, animals and objects.

- The light is switched on if a person enters the monitored detection area and the brightness

is below the set threshold.

Each detected movement restarts the run-on time.

- The light is switched off if no more movement is detected in the detection area and the set

run-on time has elapsed.

32540232 10499158 I00 24.11.2011

2/11

System 2000

Automatic control switch comfort top unit

Produkt Specifikationer

Mærke:	Gira
Kategori:	Bevægelsesdetektor
Model:	066101
Kode for international beskyttelse (IP):	IP20
Produktfarve:	Hvid
Driftstemperatur (T-T):	-20 - 45 °C
Forbindelsesteknologi:	Ledningsført
Placering:	Indendørs
Monteringstype:	Væg
Sensortype:	Passiv infrarød (PIR) sensor
Opdagelsesafstand:	10 m
Installationshøjde (min.):	1.1 m
Installationshøjde (maks.):	2.2 m
Registreringsvinkel:	180 °
