Side 1/6

Standard top-unit automatic control switch

1300 ..

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Failure to observe the instructions may cause damage to the device and result in fire and

other hazards.

Danger of electric shock. Always disconnect before carrying out work on the devise or

load. At the same time, take into account all circuit breakers that supply dangerous

voltage to the device or load.

Danger of electric shock. Device is not suitable for disconnection from supply voltage.

The load is not electrically isolated from the mains even when the device is switched off.

Do not press on the sensor window. Device can be damaged.

The device is not suitable for use as a burglar alarm or other alarm.

These instructions are an integral part of the product, and must remain with the end

customer.

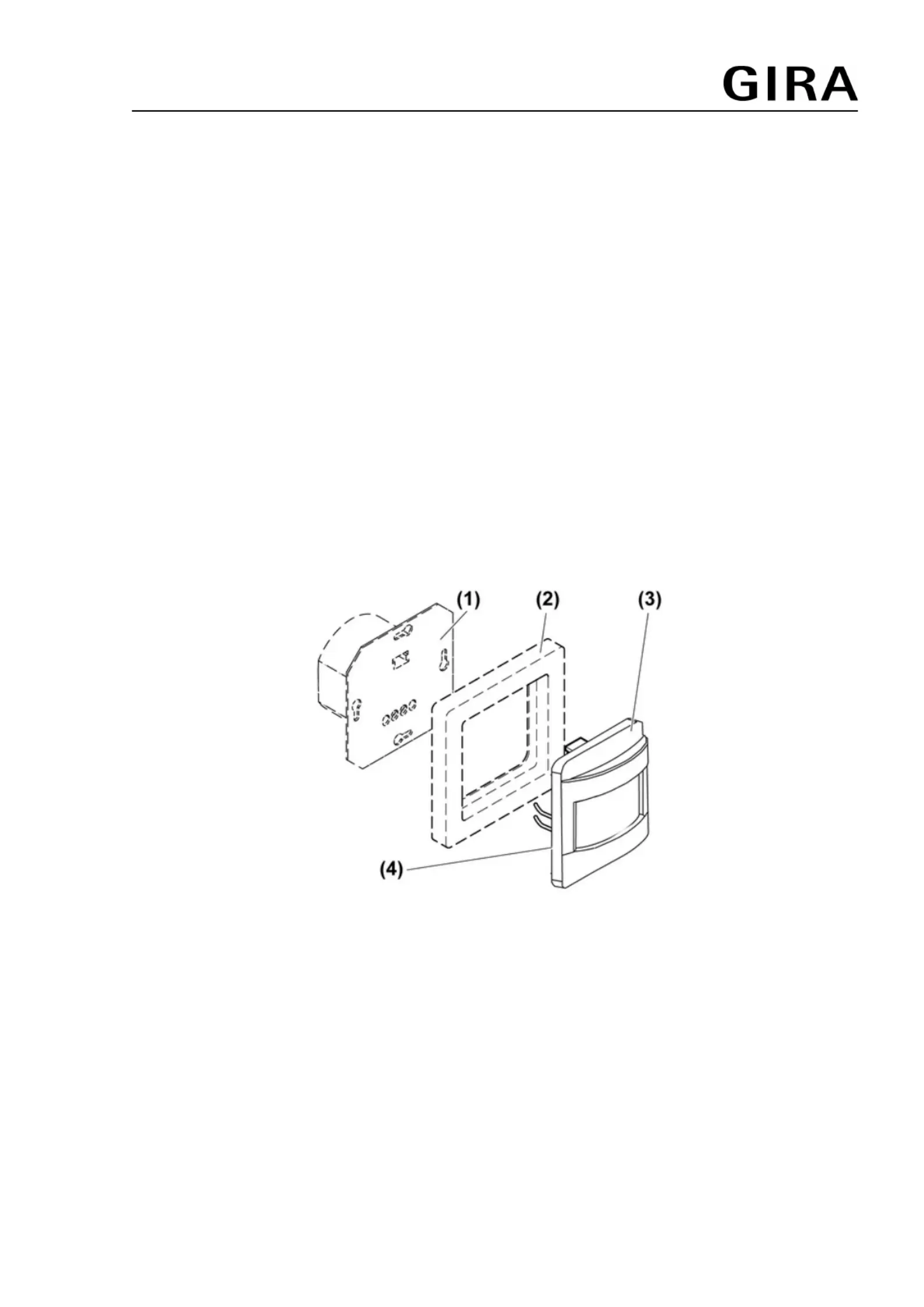

2 Device components

(1) Flush-mounted insert

(2) Frame

(3) Motion detector cover

(4) Adjusters on the rear

3 Function

Intended use

- Automatic switching of lighting depending on the heat motion and ambient brightness.

- Operation with concealed insert for dimming, switching or extension insert, 3-wire

- Mounting on concealed insert

i Dimming inserts can only execute switching functions.

1/6

32541032 19.05.2011

Standard top-unit automatic control switch

10499088 I00

System 2000

Product characteristics

- Sensitivity and brightness threshold settable

- Manual switch-on possible via extension insert, 2-wire, or installation button

- 18 lens segments in 2 recording levels

- Extension of the detection area in combination with the 3-wire extension insert

- Detection area can be limited using cover plate

Automatic operation

The controller detects heat motions of people, animals and objects.

- The light is switched on if a person enters the monitored detection area and the brightness

is below the set threshold.

- The light is switched off if no more movement is detected in the detection area and the run-

on time of approx. 2 minutes has elapsed.

In order to avoid light oscillations due to the cooling of a bulb, the controller does not evaluate

any signals for approx. 3 seconds after switch-off.

Behaviour in case of a mains failure

- Less than 0.2 seconds: the old switching position is restored after mains return.

- 0.2 seconds to approx. 1 seconds: when the power returns, the lighting is switched on

again for the run-on time.

- Longer than 1 second: when the power returns, the motion detector carries out a self test

for approx. 60 seconds. The lighting remains switched on during the self-test. Then the

lighting remains switched on for the length of the run-on time.

i If the cover is pulled off in ongoing operation, the last switching state is retained. When the

cover is attached again the behaviour is like for a mains failure that is longer than 1

second.

4 Operation

Switching on the light

A 2-wire extension or an installation button, NO contact is connected.

o Press extension or installation button.

Light is switched on independently of the brightness. Automatic mode is active.

i Manual switch-on is not possible.

5 Information for electrically skilled persons

5.1 Fitting and electrical connection

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

Before carrying out work on the device or load, disengage all the

corresponding circuit breakers. Cover up live parts in the working environment.

32541032 10499088 I00 19.05.2011

2/6

System 2000

Standard top-unit automatic control switch

Produkt Specifikationer

Mærke:	Gira
Kategori:	Bevægelsesdetektor
Model:	130003
Kode for international beskyttelse (IP):	IP20
Produktfarve:	Hvid
Driftstemperatur (T-T):	-20 - 45 °C
Forbindelsesteknologi:	Ledningsført
Placering:	Indendørs
Monteringstype:	Væg
Opdagelsesafstand:	10 m
Installationshøjde (min.):	1.1 m
Installationshøjde (maks.):	2.2 m
Registreringsvinkel:	180 °
