Side 1/3

GIRA

GIRAGIRA

Info

InfoInfo

System 2000 Tronic switching Insert

Installation Instructions

System 2000 Tronic switching Insert 2/06 Page 1 of 3

Function

FunctionFunction

The Tronic switching insert is a device provided with

an electronic switch and serving for switching light

installations or electrical consumers:

• 230 V incandescent lamps.

• 230 V halogen lamps.

• LV halogen lamps in conjunction with Tronic

transformers.230V Glühlampen

Events are caused by switching commands from the

covers such as automatic switch or presence detec-

tor attachment.

Switching commands given through an extension or

a radio transmitter lead to well-directed turning on or

off.

The lamps are turned on by a gentle soft start.

This Operating Instructions leaflet describes the

functionality in combination with the presence

detector attachment. For the exact functionalities in

conjunction with the use of other attachments or of

the remote control unit, please refer to the corre-

sponding Operating Instructions leaflets.

Installati

InstallatiInstallation

on on Instructions

Instructions

InstructionsInstructions

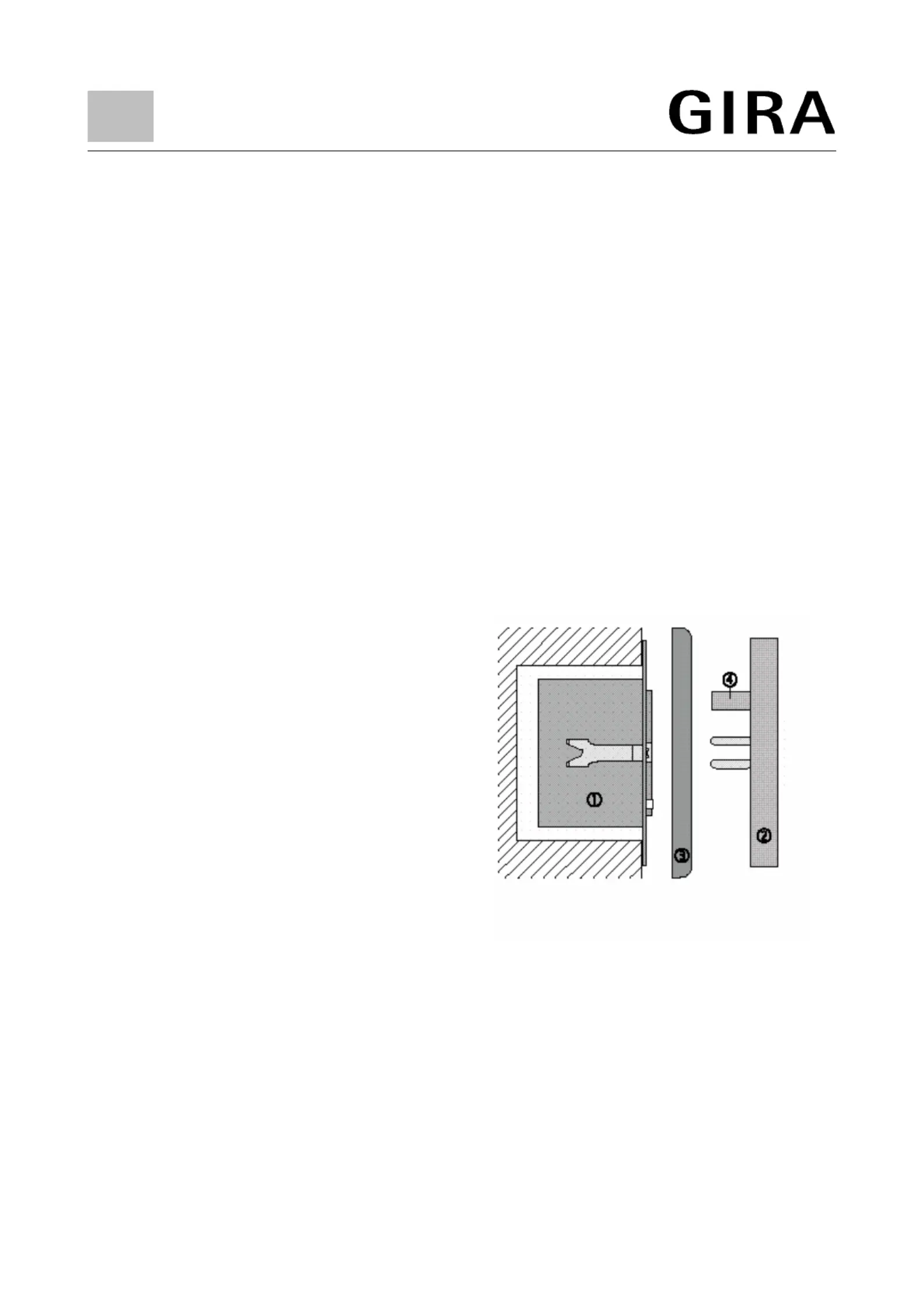

Install Tronic switching insert ➀ in a connection box

as per DIN 49073 (Fig. A).

The terminals of the Tronic switching insert must be

down.

Use the Tronic switching insert only in combination

with an attachment.

Plug attachment

➁ ➀ onto Tronic switching insert

together with frame

➂.

The electrical contact is established through plug

contacts

➃.

Mains failures of longer than 1 sec. will lead to

turning off the Tronic switching insert.

Short

ShortShort-Circuit Protection

-Circuit Protection

-Circuit Protection-Circuit Protection

Switching off with automatic restarting after short-

circuit elimination within 7 sec. For longer short-cir-

cuits, permanent switching off until a manual restart

is triggered when an attachment is used.

Overtemperatur

OvertemperaturOvertemperature Protection

e Protection

e Protectione Protection

Switching off in case of excessively high ambient

temperature. After cooling down, the device must be

restarted

Fig A

System 2000

Tronic switching Insert

Order no.: 0866 00

GIRA

GIRAGIRA

Info

InfoInfo

System 2000 Tronic switching Insert

Installation Instructions

System 2000 Tronic switching Insert 2/06 Page 2 of 3

Connection

ConnectionConnection

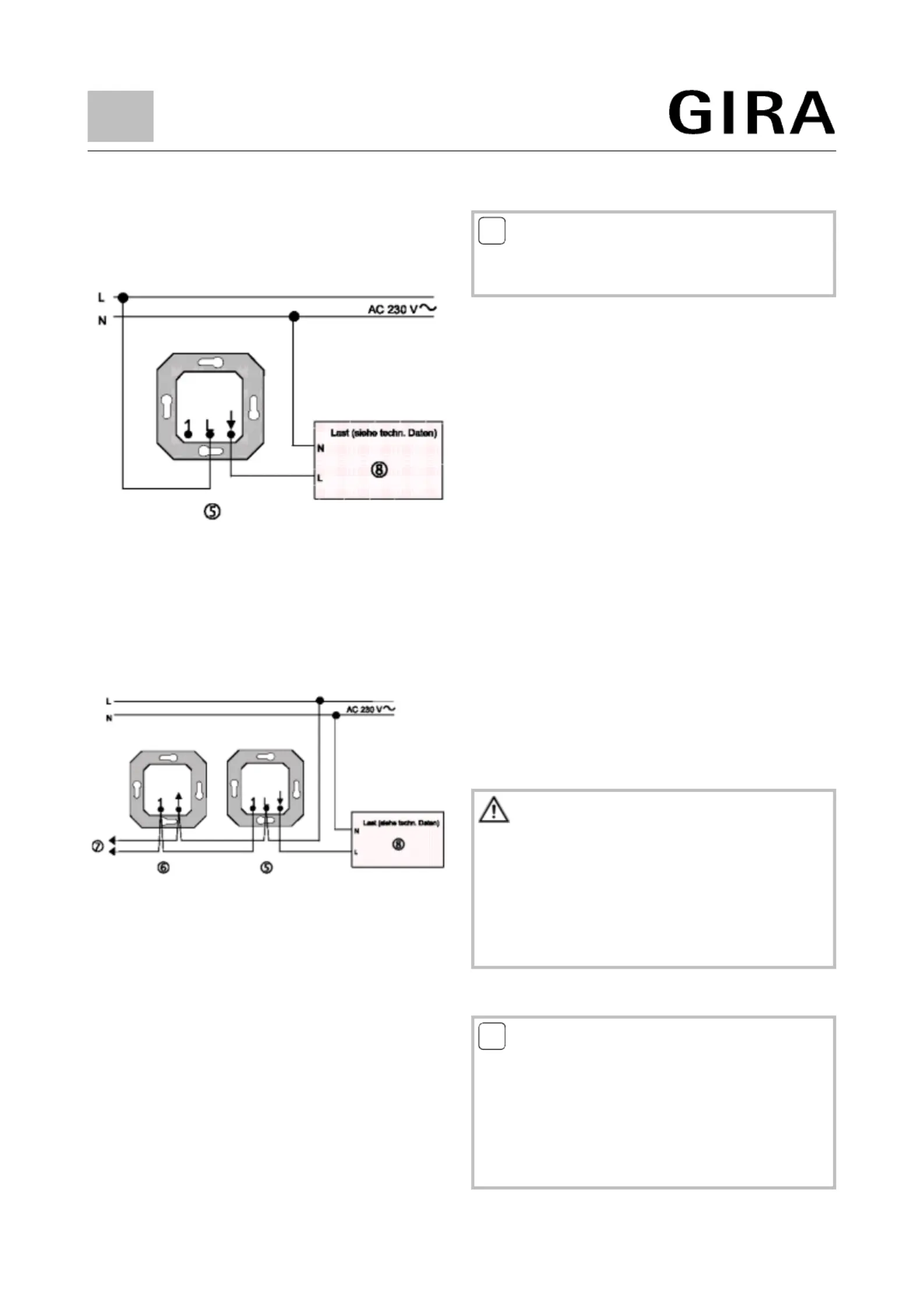

Connect as shown in Fig. B.

Tronic switching insert

➄.

Load

➇.

Fig B

Depending upon the type of installation, the maxi-

mum connected load must be reduced by:

- 6,5 % per 5 °C exceeding of the ambient

temperature of 25°C.

- 15% for installation in wooden, gypsum plaster or

hollow walls.

- 20% for installation in multiple combinations.

Note the technical connection conditions of the

power stations.

TThe Use of Extensions

he Use of Extensions

he Use of Extensionshe Use of Extensions

Connect several extensions as shown in Fig. C.

Fig C

Control from an extension unit is possible only if the

attachment on the main unit is in place.

Tronic switching insert

➄.

Extension insert

➅.

Connection of further extensions

➆.

Load

➇.

Extension insert: Using the attachment

leads to the same functio-

nality as on the Tronic

switching insert.

Mechanical push-button

(n. o. contact): ON/OFF (toggling)

Illuminated mechanical pushbuttons must have a

separate N terminal.

Hinweise:

Observe the maximum connected load and the load

details as set out in the Technical Specifications.

Safety instructions:

Attention: Electrical equipment must be installed

and fitted by qualified electricians only. Not suitable

for safety disconnection.

Shutting off does not disconnect the load electrical-

ly from the mains.

Non-observance of the installation instructions may

cause fire or other hazards.

Important:

Not suitable for disconnecting.

Not suitable for operation in conjunction with con-

ventional transformers.

Do not change the attachment while mains voltage

is applied, as this will entail malfunctioning.

Produkt Specifikationer

Mærke:	Gira
Kategori:	Smart hjem
Model:	086600
Vekselstrømsindgangsspænding:	230 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Indbygget skærm:	Ingen
Produkttype:	Koblings-/dæmpningsaktuator
Driftstemperatur (T-T):	-20 - 45 °C
Certificering:	CE
Strømkilde type:	Vekselstrøm
Monteringstype:	Planmonteret
Indgangsspænding:	230 V
Indgangsfrekvens:	50/60 Hz
Indbygget dybde:	32 mm
Maksimal skiftekapacitet:	420 W
