Wind sensor Standard

Order No. : 0913 00

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or

load. At the same time, take into account all circuit breakers that supply dangerous

voltage to the device or load.

Danger of electric shock. Not suitable for controlling 24 V Venetian blind inserts. If there

is a fault, 230 V might enter the 24 V network.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

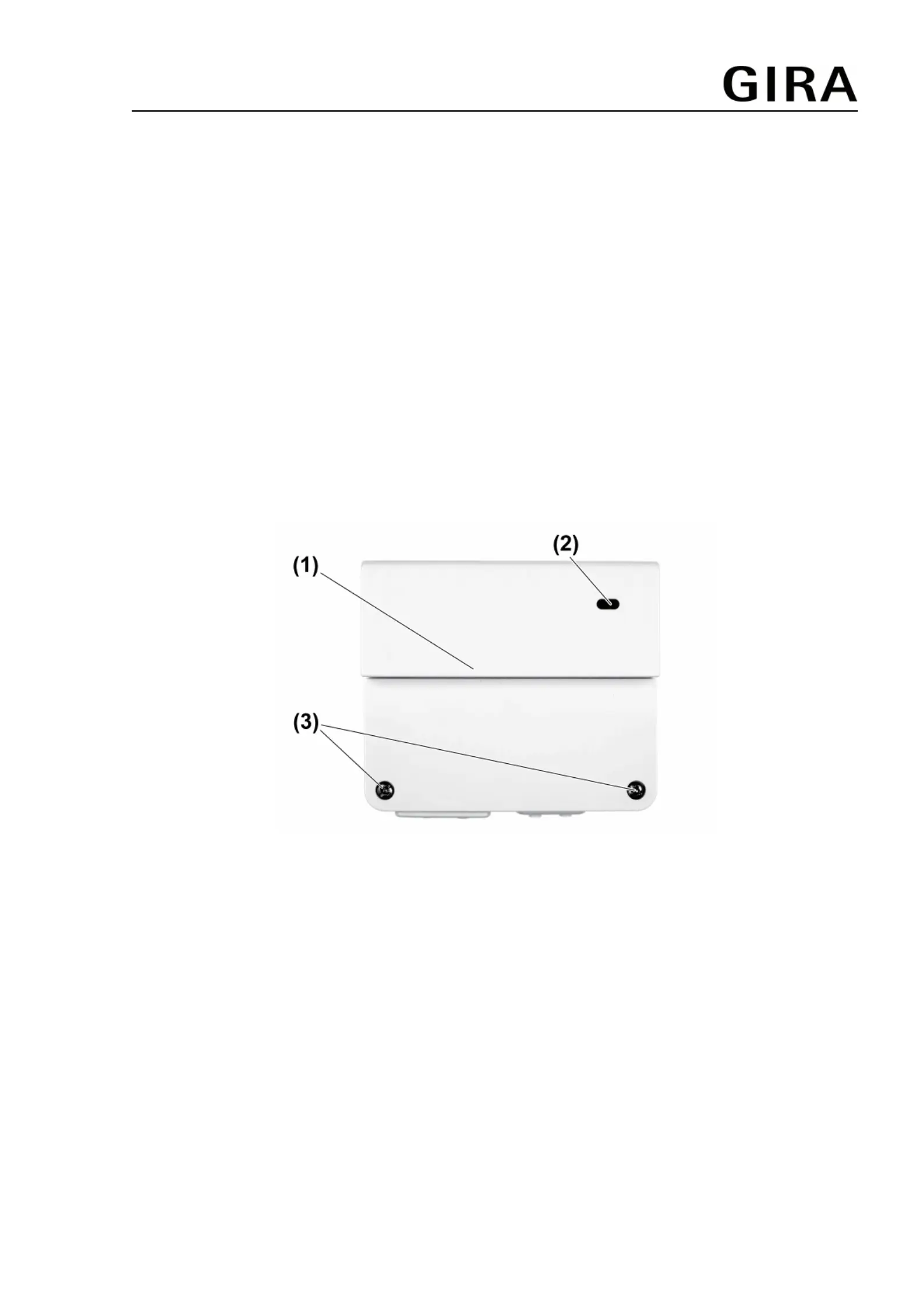

Figure 1

1/6

82523842 07.08.2014

Wind sensor Standard

Blind control system

Figure 2

(1) Evaluation unit

(2) Test LED

(3) Housing lid screws

(4) Wind sensor

3 Function

Intended use

- The evaluation unit and wind sensor are used to protect a blind/shutter against destruction

due to excessively strong winds. The blind/shutter is moved to a safe end position and

locked there until the wind drops below the set wind speed value.

- The evaluation unit is operated together with a Venetian blind insert or binary inputs of the

KNX system.

- Surface-mounted devices for outdoor installation

Product characteristics

- Detection and evaluation of wind speeds

- 8 wind speeds can be set

- The wind alarm is triggered 15 seconds after the set wind speed threshold value is

exceeded

- Test operation for function testing

4 Information for electrically skilled persons

4.1 Fitting and electrical connection

Mounting and connecting the wind sensor

oMount the wind sensor on the roof or on the wall of a house. It must be attached at a

position suitable for wind speed measurement.

Do not mount it in the wind shadow and ensure mounting in the correct position (Figure 2).

oConnect wind sensor to the "+" and "-" terminals (7) of the evaluation unit. Use a shielded

cable for this. Recommendation: JY-ST-Y 2x0.6.

iSensor cables run SELV low voltages acc. to IEC 60364-4-41. When connecting the wind

encoder, ensure safe separation.

82523842 07.08.2014

2/6

Blind control system

Wind sensor Standard

Produkt Specifikationer

Mærke:	Gira
Kategori:	Smart hjem
Model:	091300
Kode for international beskyttelse (IP):	IP55
Type:	Kop
Højde:	160 mm
Produktfarve:	Black, White
Driftstemperatur (T-T):	-25 - 60 °C
Husmateriale:	Acrylonitrilbutadienstyren
Strømkilde:	Vekselstrøm
LED-indikatorer:	Ja
Strømkilde type:	Vekselstrøm
Diameter:	134 mm
Indgangsspænding:	230 V
Grænseflade:	Ledningsført
Indgangsfrekvens:	50 Hz
Maksimal driftstilstand:	50 m
Skærm inkluderet:	Ingen
Vindhastighed, måleinterval:	3.3 - 24.5 m/s
Vindhastighed, måleenheder:	m/s
Måle miljøforhold:	Vindhastighed
