Lighting Fixture ITEM#: 8063-15L BUS

Installation Instruction

Warning

Before installing xture, be sure the electricity to the wires you are working

with is shut off--either by removing the fuse or by setting the circuit breaker

off.

General Information

You don’t need special tools to install this xture. Be sure to follow the steps

in the order given.

Under no circumstances should the fixture be hung on house electrical

wires. The fixture must be installed by means of support that is independent

of the outlet box. A swag type fixture should not be installed on a ceiling

which contains a radiant type heating system.

Remember that a fuse or circuit breaker protects wires from becoming

overheated. Overheated wires created an overload and cause the fuse to

blow or the circuit breaker to trip should such an event occur, replace the

fuse, or reset the circuit breaker, locate and correct the cause of the

overload--usually too many appliances on the same line or a short circuit.

Before tracing the wires for a short circuit, be sure to shut o the electricity

at the main switch.

If you must replace a blown fuse be sure to replace it with one rated for the

ampere capacity the circuit. For example, if a 15--AMP fuse blows, do not

replace it with a 30--AMP fuse.

Use only one hand to screw out a fuse, and keep your other hand away from

the wall or any other object, while you are touching the fuse.

Assembly the fixture

Carefully remove the fixture from the carton and check that all parts are

included, as shown in figure 1. Be careful not to inisplace any of the screws

or wire connectors which are needed for installing the fixture.

1.As shown in figure 1. Suggested installation.

Provide a 1/4 IPS pipe with one and secure mounted to a beam or a

structural member. The other end should protrude through the center or the

outlet box as shown.

ssembly the ceiling loop, nipple, nuts, and hickey to center 1/4 IPS support

pipe and adjust overall length to allow the ring to hold the canopy ush to the

ceiling. When the adjustments have been completed, secure the three (3)

nuts, as shown.

Attach the chain to the fixture loop. Slip the lock collar and canopy over the

upper end of the chain, loose the lock link to connect to the end link of chain

with the fixture loop and hang the fixture on the loop at the ceiling. Secure

the lock link.

Lace the fixture wires, ground and safety cable through the chain and loop,

exiting through the side of hickey. Place the safety cable through the lock

and coil the hickey twice in circle, through the top of the outlet box and

secure to structural member.

2. Installed properly rated light bulbs.

Your installation is now complete. Return power to the junction box and test

the fixture

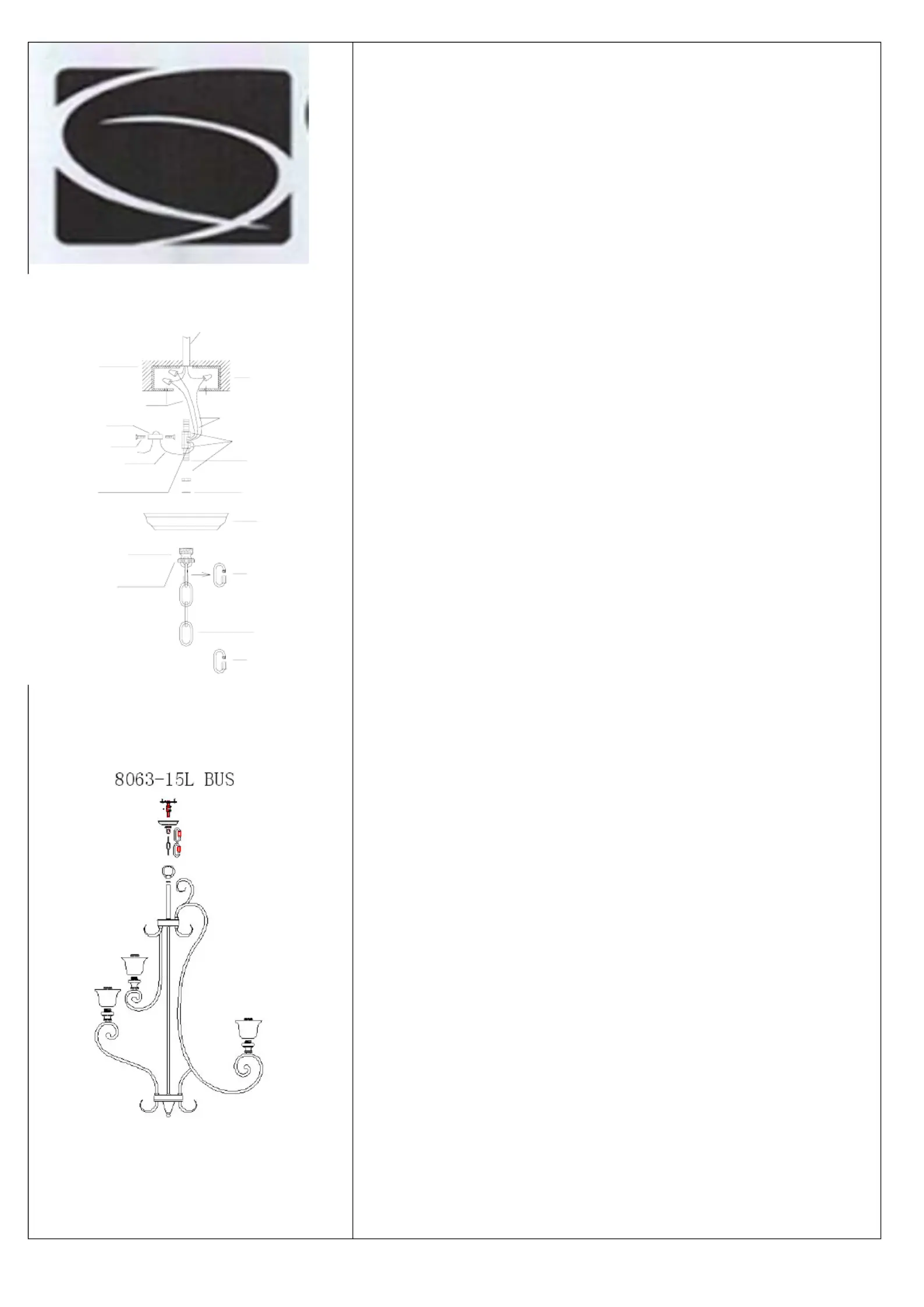

Ceiling loop

Lock collar

Ground wire

Screw

Safety cable

Hickey

Lock

Fixture

Canopy

Chain

Lock Link

Washer

Nipple

Hex wires

Fixture wires

(NOT PROVIDED)

Outlet box

1/4 IPS PIPE

Lock Link

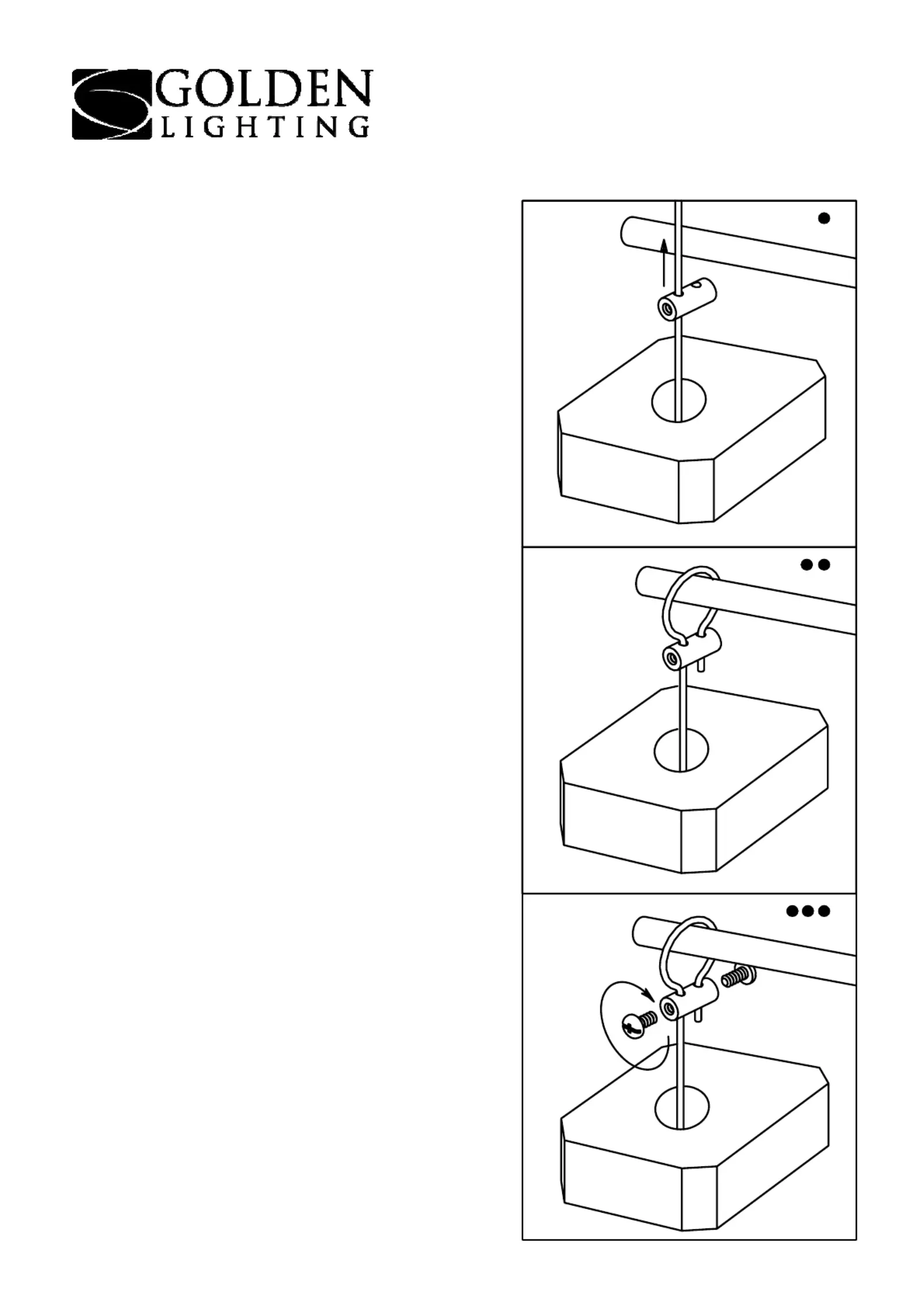

SAFETY CABLE INSTALLTION INSTRUCTION

IMPORTANT: FOR A SAFE AND

SECURE INSTALLTION, THESE

FIXTURES MUST BE INSTALLED

BY MEANS OF SUPPORTS THAT

ARE INDEPENDENT OF THE

OUTLET BOX.

1. Loosen the lock screw and take

out the safety cable.

2. Lace the safety cable and

fixture wires through the chain

and canopy, exiting through the

side of crossbar.

3. Place the safety cable through

the lock, through the lock again;

tightens it with screw into lock.

Run cable through the top of

the outlet box and secure to

structural member before

connecting the wires.

CSKLG001
