Overview
Grandstream GWN70xx offers secure routers ideal for small offices, home offices, and remote workers, the
GWN7052/GWN7052F are dual-band Wi-Fi 5 (802.11ac) routers providing Wi-Fi speeds of up to 1.266 Gbps and up to 100
wireless devices, while the GWN7062 is a dual-band Wi-Fi 6 (802.11ax) router with DL/UL OFDMA technology. It features a
powerful 64-bit 1.2GHz quad-core processor to provide blazing fast Wi-Fi speeds up to 1.77 Gbps with 4 times increased data
capacity to 256 wireless devices. The GWN70xx routers can power smart offices, and allow smooth 4K Ultra HD streaming,
web meetings, video conferences, and more. They support enterprise-grade security features to ensure secure Wi-Fi and VPN
access, they also include a built-in controller embedded within the product’s web user interface. By combining accelerated Wi-
Fi speeds, mesh networking and wired AP connections with advanced features including VPN and advanced QoS,
Grandstream GWN70xx are the ideal routers for a growing home and business network.
PRODUCT OVERVIEW
Technical Specifications
○ GWN7052/GWN7052F
Changes or modifications to these products not expressly approved by Grandstream, or operation of these products in any way
other than as detailed by this User Manual, could void your manufacturer warranty.
Please do not use a different power adaptor with the GWN70xx routers as it may cause damage to the products and void the
manufacturer warranty.

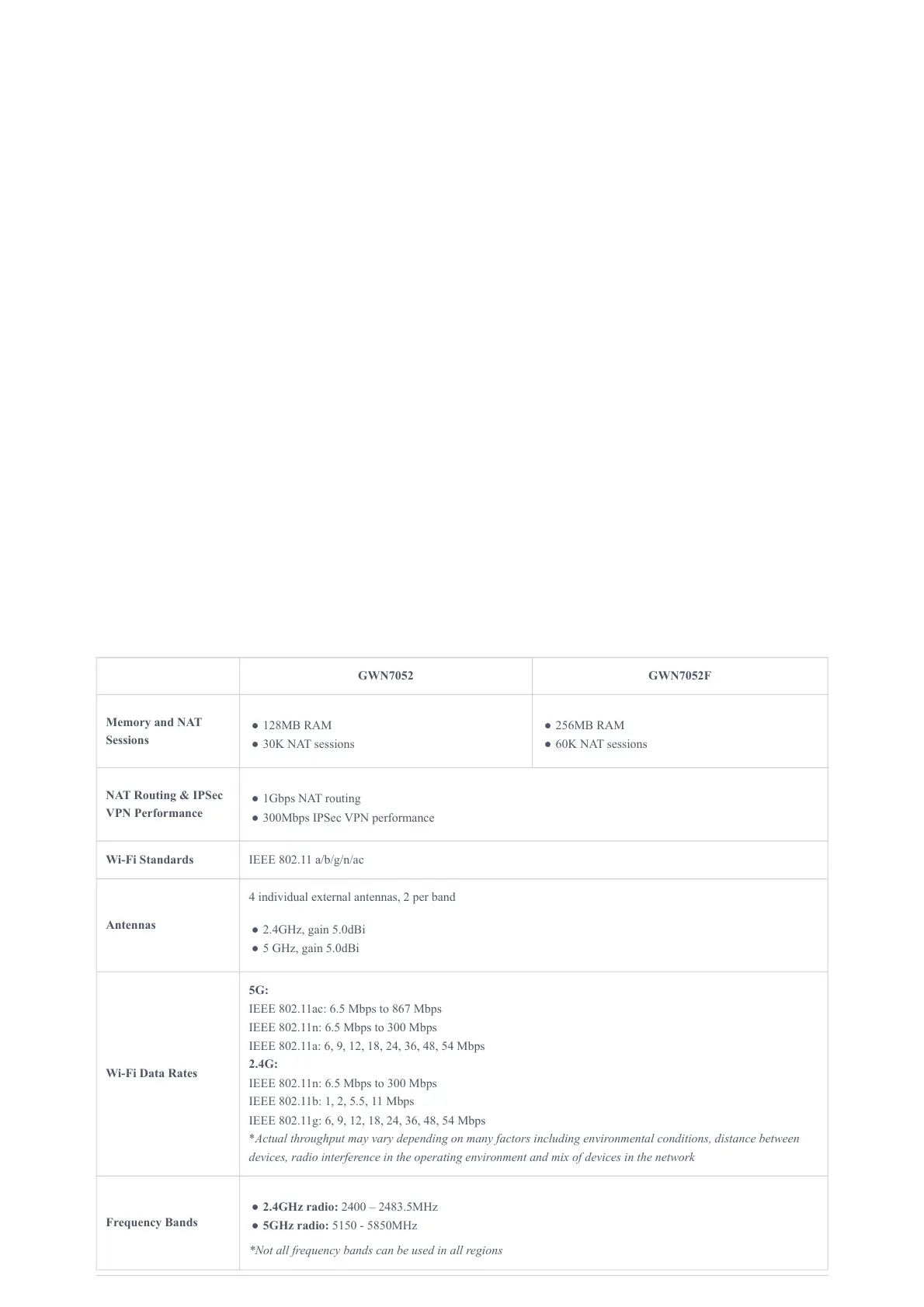

GWN7052 GWN7052F
Memory and NAT
Sessions
● 128MB RAM
● 30K NAT sessions
● 256MB RAM
● 60K NAT sessions
NAT Routing & IPSec
VPN Performance
● 1Gbps NAT routing
● 300Mbps IPSec VPN performance
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac
Antennas
4 individual external antennas, 2 per band
● 2.4GHz, gain 5.0dBi
● 5 GHz, gain 5.0dBi
Wi-Fi Data Rates
5G:
IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
● 2.4GHz radio: 2400 – 2483.5MHz
● 5GHz radio: 5150 - 5850MHz
*Not all frequency bands can be used in all regions
