Side 1/144
Grandstream Networks, Inc.
GWN76XX - Access Points Wi Fi
User Manual
GWN7630
Enterprise
802.11ac Wave-
2 4x4 Wi-Fi
Access Point
GWN7615
Enterprise
802.11ac Wave-2
3×3:3 Wi-Fi
Access Point
GWN7605
Enterprise
802.11ac Wave-
2 2x2 Wi-Fi
Access Point
GWN7660
802.11ax
2×2:2
Wi-Fi 6
Access Point
GWN7600
Enterprise
802.11ac
Wave-2 Wi-Fi
Access Point
GWN7610
Enterprise
802.11ac
Wi-Fi
Access Point
GWN7600LR
Outdoor Long
Range 802.11ac
Wave-2 Wi-Fi
Access Point
GWN7605LR
Outdoor Long-
Range 802.11ac
Wave-2 2×2:2 Wi-Fi
Access Point
GWN7630LR
Outdoor Long
Range 802.11ac
Wave-2 4x4:4 Wi-Fi
Access Point
GWN7664
802.11ax
4×4:4
Wi-Fi 6
Access Point
Page | 2
GWN76XX User Manual
Version 1.0.21.16
COPYRIGHT
©2022 Grandstream Networks, Inc. https://www.grandstream.com
All rights reserved. Information in this document is subject to change without notice. Reproduction or
transmittal of the entire or any part, in any form or by any means, electronic or print, for any purpose
without the express written permission of Grandstream Networks, Inc. is not permitted.
The latest electronic version of this guide is available for download here:
https://www.grandstream.com/support
Grandstream is a registered trademark and Grandstream logo is trademark of Grandstream Networks, Inc.
in the United States, Europe, and other countries.
CAUTION
Changes or modications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this guide, could void your manufacturer warranty.
WARNING
Please do not use a dierent power adaptor with devices as it may cause damage to the products and
void the manufacturer warranty.
Page | 4
GWN76XX User Manual
Version 1.0.21.16
(1) doit pas produire de brouillage, et l’appareil ne
(2) l’utilisateur de l’appareil doit accepter tout brouillage radio électrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
ISEDC Warning
This equipment complies with ISEDC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Cet équipement est conforme aux ISEDC RF limites d’exposition aux radiations dans un environnement
non contrôlé. Cet émetteur ne doit pas être situé ou opérant en conjonction avec une autre antenne ou
émetteur.

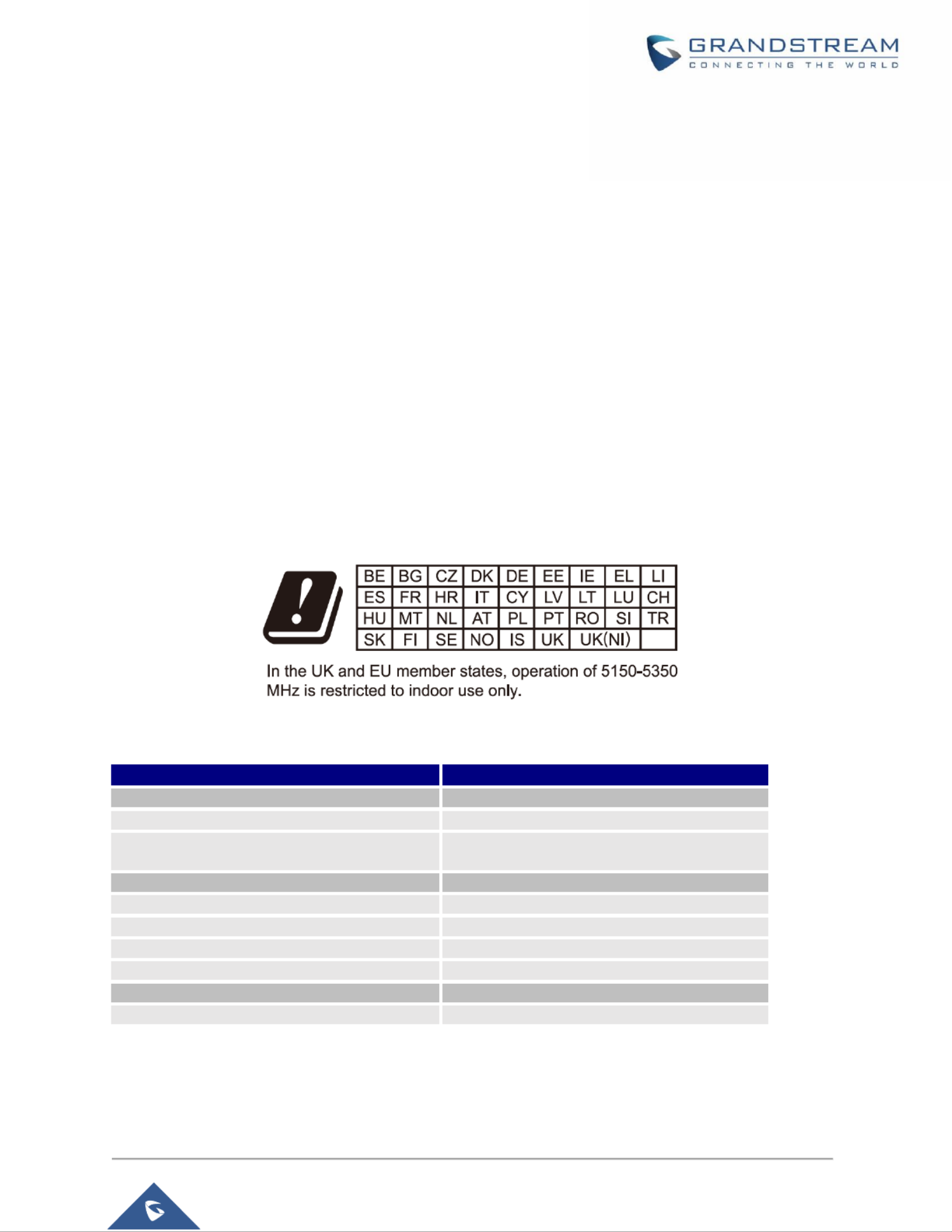

CE Authentication
EU Regulatory Information
GWN7630
GWN7630LR
TX/RX Frequency
TX/RX Frequency
2.4G Wi-Fi: 2412-2472MHz;
2.4G Wi-Fi: 2412-2472MHz;
5G Wi-Fi: 5150-5250MHz;5250-5350 MHz; 5470-
5725 MHz
5G Wi-Fi: -5250MHz;5250-5350 MHz; 5470-5150
5725 MHz
Output power
Output power
WLAN 2.4G < 20dBm;
WLAN 2.4G < 20dBm;
WLAN 5150-5250MHz< 23dBm
WLAN 5150-5250MHz< 23dBm
WLAN 5250-5350 MHz< 20dBm
WLAN 5250-5350 MHz< 20dBm
WLAN 5470-5725 MHz< 27dBm
WLAN 5470-5725 MHz< 27dBm
Modulation
Modulation
DSSS, OFDM
DSSS, OFDM
Page | 6
GWN76XX User Manual
Version 1.0.21.16
GWN76 60
GWN76 64
TX/RX Frequency
TX/RX Frequency
2.4G Wi-Fi: 2412-2472MHz;
2.4G Wi-Fi: 2412-2472MHz;
5G Wi-Fi: 5150-5250MHz;5250-5350 MHz; 5470-
5725 MHz
5G Wi-Fi: -5250MHz;5250-5350 MHz; 5470-5150
5725 MHz
Output power
Output power
WLAN 2.4G < 20dBm;
WLAN 2.4G < 20dBm;
WLAN 5150-5250MHz< 23dBm
WLAN 5150-5250MHz< 23dBm
WLAN 5250-5350 MHz< 20dBm
WLAN 5250-5350 MHz< 20dBm
WLAN 5470-5725 MHz< 27dBm
WLAN 5470-5725 MHz< 27dBm
Modulation
Modulation
DSSS, OFDM, OFDMA
DSSS, OFDM, OFDMA
The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows:
Hereby, [Grandstream Networks, Inc.] declares that the radio equipment type
[GWN7664/GWN7660/GWN7630/GWN7630LR/GWN7610/GWN7600/GWN7600LR/GWN7605/GWN76
05LR/GWN7615] are in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
https://www.grandstream.com
GNU GPL INFORMATION
GWN76XX firmware contains third-party software licensed under the GNU General Public License (GPL).
Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public
License (GPL) for the exact terms and conditions of the license.
Grandstream GNU GPL related source code can be downloaded from Grandstream web site:
https://www.grandstream.com/support/faq/gnu-general-public-license
Page | 7
GWN76XX User Manual
Version 1.0.21.16
Table of Contents
DOCUMENT PURPOSE .............................................................................................. 17
CHANGE LOG ............................................................................................................. 18
Firmware Version 1.0.21.15 ................................................................................................................18
Firmware Version 1.0.21.14/15 ...........................................................................................................18
Firmware Version 1.0.21.7 ..................................................................................................................18
Firmware Version 1.0.21.6 ..................................................................................................................18
Firmware Version 1.0.19.32 ................................................................................................................19
Firmware Version 1.0.19.14 ................................................................................................................19
Firmware Version 1.0.19.29 ................................................................................................................19
Firmware Version 1.0.19.25 ................................................................................................................19
Firmware Version 1.0.19.23 ................................................................................................................19
Firmware Version 1.0.19.22 ................................................................................................................19
Firmware Version 1.0.19.15 ................................................................................................................20
Firmware Version 1.0.19.9 ..................................................................................................................20
Firmware Version 1.0.15.20 ................................................................................................................20
Firmware Version 1.0.15.18 ................................................................................................................20
Firmware Version 1.0.15.5 ..................................................................................................................20
Firmware Version 1.0.15.4 ..................................................................................................................20
Firmware Version 1.0.15.6 ..................................................................................................................21
Firmware Version 1.0.11.10 ................................................................................................................21
Firmware Version 1.0.11.8 ..................................................................................................................21
Firmware Version 1.0.8.18 ..................................................................................................................21
Firmware Version 1.0.8.9 ....................................................................................................................21
Firmware Version 1.0.7.13 ..................................................................................................................21
Firmware Version 1.0.4.22 ..................................................................................................................22
Firmware Version 1.0.4.20 ..................................................................................................................22
Firmware Version 1.0.4.12 ..................................................................................................................22
Page | 8
GWN76XX User Manual
Version 1.0.21.16
Firmware Version 1.0.3.25 ..................................................................................................................22
Firmware Version 1.0.3.21 ..................................................................................................................22
Firmware Version 1.0.3.19 ..................................................................................................................22
Firmware Version 1.0.2.108 ................................................................................................................23
Firmware Version 1.0.2.15 ..................................................................................................................23
Firmware Version 1.0.1.31 ..................................................................................................................23
Firmware Version 1.0.1.27 ..................................................................................................................23
WELCOME .................................................................................................................. 24
PRODUCT OVERVIEW ............................................................................................... 27
Technical Specifications ......................................................................................................................27
INSTALLATION ........................................................................................................... 44
Equipment Packaging .........................................................................................................................44
GWN76XX Access Point Ports ...........................................................................................................46
Power and Connect GWN76XX Access Point ....................................................................................47
Warranty ..............................................................................................................................................48
Wall/Ceiling Mount Installation GWN76XX .........................................................................................48
Wall Mount ...................................................................................................................................48
Ceiling Mount ...............................................................................................................................49
Mounting Instructions for GWN7600LR ..............................................................................................50
Mounting Instructions for GWN7630LR/GWN7605LR .......................................................................51
Wall Mount ...................................................................................................................................51
Pole Mount ...................................................................................................................................52
GETTING STARTED .................................................................................................... 53
LED Patterns .......................................................................................................................................53
Discover the GWN76XX .....................................................................................................................54
Method1: Discover the GWN76XX using its MAC address .........................................................54
Method 2: Discover the GWN76XX using GWN Discovery Tool .................................................55
Use the Web GUI ................................................................................................................................55
Access Web GUI .........................................................................................................................56
Page | 12
GWN76XX User Manual
Version 1.0.21.16
Table of Tables
Table 1: GWN7664 Technical Specifications ............................................................................................ 27
Table 2: GWN7660 Technical Specifications ............................................................................................ 29
Table 3: GWN7630 Technical Specifications ............................................................................................ 30
Table 4: GWN7615 Technical Specifications ............................................................................................ 32
Table 5: GWN7610 Technical Specifications ............................................................................................ 34
Table 6: GWN7605 Technical Specifications ............................................................................................ 35
Table 7: GWN7605LR Technical Specifications ........................................................................................ 37
Table 8: GWN7600 Technical Specifications ............................................................................................ 39
Table 9: GWN7600LR Technical Specifications ........................................................................................ 40
Table 10: GWN7630LR Technical Specifications ...................................................................................... 42
Table 11: GWN7664/GWN7660/GWN7630/GWN7610/GWN7615/GWN7605/GWN7600 Equipment
Packaging.................................................................................................................................................. 44
Table 12: GWN7600LR Equipment Packaging ......................................................................................... 45
Table 13: GWN7630LR Equipment Packaging ......................................................................................... 46
Table 14: GWN76XX AP Ports Description ............................................................................................... 47
Table 15: LED Patterns ............................................................................................................................. 53
Table 16: Overview .................................................................................................................................... 58
Table 17: Device Configuration ................................................................................................................. 64
Table 18: Manager settings ....................................................................................................................... 74
Table 19: Access Points Status Parameters ............................................................................................. 76
Table 20: Access Point Configuration Settings ......................................................................................... 81
Table 21: Wi-Fi .......................................................................................................................................... 84
Table 22 : MAX SSID on each band ......................................................................................................... 90
Table 23: Time Policy Parameters ............................................................................................................ 96
Table 24: Bandwidth Rules........................................................................................................................ 97
Table 25: Captive Portal – Policy List – Splash Page is “Internal” .......................................................... 101
Table 26: Captive Portal – Policy List – Splash Page is “External” ......................................................... 104
Table 27: Voucher Parameters ................................................................................................................ 109
Table 28: Radio Settings .......................................................................................................................... 112
Table 29: Rogue AP ................................................................................................................................. 115
Table 30: Firewall- Outbound ................................................................................................................... 117
Table 31: Firewall-Inbound ....................................................................................................................... 118
Table 32: Hotspot 2.0 ............................................................................................................................... 119
Table 33: SNMP ...................................................................................................................................... 123
Table 34: DHCP Server Parameters ....................................................................................................... 124
Table 35: NAT Pool Parameters .............................................................................................................. 124
Page | 13
GWN76XX User Manual
Version 1.0.21.16
Table 36: TR-069 ..................................................................................................................................... 126
Table 37: LEDs ........................................................................................................................................ 128
Table 38: Basic ........................................................................................................................................ 128
Table 39: DFS Channels supported by Model ........................................................................................ 129
Table 40: Account .................................................................................................................................... 130
Table 41: Mesh configuration on GWN76XX .......................................................................................... 132
Table 42: Upgrade ................................................................................................................................... 135
Table 43: Syslog Parameters .................................................................................................................. 137
Table 44: Email configuration .................................................................................................................. 137
Table 45: Email Events ............................................................................................................................ 138
Table 46: Network Upgrade Configuration .............................................................................................. 139
Table of Figures
Figure 1: GWN7664/GWN7660/GWN7630/GWN7610/GWN7605/GWN7600 Equipment Packaging .... 44
Figure 2: GWN7600LR Equipment Package ............................................................................................ 45
Figure 3: GWN7630LR/GWN7605LR Equipment Package ...................................................................... 46
Figure 4: GWN7664/GWN7660/GWN7630/GWN7615 ............................................................................ 46
Figure 5: GWN7610/GWN7600 Ports ....................................................................................................... 46
Figure 6: GWN7600LR Ports .................................................................................................................... 46
Figure 7: GWN7630LR .............................................................................................................................. 46
Figure 8: Connecting GWN A - GWN7600 as exampleP .......................................................................... 48
Figure 9: Wall Mount – Steps 1 & 2 .......................................................................................................... 48
Figure 10: Wall Mount – Steps 3 & 4 ........................................................................................................ 48
Figure 11: Wall Mount – Steps 5 & 6 ......................................................................................................... 49
Figure 12: Ceiling Mount – Steps 1 & 2 .................................................................................................... 49
Figure 13: Ceiling Mount – Step 3 ............................................................................................................ 49
Figure 14: Ceiling Mount – Step 4 ............................................................................................................ 49
Figure 15: Ceiling Mount – Steps 5 & 6 .................................................................................................... 50
Figure 16: GWN7600LR Vertical Mounting ............................................................................................... 50
Figure 17: GWN7600LR Horizontal Mounting .......................................................................................... 51
Figure 18: GWN7630LR/GWN7605LR Mounting Instructions .................................................................. 51
Figure 19: GWN7630LR/GWN7605LR Wall Mount .................................................................................. 51

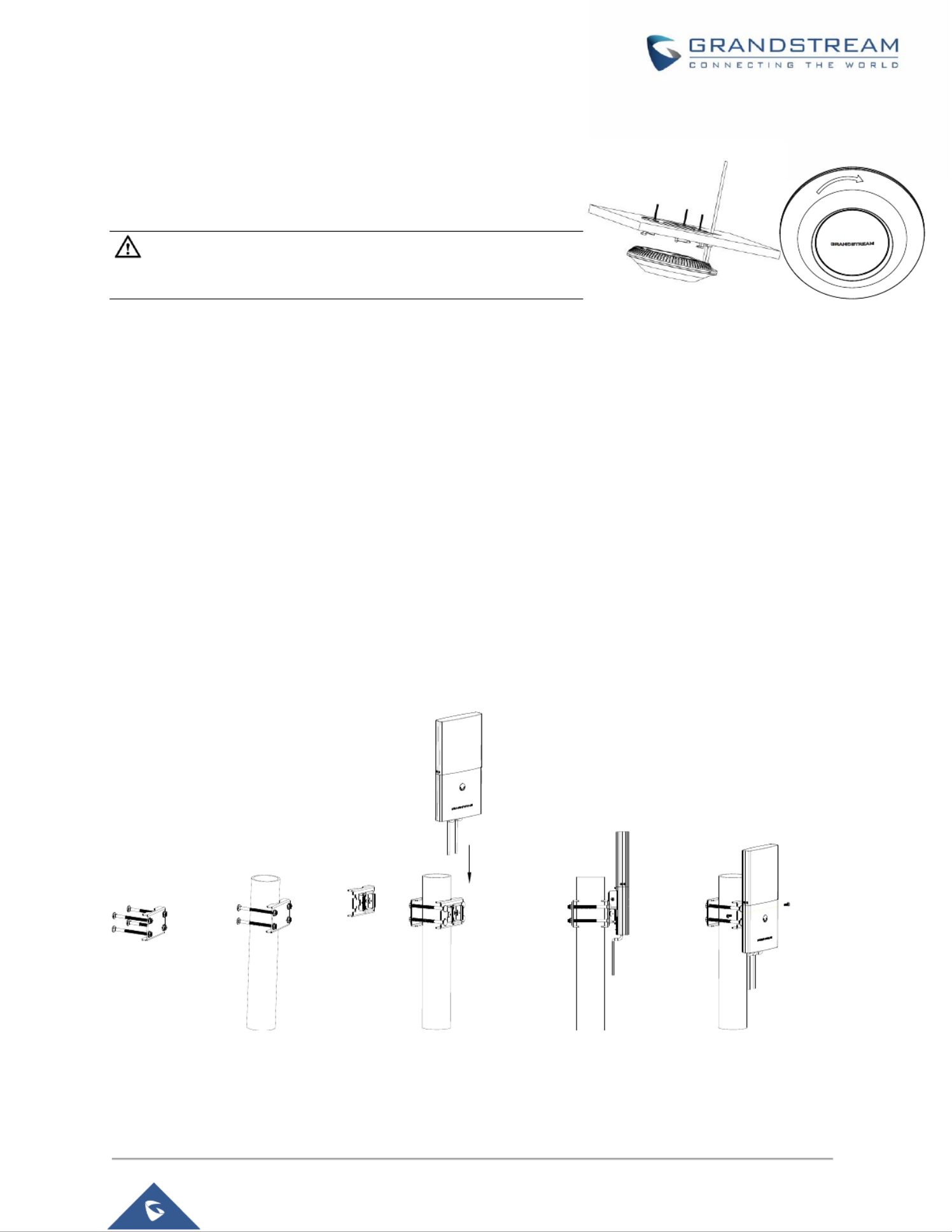

Figure 20: GWN7630LR/GWN7605LR Pole Mount .................................................................................. 52
Figure 21: Discover the GWN76XX using its MAC Address ..................................................................... 54
Figure 22: GWN Discovery Tool ................................................................................................................ 55
Figure 23: GWN76XX Web GUI Login Page ............................................................................................ 56
Figure 24: GWN76XX Web GUI Langage (Login page) ........................................................................... 57
Figure 25: GWN76XX Web GUI Language (Web Interface)..................................................................... 57
Page | 14
GWN76XX User Manual
Version 1.0.21.16
Figure 26: GWN76XX Dashboard (GWN7600 as example) ..................................................................... 57
Figure 27: Apply Changes ......................................................................................................................... 58

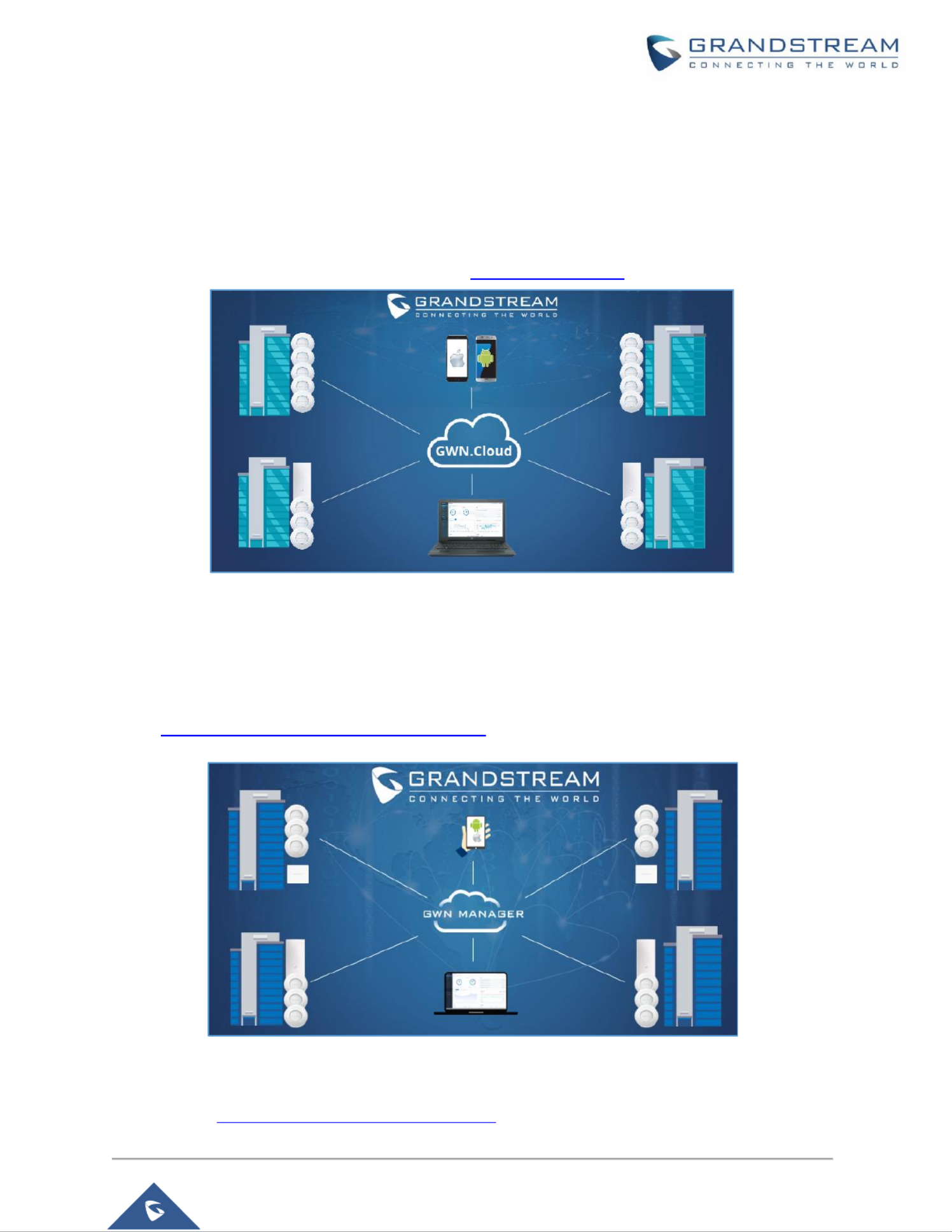

Figure 28: GWN.Cloud Architecture .......................................................................................................... 59
Figure 29: GWN Manager Architecture ..................................................................................................... 59
Figure 30: MAC Tag Label ........................................................................................................................ 60
Figure 31: Login Page ............................................................................................................................... 61
Figure 32: Setup Wizard ........................................................................................................................... 62
Figure 33: Option 43 Override .................................................................................................................. 63
Figure 34: Discover and Pair GWN76XX .................................................................................................. 63
Figure 35: Discovered Devices ................................................................................................................. 64
Figure 36: GWN76XX Online .................................................................................................................... 64
Figure 37: Transfer AP .............................................................................................................................. 67
Figure 38: Failover Master ........................................................................................................................ 67
Figure 39: Failover Mode GUI ................................................................................................................... 68
Figure 40: Takeover - Step 1 ..................................................................................................................... 69
Figure 41: Takeover - Step 2 ..................................................................................................................... 69
Figure 42: Takeover - Step 3 ..................................................................................................................... 70
Figure 43: Switch to Master ...................................................................................................................... 70
Figure 44: Transfer Master Role to another device confirmation message .............................................. 71
Figure 45: Then new assigned Master AP web interface.......................................................................... 71
Figure 46: Client Bridge ............................................................................................................................ 72
Figure 47: Client Bridge ............................................................................................................................ 72
Figure 48: Client Bridge Mode .................................................................................................................. 72
Figure 49: slave AP login page ................................................................................................................. 73
Figure 50 : Slave AP Web Interface .......................................................................................................... 73
Figure 51: Slave AP Service Settings ....................................................................................................... 74
Figure 52: slave AP manager settings ...................................................................................................... 74
Figure 53: slave AP debug ........................................................................................................................ 75
Figure 54: Access Points - Status ............................................................................................................. 76
Figure 55: AP Info ..................................................................................................................................... 77
Figure 56: Current Clients - Stats per AP .................................................................................................. 77
Figure 57: Debug Tool Tab ........................................................................................................................ 78
Figure 58: Access Points Configuration Page........................................................................................... 78
Figure 59: Moving Access Points between Networks ............................................................................... 80
Figure 60: Delete Access Point ................................................................................................................. 80
Figure 61: Reboot Access Point ................................................................................................................ 80
Figure 62: Access Point Configuration Page ............................................................................................ 81
Figure 63: Reset Access Point .................................................................................................................. 83
Figure 64: SSIDs ....................................................................................................................................... 84
Figure 65: Add a new SSID ....................................................................................................................... 84
Figure 66: Device Membership ................................................................................................................. 91
Figure 67: Clients ...................................................................................................................................... 92
Page | 15
GWN76XX User Manual
Version 1.0.21.16
Figure 68: Clients - Select Items ............................................................................................................... 93
Figure 69: Global Blacklist ........................................................................................................................ 94
Figure 70: Managing the Global Blacklist . ................................................................................................ 94
Figure 71: Adding Client Access List ......................................................................................................... 94
Figure 72: Adding New Access List ........................................................................................................... 95
Figure 73: Blacklist Access List ................................................................................................................. 95
Figure 74: Ban/Unban Client ..................................................................................................................... 96
Figure 75: MAC Address Bandwidth Rule ................................................................................................. 98
Figure 76: Bandwidth Rules ...................................................................................................................... 98
Figure 77: Captive Portal – Guest Page ................................................................................................... 99
Figure 78: Captive Portal - Guest Page - Select Items ............................................................................. 99
Figure 79: Captive Portal - Policy List ..................................................................................................... 100
Figure 80: Add a New Policy ................................................................................................................... 101
Figure 81: Authentication rules ............................................................................................................... 105
Figure 82: Captive Portal – Splash Page ................................................................................................ 106
Figure 83: Add Voucher Sample ............................................................................................................. 108
Figure 84: Vouchers List ......................................................................................................................... 108
Figure 85: Captive Portal with Voucher authentication ............................................................................ 110
Figure 86: Radio-General ......................................................................................................................... 111
Figure 87: Rogue AP-Configuration ......................................................................................................... 115
Figure 88: Rogue AP-Detection ............................................................................................................... 116
Figure 89: Firewall-Outbound ..................................................................................................................117
Figure 90: Firewall-inbound...................................................................................................................... 117
Figure 91: Hotspot 2.0 .............................................................................................................................. 119
Figure 92: SNMP ..................................................................................................................................... 123
Figure 93: DHCP Binding ........................................................................................................................ 125
Figure 94: TR-069 ................................................................................................................................... 126
Figure 95: LED Scheduling Sample ........................................................................................................ 128
Figure 96: Access Points Status ............................................................................................................. 131
Figure 97: Mesh settings for GWN76XX ................................................................................................. 132
Figure 98: Create New Schedule ............................................................................................................ 133
Figure 99: Schedules List ........................................................................................................................ 134
Figure 100: Upgrade ............................................................................................................................... 135
Page | 17
GWN76XX User Manual
Version 1.0.21.16
DOCUMENT PURPOSE
This document describes how to configure the GWN76XX via Web GUI in standalone mode, with other
GWN76XX Access Points as Master/Slave architecture and more. The intended audiences of this
document are network administrators. Please visit https://www.grandstream.com/support to download the
latest “GWN76XX User Manual”.
This document does not cover GWN7602 model. For GWN7602, please refer to “GWN7602 User Manual”.
This guide covers following topics:
• Product Overview
• Installation
• Getting Started
• GWN Management Platforms
• Using GWN76XX as Standalone Access Point
• Using GWN76XX as Master Access Point Controller
• Failover Master
• Client Bridge
• SSIDs
• Clients Configuration
• System Settings
• LED Schedule
• Captive Portal
• Vouchers
• Mesh Network
• Bandwidth Rules
• DHCP Server
• Schedule
• LED Schedule
• Maintenance
• Upgrading and Provisioning
• Experiencing the GWN76XX Wireless Access Point
Page | 18
GWN76XX User Manual
Version 1.0.21.16
CHANGE LOG
This section documents significant changes from previous versions of the GWN76XX user manuals.
Only major new features or major document updates are listed here. Minor updates for corrections or
editing are not documented here.
Firmware Version 1.0. .21 16
Product Name: GWN7660 / GWN7664
• No major changes.
Firmware Version 1.0. .21 15
Product Name: GWN7630 / GWN7630LR
• Added support of Hotspot 2.0 R3Beta for GWN7630/GWN7630LR. [Hotspot 2.0]
Firmware Version 1.0.21.14/15
Product Name: GWN7605 / GWN7605LR / GWN7615 / GWN7630 / GWN7630LR / GWN7660 /
GWN7664
• Added support of Hotspot 2.0 R3Beta for GWN7660 [Hotspot 2.0].
• Added support of Bonjour Gateway. [Enable Bonjour Gateway]
Firmware Version 1.0. .721
Product Name: GWN7600 / GWN7600LR / GWN7610 / GWN76 60
• Enable FCC DFS channels for GWN7660 [Table DFS Channels supported by Model]39:
Firmware Version 1.0. .621
Product Name: GWN7630 / GWN7630LR / GWN7605 / GWN7605LR / GWN7615
• Upgraded the max number of supported SSIDs [Table : MAX SSID on each band]22
• Added Option to turn off U-APSD function [Table : Wi- ]21 Fi
• Added IPv6 support for internal GWN services [Table : Access Point Configuration Settings]20
• Added featu to Transfer AP to GWN manager [Transfer AP]re
• Added feature to allow Each AP to disable/Enable 2.4GHz or 5GHz independently [Table 20:
Access Point Configuration Settings]
• Added feature of TR-069 [ - ]TR 069
• Added feature of Google Authentication [Table Captive Portal – Policy List – Splash Page is 25:
Page | 19
GWN76XX User Manual
Version 1.0.21.16
“Internal”]
• Added feature to Delete inbound and outbound rules in batches [Firewall]
• Added feature to save network abnormal log to Flash [Debug]
• Added feature of Web lock for failed login [Access Web GUI]
Firmware Version 1.0. .19 32
Product Name: GWN76 / GWN7630LR / GWN7605 / GWN7605LR / GWN7615 / GWN7602 / 30
GWN7600 / GWN7600LR / GWN7610
• No major changes.
Firmware Version 1.0. .1419
Product Name: GWN7660
• This is the initial version for GWN7660
Firmware Version 1.0.19.29
Product Name: GWN7630 / GWN7630LR / GWN7605 / GWN7605LR / GWN7615
• No major changes
Firmware Version 1.0.19.25
• No major changes
Firmware Version 1.0.19.23
Product Name: GWN7610 / GWN7600 / GWN7600LR
• Added support for Secondary RADIUS Server. [Secondary RADIUS Server]
• Added support for Rogue AP Alert. [Alert Configure]
Firmware Version 1.0.19.22
Product Name: GWN7615 / GWN7602 / GWN7605 / GWN7605 / GWN7630 / GWN7630LRLR
• Added support for WPA3 (GWN7602 does NOT support). [Security Mode]
• Added support for Secondary RADIUS Server. [Secondary RADIUS Server]
• Added support for Rogue AP Alert. [Alert Configure]
• Added support of NET port VLAN settings [Net Port Type].
Page | 20
GWN76XX User Manual
Version 1.0.21.16
Firmware Version 1.0.19.15
• No major changes
Firmware Version 1.0. 919.
• Added support of Rogue AP Detection. [Rogue AP]
• Added support of 802.11w. [802.11w]
• Added support of AutoTX Power. [RADIO]
• Added Captive Portal Enhancement. [CAPTIVE PORTAL]
• Added support of SNMP. [SNMP]
• Added support of more DFS Channels. [Scene]
• Added support of NAT. [NAT]
• Added support of Firewall. [Firewall]
• Added support of Hotspot 2.0 Beta. [Hotspot 2.0]
• Added support of Multicast/Broadcast Suppression. [Multicast/Broadcast Suppression]
• Extended support of RRM to GWN Cloud and remaining AP models. [Transmit Power
Control][Coverage Hole Detection][Dynamic Channel Assignment]
• Added support of Active IGMP for feature Convert IP multicast to unicast enhancement. [Convert
IP multicast to unicast]
• Allow DHCP Option43 to override GWN Manager Address. [Allow DHCP Option 43 to override
GWN Manager Address]
Firmware Version 1.0. .15 20
Product Name: GWN7610 / GWN7600 / GWN7600LR / GWN7630 / GWN7630LR
• Added support for more DFS channels [Scene]
Firmware Version 1.0. .15 18
Product Name: GWN7605
• Added support for CE/RCM DFS channels [Scene]
Firmware Version 1.0. .515
Product Name: GWN7605
• This is the initial version for GWN7605
Firmware Version 1.0.15.4
Product Name: GWN7610 / GWN7600 / GWN7600LR/ GWN7630 / GWN7630LR
• Added support of GWM Manager GWN Manager]. [
Page | 21
GWN76XX User Manual
Version 1.0.21.16
• Added LED pattern of yellow to indicate Mesh disconnection. [LED Patterns]
• Upgraded TLS to version 1.2.
Firmware Version 1.0.15.6
Product Name: GWN7630 / GWN7630LR
• Added support for FCC DFS channels on GWN7630/GWN7630LR. [Scene]
Firmware Version 1.0.11.10
Product Name: GWN7630LR
• This is the initial version for GWN7630LR.
Firmware Version 1.0. 811.
Product Name: GWN7610 / GWN7600 / GWN7600LR / GWN7630
• Added support of DFS channel in EU for GWN7630. [Scene]
• Add support for Client Steering Client Steering]ed . [
• Add support for Minimum Rate Control. [RADIO]ed
• Add support for batch operations for Takeover. [Takeover Feature]ed
• Add support for Client inactivity timeout. [SSID]ed
• Enhanced Voucher feature by displaying remaining bytes. [Vouchers]
• Changed LED Pattern. [LED Patterns]
• Changed Local Master External Portal Configuration. [External Splash Page]
• Changed default setting of Mesh to OFF. [Mesh]
Firmware Version 1.0.8.18
Product Name: GWN7610 / GWN7600 / GWN7600LR
• Added support of ARP Proxy. [ARP Proxy]
• Enhanced Bandwidth Rules by adding option to limit bandwidth Per-User. [Range Constraint]
Firmware Version 1.0.8.9
Product Name: GWN7610 / GWN7600 / GWN7600LR
• No major changes
Firmware Version 1.0.7.13
Product Name: GWN7610 / GWN7600 / GWN7600LR
Page | 22
GWN76XX User Manual
Version 1.0.21.16
• Added support of Radio Resource Management (RRM). [Dynamic Channel Assignment] [Transmit
Power Control Coverage Hole Detection]] [
Firmware Version 1.0.4.22
Product Name: GWN7610
• Included patch for WPA2 4-way handshake vulnerability [VU#228519]
Firmware Version 1.0.4.20
Product Name: GWN7610
• Added support for Timed Client Disconnect and Enhanced Client Blocking [CLIENTS]
• Added support for Client Bridge [Client Bridge]
• Added support for Syslog server [Syslog]
• Added support for Configurable Web UI access port Web HTTPS Port]. [
• Added support for E-mail notifications [Email]
Firmware Version 1.0.4.12
Product Name: GWN7600 / GWN7600LR
• Added support for Timed Client Disconnect and Enhanced Client Blocking [CLIENTS]
• Added support for Client Bridge [Client Bridge]
• Added support for Syslog server [Syslog]
• Added support for Configurable Web UI access port [Web HTTPS Port].
• Included patch for WPA2 4-way handshake vulnerability [VU#228519]
Firmware Version 1.0.3.25
Product Name: GWN7600 / GWN7600LR
• No major changes.
Firmware Version 1.0.3.21
Product Name: GWN7610
• No major changes.
Firmware Version 1.0.3.19
Product Name: GWN7610 / GWN7600 / GWN7600LR
• Added support for captive portal [CAPTIVE PORTAL]
Page | 23
GWN76XX User Manual
Version 1.0.21.16
• Added support for 802.11k/r/v [Enable Voice Enterprise]
• Added support for failover master [Failover Master]
• Added support for VLAN assignment via RADIUS [SSID Enable Dynamic VLAN (beta)]][
• Added support for Select SSID Band [SSID Band]
• Added support for Exact Radio Power Configuration in dBm [Custom Wireless Power]
• Added support for AP Location [AP Location]
• Added support for Per-Client/Per-SSID bandwidth rules Bandwidth Rules]. [
• Added support for - Schedule. [Schedule]Wi Fi
• Added support for LED control. [LEDs]
• Added option to enable/disable DHCP option 66 & 43 override [Allow DHCP options 66 and 43
override]
Firmware Version 1.0.2.108
Product Name: GWN7610
• Added Controller protocol security enhancement. [Controller Protocol Security Enhancement]
• Added support for LED control LEDs]. [
• Added support for Captive Portal. [CAPTIVE PORTAL]
• Added support for Wi-Fi schedule. Schedule]. [
• Added Client Isolation enhancement. [SSID]
• Added support to store Syslog locally on the unit and display it on Web GUI. [Syslog]
Firmware Version 1.0.2.15
Product Name: GWN7610
• Added New Overview Page.
• Added Web UI enhancement.
• Added support for Password change on first boot.
• Added Country code selection into setup wizard.
Firmware Version 1.0.1.31
Product Name: GWN7600 / GWN7600LR
• This is the initial version.
Firmware Version 1.0.1.27
Product Name: GWN7610
• This is the initial version.
Page | 25
GWN76XX User Manual
Version 1.0.21.16
The GWN7605/GWN7605 is a high-performance- -price 802.11ac Wave-2 Wi-Fi access point for small LR to
to medium sized businesses, multiple floor offices, commercial locations, and branch offices. It offers dual-
band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum
network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management,
the GWN7605/GWN7605 uses a controller-less distributed network management design in which the LR
controller is embedded within the product's web user interface. With a slight difference in the GWN7605 LR
which is an outdoor Wi-Fi access point offers extended coverage range support for both indoor and that
outdoor deployments. Both products are supported by GWN.Cloud and GWN Manager, Grandstream’s
cloud and -premises -Fi management platforms. Excellent -Fi APs for voice-over- -Fi on Wi Wi Wi
deployments and offer a seamless connection with Grandstream’s - -capable IP phones. With support Wi Fi
for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 100+ concurrent
clients per AP and dual Gigabit network ports with PoE/PoE+, they are ideal Wi-Fi access points for
medium wireless network deployments with medium user density.
The GWN7660 is a high-efficiency, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small- -to
medium sized businesses, multiple floor buildings, residential settings, and commercial locations. It offers
dual-band 2×2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for
maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and
management, the GWN7660 uses a controller-less distributed network management design in which the
controller is embedded within the product’s Web user interface. The GWN7660 is also supported by
GWN.Cloud and GWN Manager, Grandstream’s cloud and -premises -Fi management platform. It is on Wi
the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s
Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh
networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+,
GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium- -high to
user density.
The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small- -medium to
sized businesses, multiple floor buildings, residential settings, and commercial locations. It offers dual-
band 4x4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for
stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi
cover age range. The GWN7664 is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud
and on-premises Wi-Fi management platform that and makes managing your network or several networks
across multiple locations easier than ever before. It also uses a controller-less network management
architecture in which the controller is embedded within the product’s web user interface for easy
administration of locally deployed Wi-Fi Aps. The GWN7664 is the ideal Wi-Fi AP for voice-over- -Fi Wi
deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support
Page | 26
GWN76XX User Manual
Version 1.0.21.16
for advanced QoS, low latency real-time applications, mesh networks, captive portals, 512 concurrent
clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for
business-grade wireless network deployments with medium- -high user density.to
Caution:
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
Note (VU#228519): “Out of the box” Grandstream Access Points are not affected by this issue. APs with
old firmware are only affected after changing into client-bridge mode. Please refer to our white paper of
“WPA Security Vulnerability” .here
Page | 29
GWN76XX User Manual
Version 1.0.21.16
Table 2 GWN7660 Technical Specifications:
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax.
Antennas
2 dual band internal antennas
2.4GHz, gain 3dBi / 5 GHz, gain 4dBi
Wi-Fi Data Rates
5G:
IEEE 802.11ax: 7.3 Mbps to 1201 Mbps
IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance
between devices, radio interference in the operating environment and mix of devices in the network.
Frequency Bands
2.4 GHz Radio: 2412 – 2484 GHz
5 GHz Radio: 5180-5825 GHz (FCC, IC, RCM)
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20, 40 and MHz80
Wi-Fi and System
Security
WEP, WPA3, WPA/WPA2 PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking ‐ ‐
secure boot and critical data/control lockdown via digital signatures, unique
security certificate and random default password per device
MIMO
2×2:2 5GHz
2×2:2 2.4GHz
Coverage Range
575ft. (175 meters)
*coverage range can vary based on environment
Maximum TX Power
2.4G: dBm24
5G: dBm22
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -
75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7; 802.11ax
20MHz: -60dBm @
MCS11; 802.11ax 40MHz: -58dBm @MCS11
Page | 30
GWN76XX User Manual
Version 1.0.21.16
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -
67dBm@MCS8;
802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;
802.11ax 20MHz: -60dBm @
MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm
@MCS11 Receiver sensitivity varies by frequency band, channel width and MCS rate
SSIDs
32 SSIDs total, 16 per radio (2.4GHz and 5GHz)
Concurrent Clients
256
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
3 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network
Management
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Auto Power Saving
Self-power adaptation upon auto detection of PoE or PoE+
Power and Green
Energy Efficiency
Power over Ethernet 802.3af/802.3at compliant
Maximum Power Consumption: 9W.
Environmental
Operation: 0°C to 45°C
Storage: -10°C to 60°C
Humidity: 10 to 90% Non-condensing％
Physical
Unit Dimension: 180.4mm 180.4mm mm; Unit Weight: 443gx x 40.8
Entire Package Dimension: 228.5x220x79mm; Entire Package Weight: 774g
Package Content
WN7660 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
Compliance
FCC, CE, RCM, IC
Table 3: GWN7630 Technical Specifications
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac (Wave-2).
Antennas
4x 2.4 GHz, gain 4dBi, internal antenna
4x 5 GHz, gain 5dBi, internal antenna
Wi-Fi Data Rates
IEEE 802.11ac: 6.5 Mbps to 1733Mbps
Page | 31
GWN76XX User Manual
Version 1.0.21.16
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance
between devices, radio interference in the operating environment and mix of devices in the network.
Frequency Bands
2.4 GHz Radio: 2412 – 2484 GHz
5 GHz Radio: 5180-5825 GHz (FCC, IC, RCM)
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20, 40, 80 MHz
Wi-Fi and System
Security
WEP, WPA3, WPA/WPA2 PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking ‐ ‐
secure boot and critical data/control lockdown via digital signatures, unique
security certificate and random default password per device
MIMO
4x4:4 2.4GHz (MIMO)
4x4:4 5GHz (MU-MIMO)
Coverage Range
575ft. (175 meters)
*coverage range can vary based on environment
Maximum TX Power
2.4G: 27 dBm
5G: 25 dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps,
-75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm
@MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -
67dBm@MCS8;
802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9;
* Receiver sensitivity varies by frequency band, channel width and MCS rate
SSIDs
32 SSIDs total, 16 per radio (2.4GHz and 5GHz)
Concurrent Clients
200+
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
3 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Page | 32
GWN76XX User Manual
Version 1.0.21.16
QoS
802.11e/WMM, VLAN, TOS
Network
Management
Embedded controller in GWN7630 allows it to auto-discover, auto-provision and
manage up to 50 GWN76XX in a network
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
Auto Power Saving
Self-power adaptation upon auto detection of PoE or PoE+
Power and Green
Energy Efficiency
Power over Ethernet 802.3af/802.3at compliant
Maximum Power Consumption: 16.5W; Supports 802.3 az.
Environmental
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10 to 90% Non-condensing％
Physical
Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 590g
Unit + Mounting Kits Dimension: 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits
Weight: 710g
Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight:930g
Package Content
GWN7630 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance
FCC, CE, RCM, IC
Table 4: GWN76 Technical Specifications15
Wi-Fi Standards
IEEE 802.11a/b/g/n/ac (Wave-2)
Antennas
3 dual band internal antennas
2.4GHz, gain 3dBi
5 GHz, gain 3dBi
Wi-Fi Data Rates
IEEE 802.11ac: 6.5 Mbps to 1300Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5 Mbps to 0 45 Mbps
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance
between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4 GHz Radio: 2412 – 2484 MHz
5 GHz Radio: 5180-5825 MHz
Channel Bandwidth
2.4G: 20 and 40MHz
5G: 20 , and 80MHz, 40
Page | 33
GWN76XX User Manual
Version 1.0.21.16
Wi-Fi and System
Security
WEP, WPA3 WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot ,
and critical data/control lockdown via digital signatures, unique security certificate
and random default password per device
MIMO
3 3:3 2.4G(MIMO)×
3 3:3 5G(MU-MIMO)×
Coverage Range
Up to175 meters
*coverage range can vary based on environment
Maximum TX Power
2.4G: 26 dBm
5G: 24 dBm
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -
75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm
@MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -
67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm
@MCS9
SSIDs
32 SSIDs total, 16 per radio (2.4GHz and 5GHz)
Concurrent Clients
200+
Network Interfaces
2× autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1× Reset Pinhole , 1× Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
1× tri-color LED for device tracking and status indication
Network Protocols
IPv4 IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM,
QoS
802.11e/WMM, VLAN, TOS
Network
Management
≤ 50 APs: Light-weight Master in AP
≤ 3000 APs: -Premises controllerOn
≤ +∞ APs: Cloud management
Power and Green
Energy Efficiency
POE 802.3af/ 802.3at;
Max Consumption: 12.5W
Environmental
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 205.4 x 205.4 x 45.9mm; Unit Weight: 500g
Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 867.3g
Page | 34
GWN76XX User Manual
Version 1.0.21.16
Package Content
GWN7615 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance
FCC, CE, RCM, IC
Table 5: GWN7610 Technical Specifications
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac
Antennas
3x 2.4 GHz, gain 3 dBi, internal antenna 3x 5 GHz, gain 3 dBi, internal antenna,
Wi-Fi Data Rates
IEEE 802.11ac: 6.5 Mbps to 1300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5 Mbps to 450 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions,
distance between devices, radio interference in the operating environment and mix of
devices in the network
Frequency Bands
2.4GHz radio: 2.400 - 2.4835 GHz
5GHz radio: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz (FCC, IC, RCM)
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
Wi-Fi and System
Security
WEP, WPA3, WPA/WPA2 PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking ‐ ‐
secure boot and critical data/control lockdown via digital signatures, unique
security certificate and random default password per device
MIMO
3x3:3 2.4GHz,
3x3:3 5GHz
Coverage Range
575ft. (175 meters)
*coverage range can vary based on environment
Maximum TX Power
5G: 26dBm (FCC) / 20dBm (CE)
2.4G: 26dBm (FCC) / 17dBm (CE)
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b:-92dBm@11Mbps; 802.11g:-76dBm@54Mbps; 802.11n 20MHz:
-73dBm@MCS7; 802.11n 40MHz:-70dBm@MCS7
5G
802.11a:-94dBm@6Mbps; 801.11a:-77dBm@54Mbps; 802.11ac 20MHz:
-69dBm@MCS8; 802.11ac HT40:-65dBm@MCS9; 802.11ac 80MHz:
1dBm@MCS9
Page | 35
GWN76XX User Manual
Version 1.0.21.16
* Receiver sensitivity varies by frequency band, channel width and MCS rate
SSIDs
32 SSIDs total, 16 per radio (2.4GHz and 5GHz)
Concurrent Clients
250+
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
3 multi-color LEDs for device tracking and status indication
Network Protocols
IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network
Management
Embedded controller in GWN7610 allows it to auto-discover, auto-provision and
manage up to 50 GWN76XX s in a network.
GWN.Cloud offers a free cloud management platform for unlimited GWN Aps
Auto Power Saving
Self-power adaptation upon auto detection of PoE or PoE+
Power and Green
Energy Efficiency
DC Input: 24VDC/1A
Power over Ethernet 802.3af/802.3at compliant
Maximum Power Consumption: 13.8W
Environmental
Operation: 0°C to 50°C
Storage: -10°C to 60°C
Humidity: 10 to 90% Non-condensing％
Physical
Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 540g
Unit + Mounting Kits Dimension: 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits
Weight: 600g
Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 900g
Package Content
GWN7610 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance
FCC, CE, RCM, IC
Table 6 GWN76 Technical Specifications: 05
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas
2 dual band internal antennas
2.4GHz, gain 3dBi
5 GHz, gain 4dBi
Wi-Fi Data Rates
IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Page | 36
GWN76XX User Manual
Version 1.0.21.16
IEEE 802.11n: 6.5Mbps to 300Mbps.
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions,
distance between devices, radio interference in the operating environment and mix of
devices in the network
Frequency Bands
2.4GHz radio : 2412 – 2484 MHz
5GHz radio : 5180-5825 MHz
Channel Bandwidth
2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz
Wi-Fi and System
Security
WEP, WPA3, WPA/WPA2 PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking ‐ ‐
secure boot and critical data/control lockdown via digital signatures, unique
security certificate and random default password per device
MIMO
2x2:2 2.4GHz (MIMO)
2x2:2 5GHz (MU-MIMO)
Coverage Range
Up to 165 meters
*coverage range can vary based on environment
Maximum TX Power
5G: 24dBm
2.4G: 22dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -
75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm
@MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -
67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm
@MCS9
* Receiver sensitivity varies by frequency band, channel width and MCS rate
SSIDs
16 SSIDs total, 8 per radio (2.4GHz and 5GHz)
*GWN7605 when deployed as Master can only be added to 8 SSIDs.
Concurrent Clients
100+
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
3 multi-color LEDs for device tracking and status indication
Page | 38
GWN76XX User Manual
Version 1.0.21.16
2×2:2 5GHz (MU-MIMO))
Coverage Range
Up to 250 meters
*coverage range can vary based on environment
Maximum TX Power
2.4G: 24 dBm
5G: 22dBm
Receiver Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -
75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm
@MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -
67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm
@MCS9
SSIDs
16 SSIDs total, 8 per radio (2.4GHz and 5GHz)
*GWN7605LR when deployed as Master can only be added to 8 SSIDs.
Concurrent Clients
100+
Network Interfaces
2× autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1× Reset Pinhole
Mounting
Outdoor metal bar mount or wall mount, kits included
LEDs
1 tri-color LED for device tracking and status indication
Network Protocols
IPv4 IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM,
QoS
802.11e/WMM, VLAN, TOS
Network
Management
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for almost unlimited GWN
Aps
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green
Energy Efficiency
POE 802.3af/ 802.3at;
Maximum Power Consumption: 10.16W
Environmental
Operation: -30°C to 60°C
Storage: -30°C to 70°C
Humidity: 10% to 90% Non-condensing
Physical
Physical Unit Dimension: 358.3mm(L)*115mm(W)*45.3mm(H); Unit Weight: 500g
Entire Package Dimension: 258 × 247× 86mm; Entire Package Weight:655.3g
Package Content
GWN7605LR 802.11ac Wave- Wireless AP, Mounting Kits, Quick Start Guide2
Water Proof
IP66-level weatherproof capability when installed vertically
Page | 42
GWN76XX User Manual
Version 1.0.21.16
Entire Package Weight: 1844g
Package Content
Enterprise 802.11ac Wave-2 Outdoor Long Range - Access Point, Mounting Wi Fi
Kits, Quick Installation Guide
Waterproof Grade
IP66-level weatherproof capability when installed vertically
Compliance
FCC, CE, RCM, IC
Table : GWN7630LR Technical Specifications10
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac (Wave-2)
Antennas
4 detachable/changeable dual-band omnidirectional antennas
2.4GHz, gain 3.5dBi 5GHz, gain 3.5dB;
Wi-Fi Data Rates
IEEE 802.11ac: 6.5 Mbps to 1733Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance
between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands
2.4 GHz Radio: 2412 – 2484 MHz
5GHz Radio: 5150-5250MHz, 5250-5350MHz, 5470-5725MHz, 5725-5850MHz
*Not all frequency bands can be used in all regions.
Channel Bandwidth
2.4G: 20 and 40 MHz 5G: 20,40 and 80 MHz;
Wi-Fi and System
Security
WEP, WPA3, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot
and critical data/control lockdown via digital signatures, unique security certificate
and random default password per device
MIMO
4x4:4 2.4G (MIMO),
4x4:4 5G (MU-MIMO)
Coverage Range
Up to 984ft. (300 meters)
*Coverage range can vary based on environment
Maximum TX
Power
2.4G: 2 dBm7
5G: 25 dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver
Sensitivity
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -
75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm
@MCS7
5G
Page | 43
GWN76XX User Manual
Version 1.0.21.16
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8;
802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
SSIDs
32 SSIDs total, 16 per radio (2.4GHz and 5GHz)
Concurrent Clients
200+
Network Interfaces
2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1x Reset Pinhole
Mounting
Wall mount or pole mount - kits included
LEDs
1x tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network
Management
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
Power and Green
Energy Efficiency
PoE 802.3af/ 802.3at;
Max Consumption: 16.5W
Temperature
& Humidity
Operation: -30°C to 60°C
Storage: -30°C to 70°C
Humidity: 5% to 95% Non-condensing
Physical
Unit Dimension: 533.1 × 115 × 40mm; Unit Weight: 564g
Unit + Mounting Kits Dimension : 533.1×115 ×62mm; Unit + Mounting Kits
Weight : 706g
Entire Package Dimension: 258 × 247× 86mm; Entire Package Weight: 978g
Package Content
GWN7630LR 802.11ac Wireless AP, Mounting Kits, Quick Installation Guide
Waterproof Grade
IP66-level weatherproof capability when installed vertically
Compliance
FCC, CE, RCM, IC
Page | 50
GWN76XX User Manual
Version 1.0.21.16
Step 6:
Turn the GWN clockwise until it locks into place and fits the locking
tab.
Note:
Ceiling mounting is recommended for optimal coverage performance.
Mounting Instructions for GWN7600LR
Please refer to the following steps for the mounting your GWN7600LR correctly.
1. Prepare the Cover Bracket by inserting the 4 screws (PM8) into corresponding holes.
2. Attach the Cover Bracket with screws on the vertical/horizontal Mounting Bolt were GWN7600LR
will be installed.
3. Assemble the Base Bracket with the Cover Bracket using provided locknuts and screws (PM8).
4. Connect the Ethernet cable (RJ45) to the correct ports of your GWN7600LR.
5. Align the GWN7600LR with the Base Bracket and pull it down to the right position.
6. Install the 2x Assembled screws to fix GWN7600LR on the Mounting Bolt.
Figure : GWN7600LR Vertical Mounting16
Figure : Ceiling Mount – Steps 5 & 615
Page | 53
GWN76XX User Manual
Version 1.0.21.16
GETTING STARTED
The GWN76XX Wireless Access Point provides an intuitive web GUI configuration interface for easy
management to give users access to all the configurations and options for the GWN76XX’s setup.
This section provides step- -step instructions on how to read LED patterns, discover the GWN76XX and by
use its Web GUI interface.
LED Patterns
The panel of the GWN76XX has different LED patterns for different activities, to help users read the status
of the GWN76XX whether it is powered up correctly, provisioned, in upgrading process and more, for more
details please refer to the below table.
Table : LED Patterns15
LED Status
Indication
OFF
Unit is powered off or abnormal power supply.
Blinking green
Firmware update in progress.
Solid green
Firmware update successful.
Blinking red
Delete paired slave - Factory reset initiated.
Solid red
Firmware update failed.
Solid purple
Unit not provisioned.
Blinking blue
Unit provisioning in progress.
Solid blue
Unit is provisioned successfully.
Blinking White
Used for Access Point location feature
Yellow
Mesh disconnection.
Page | 56
GWN76XX User Manual
Version 1.0.21.16
Access Web GUI
The GWN76XX embedded Web server responds to HTTPS GET/POST requests. Embedded HTML pages
allow users to configure the device through a Web browser such as Microsoft IE, Mozilla Firefox, Google
Chrome and etc.
Figure GWN76XX Web GUI Login Page23:
To access the Web GUI:
1. Make sure to use a computer connected to the same local Network as the GWN76XX.
2. Ensure the device is properly powered up.
3. Open a Web browser on the computer and type in the URL using the MAC address as shown in
[ ] or the IP address using the following format: Discover the GWN76XX https://IP_Address
4. Enter the administrator’s login and password to access the Web Configuration Menu. The default
administrator's username is always "admin" and password is the unique default -Fi PasswordWi
available on the sticker on the back of the unit.
Note:
GWN AP’s web UI access will be locked for 15 mins after 5 login failures
WEB GUI Languages
Currently the GWN76XX series web GUI supports and English Simplified Chinese.
Users can select the displayed language at the upper right of the web GUI either before or after log . in
Page | 59
GWN76XX User Manual
Version 1.0.21.16
GWN MANAGEMENT PLATFORMS
GWN.Cloud
Starting from firmware 1.0.6.41/1.0.6.43, the GWN76XX can be managed by your account, GWN.Cloud
GWN.Cloud web interface now can be accessed at https://www.gwn.cloud.
Figure : GWN.Cloud Architecture28
GWN Manager
Starting from firmware 1.0.13.1, the GWN76XX can be managed and monitored by your GWN Manager
account, GWN Manager -premises Access Points Controller platform can be installed using the link On
below: https://www.grandstream.com/support/firmware
Figure GWN Manager Architecture29:
Note: GWN Manager installation is supported on virtual machines (Tested on only).VMware
Please refer to for more detailed information.GWN Management Platform User Guide
Page | 61
GWN76XX User Manual
Version 1.0.21.16
USING GWN76XX AS MASTER ACCESS POINT CONTROLLER
Master Mode allows a GWN76XX to act as an Access Point Controller managing other GWN76XX access
points. This will allow users adding other access points under one controller and managing them in an
easy and a centralized way
Master/Slave mode is helpful with large installations that needs more coverage area zones with the same
controller.
Figure Login Page31:
Warning:
“ ” option will forbid the GWN76XX Access Point from being paired by other Master Set unit as Master
GWN76XX and can only act as Master Access point controller.a
Users will need to perform a factory reset to the GWN76XX , or unpair it from the initial GWN76XX to make
it open to Master Access Point mode again.
