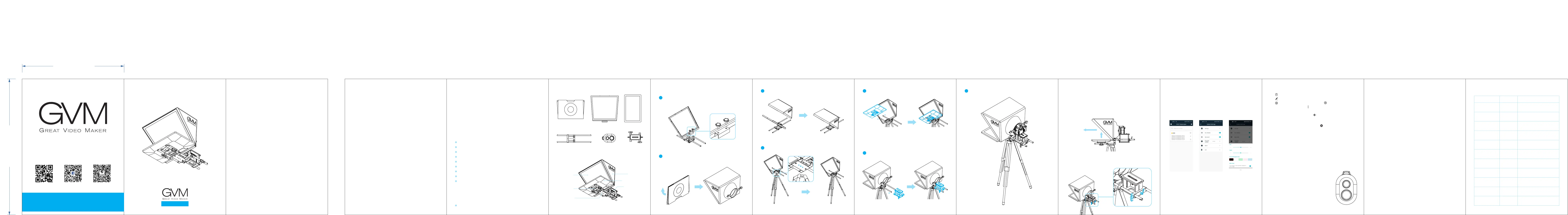

Side 1/1
160.00mm
120.00mm
封底 封面
封底和封面的另一面留白，书本形式
Before assembly
Mirror screen components
TQ-LD
1 5 6 7 82 3 4
Hood Display assembly
5
As shown in the figure below, first loosen the screws on the front of the ‘base’,
install the ‘display assembly’ on the ‘base’, and then install the screws back.
6
7
As shown in the figure below, first loosen the screws at the back of the ‘base’,
install the ‘camera bracket’ to the ‘base’, and then install the screws back.
As shown in the figure below, install the ‘camera’ to the ‘camera bracket’.
After assembly
Mirror screen
components
Hood
Thumb screw
Screw hole
Camera bracket
9 10 11 12
Thanks for using "TQ-LD", this product is specially created for senior
photography enthusiasts. The product can solve the problem of forgetting words
and wrong words in live broadcast/studio photography/YouTube video shooting,
making broadcasting more relaxed and natural.
①
INTRODUCTION
The base and bracket made of aluminum alloy make the equipment both
light and strong.
②The whole set of equipment adopts a simple and user-friendly
handtightening screw structure, which is quick and easy to install. It has
a multistage installation method. The ‘display assembly’ and the ‘camera
bracket’ can be adjusted as needed. The distance of the mirrored screen
and the height of the camera. Simple operation and convenient control.
③For shooting, it is compatible with the installation of various photographic
equipment such as SLR/digital cameras/camcorders.
④The mirror plane adopts a colorless beam splitter, the surface is multilayer
dielectric coating (hard film), no light loss, suitable for all kinds of
highdefinition lenses, wide viewing angle design, the prompter document
display isclear, there is no ghost, and the shooting is not worn.
We firmly believe that the correct use of this product will definitely be of great
help to your shooting work. It is strongly recommended that you read the
following user guide carefully before using the product.
The main features of the product are:
1.
DISCLAIMER
Before using this product, please read the text carefully to ensure that the product
has been operated correctly. Failure to follow and do not follow the instructions
and warnings in this article may cause injury to you and the people around, or
even damage the product or other surrounding items.
2. Once you use this product, you are deemed to have carefully read the disclaimer and
warning, understand and acknowledge all the terms and content of this statement,
and promise to take full responsibility for the use of this product and the possible
consequences.
PARAMETER
Brand : GVM
Product Name : Teleprompter
Product Mode : TQ-LD
Product Type : Photgraphy Equipment
Product Weight : 7.5KG
Holding Weight : 10KG
Product Size(mm) : 575x415x380
Product Material : Aluminum Alloy
Function / Feature :
Commodity origin : China. Huizhou
①18.5 in Android all-in-one Screen
③You can use a variety of photography equipment including mirrorless
single-lens, single-lens reflex, and cameras.
②Lightweight and easy to assemble and simple to operate.
STRUCTURE
Display assembly
2
Unfold the ‘shading hood’ as shown in the figure below.
1
As shown in the figure below, install the ‘mirror screen assembly’ to the ‘base’
and fix it with screws.
INSTALLATION
3
4
As shown in the figure below, use the magnet on the ‘shading cover’ to
install the ‘shading cover’ to the ‘mirror screen assembly’.
As shown in the figure below, install the ‘prompter’ on the tripod.
The mirroring screen can reflect the content of the ‘display assembly’ underneath
when the camera is shooting, so that the subject can look directly at the lens and
see the content of the ‘display assembly’ in the mirroring screen, which is very
good for the subject The teleprompter function does not affect the shooting at the
same time.
① Reflect the content displayed on the ‘display screen assembly’ :
FUNCTION & USE
‘Camera bracket’ can be installed SLR, camcorder, digital camera, DV machine.
Loosen the knob shown below to adjust
the position of the ‘camera stand’.
② Compatible with various photographic equipment :
Open the ‘GVM Teleprompter’ software in the ‘display component’ enter →
the APP, you can use the APP to set the content, font size, playback speed,
background color and whether to mirror.
APP main interface
①On the main interface of the APP, click on the "+" in the upper left corner
to create a play file, you can choose "Add directly" is written on the APP,
and can also import existing txt or Word files on the phone. The play file
is created a new play file appears on the main interface of the APP. →
②
Setting interface Playback settings Interface
On the main interface of the APP, click “ ” in the upper right corner to
enter the setting interface click on the play setting to enter Enter the →
playback setting interface. Here you can also set the font size and
broadcast, Play speed, background color and whether to mirror.
③
On the main interface of the APP, click on the right side of the file to be set:
Bluetooth
remote control
APP SETTING
“ ” Delete Files;
“ ” Modify the content of the file;
“ ” To enter the play interface click “ ” on the play interface to →
start / pause the text; Click “ ” in the lower right corner to set the font
size, playback speed, and background when playing text.Color and
whether it is mirrored; click on the “ ” in the lower left corner to return to
the main interface of the APP.
APP CONTROL
When using our APP to play text, we can use the Bluetooth
controller we provide to control the “start/pause” of the text
playback of the APP. The controller controls the APP
through Bluetooth connection.
Scan the QR code on the back of the manual to download the APP
Turn on the IPAD Bluetooth find the Bluetooth named →
"AB Shutter3" and connect it → → wait for the connection
after the connection is successful, press any one of the
two buttons of the controller to control the "start/pause" of
the text playback of the APP.
NOTIFICATION
①
②The product is not anti-corrosion. Do not let the product come into contact
with any corrosive liquid
③When the product is in use, ensure that the product is placed firmly to prevent
the product from falling and being damaged
The product is not waterproof, please use it in a rainproof environment.
PRESERVATION
Accessories：Please use the accessories provided by the manufacturer or approved
accessory products in order to give full play to the best performance.
Warranty：This machine does not contain modifiable parts. Do not disassemble or modify,
otherwise the warranty rights will be lost.
Do not store this machine in a highly humid environment with strong direct
sunlight.
Maintenance: If the machine is faulty or its performance is degraded, please do not repair it
yourself to avoid damage to the machine and loss of warranty rights. In case of machine
malfunction, please contact us in time, and we will do our best for you.
Cleaning: Please use a damp cloth to clean, do not use any detergent or solvent, otherwise
it will damage the surface processing layer.
N a m e
Mirror component
Q u a n t i t y N o te s
1
Hood
1
Baase
1
Display assembly
1
Camera bracket
1
1
Bluetooth remote
1
control Manual
PACKING LIST
C O N T E N T S
Introduction ----------------------------------- --------------- -- - -- Page 1
Disclaimer -------------------------------------------- Page 2-------------
Parameter ------ ------------------ ----------- Page 2--------- --------- ----
Structure --------------------------------------------- -- Page 3----------- --
Installation ------------------------------------------- --- -- Page 4~7----- -
Function & Use ---------------------------------------------------- Page 8
APP Setting ----------------------------- ----------- Page 9~10---------- -
APP Control -------------------------------------------- Page 10----------
Notification ----------------------- -------------------- Page 11---------- -
preservation -------------------------------------- Page 11---------------
Packing List ------------- Page 12-----------------------------------------
Web: www.gvmled.com
B&H Email: bh@gvmled.com
GVM Email: support@gvmled.com
Amazon Email: amazonsupport@gvmled.com
Warehouse Add: 4301 N Delaware ave, unit D. PHILADELPHIA, PA19137, USA
FacebookGVM Official
website
Download APP
