C-DMM-2004_INST_1-16

INSTALL INSTRUCTIONS

C-DMM-2004 Dash Monitor Mount

2011-2017 Dodge Charger Police Package Vehicle with Standard Interior

and with Interior Upgrade Package

NOTE: WILL NOT WORK WITH 12.1 INTEGRATED TOUCH SCREEN

Notes:

1. The C-DMM-2000 series Dash Monitor Mount brackets are specifically designed to work with

Havis, Inc, model # TSD-101 Touch Screen Display.

2. The display mount bracket includes a VESA 75 hole pattern that can also be used for some light

weight tablet docking station applications. Acceptable positioning must be determined by end user.

3. The C-DMM-2004 will work with all Havis, Inc. consoles made for the Dodge Charger.

TOOLS REQUIRED: (some tools not needed for all vehicle installations)

• Socket set - metric & standard • Drill & drill bits • Tape measure

• Phillips screwdriver • Trim removal tools • Pencil / Marker

MOUNT BRACKET PARTS and HARDWARE:

Installation parts with * come loose in hardware kit bag. Other parts are preassembled

QTY: DESCRIPTION: PART #:

1 Charger display mount bracket MT-0279-SM

1 Charger side support bracket MT-0281-SM

1 Charger upper support bracket MT-0278-SM

1 Pivot / display mount bracket MT-0269-SA *

1 Tilt swivel hinge GSM22005

1 M8 hex nut SS GSM30113

1 M8 lock washer SS GSM31217

6 #10 x 3/4" Self tapping screw GSM34432 *

6 8-32 x .312” Phillips truss head machine screw GSM34077 *

1 Vinyl cap ( .50” high x .312 - .375 id) GSM41127

2 Pull through bumper (3mm head) GSM21109

2 Push in bumper (10mm head) GSM21108

2 M5 x 10mm Thread forming screw GSM33774

C-DMM-2004_INST_1-16

ALWAYS!

• Read all instructions before installing any Havis, Inc products.

• Use hardware provided with install kit

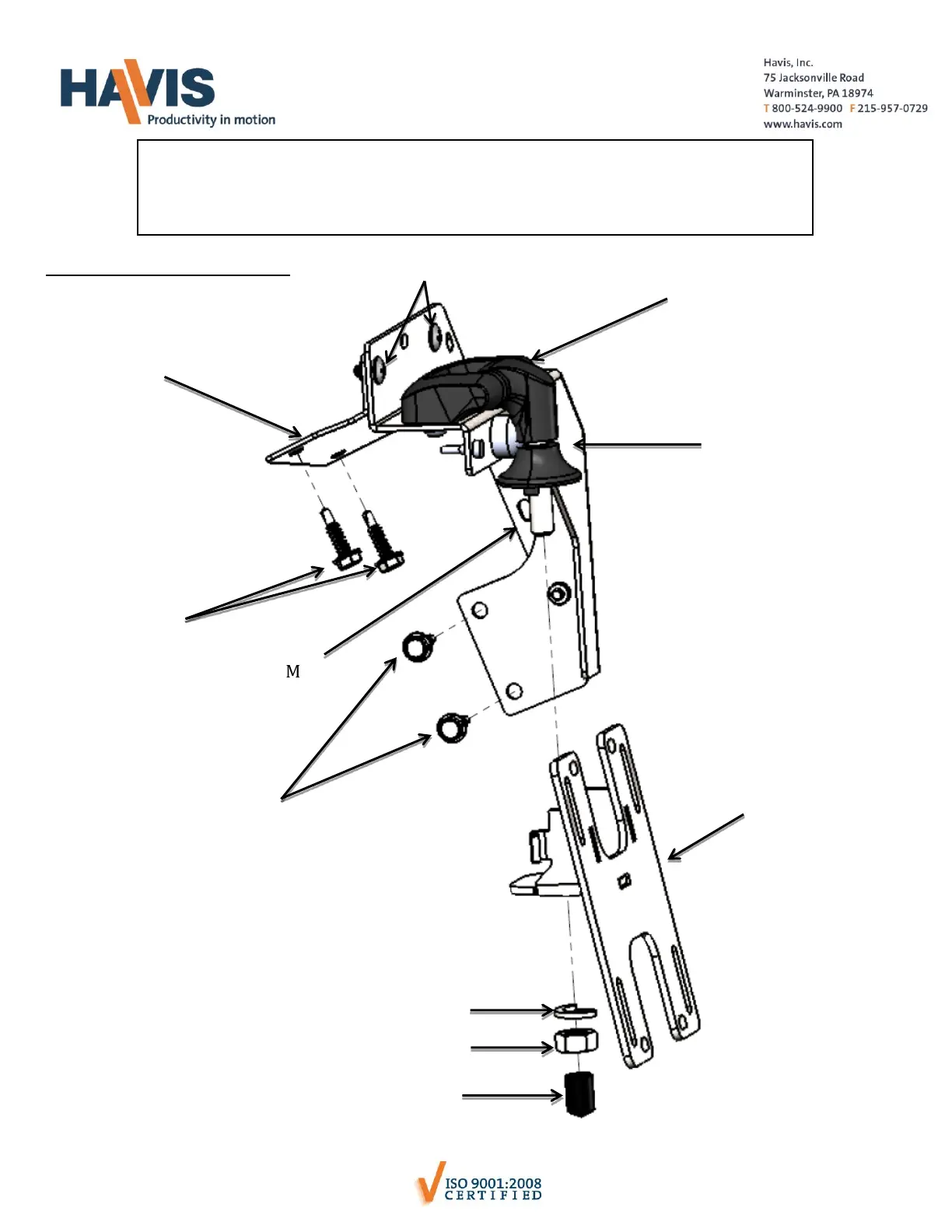

C-DMM-2004 assembly

GSM30113

GSM41127

GSM22005

MT-0269-SA *

GSM34432*

GSM31217

GSM34432*

GSM34077 *

MT-0281-SM

MT-0279-SM with

GSM21108, GSM21109

MT-0278-SM
