Side 1/3

2.125

.250

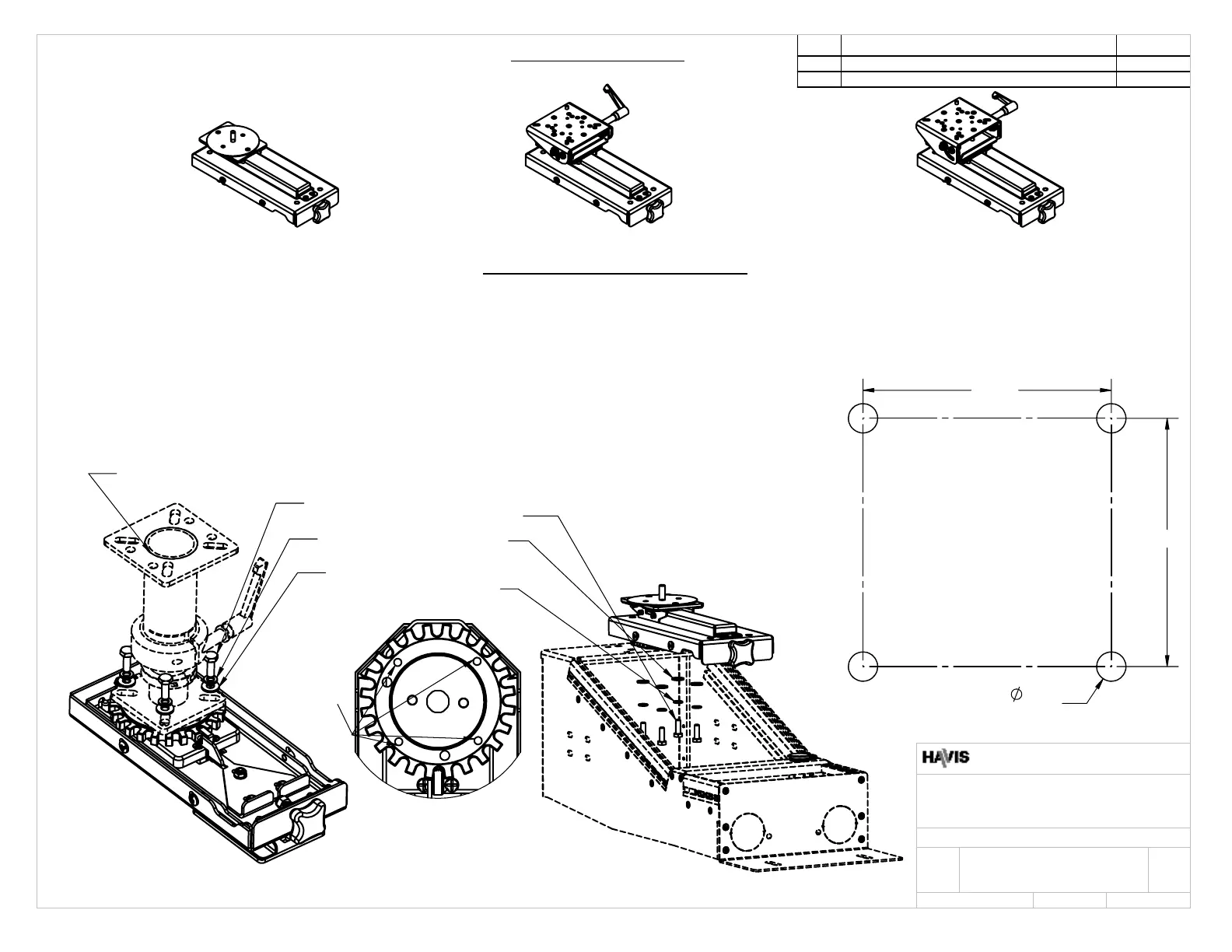

HAVIS HDM-200 SERIES POLE SHOWN (NOT INCLUDED)

1/4-20 X 3/4" HEX HEAD BOLT

(GSM33001)

1/4" SPLIT LOCK WASHER

(GSM31026)

1/4" SAE FLAT WASHER

(GSM31005)

VIEW FROM BOTTOM FOR CLARITY

DRILL TEMPLATE

(ACTUAL SIZE)

MD-120 SERIES MODELS

HAVIS VS CONSOLE

SHOWN (NOT INCLUDED)

1/4-20

THREADED

HOLES

C-MD-121

C-MD-122

C-MD-123

SURFACE MOUNTING INSTRUCTIONS

MD-120 SERIES MOTION DEVICES CAN BE MOUNTED TO ANY FLAT SURFACE, INCLUDING CONSOLE TOPS AND HDM POLES. IF SURFACE DOES NOT HAVE

PREDRILLED HOLES, USE THE DRILL TEMPLATE TO THE RIGHT.

PLACE MD-120 SERIES ON TOP OF MOUNTING SURFACE, ALIGNING THE (4) THREADED

•

HOLES OF MD-120 SERIES BASE WITH THE (4) 1/4" HOLES THROUGH MOUNTING SURFACE.

INSTALL THE (4) HEX BOLTS, LOCK WASHERS, AND FLAT WASHERS THROUGH MOUNTING

•

SURFACE INTO THE THREADED HOLES OF THE MOTION DEVICE AS SHOWN IN THE DIAGRAM

BELOW.

TIGHTEN ALL HARDWARE, ENSURING LOCK WASHERS ARE FULLY COMPRESSED.

•

REV.

DESCRIPTION

DATE

10-16

RELEASED TO PRODUCTION

10-16

3-17

REMOVED C-MD-124 AND C-MD-125

3-17

75 JACKSONVILLE RD,

WARMINSTER, PA. 18974

1-800-524-9900

SIZE

SCALE: 1:0.9586

SHEET 1 OF 3

DO NOT SCALE DRAWING

WEIGHT (LB): 8.97

TITLE:

DWG. NO.

C-MD-INST-4

REV

3-17

HAVIS, INC.

MD-120 SERIES INSTRUCTIONS

STANDARD

180° ROTATION

(AS SHIPPED)

*NOTE: OPTIONAL 360° MOUNTING IS NOT

RECOMMENDED FOR MOUNTING DEVICES HEAVIER

THAN A KEYBOARD.

OPTIONAL

90° ROTATION

(ADD SUPPLIED 1/4"

HARDWARE AS SHOWN)

OPTIONAL

*360° ROTATION

(DO NOT USE 1/4" HARDWARE)

1/4-20 NYLOCK NUT

(GSM30016)

1/4" FLAT WASHER

(GSM31005)

1/4" NYLON WASHER

(CM86600)

5/16-18 JAM NUT

(GSM30068)

5/16-18 NYLOCK NUT

(GSM30017)

5/16" SS BELLEVILLE WASHER

(GSM31091)

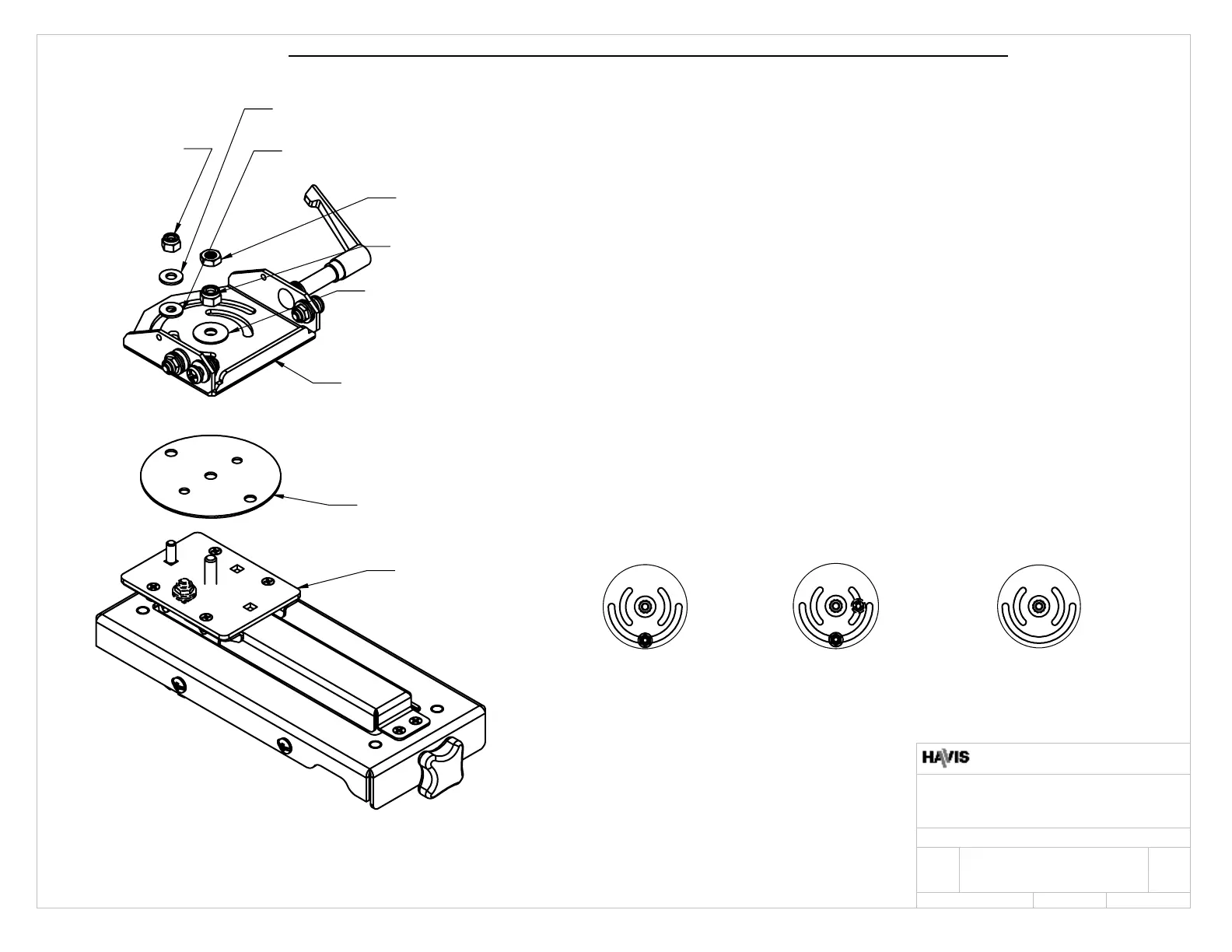

MOTION DEVICE

C-MD-204 SHOWN

(TOP NOT SHOWN FOR CLARITY)

3.75" DELRIN WASHER

(CM003105)

CM007671

CARRIAGE BOLT PATTERNS:

LOOSEN KNOB AND PUSH SLIDE TO THE FAR END OF UNIT, OPPOSITE OF THE

•

KNOB.

PLACE CM003105 DELRIN WASHER OVER 5/16 PEM STUD AND ALIGN WITH

•

HOLES OF PLATE CM007671.

LOOSEN HANDLE OF MOTION DEVICE AND FULLY OPEN TO PROVIDE

•

ACCESS TO HARDWARE DURING INSTALLATION

PLACE BASE OF MOTION DEVICE ONTO DELRIN WASHER CM003105 AND

•

OVER 5/16 PEM STUD OF PLATE CM007671.

ATTACH 5/16 BELLEVILLE WASHER, 5/16-18 NYLOCK NUT, AND 5/16-18 JAM

•

NUT TO 5/16 PEM STUD AND TIGHTEN UNTIL SNUG.

USING THE GUIDE BELOW, SELECT THE CARRIAGE BOLT PATTERN THAT

•

ACHEIVES THE DESIRED RANGE OF ROTATION FOR THE MOTION DEVICE.

INSERT THE APPROPRIATE 1/4-20 X 1/2 CARRIAGE BOLTS THROUGH THE

•

BOTTOM OF PLATE CM007671, AND THROUGH CM003105 AND THE MOTION

DEVICE BASE.

ATTACH WITH 1/4 PLASTIC WASHER, 1/4 FLAT WASHER, AND 1/4-20 NYLOCK

•

GSM30016 AS SHOWN IN THE DIAGRAM.

REFER TO USER ADJUSTMENTS PAGE FOR INFORMATION ON ADJUSTING

•

ROTATIONAL FORCE OF DEVICE.

MOTION DEVICE INSTALLATION (C-MD-121) AND ROTATION OPTIONS (C-MD-122 AND C-MD-123)

75 JACKSONVILLE RD,

WARMINSTER, PA. 18974

1-800-524-9900

SIZE

SCALE: 1:3

SHEET 2 OF 3

DO NOT SCALE DRAWING

WEIGHT (LB): 8.40

TITLE:

DWG. NO.

C-MD-INST-4

REV

3-17

HAVIS, INC.

MD-120 SERIES INSTRUCTIONS

Produkt Specifikationer

Mærke:	Havis
Kategori:	Ikke kategoriseret
Model:	C-MD-121
Vægt:	2720 g
Produktfarve:	Sort
